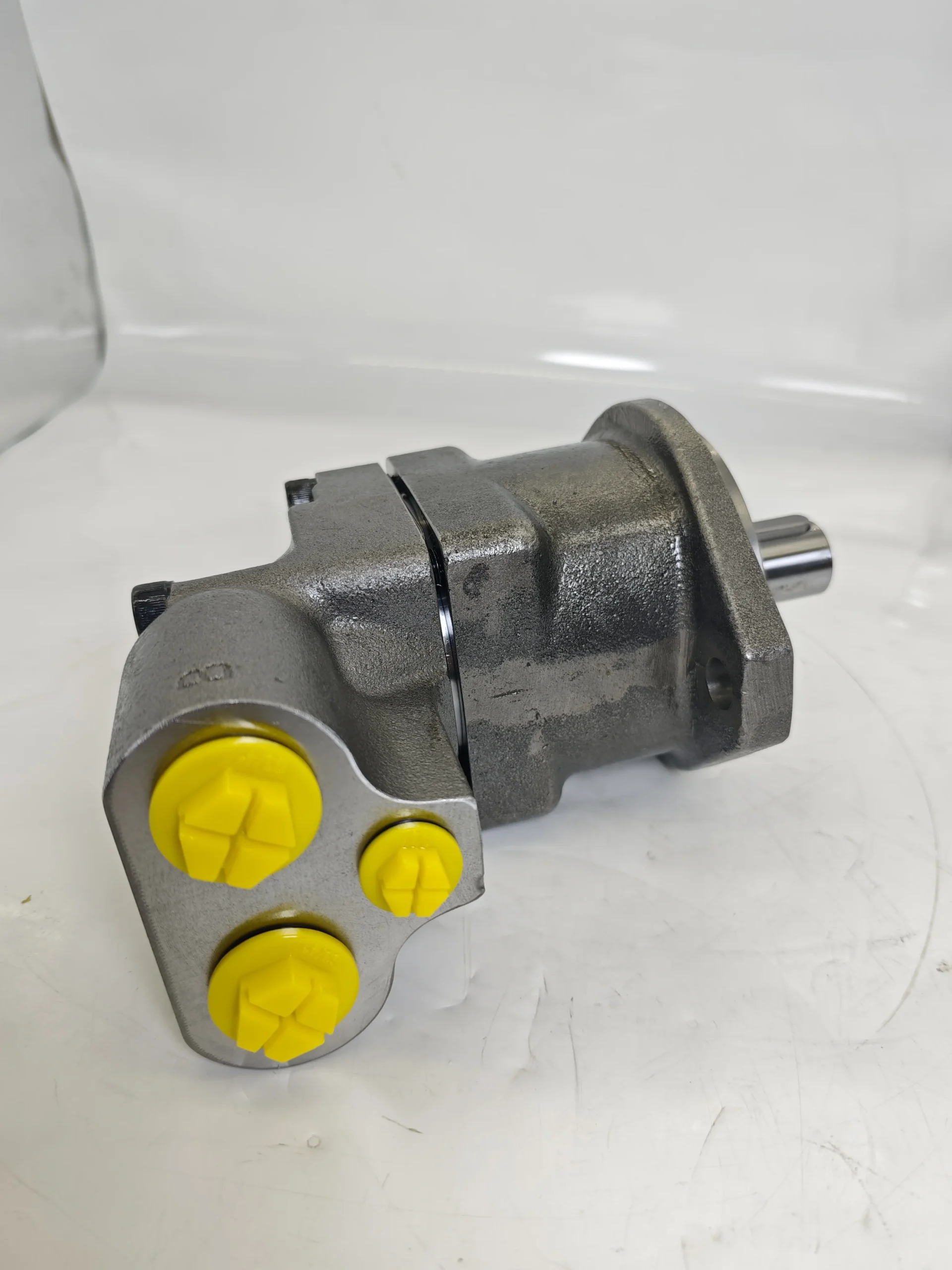

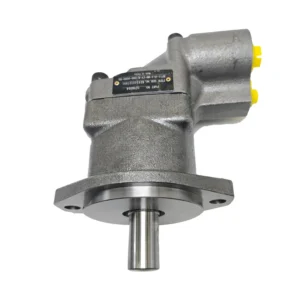

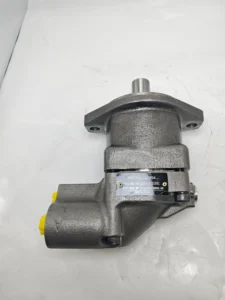

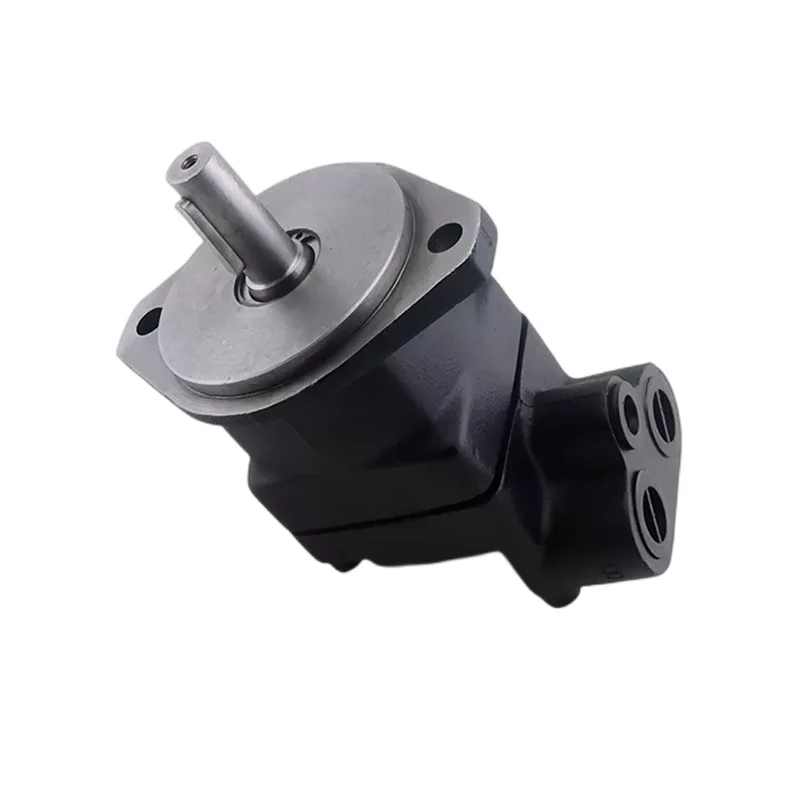

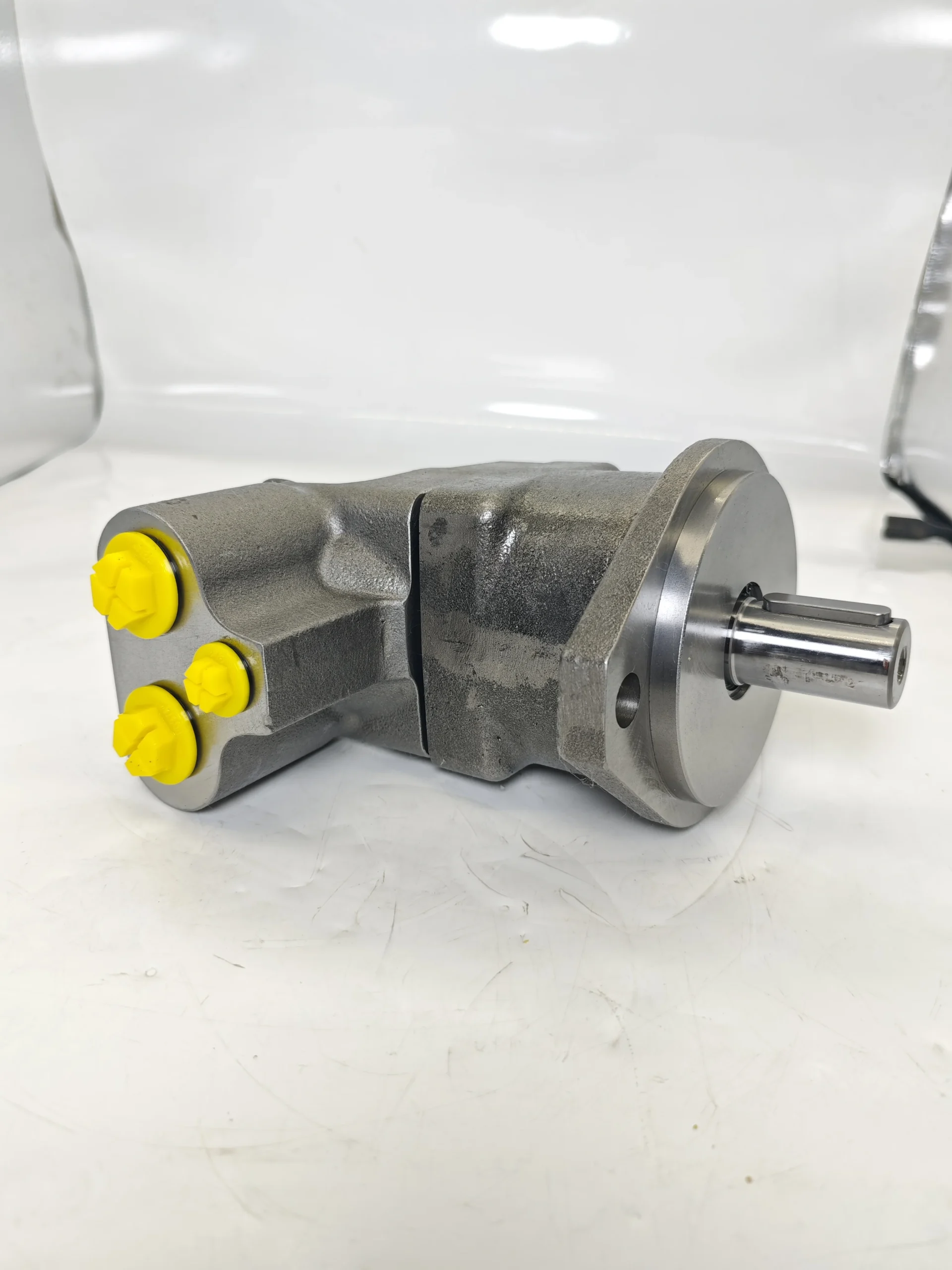

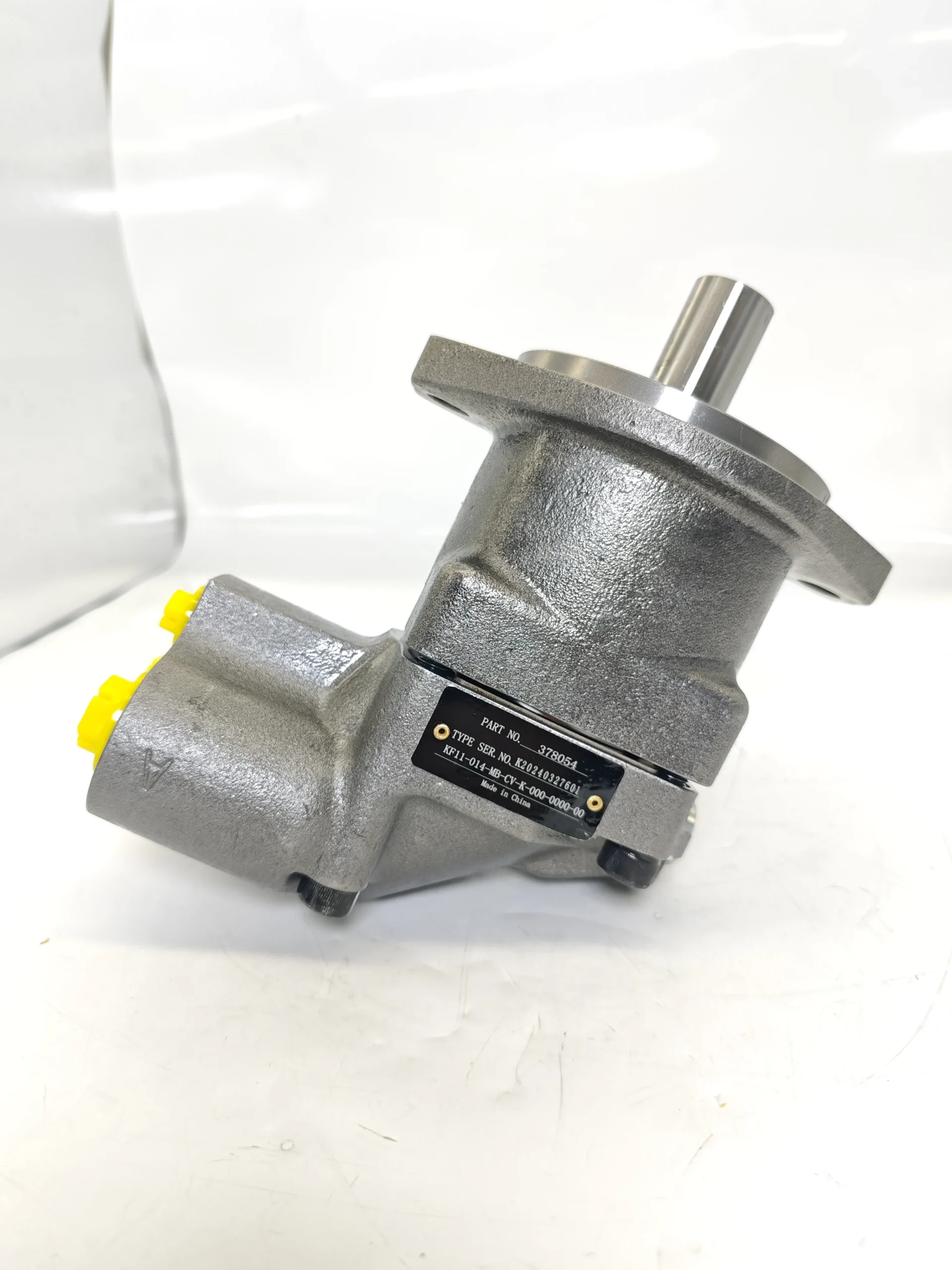

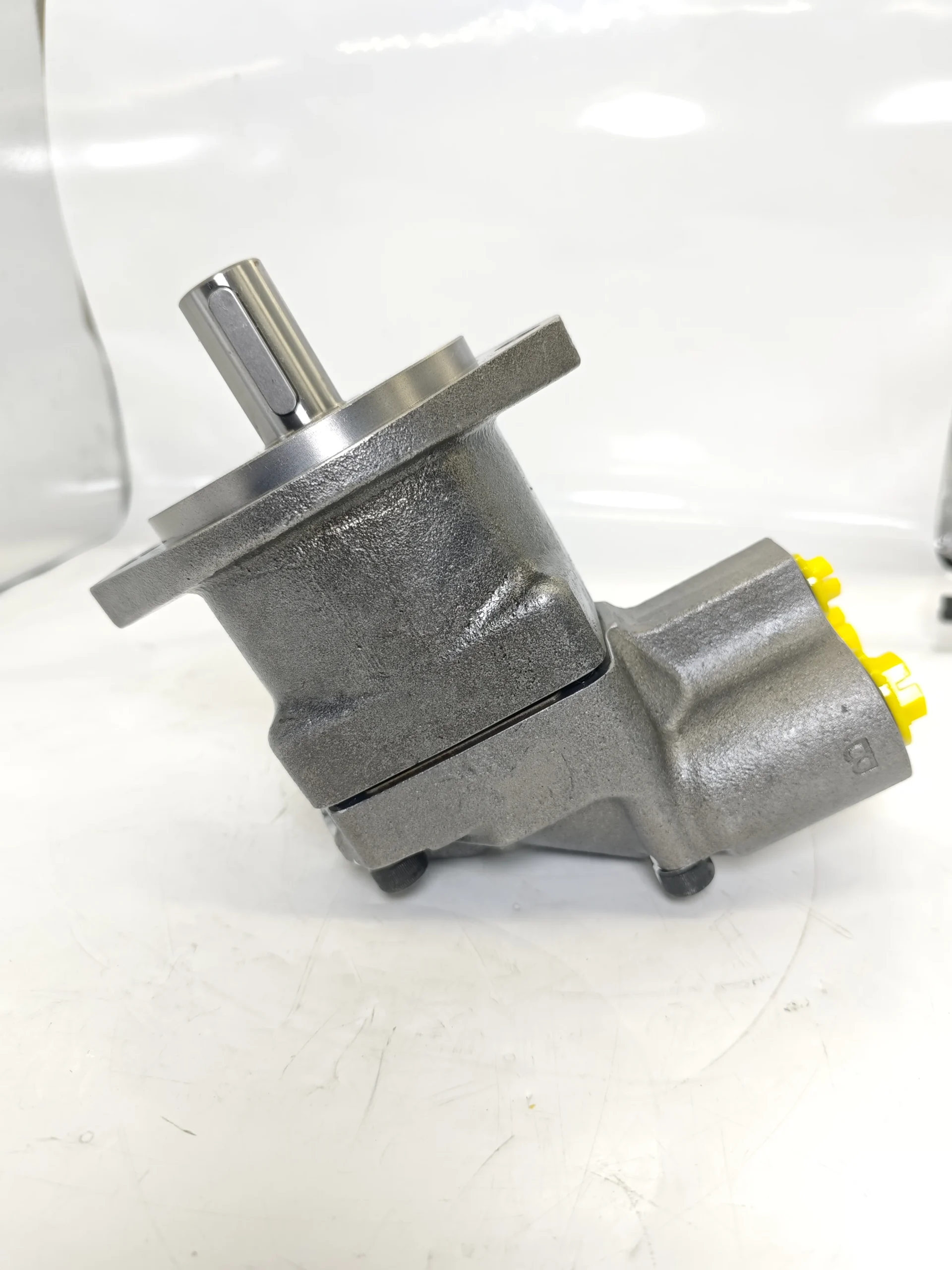

F11-010 F11-014 F11-019 Axial Piston Hydraulic Motor | Parker F11 Series Replacement

Genlu Hydraulic proudly introduces our F11 Series high-performance, heavy-duty industrial and mobile bent-axis fixed displacement hydraulic motors and pumps. Specifically engineered to conquer ultra-severe operating environments marked by persistent high pressure, rapid speed acceleration, and frequent shock loads, this series delivers a precision-manufactured, drop-in replacement for the classic Parker (Volvo) F11 family. We specialize in cross-referencing and supplying heavy-duty, field-proven model configurations, including F11-010-MR-CN-K-000, F11-014-MB-CV-K-00-0000-00, and F11-019-MB-CV-K.

As the critical rotary actuator in robust heavy-duty transmission drivetrains, the F11 series capitalizes on a unique $40^\circ$ bent-axis piston configuration to deliver maximum power density within an exceptionally small physical envelope. Genlu’s F11 series conforms completely to standard industrial ISO, CETOP, and SAE mounting blueprints. We guarantee 100% Drop-in Interchangeability across standard mounting pilot diameters, keyed or splined drive shafts, main fluid ports (CETOP/SAE high-pressure series), and case drain port orientations. Every motor undergoes 100% full-pressure, full-load torque output and dynamic case-leakage validation on our synchronized test cells, ensuring long-term mechanical reliability under aggressive duty cycles.

Technical Specifications

• Product Line: F11 Series Fixed Displacement Axial Piston Bent-Axis Hydraulic Motor

• Core Covered Model Configurations: F11-010-MR-CN-K-000, F11-014-MB-CV-K-00-0000-00, F11-019-MB-CV-K

• Nominal Displacement Values:

  • F11-010 Variant: 9.8 $cc/rev$

  • F11-014 Variant: 14.3 $cc/rev$

  • F11-019 Variant: 19.0 $cc/rev$

• Continuous Operating System Pressure: 350 bar (35 MPa)

• Intermittent Interlocking Peak Pressure: 420 bar (42 MPa)

• Maximum Continuous Shaft Speed:

  • F11-010 Configuration: Up to 10,200 rpm

  • F11-014 Configuration: Up to 9000 rpm

  • F11-019 Configuration: Up to 8100 rpm

• Flange & Rotation Setup (MB / MR): Specifies standard industrial ISO mounting configuration paired with designated directional rotation (Bi-directional or specific single-direction routing)

• Main Fluid Port Orientation (CV / CN):

  • CV Code: Rear-mounted high-pressure port architecture (Threaded or SAE Flange)

  • CN Code: Side-mounted high-pressure manifold port arrangement

• Shaft Extension Geometry (K Code): High-tensile standard parallel keyed shaft extension (splined variants available upon prompt)

• Displacement Control Logic: Fixed displacement layout; output shaft velocity is strictly linear to the input volume flow rate

• Net Dry Weight Range: Approx. 8.5 kg to 11.0 kg (Securing elite power-to-weight ratios)

Key Technical Advantages:

• Proven $40^\circ$ Bent-Axis Angle for High Efficiency: The heavy-angle configuration maximizes stroke parameters of the piston array, generating immense starting and continuous torque. Micro-tolerance matching gaps confine cross-port internal leakage to negligible levels, ensuring optimal volumetric stability at a sustained 350 bar.

• Spherical Piston Ring & Single-Piece Laminated Design: Features an advanced spherical piston ring interface tracking the cylinder bore. This structural modification promotes a tough hydrodynamic fluid film under severe thermal cycles, effectively preventing component galling or cylinder seizure during high-frequency pressure spikes.

• Heavy-Duty Tapered Roller Bearing Infrastructure: The drive assembly is buttressed by rugged, pre-loaded opposition-type tapered roller bearings. This design directly absorbs high external radial and axial forces from external mechanical links like gears or drive belts, allowing direct inline coupling without intermediate bearing blocks.

• Hardened Spherical Valve Plate & Rigid Housing: The spherical timing plate is forged from hardened alloy steel with CFD-optimized flow ports to curtail structural fluid shear and deceleration hammer. The exterior casting is constructed from heavy-wall nodular iron for maximum structural dampening, reducing aggregate harmonic acoustic projection.

Application Areas:

• Mobile Machinery Drivetrains: High-speed track travel actuators for mini-excavators, rotary crawler drilling rigs, asphalt cold-milling cutters, and agricultural harvester header drives.

• Marine & Offshore Deck Equipment: Heavy-duty hydraulic winches, mooring capstans, marine cranes, industrial shredders, and closed-loop hydrostatic drives.

• Specialized Auxiliary Transport Equipment: Direct drive for high-pressure water pumps on emergency firefighting apparatuses, vehicle-mounted auxiliary generators, and rapid flywheel circuits on refuse packers.

Expert Maintenance Tips:

• Mandatory Pre-Start Housing Priming: F11 configurations operate at extreme rotational velocities. Prior to initially engaging the motor, YOU MUST completely pre-fill the motor housing with clean, fresh hydraulic fluid via the uppermost case drain port. Jog the motor at idle speed to vent trapped air pocket blocks; dry cranking will cause immediate shoe/bearing friction failure.

• Isolate and Manage Case Drain Back-Pressure: The case drain line must be routed independently and unrestricted straight back to the hydraulic reservoir below the fluid level. Never merge this drain line into system main low-pressure return pipes. Ensure internal case pressure stays strictly below 2 bar during operation to avoid structural shaft seal rupture or fluid weeping.

• Enforce Strict Fluid Viscosity and Thermal Thresholds: Because the F11 rotates up to 8000+ rpm, fluid shearing inside the cylinder kit is highly concentrated. Deploy efficient oil coolers to keep continuous tank temperatures regulated within 30°C – 60°C. Ensure the working kinematic viscosity never drops below $10 mm^2/s$ at peak operational temperature.
