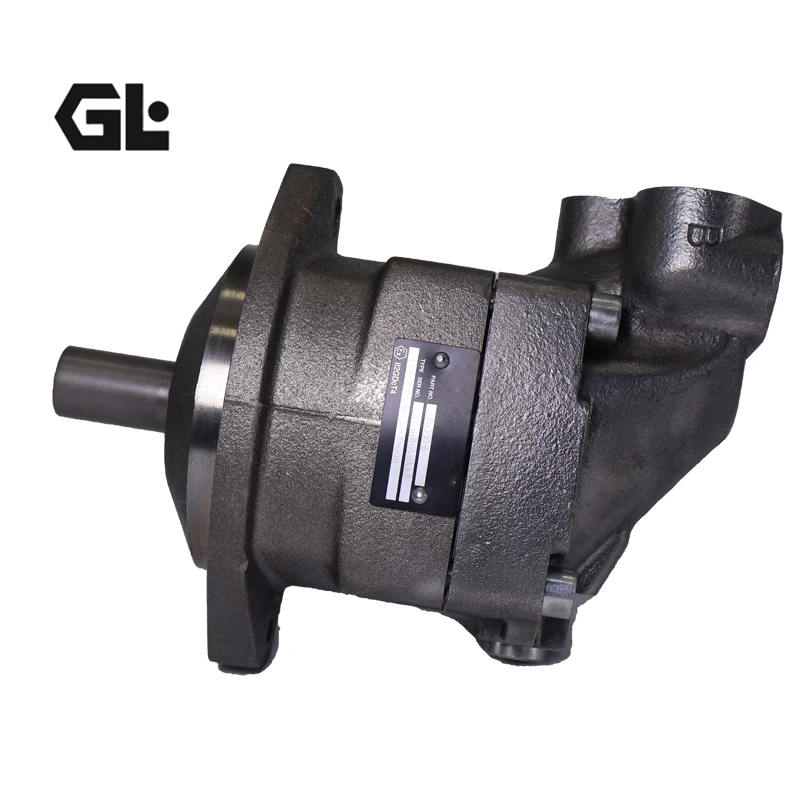

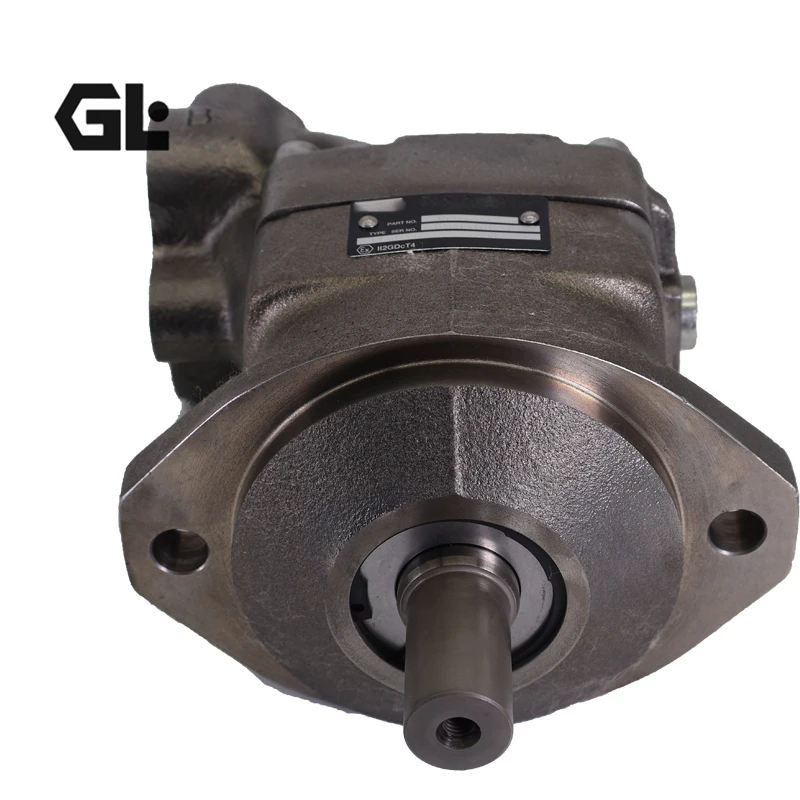

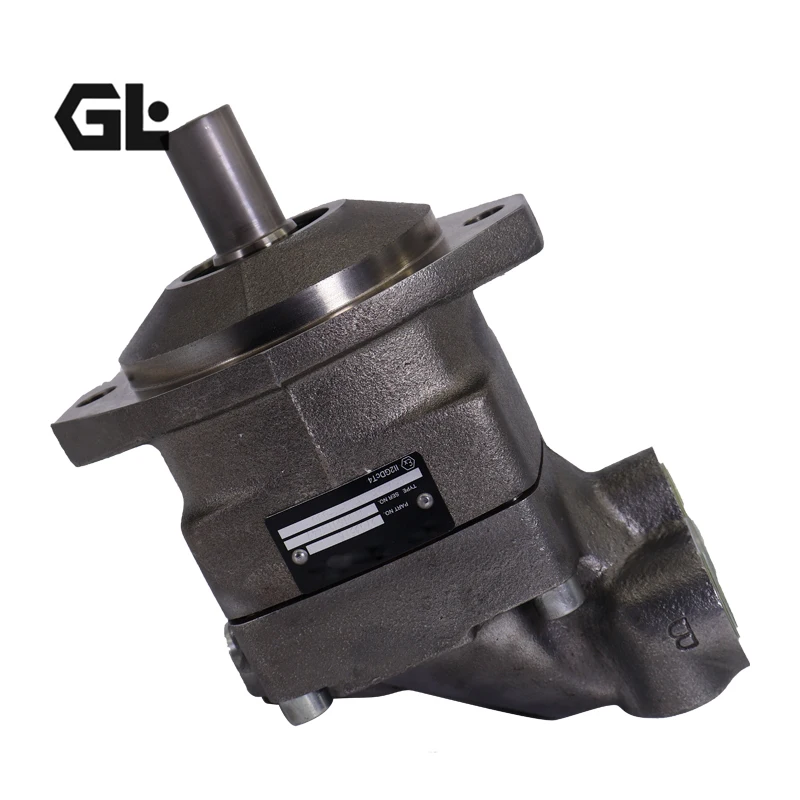

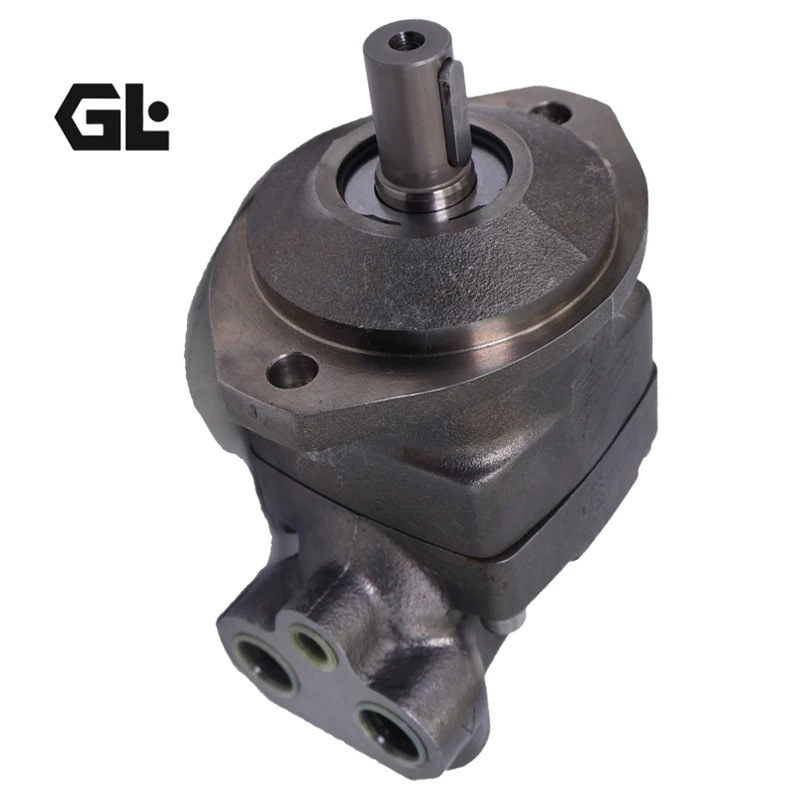

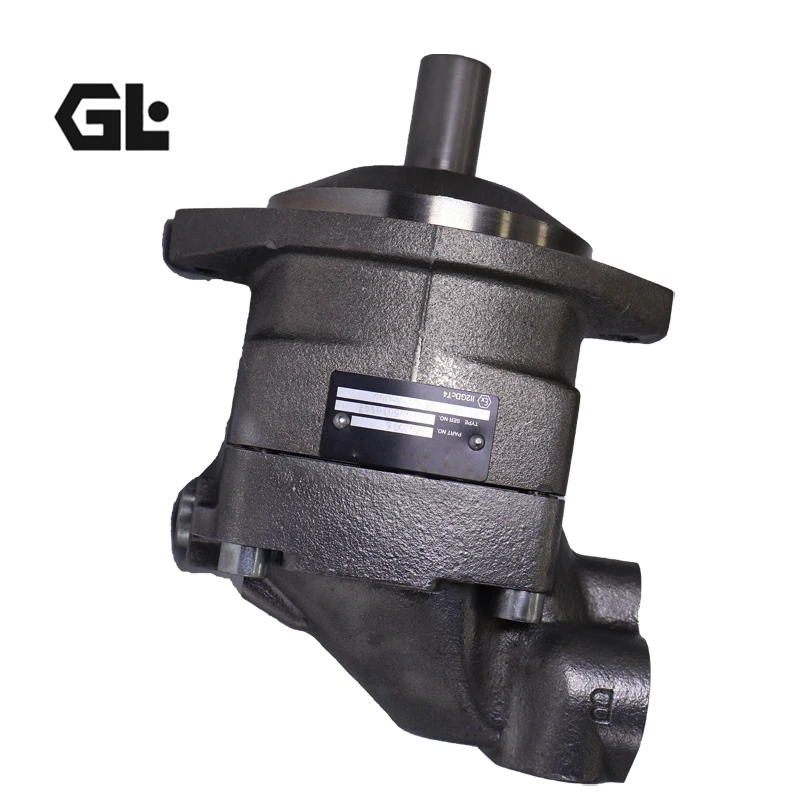

F11-005-HB-CE-K-000 Parker Hydraulic Motor 4.9cc/rev 420bar

Model 1: F11-005-HB-CE-K-000

Product Overview

The F11-005-HB-CE-K-000 is a compact model from Parker’s F11 series of bent-axis fixed displacement axial piston motors. Featuring Parker’s unique spherical piston design with a 40° angle between shaft and cylinder barrel, this motor delivers exceptional power density in an extremely compact package. Our product serves as a direct interchange replacement for the original Parker F11-005 series motor, with identical mounting dimensions and port configurations.

Every unit undergoes 100% simulated duty-cycle testing—performance-validated under rated pressure, peak pressure, and full speed range to ensure volumetric efficiency, mechanical efficiency, torque output, noise levels, and thermal characteristics meet or exceed original OEM specifications.

Technical Specifications (Bulleted List)

• Model: F11-005-HB-CE-K-000

• Displacement: 4.9 cm³/rev

• Max. Intermittent Pressure: 420 bar

• Max. Continuous Pressure: 350 bar

• Max. Intermittent Speed: 14,000 rpm

• Max. Continuous Speed: 12,800 rpm

• Min. Continuous Speed: 50 rpm

• Max. Intermittent Flow: 69 L/min

• Max. Continuous Flow: 63 L/min

• Theoretical Torque @ 100 bar: 7.8 Nm

• Moment of Inertia: 0.16 × 10⁻³ kg·m²

• Housing Material: Cast Iron

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Weight: Approx. 4.7 kg

Key Technical Advantages

1. Unique Spherical Piston Design
The patented spherical piston design with laminated piston rings significantly reduces internal leakage while delivering excellent thermal shock resistance.

2. Gear Synchronization & Double Tapered Bearings
Precision timing gears ensure exact phase synchronization between shaft and cylinder barrel, providing exceptional tolerance to high G-forces and torsional vibrations. Heavy-duty roller bearings support substantial external axial and radial shaft loads.

3. Ultra-High Speed Capability
With a maximum intermittent speed of 14,000 rpm, the F11-005 offers class-leading speed performance among bent-axis piston motors in its displacement range.

4. Wide Temperature Range Operation
Operating temperature range from -40°C to +115°C enables reliable performance in both extreme cold and high-temperature environments.

Application Areas

• High-speed saw drive applications (chain saws, circular saws)

• Agricultural machinery (harvesters, balers)

• Construction equipment (mini-excavators, skid-steer loaders)

• Industrial high-speed hydraulic systems

• Winch drive systems

• Turf care equipment

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Pre-lubricate all moving parts with clean hydraulic fluid before assembly.

3. Monitor case drain flow regularly—an abnormal increase indicates potential piston ring or cylinder barrel wear.

4. Spherical piston rings worn beyond 50% must be replaced immediately.

5. Prime the motor housing with hydraulic oil before initial start-up.

Model 2: F11-006-LB-CN-K-000

Product Overview

The F11-006-LB-CN-K-000 is a 6.0 cm³/rev displacement model in Parker’s F11 series of bent-axis fixed displacement axial piston motors. This model offers a larger displacement option beyond the F11-005 while maintaining the F11 series’ hallmark compact design and high power density.

Our product provides a fully interchangeable direct replacement for the original Parker F11-006 series motor, with identical mounting dimensions, port specifications, and shaft configurations. Each unit undergoes 100% simulated duty-cycle testing.

Technical Specifications (Bulleted List)

• Model: F11-006-LB-CN-K-000

• Displacement: 6.0 cm³/rev

• Max. Intermittent Pressure: 420 bar

• Max. Continuous Pressure: 350 bar

• Max. Intermittent Speed: 11,200 rpm

• Max. Continuous Speed: 10,200 rpm

• Min. Continuous Speed: 50 rpm

• Max. Intermittent Flow: 67 L/min

• Max. Continuous Flow: 61 L/min

• Theoretical Torque @ 100 bar: 9.5 Nm

• Moment of Inertia: 0.39 × 10⁻³ kg·m²

• Housing Material: Cast Iron

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Weight: Approx. 6.5 kg

Key Technical Advantages

1. High Volumetric Efficiency & Low Internal Leakage
The laminated piston ring design minimizes internal leakage, ensuring stable output speed and torque even under high-load conditions.

2. Excellent Starting and Low-Speed Performance
F11 motors deliver exceptionally high torque at start-up while maintaining smooth operation at low speeds.

3. High Vibration Resistance
Precision gear synchronization and double tapered bearing design ensure reliable operation in high G-force and torsional vibration environments.

4. Compact & Lightweight Design
The 40° bent-axis configuration delivers outstanding power density.

Application Areas

• Construction equipment (excavators, loaders)

• Agricultural machinery (combine harvester drives)

• Industrial hydraulic systems (presses, injection molding machines)

• Winch and hoist drive systems

• Forestry machinery (logging equipment)

• Material handling equipment

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every service.

2. Lubricate all moving parts with clean hydraulic fluid before assembly.

3. Monitor case drain flow.

4. Spherical piston rings worn beyond 50% must be replaced.

5. Ensure hydraulic system filtration meets β₁₀ ≥ 75.

Model 3: F11-010-HU-CV-K-000

Product Overview

The F11-010-HU-CV-K-000 is a mid-displacement model in Parker’s F11 series, offering 9.8 cm³/rev displacement. This is one of the most widely used specifications in the F11 series, providing an excellent balance between speed and torque for both open and closed-loop hydraulic circuits.

Our product provides a fully interchangeable direct replacement for the original Parker F11-010 series motor. Each unit undergoes 100% simulated duty-cycle testing.

Technical Specifications (Bulleted List)

• Model: F11-010-HU-CV-K-000

• Displacement: 9.8 cm³/rev

• Max. Intermittent Pressure: 420 bar

• Max. Continuous Pressure: 350 bar

• Max. Intermittent Speed: 11,200 rpm

• Max. Continuous Speed: 10,200 rpm

• Min. Continuous Speed: 50 rpm

• Max. Intermittent Flow: 110 L/min

• Max. Continuous Flow: 100 L/min

• Theoretical Torque @ 100 bar: 15.6 Nm

• Moment of Inertia: 0.39 × 10⁻³ kg·m²

• Housing Material: Cast Iron

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Weight: Approx. 6.5 kg

Key Technical Advantages

1. Optimal Balance of Speed and Torque
With 9.8 cm³/rev displacement, the F11-010 achieves an ideal balance between high-speed capability (11,200 rpm) and ample torque output (15.6 Nm/100 bar)—making it the most versatile model in the F11 series.

2. High Volumetric Efficiency
The laminated piston ring design minimizes internal leakage.

3. Excellent Starting Performance
F11 motors deliver exceptionally high torque at start-up.

4. High Vibration Resistance
Precision gear synchronization ensures reliable operation in demanding environments.

Application Areas

• Construction equipment (excavators, loaders)

• Agricultural machinery (combine harvesters)

• Industrial hydraulic systems

• Winch and hoist drives

• Forestry machinery

• Material handling equipment

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every service.

2. Lubricate all moving parts with clean hydraulic fluid before assembly.

3. Monitor case drain flow.

4. Spherical piston rings worn beyond 50% must be replaced.

5. Ensure hydraulic system filtration meets β₁₀ ≥ 75.

Model 4: F11-012-LB-CN-K-000

Product Overview

The F11-012-LB-CN-K-000 is a large-displacement model in Parker’s F11 series, offering 12.5 cm³/rev. This model delivers significantly higher torque output while maintaining the F11 series’ high-speed characteristics.

Our product provides a fully interchangeable direct replacement for the original Parker F11-012 series motor. Each unit undergoes 100% simulated duty-cycle testing.

Technical Specifications (Bulleted List)

• Model: F11-012-LB-CN-K-000

• Displacement: 12.5 cm³/rev

• Max. Intermittent Pressure: 420 bar

• Max. Continuous Pressure: 350 bar

• Max. Intermittent Speed: 10,300 rpm

• Max. Continuous Speed: 9,400 rpm

• Min. Continuous Speed: 50 rpm

• Max. Intermittent Flow: 129 L/min

• Max. Continuous Flow: 118 L/min

• Theoretical Torque @ 100 bar: 19.8 Nm

• Moment of Inertia: 0.40 × 10⁻³ kg·m²

• Housing Material: Cast Iron

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Weight: Approx. 7.5 kg

Key Technical Advantages

1. Higher Torque Output
With 12.5 cm³/rev displacement delivering 19.8 Nm theoretical torque at 100 bar—approximately 27% higher than the F11-010.

2. High Volumetric Efficiency
Laminated piston ring design minimizes internal leakage.

3. High Vibration Resistance
Precision gear synchronization ensures reliable operation in demanding environments.

4. Excellent Power Density
Delivers larger displacement within the F11 series’ compact form factor.

Application Areas

• Medium construction equipment (excavators, loaders)

• Agricultural machinery (large harvesters)

• Industrial hydraulic systems

• Winch and hoist drives

• Forestry machinery

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every service.

2. Lubricate all moving parts before assembly.

3. Monitor case drain flow.

4. Spherical piston rings worn beyond 50% must be replaced.

5. Ensure filtration meets β₁₀ ≥ 75.

Model 5: F11-014-LB-CN-K-000

Product Overview

The F11-014-LB-CN-K-000 is a high-torque model in Parker’s F11 series, offering 14.3 cm³/rev displacement. This model delivers near-maximum torque output within the F11 small-frame series, ideal for applications demanding greater driving force.

Our product provides a fully interchangeable direct replacement for the original Parker F11-014 series motor. Each unit undergoes 100% simulated duty-cycle testing.

Technical Specifications (Bulleted List)

• Model: F11-014-LB-CN-K-000

• Displacement: 14.3 cm³/rev

• Max. Intermittent Pressure: 420 bar

• Max. Continuous Pressure: 350 bar

• Max. Intermittent Speed: 9,900 rpm

• Max. Continuous Speed: 9,000 rpm

• Min. Continuous Speed: 50 rpm

• Max. Intermittent Flow: 142 L/min

• Max. Continuous Flow: 129 L/min

• Theoretical Torque @ 100 bar: 22.7 Nm

• Moment of Inertia: 0.42 × 10⁻³ kg·m²

• Housing Material: Cast Iron

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Weight: Approx. 7.5 kg

Key Technical Advantages

1. High Torque Output
With 14.3 cm³/rev delivering 22.7 Nm theoretical torque at 100 bar—one of the highest torque outputs in the F11 small-frame series.

2. High Volumetric Efficiency
Laminated piston ring design minimizes internal leakage.

3. High Vibration Resistance
Precision gear synchronization ensures reliable operation in demanding environments.

4. Excellent Power Density
Delivers high torque within the F11 series’ compact form factor.

Application Areas

• Heavy construction equipment (excavators, loaders)

• Agricultural machinery (large harvesters)

• Industrial high-pressure hydraulic systems

• Winch and hoist drives

• Forestry machinery (logging equipment)

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every service.

2. Lubricate all moving parts before assembly.

3. Monitor case drain flow.

4. Spherical piston rings worn beyond 50% must be replaced.

5. Ensure filtration meets β₁₀ ≥ 75.

Model 6: F11-019-MB-CV-K-220-0000-OX

Product Overview

The F11-019-MB-CV-K-220-0000-OX is the largest displacement model in Parker’s F11 small-frame series, offering 19.0 cm³/rev. This is the “flagship” specification of the F11 small-frame series, delivering the highest power output capability in this frame size.

Our product serves as a high-quality direct interchange replacement for the original Parker F11-019 series motor, with fully interchangeable mounting dimensions, port specifications, and shaft configurations. Every unit undergoes 100% simulated duty-cycle testing—full-performance validation at rated pressure (350 bar) and peak pressure (420 bar).

Technical Specifications (Bulleted List)

• Model: F11-019-MB-CV-K-220-0000-OX

• Displacement: 19.0 cm³/rev

• Max. Intermittent Pressure: 420 bar

• Max. Continuous Pressure: 350 bar

• Max. Intermittent Speed: 8,900 rpm

• Max. Continuous Speed: 8,100 rpm

• Min. Continuous Speed: 50 rpm

• Max. Intermittent Flow: 169 L/min

• Max. Continuous Flow: 154 L/min

• Theoretical Torque @ 100 bar: 30.2 Nm

• Moment of Inertia: 1.1 × 10⁻³ kg·m²

• Housing Material: Cast Iron

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Weight: Approx. 11 kg

Key Technical Advantages

1. Maximum Displacement, Highest Torque Output
With 19.0 cm³/rev—the largest displacement in the F11 small-frame series—this motor delivers 30.2 Nm theoretical torque at 100 bar. Combined with 420 bar operating pressure, it offers the highest power output capability in this frame size.

2. Laminated Piston Rings—Low Leakage, Thermal Shock Resistance
The laminated piston ring technology minimizes internal leakage while providing excellent thermal shock resistance.

3. Power Boost Option (Optional)
The F11-019 can be equipped with the optional Power Boost feature, reducing mechanical losses in high-speed applications.

4. Heavy-Duty Roller Bearings
Support substantial external shaft loads for demanding applications.

Application Areas

• Heavy construction equipment (medium excavators, loaders)

• Agricultural machinery (large harvesters)

• Industrial high-pressure hydraulic systems

• Winch and hoist systems

• Mobile machinery hydrostatic transmissions

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Thoroughly lubricate all components with clean hydraulic fluid before assembly.

3. Regularly check case drain flow—an abnormal increase indicates internal wear.

4. Due to the significant weight (approx. 11 kg), use proper lifting equipment during installation and removal.

5. Install return line filtration with β₁₀ ≥ 75.

Model 7: F11-150-MF-CN-K-000

Product Overview

The F11-150-MF-CN-K-000 is a large-displacement heavy-duty model in Parker’s F11 series, with displacement of 150.8 cm³/rev. Specifically designed for demanding applications in heavy construction, forestry, marine cranes, and industrial drives, this is one of the highest power-rated models in the F11 series.

The F11-150 features the proven 40° bent-axis design with synchronizing gears and multi-layer piston rings, capable of functioning as both a motor and a pump. Our product provides a fully interchangeable direct replacement for the original Parker/VOAC F11-150 series motor. Every unit undergoes 100% simulated duty-cycle testing at rated pressure (350 bar) and peak pressure (420 bar).

Technical Specifications (Bulleted List)

• Model: F11-150-MF-CN-K-000

• Displacement: 150.8 cm³/rev

• Max. Intermittent Pressure: 420 bar

• Max. Continuous Pressure: 350 bar

• Max. Speed (Motor Mode): Approx. 3,600 rpm

• Max. Self-Priming Speed (Pump Mode): Approx. 2,300 rpm

• Theoretical Torque: Approx. 2.40 Nm/bar

• Housing Material: Cast Iron

• Mounting: SAE D (4-bolt)

• Ports: 1 1/2″ SAE

• Dimensions: 500 × 330 × 230 mm

• Weight: Approx. 60 kg

Key Technical Advantages

1. Ultra-Large Displacement, Maximum Torque Output
With 150.8 cm³/rev delivering approximately 2.40 Nm/bar theoretical torque, combined with 420 bar operating pressure, this motor provides exceptionally powerful driving capability.

2. Proven 40° Bent-Axis Design
Years-proven bent-axis design with synchronizing gears and multi-layer piston rings ensures high reliability and efficiency.

3. Motor/Pump Dual Functionality
The F11-150 can be used as either a high-speed motor or a high-performance pump, offering maximum flexibility for different system requirements.

4. High Axial and Radial Load Capacity
Heavy-duty roller bearings support substantial external shaft loads.

5. Low Noise Level
Delivers lower noise levels compared to competing products in its class.

Application Areas

• Heavy construction equipment (travel drives)

• Forestry machinery (logging equipment)

• Marine cranes and winches

• Oil and gas equipment

• Industrial drives (e.g., shredders)

• Agricultural machinery

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Thoroughly lubricate all components with clean hydraulic fluid before assembly.

3. Regularly check case drain flow—an abnormal increase indicates internal wear.

4. Due to the significant weight (approx. 60 kg), must use proper lifting equipment during installation and removal to prevent personal injury or component damage.

5. Ensure hydraulic system filtration meets β₁₀ ≥ 75 to protect precision components.

6. Prime the motor housing with hydraulic oil before initial start-up.
