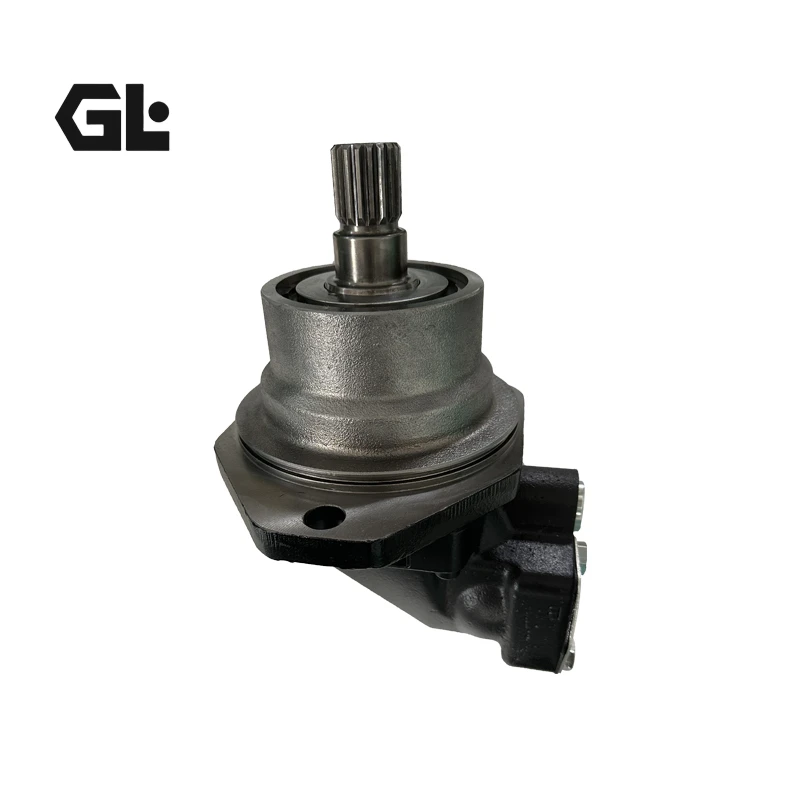

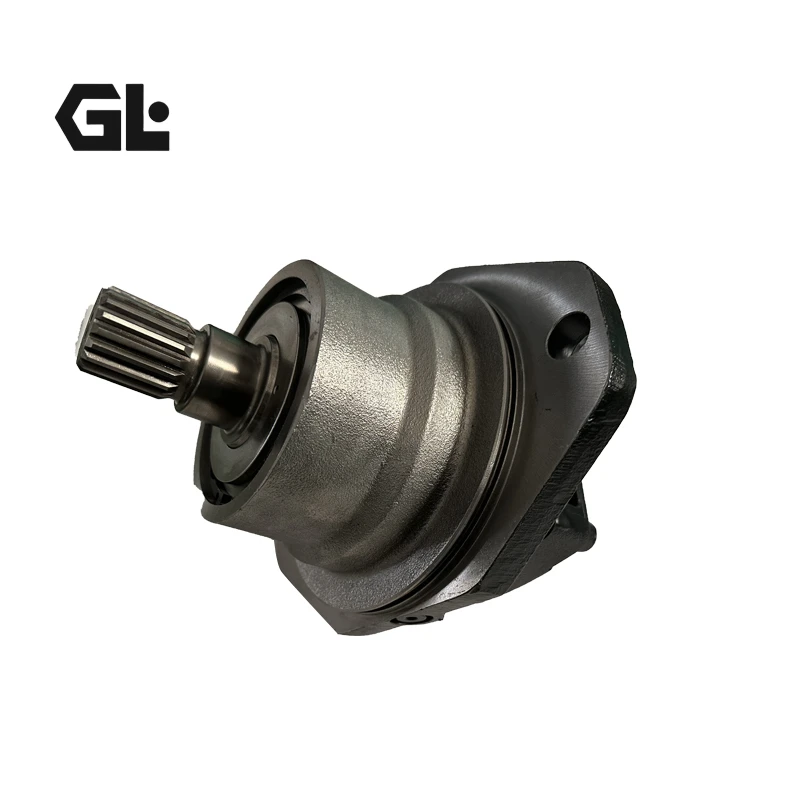

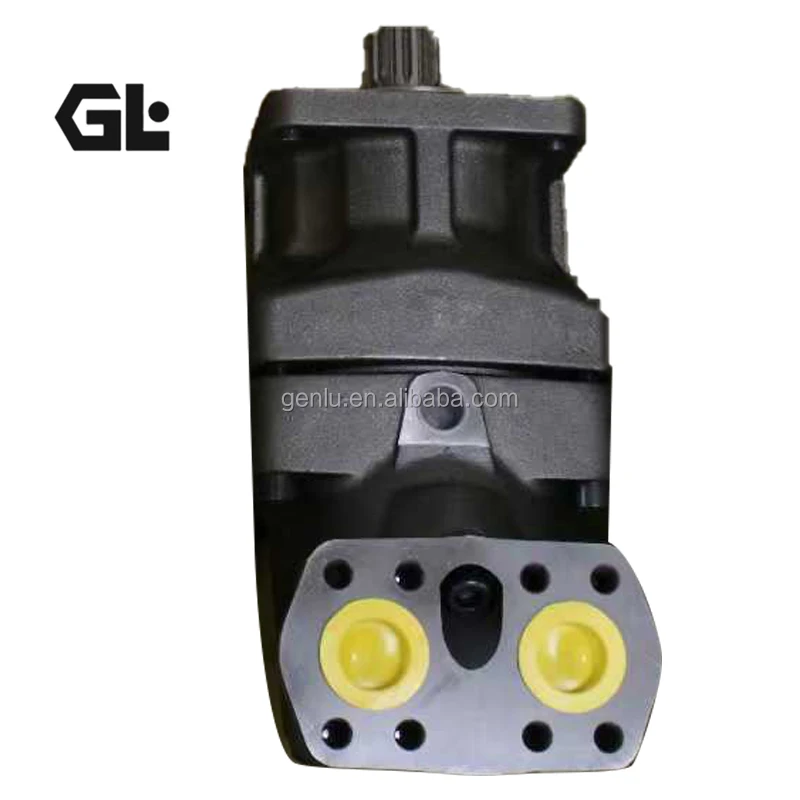

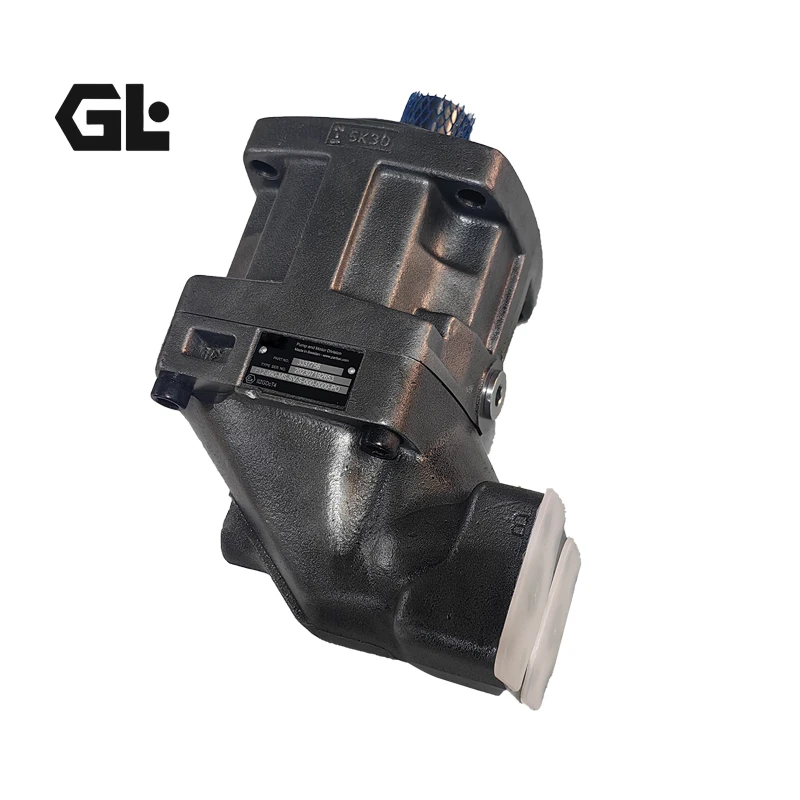

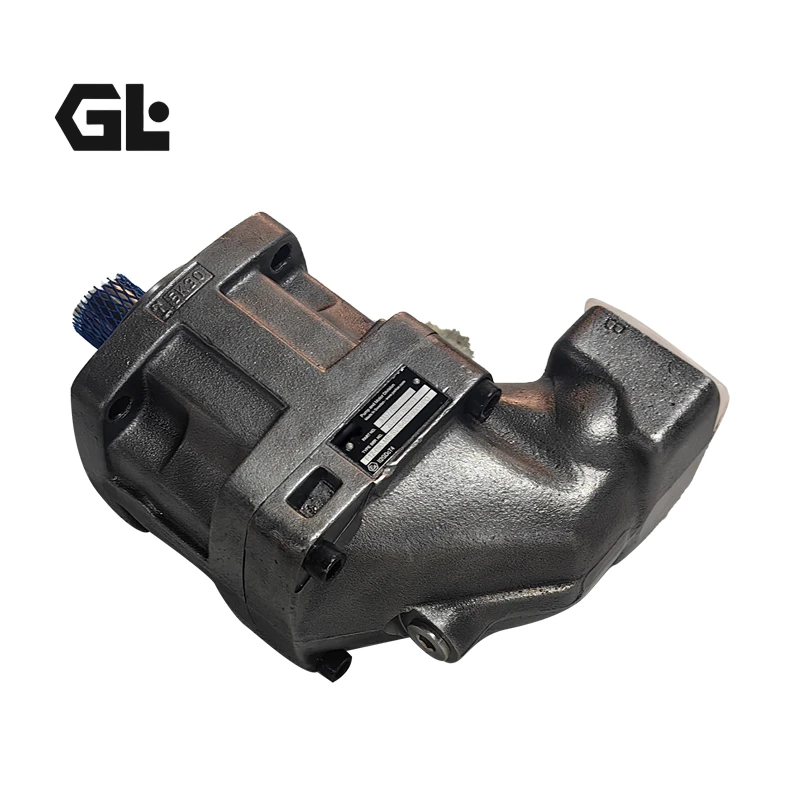

F12-110 Parker Bent Axis Piston Motor 110cc 480bar High Speed

Product Overview

The F12-110 / F12-250 (complete model examples: F12-110-MS-SV-T-000-0000-PT, F12-250-QF-SV-S-000-0000-PO) is a Parker F12 series fixed-displacement bent-axis piston hydraulic motor. Featuring patented spherical piston and gear synchronization design, it delivers exceptional overall efficiency, high speed capability and robust pressure performance for open- or closed-circuit applications. This unit offers full dimensional and functional interchangeability with genuine Parker F12 series motors, matching flange, shaft, ports and overall envelope for direct drop-in replacement. Every unit undergoes 100% simulated operating-condition testing to guarantee consistent performance under high speed, high pressure and continuous load.

Technical Specifications

• Model: F12-110 (typical codes: F12-110-MS-SV-T-000-0000-PT etc.); F12-250 (typical codes: F12-250-QF-SV-S-000-0000-PO etc.)
• Displacement: F12-110 = 110.1 cm³/rev; F12-250 = 242 cm³/rev
• Continuous working pressure: F12-110 = 420 bar; F12-250 = 350 bar
• Intermittent (peak) pressure: F12-110 = 480 bar; F12-250 = 420 bar
• Maximum continuous speed: F12-110 = 4400 rpm; F12-250 = 2700 rpm
• Maximum intermittent speed: F12-110 = 4800 rpm; F12-250 = 3000 rpm
• Minimum continuous speed: 50 rpm
• Control: Fixed-displacement bent-axis piston (bidirectional); optional speed sensor preparation
• Theoretical torque at 100 bar: F12-110 ≈ 174.8 Nm; F12-250 ≈ 384.1 Nm
• Weight: F12-110 ≈ 33 kg; F12-250 ≈ 77 kg
• Mounting: Common SAE flange
• Design features: Spherical pistons, gear synchronization, double tapered roller bearings

Data compiled from official Parker F12 series technical documentation. Exact values depend on the specific model code.

Key Technical Advantages

1. Patented spherical piston design: Spherical pistons combined with precision cylinder barrel deliver exceptional overall efficiency and thermal shock resistance, enabling unusually high shaft speeds.
2. Gear synchronization and double tapered bearings: Reliable timing gear and heavy-duty bearing arrangement ensure stability and long service life under high pressure and high speed.
3. Full interchangeability: Flange, shaft, ports and overall dimensions match genuine Parker F12 series units exactly, enabling direct replacement without interface modifications and minimizing downtime.
4. High power density and compact design: 40° bent-axis geometry provides outstanding power-to-weight ratio ideal for space-constrained high-speed applications.
5. 100% simulated-condition testing: Every unit is fully tested for pressure, speed, leakage and noise characteristics prior to shipment, ensuring consistent out-of-box performance.

Application Areas

• Construction and forestry equipment high-speed drives
• Marine, offshore and oil & gas applications
• Agricultural machinery and mining equipment
• Municipal vehicles and open/closed-circuit systems requiring high speed and efficiency

Expert Maintenance Tips

1. Before installation, thoroughly clean the shaft and flange face; use correct seals and bolt torque values to avoid misalignment or sealing-surface damage.
2. The system must include adequate filtration and overpressure protection; maintain recommended viscosity range and cleanliness levels to prevent accelerated wear.
3. Fully warm up the system and verify case drain and circuit pressure before starting; avoid dry starts and observe case-pressure limits that vary with speed.
4. Regularly monitor leakage rate, noise and temperature; when changing fluid and filters, follow recommended grades.
5. Protect shaft and ports against corrosion during storage; avoid prolonged exposure to moisture or corrosive environments.
