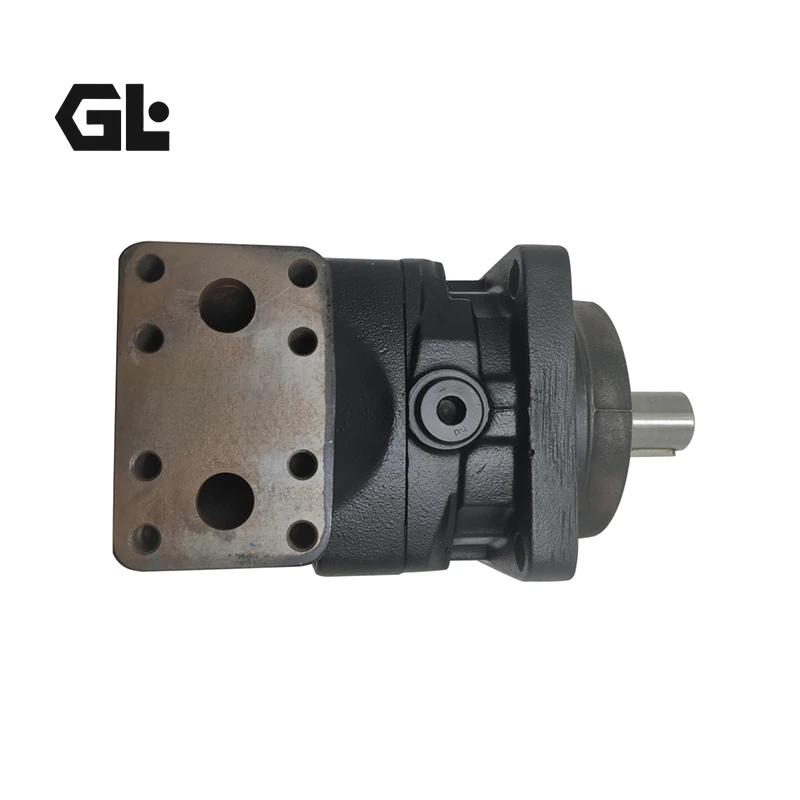

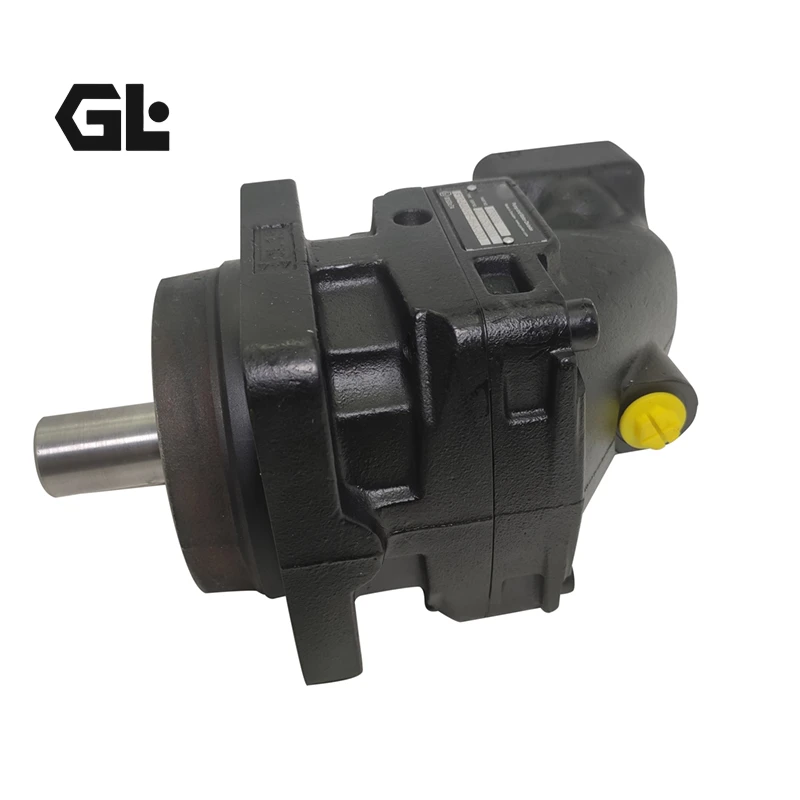

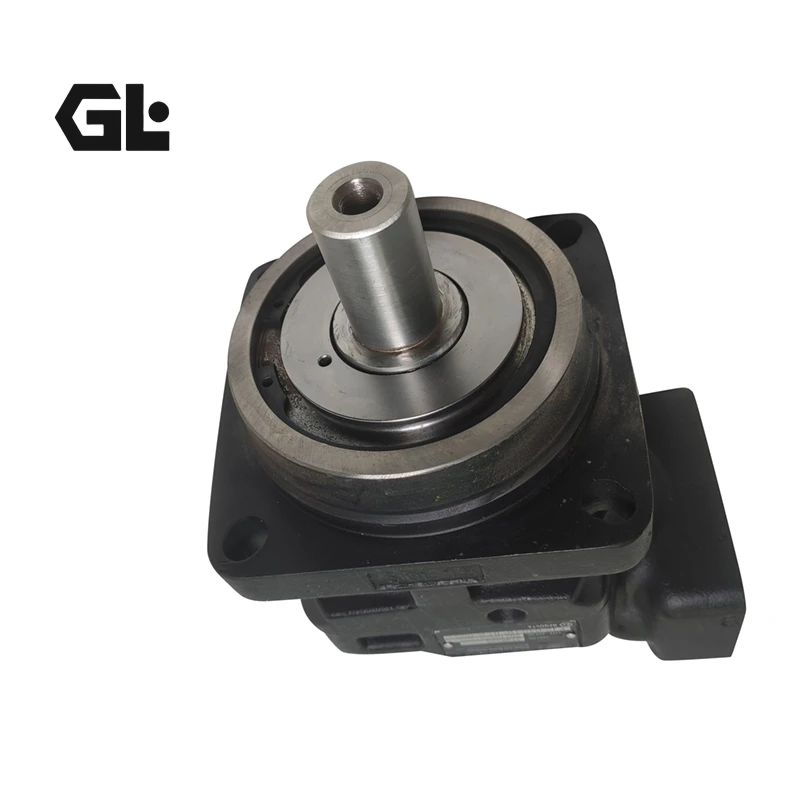

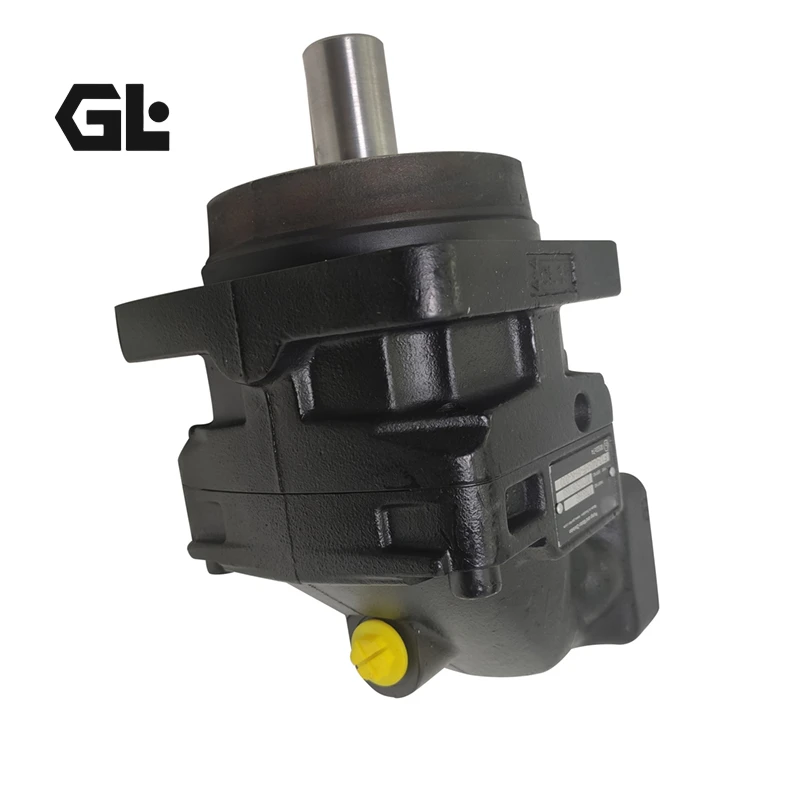

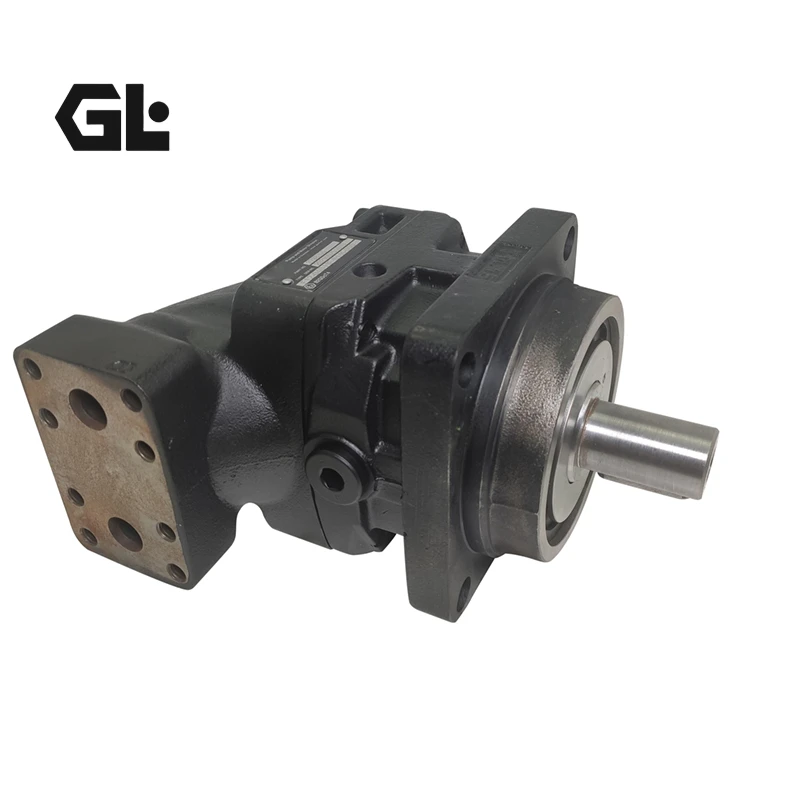

F12-030-RS-SV-S-000-000 Parker Hydraulic Motor 30cc 500bar 7300rpm

Product Overview

The F12 series is a member of the Parker F11/F12 heavy-duty bent-axis fixed displacement axial piston motor family. The F12 series shares the same 40° bent-axis design philosophy as the F11 series, featuring unique spherical pistons with laminated piston rings, but offers a larger displacement range—from 30 cc/rev to 250 cc/rev. F12 motors are fixed displacement units that can be used as either motors or pumps in both open and closed-loop circuits.

The F12 series delivers maximum intermittent operating pressures up to 480 bar (with certain models up to 500 bar) and speeds up to 7,300 rpm. Core design features include precision gear synchronization and double tapered roller bearings, providing exceptional vibration resistance and high radial load capacity.

Our product provides a fully interchangeable direct replacement for the original Parker F12 series motor, with identical mounting dimensions, port specifications, and shaft configurations. Every unit undergoes 100% simulated duty-cycle testing—performance-validated under rated pressure, peak pressure, and full speed range to ensure volumetric efficiency, mechanical efficiency, torque output, noise levels, and thermal characteristics meet or exceed original OEM specifications.

Model 1: F12-030-RS-SV-S-000-000

Technical Specifications

• Model: F12-030-RS-SV-S-000-000

• Displacement: 30 cm³/rev

• Max. Intermittent Pressure: 500 bar (7,250 psi)

• Max. Continuous Pressure: 450 bar (6,525 psi)

• Max. Speed: 7,300 rpm

• Max. Flow: Approx. 230 L/min

• Theoretical Torque @ 100 bar: Approx. 47.6 Nm

• Radial Load Capacity: 1,900 kg (4,180 lb)

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Max. Noise Level: 88 dBA

• Housing Material: Cast Iron

• Mounting: SAE / ISO / CETOP / Cartridge

• Weight: Approx. 77 kg (max)

Key Technical Advantages

1. 40° Bent-Axis Design with Spherical Pistons
The F12 series features Parker’s signature 40° bent-axis design with unique spherical pistons and laminated piston rings. The 40° angle between the drive shaft and cylinder barrel axis delivers a compact, lightweight structure. The spherical piston design significantly reduces internal leakage, improves volumetric efficiency, and provides excellent thermal shock resistance.

2. Gear Synchronization & Double Tapered Bearings
Precision timing gears ensure exact phase synchronization between shaft and cylinder barrel, providing exceptional tolerance to high G-forces and torsional vibrations. Double tapered roller bearings enable the motor to withstand radial loads up to 1,900 kg, while heavy-duty roller bearings support substantial external axial and radial shaft loads.

3. Ultra-High Pressure & High Speed Capability
The F12-030 delivers maximum intermittent pressure of 500 bar and speeds up to 7,300 rpm. The combination of high pressure and high speed provides exceptional power density in a compact package.

4. Low Internal Leakage & High Efficiency
Laminated piston rings minimize internal leakage while delivering high overall efficiency. The 7 or 9-piston design provides high starting torque and smooth motor operation.

5. Modular Mounting & Versatile Configurations
Available with SAE, ISO, CETOP, and cartridge mounting flange options. Shaft ends and port configurations comply with ISO and SAE international standards.

Application Areas

• High-Speed Saw Drives: Chain saws, circular saws

• Agricultural Machinery: Combines, balers

• Construction Equipment: Excavators, loaders

• Forestry Machinery: Logging equipment

• Industrial Equipment: Industrial hydraulic systems, winch drives

• Closed & Open Circuits: Hydrostatic transmission systems

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Pre-lubricate all moving parts with clean hydraulic fluid before assembly.

3. Prime the motor housing with hydraulic oil before initial start-up to prevent dry-start damage.

4. Monitor case drain flow regularly—an abnormal increase indicates potential piston ring or cylinder barrel wear.

5. Recommended maximum system operating temperature should not exceed 82°C; drain oil temperature should not exceed 115°C.

6. Ensure hydraulic system filtration meets β₁₀ ≥ 75 (ISO 4406 cleanliness code不低于 18/16/13).

7. Weight is approx. 77 kg—use proper lifting equipment during installation and removal.

Model 2: F12-040-MF-IV-D-000-000-0

Product Overview

The F12-040-MF-IV-D-000-000-0 is a 40 cc displacement model in the Parker F12 series bent-axis fixed displacement axial piston motor family. Positioned in the lower-middle range of the F12 series, this model combines high-speed capability (6,900 rpm) with ample torque output for agricultural machinery, construction equipment, and high-speed industrial drive applications.

Our product provides a fully interchangeable direct replacement for the original Parker F12-040 series motor, with identical mounting dimensions, port specifications, and shaft configurations. Each unit undergoes 100% simulated duty-cycle testing—performance-verified at rated pressure, peak pressure, and full speed range to ensure all performance indicators meet or exceed OEM specifications.

Technical Specifications

• Model: F12-040-MF-IV-D-000-000-0

• Displacement: 40 cm³/rev (2.44 in³/rev)

• Max. Intermittent Pressure: 480 bar (6,960 psi)

• Max. Continuous Pressure: 420 bar (6,090 psi)

• Max. Speed: 6,900 rpm (intermittent)

• Rated Speed: 6,300 rpm

• Max. Flow: 265 L/min

• Theoretical Torque @ 100 bar: Approx. 63.5 Nm

• Radial Load Capacity: 1,900 kg

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Housing Material: Cast Iron

• Mounting: SAE / ISO / CETOP / Cartridge

• Weight: Approx. 77 kg (max)

Key Technical Advantages

1. 40° Bent-Axis Design with Spherical Pistons
Features Parker’s signature 40° bent-axis design with unique spherical pistons and laminated piston rings. The 40° angle delivers a compact, lightweight structure.

2. High Speed Capability
The F12-040 delivers maximum intermittent speeds up to 6,900 rpm and rated speeds of 6,300 rpm. The optional Power Boost feature is available for high-speed applications to reduce mechanical losses.

3. Ultra-High Pressure Capability
Maximum intermittent pressure of 480 bar and continuous working pressure of 420 bar. The F12 series features face and shaft port plate designs for simple, compact construction with high precision fluid distribution.

4. Gear Synchronization & Double Tapered Bearings
Precision timing gears and double tapered roller bearings provide exceptional vibration resistance and high radial load capacity.

5. Low Internal Leakage & High Efficiency
Laminated piston rings minimize internal leakage while delivering high overall efficiency.

Application Areas

• High-Speed Saw Drives: Chain saws, circular saws

• Agricultural Machinery: Combines, windrowers

• Construction Equipment: Mini-excavators, skid-steer loaders

• Forestry Machinery: Logging equipment

• Industrial Equipment: Industrial hydraulic systems, winch drives

• Closed & Open Circuits: Hydrostatic transmission systems

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Pre-lubricate all moving parts with clean hydraulic fluid before assembly.

3. Prime the motor housing with hydraulic oil before initial start-up.

4. Monitor case drain flow regularly—an abnormal increase indicates potential piston ring or cylinder barrel wear.

5. Recommended maximum system operating temperature should not exceed 82°C; drain oil temperature should not exceed 115°C.

6. Ensure hydraulic system filtration meets β₁₀ ≥ 75.

7. Weight is approx. 77 kg—use proper lifting equipment during installation and removal.

Model 3: F12-080-LF-1H-K-000-000-0

Product Overview

The F12-080-LF-1H-K-000-000-0 is an 80 cc displacement model in the Parker F12 series bent-axis fixed displacement axial piston motor family. The F12-080 is a widely used medium-displacement specification in the F12 series, offering an excellent balance between speed and torque for medium-to-heavy construction equipment, agricultural machinery, and industrial drive applications.

Our product provides a fully interchangeable direct replacement for the original Parker F12-080 series motor, with identical mounting dimensions, port specifications, and shaft configurations. Each unit undergoes 100% simulated duty-cycle testing—performance-verified at rated pressure, peak pressure, and full speed range to ensure all performance indicators meet or exceed OEM specifications.

Technical Specifications (Bulleted List)

• Model: F12-080-LF-1H-K-000-000-0

• Displacement: 80.4 cm³/rev (4.90 in³/rev)

• Max. Intermittent Pressure: 480 bar (6,960 psi)

• Max. Continuous Pressure: 420 bar (6,090 psi)

• Peak Pressure: 500 bar (7,250 psi)

• Max. Speed: 5,500 rpm (intermittent)

• Rated Speed: 5,100 rpm

• Max. Flow: Approx. 322 L/min

• Theoretical Torque @ 100 bar: 127.6 Nm

• Radial Load Capacity: 1,900 kg

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Housing Material: Cast Iron

• Mounting: SAE / ISO / CETOP / Cartridge

• Shaft Style: K40 – Ø40 DIN 6885

• Connection: SAE 6000 1″

• Mounting Flange: Ø140 mm ISO 3019-2 4-bolt

• Weight: Approx. 77 kg (max)

Key Technical Advantages

1. Optimized Displacement-Torque Balance
With 80.4 cm³ displacement, the F12-080 strikes an ideal balance between high-speed capability (5,500 rpm) and torque output (127.6 Nm/100 bar)—one of the most versatile models in the F12 series.

2. 40° Bent-Axis Design with Spherical Pistons
Features Parker’s signature 40° bent-axis design with unique spherical pistons and laminated piston rings. The 7 or 9-piston design provides high starting torque and smooth motor operation.

3. Ultra-High Pressure Capability
Maximum intermittent pressure of 480 bar, peak pressure of 500 bar, and continuous working pressure of 420 bar. Features face and shaft port plate designs for high precision fluid distribution.

4. Gear Synchronization & Double Tapered Bearings
Precision timing gears and double tapered roller bearings provide exceptional vibration resistance and radial load capacity up to 1,900 kg.

5. Low Internal Leakage & High Efficiency
Laminated piston rings minimize internal leakage while delivering high overall efficiency.

Application Areas

• Construction Equipment: Excavator and loader travel drives

• Agricultural Machinery: Large combines, balers

• Road Construction Equipment: Rollers, pavers

• Forestry Machinery: Logging equipment

• Industrial Equipment: Industrial hydraulic systems, winch drives

• Closed & Open Circuits: Hydrostatic transmission systems

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Pre-lubricate all moving parts with clean hydraulic fluid before assembly.

3. Prime the motor housing with hydraulic oil before initial start-up.

4. Monitor case drain flow regularly—an abnormal increase indicates potential piston ring or cylinder barrel wear.

5. Recommended maximum system operating temperature should not exceed 82°C; drain oil temperature should not exceed 115°C.

6. Ensure hydraulic system filtration meets β₁₀ ≥ 75 (ISO 4406 cleanliness code不低于 18/16/13).

7. Weight is approx. 77 kg—use proper lifting equipment during installation and removal.

8. The F12-080 features SAE 6000 1″ port connections—ensure port sealing surfaces are clean and undamaged during installation.
