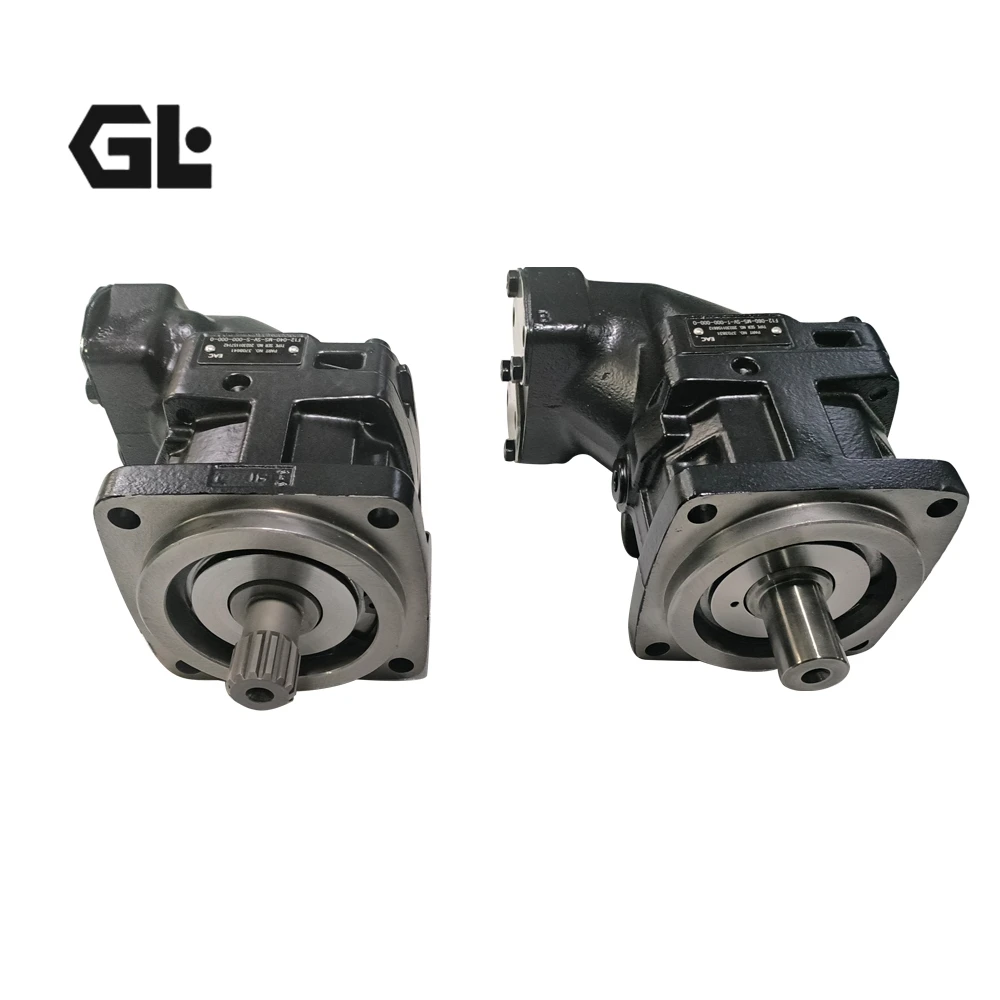

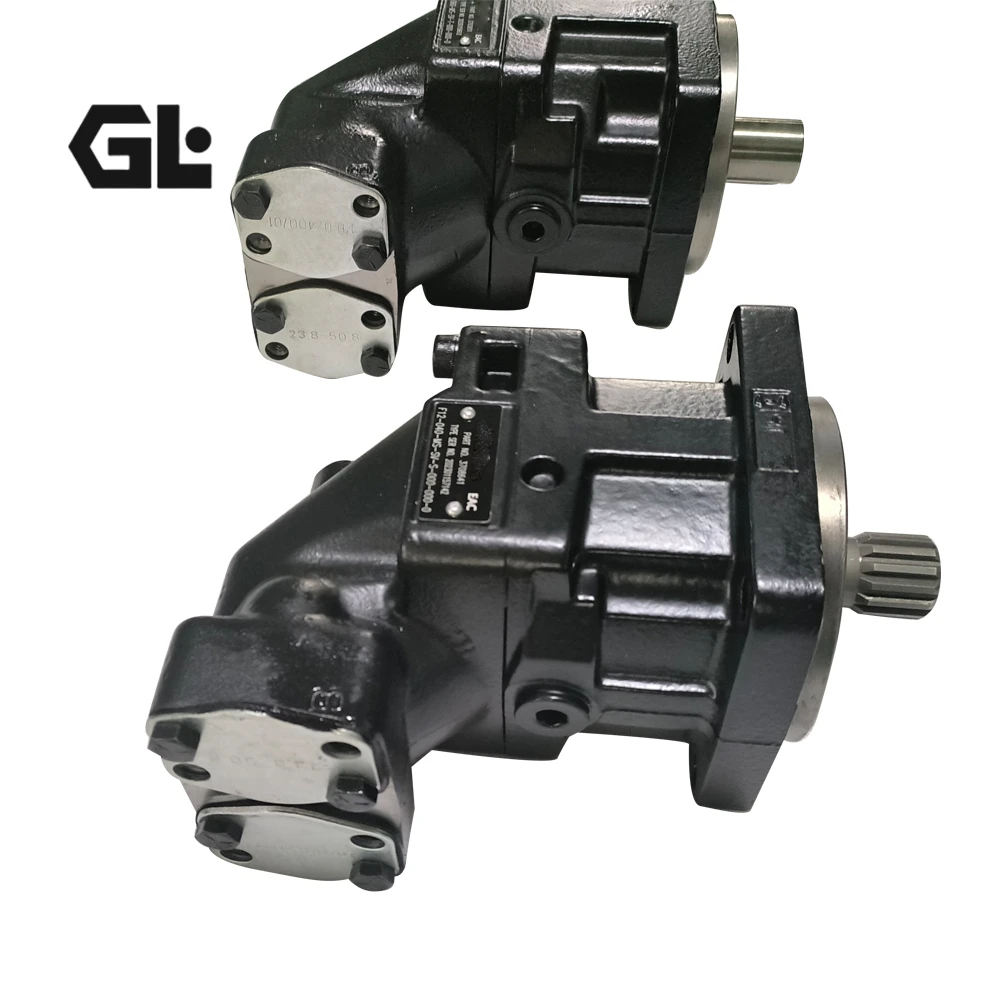

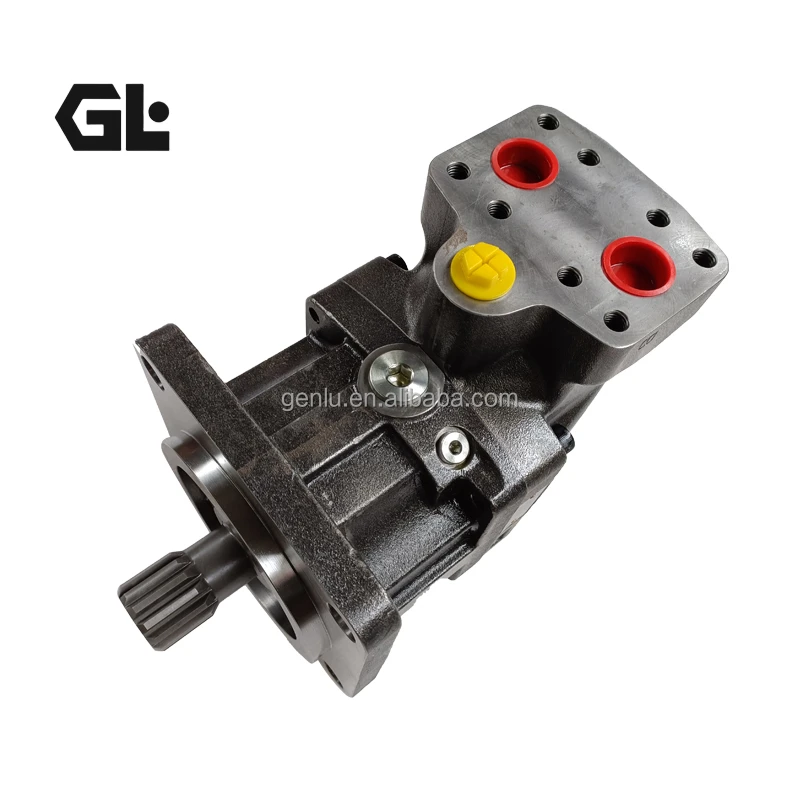

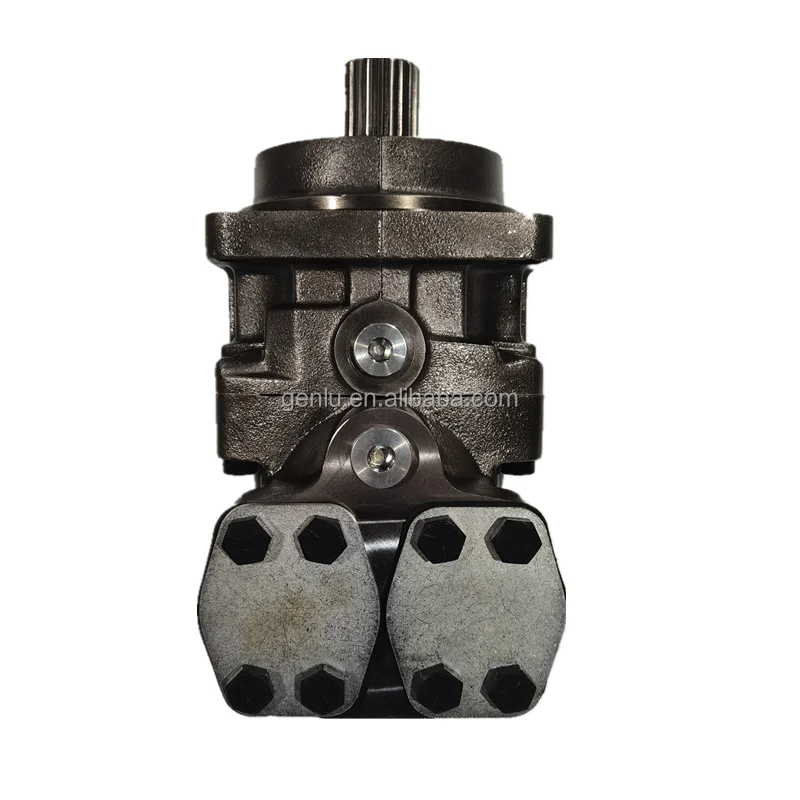

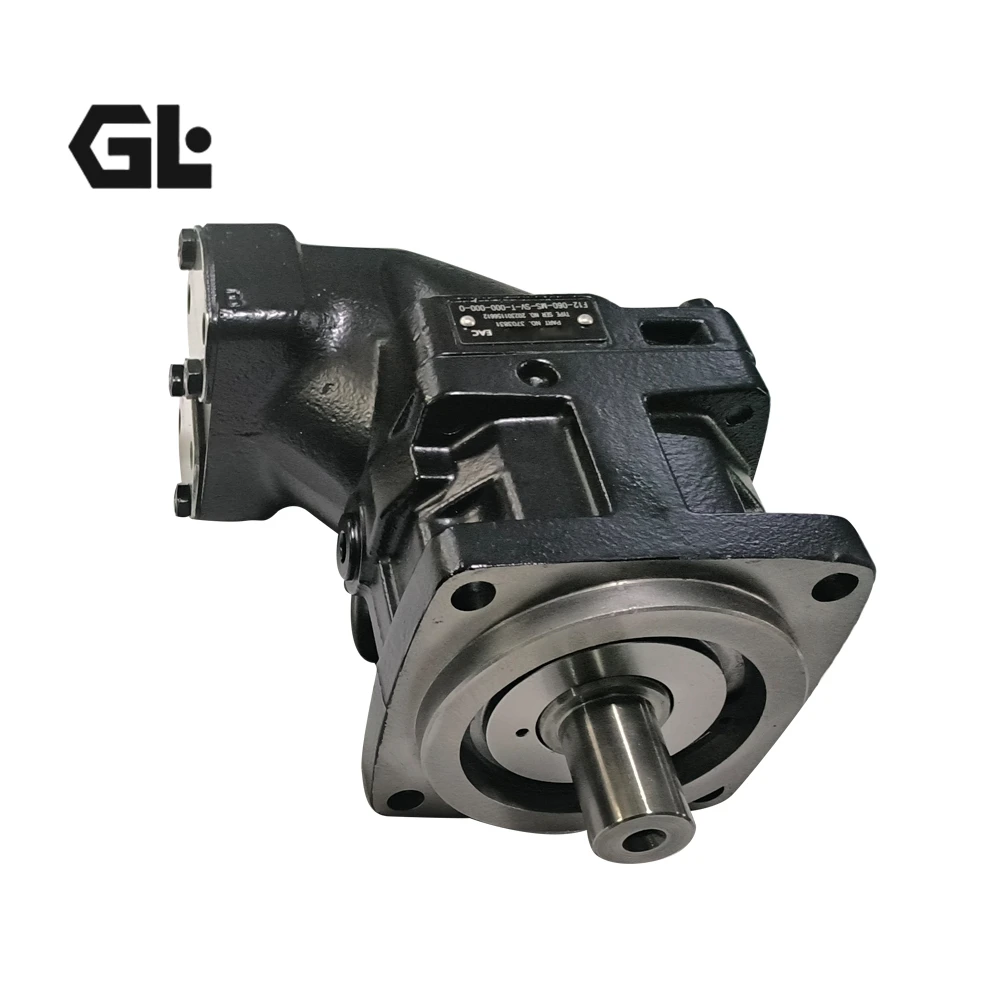

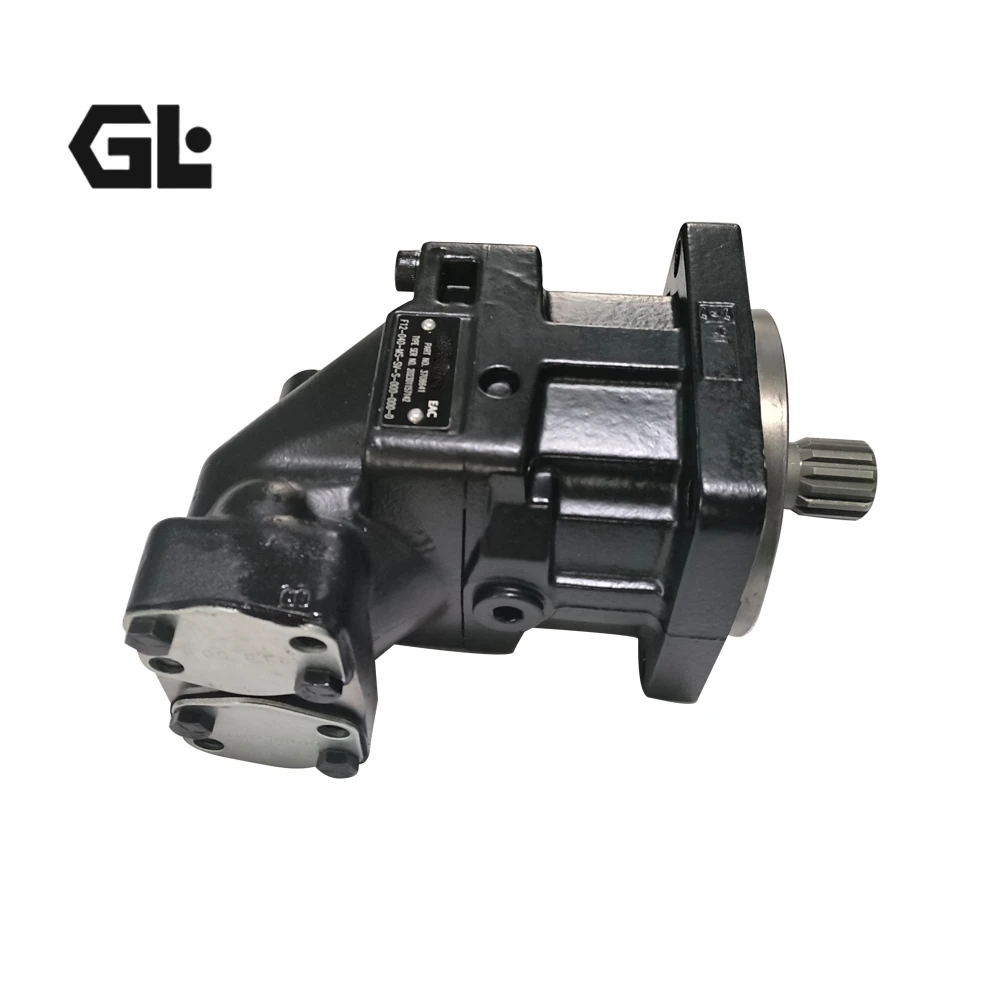

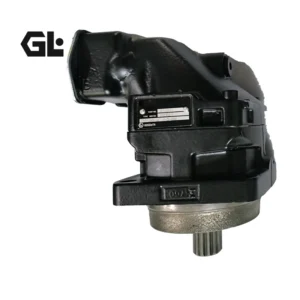

F12-040-MF-IV-Z-000-000-0 Parker Hydraulic Pump 40cc 500bar

Product Overview

The F12 series is a member of the Parker F11/F12 heavy-duty bent-axis fixed displacement axial piston motor/pump family. The F12 series shares the same 40° bent-axis design philosophy as the F11 series, featuring unique spherical pistons with laminated piston rings, and offers a displacement range from 30 cc/rev to 250 cc/rev. F12 units are fixed displacement heavy-duty motors/pumps that can be used in numerous applications in both open and closed loop circuits.

The F12 series delivers maximum intermittent operating pressures up to 500 bar and continuous operating pressures up to 450 bar. Core design features include precision gear synchronization and double tapered roller bearings, providing exceptional vibration resistance and high radial load capacity. The F12 series features face and shaft port plate designs for simple, compact construction with high precision fluid distribution.

Our product provides a fully interchangeable direct replacement for the original Parker F12 series pump, with identical mounting dimensions, port specifications, and shaft configurations. Every unit undergoes 100% simulated duty-cycle testing—performance-validated under rated pressure, peak pressure, and full speed range to ensure volumetric efficiency, mechanical efficiency, flow output, noise levels, and thermal characteristics meet or exceed original OEM specifications.

Model 1: F12-040-MF-IV-Z-000-000-0

Technical Specifications

• Model: F12-040-MF-IV-Z-000-000-0

• Displacement: 40.0 cm³/rev (2.44 in³/rev)

• Max. Intermittent Pressure: 500 bar (7,252 psi)

• Max. Continuous Pressure: 450 bar (6,527 psi)

• Max. Intermittent Speed: 6,900 rpm

• Max. Continuous Speed: 6,300 rpm

• Max. Self-Priming Speed: Approx. 2,800 rpm

• Max. Flow: Approx. 265 L/min

• Theoretical Torque @ 100 bar: 63.5 Nm

• Max. Drain Oil Temperature: 115°C

• Min. Ambient / Oil Temperature: -40°C

• Max. Circuit Temperature: 80°C

• Mass Moment of Inertia: 5.0 × 10⁻³ kg·m²

• Housing Material: High-Strength Cast Iron

• Mounting: SAE / ISO / CETOP / Cartridge

• Weight: Approx. 21 kg

Key Technical Advantages

1. 40° Bent-Axis Design with Spherical Pistons
The F12 series features Parker’s signature 40° bent-axis design with unique spherical pistons and laminated piston rings. The 40° angle between the drive shaft and cylinder barrel axis delivers a compact, lightweight structure. The spherical piston design significantly reduces internal leakage, improves volumetric efficiency, and provides excellent thermal shock resistance.

2. Gear Synchronization & Double Tapered Bearings
Precision timing gears ensure exact phase synchronization between shaft and cylinder barrel, providing exceptional tolerance to high G-forces and torsional vibrations. Double tapered roller bearings deliver high radial load capacity.

3. Ultra-High Pressure Capability
The F12-040 delivers maximum intermittent pressure of 500 bar and continuous working pressure of 450 bar. Features face and shaft port plate designs for simple, compact construction with high precision fluid distribution.

4. High Speed Capability
Maximum intermittent speed of 6,900 rpm and continuous speed of 6,300 rpm. The lightweight piston design and compact rotating components enable the F12 series to withstand extremely high speeds.

5. Low Internal Leakage & High Efficiency
Laminated piston rings minimize internal leakage while delivering high overall efficiency. The 7 or 9-piston design provides smooth operation.

Application Areas

• Construction Equipment: Excavator and loader hydraulic systems

• Road Construction Equipment: Rollers, pavers

• Agricultural Machinery: Combines, balers

• Industrial Equipment: Industrial hydraulic systems, CNG refueling stations

• Closed & Open Circuits: Hydrostatic transmission systems

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Pre-lubricate all moving parts with clean hydraulic fluid before assembly.

3. Prime the pump housing with hydraulic oil before initial start-up to prevent dry-start damage.

4. Monitor case drain flow regularly—an abnormal increase indicates potential piston ring or cylinder barrel wear.

5. Recommended maximum system operating temperature should not exceed 80°C; drain oil temperature should not exceed 115°C.

6. Ensure hydraulic system filtration meets β₁₀ ≥ 75 (ISO 4406 cleanliness code不低于 18/16/13).

7. Weight is approx. 21 kg—use proper handling procedures during installation and removal.

Model 2: F12-060-MF-IV-K-000-0000-P0

Technical Specifications

• Model: F12-060-MF-IV-K-000-0000-P0

• Displacement: 59.8 cm³/rev (3.65 in³/rev)

• Max. Intermittent Pressure: 500 bar (7,252 psi)

• Max. Continuous Pressure: 450 bar (6,527 psi)

• Max. Intermittent Speed: 6,400 rpm

• Max. Continuous Speed: 5,800 rpm

• Min. Continuous Speed: 50 rpm

• Max. Intermittent Flow: 347 L/min

• Max. Continuous Flow: 317 L/min

• Theoretical Torque @ 100 bar: 94.9 Nm

• Max. Circuit Temperature: 80°C

• Min. Ambient / Oil Temperature: -40°C

• Mass Moment of Inertia: 5.0 × 10⁻³ kg·m²

• Shaft: K35 – Ø35 DIN 6885

• Connection: SAE 6000 3/4″

• Mounting Flange: Ø125 mm ISO 3019-2 4-bolt

• Housing Material: High-Strength Cast Iron

• Weight: Approx. 21 kg

Key Technical Advantages

1. 40° Bent-Axis Design with Spherical Pistons
Features Parker’s signature 40° bent-axis design with unique spherical pistons and laminated piston rings. The 40° angle delivers a compact, lightweight structure.

2. Optimized Displacement-Flow Balance
With 59.8 cm³ displacement, the F12-060 strikes an ideal balance between high-speed capability (5,800 rpm) and flow output (317 L/min continuous)—one of the most versatile models in the F12 series.

3. Ultra-High Pressure Capability
Maximum intermittent pressure of 500 bar and continuous working pressure of 450 bar. Features face and shaft port plate designs for high precision fluid distribution.

4. Gear Synchronization & Double Tapered Bearings
Precision timing gears and double tapered roller bearings provide exceptional vibration resistance and high radial load capacity.

5. Low Internal Leakage & High Efficiency
Laminated piston rings minimize internal leakage while delivering high overall efficiency.

Application Areas

• Construction Equipment: Excavator and loader hydraulic systems

• Road Construction Equipment: Rollers, pavers

• Agricultural Machinery: Combines, balers

• Industrial Equipment: Industrial hydraulic systems, CNG refueling stations

• Closed & Open Circuits: Hydrostatic transmission systems

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Pre-lubricate all moving parts with clean hydraulic fluid before assembly.

3. Prime the pump housing with hydraulic oil before initial start-up.

4. Monitor case drain flow regularly—an abnormal increase indicates potential piston ring or cylinder barrel wear.

5. Recommended maximum system operating temperature should not exceed 80°C; drain oil temperature should not exceed 115°C.

6. Ensure hydraulic system filtration meets β₁₀ ≥ 75 (ISO 4406 cleanliness code不低于 18/16/13).

7. Weight is approx. 21 kg—use proper handling procedures during installation and removal.

Model 3: F12-080-MF-IH-D-000-000-0

Technical Specifications (Bulleted List)

• Model: F12-080-MF-IH-D-000-000-0

• Displacement: 80.4 cm³/rev (4.91 in³/rev)

• Max. Intermittent Pressure: 500 bar (7,252 psi)

• Max. Continuous Pressure: 450 bar (6,527 psi)

• Max. Intermittent Speed: 5,500 rpm

• Max. Continuous Speed: 4,800 rpm

• Min. Continuous Speed: 50 rpm

• Max. Self-Priming Speed: 2,300 rpm

• Max. Intermittent Flow: 426 L/min

• Max. Continuous Flow: 386 L/min

• Theoretical Torque @ 100 bar: 127.6 Nm

• Max. Circuit Temperature: 80°C

• Min. Ambient / Oil Temperature: -40°C

• Mass Moment of Inertia: 8.4 × 10⁻³ kg·m²

• Shaft: Milling Shaft

• Mounting Flange: 4-bolt mounting base

• Housing Material: High-Strength Cast Iron

• Weight: Approx. 26 kg

Key Technical Advantages

1. Optimized Displacement-Flow Balance
With 80.4 cm³ displacement, the F12-080 strikes an ideal balance between high-speed capability (5,500 rpm) and flow output (386 L/min continuous)—one of the most versatile models in the F12 series.

2. 40° Bent-Axis Design with Spherical Pistons
Features Parker’s signature 40° bent-axis design with unique spherical pistons and laminated piston rings. The 40° angle delivers a compact, lightweight structure.

3. Ultra-High Pressure Capability
Maximum intermittent pressure of 500 bar and continuous working pressure of 450 bar. Features face and shaft port plate designs for high precision fluid distribution.

4. Gear Synchronization & Double Tapered Bearings
Precision timing gears and double tapered roller bearings provide exceptional vibration resistance and high radial load capacity.

5. Low Internal Leakage & High Efficiency
Laminated piston rings minimize internal leakage while delivering high overall efficiency.

Application Areas

• Construction Equipment: Excavator and loader hydraulic systems

• Road Construction Equipment: Rollers, pavers

• Agricultural Machinery: Large combines, balers

• Industrial Equipment: Industrial hydraulic systems

• Closed & Open Circuits: Hydrostatic transmission systems

Expert Maintenance Tips

1. Shaft seals and all O-rings must be replaced after every disassembly.

2. Pre-lubricate all moving parts with clean hydraulic fluid before assembly.

3. Prime the pump housing with hydraulic oil before initial start-up.

4. Monitor case drain flow regularly—an abnormal increase indicates potential piston ring or cylinder barrel wear.

5. Recommended maximum system operating temperature should not exceed 80°C; drain oil temperature should not exceed 115°C.

6. Ensure hydraulic system filtration meets β₁₀ ≥ 75 (ISO 4406 cleanliness code不低于 18/16/13).

7. Weight is approx. 26 kg—use proper lifting equipment during installation and removal.

8. When operating as a pump in closed-loop circuits above self-priming speed, the inlet must be pressurized.
