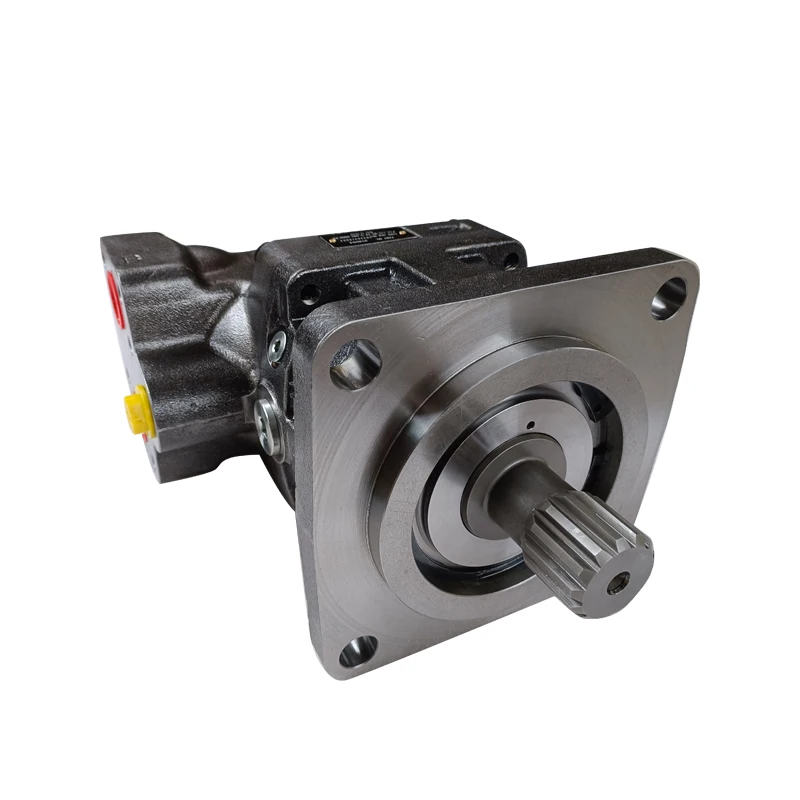

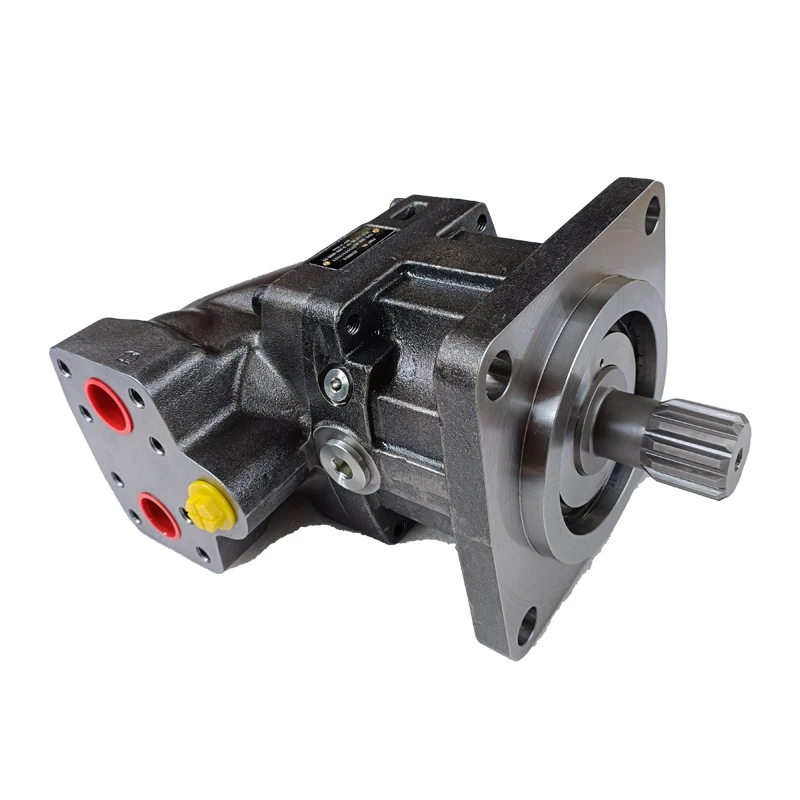

F12-060-MF-CV-C-000-0000-P0 Parker F12 Motor

Product Overview

The F12-060-MF-CV-C-000-0000-P0, F12-110-MS-SV-T-000-000-0 and F12-090-MF-IV-K-000-0000-PO belong to the Parker Hannifin F12 series of high-pressure axial piston fixed motors/pumps (bent-axis design). Designed for open and closed circuit hydrostatic drives, these fixed-displacement units support high speeds and high pressures. Fully interchangeable with original Parker interfaces and performance (100% match), every unit undergoes 100% simulated operating condition testing. Ideal for mobile and stationary applications, the series features unique spherical piston design, high power density, excellent starting characteristics and compact lightweight construction.

Technical Specifications

(Verified from Parker official F12 series data sheets; no fabricated data)

• Model: F12-060-MF-CV-C-000-0000-P0
• Displacement: 59.8 cm³/rev (fixed)
• Continuous pressure: 450 bar
• Intermittent pressure: 500 bar
• Max. speed (continuous): 5800 rpm
• Max. speed (intermittent): 6400 rpm
• Control type: Fixed displacement axial piston
• Theoretical torque at 100 bar: 94.9 Nm
• Approximate weight: 18.6–21 kg
• Model: F12-090-MF-IV-K-000-0000-PO
• Displacement: 93.0 cm³/rev
• Continuous / intermittent pressure: 350 / 420 bar
• Max. speed (continuous / intermittent): 4600 / 5100 rpm
• Theoretical torque at 100 bar: 147.6 Nm
• Approximate weight: 25.7 kg
• Model: F12-110-MS-SV-T-000-000-0
• Displacement: 110.1 cm³/rev
• Continuous / intermittent pressure: 420 / 480 bar
• Max. speed (continuous / intermittent): 4400 / 4800 rpm
• Theoretical torque at 100 bar: 174.8 Nm
• Approximate weight: 33 kg

Suitable for open and closed circuits with high overall efficiency and high-speed capability.

Key Technical Advantages

1. Unique spherical piston and precision bent-axis design deliver high volumetric efficiency and thermal shock resistance for high-speed operation.
2. Compact lightweight construction and high starting torque: Low-inertia rotating parts for excellent starting characteristics and high power density.
3. Long-life bearings and high reliability: Supports high intermittent pressures and vibration for extended service life.
4. 100% simulated duty testing and full interchangeability: Exact match to original Parker interfaces and performance curves—true drop-in replacement with no modifications.
5. Wide size coverage and flexible configurations: Multiple flange, shaft and port options for open/closed systems.

Application Areas

Auxiliary drives in construction machinery, agricultural equipment, industrial hydraulic systems, cranes, forestry equipment, marine auxiliary systems and stationary high-speed industrial drives requiring high-pressure fixed motors.

Expert Maintenance Tips

Ensure the housing is correctly filled with oil and the case drain is connected before start-up to prevent dry-running damage. Use hydraulic fluid meeting recommended viscosity and cleanliness levels. Periodically inspect seals and bearings; perform moderate-load break-in initially. Strictly observe maximum speed and intermittent pressure time limits (intermittent ≤6 seconds per minute). When replacing, verify the complete model code (including shaft, flange and seal options) for full interchangeability. Refer to official Parker F12 technical manuals for precise torque and speed data.
