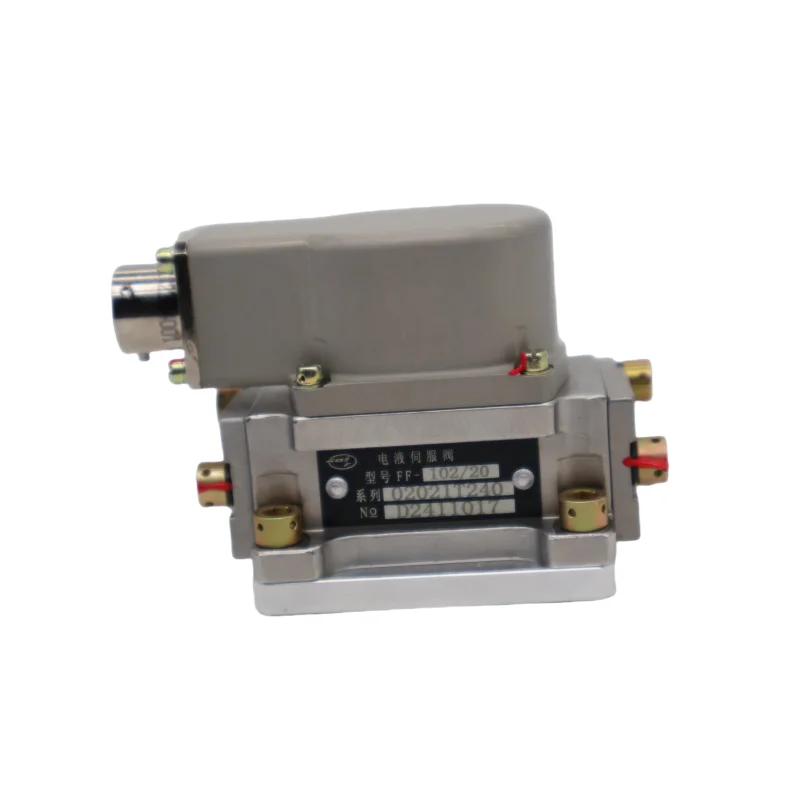

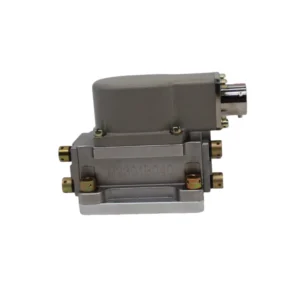

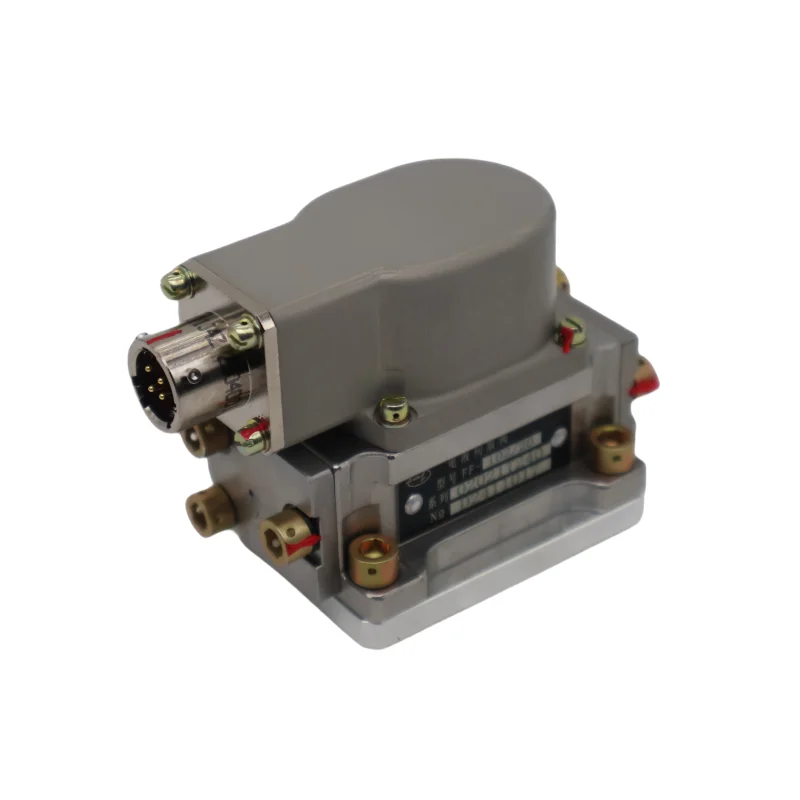

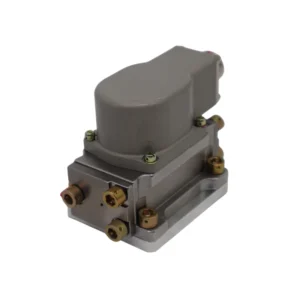

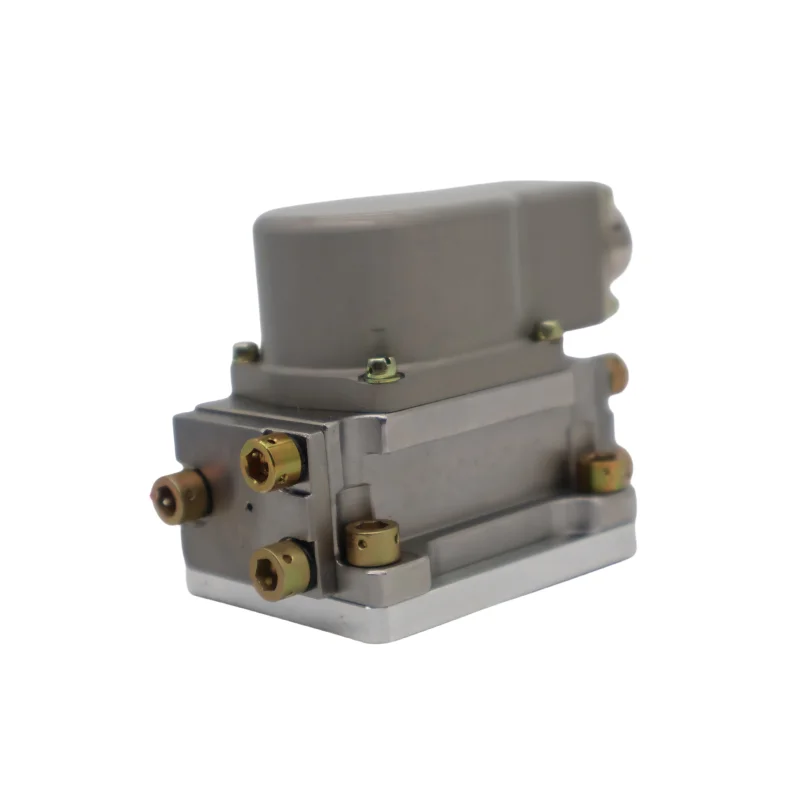

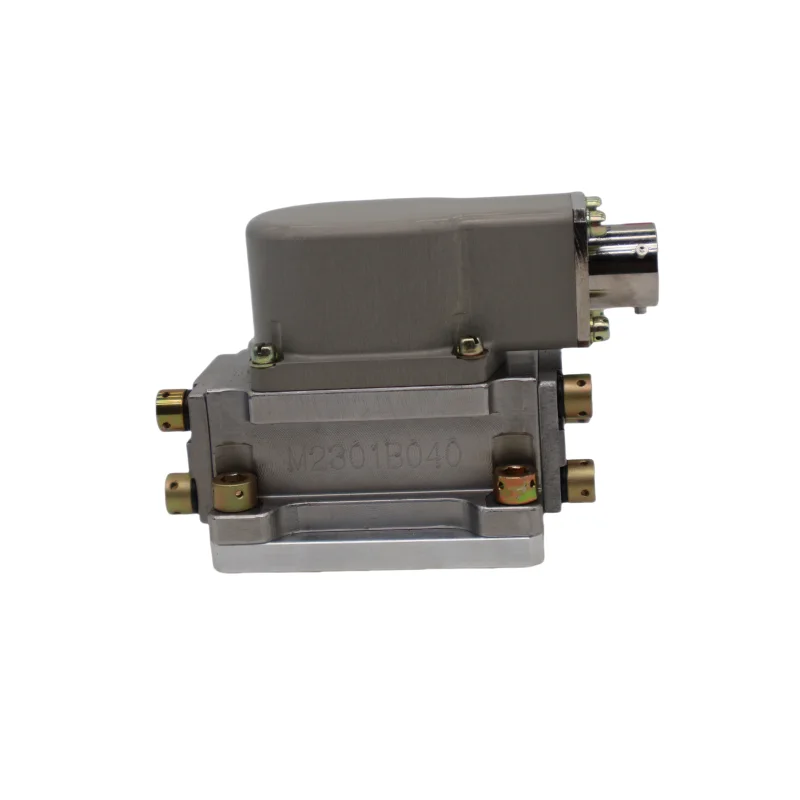

FF-102/30 609 Force Feedback Servo Valve 21MPa

Product Overview

The FF-102/30 is the highest-flow variant within the FF-102 series of two-stage, dual-nozzle flapper electro-hydraulic flow control servo valves, developed and manufactured by the AVIC 609th Research Institute (Nanjing Electro-Hydraulic Engineering Research Center). The series adopts an all-stainless steel housing with a compact internal structure, high structural strength, and relatively small volume and weight. It is widely used in aviation, aerospace, and civilian systems with demanding environmental conditions and high reliability requirements.

The core function of the FF-102/30 is to convert electrical command signals into proportional hydraulic flow output. The valve employs a dual-nozzle flapper force feedback architecture, with a symmetrical double-nozzle flapper pilot stage and a four-way sliding spool power stage, achieving mechanical force feedback closed-loop spool position control through a feedback spring. Under a pressure difference of 21MPa, the FF-102/30 delivers a rated flow of 30 L/min (7.9 gpm), the largest flow specification in the FF-102 series.

The FF-102/30 is fully interchangeable with the Moog 31 (D061 series) in terms of technical data and dimensions, serving as a domestic replacement for imported servo valves. The valve features high dynamic response, reliable operation, and long service life, with advantages including fast dynamic response, good linearity, small zero drift, stable working performance, high reliability, small internal leakage, and low power consumption.

Every unit undergoes 100% simulation-based testing prior to shipment, covering null stability, flow linearity, pressure gain, internal leakage, and step response.

Technical Specifications

All parameters below are based on verified supplier technical pages (Qingdao Beizhong, JLC FA Mechanical Design Handbook, Made-in-China, etc.) and industry-standard specifications:

• Complete Model: FF-102/30

• Product Series: FF-102 series dual-nozzle flapper two-stage servo valve

• Manufacturer: AVIC 609th Research Institute (Nanjing Electro-Hydraulic Engineering Research Center)

• Spool Function: Force feedback two-stage dual-nozzle flapper flow servo valve

• Nominal Size: Compatible with Moog 31 (Size 04 / ISO 4401-03/05)

• Rated Supply Pressure Ps: 21 MPa (210 bar / 3050 psi)

• Supply Pressure Range: 2 – 28 MPa

• Rated Flow Qn (ΔP_N = 21 MPa): 30 L/min (7.9 gpm)

• Rated Current In: 10 mA or 40 mA (depending on coil configuration)

• Coil Resistance: 700 Ω ± 70 (for 10 mA configuration) / 50 Ω ± 5 (for 40 mA configuration)

• Insulation Resistance: ≥ 50 MΩ

• Hysteresis: ≤ 4%

• Resolution: ≤ 1%

• Linearity: ≤ ±7.5%

• Symmetry: ≤ ±10%

• Pressure Gain: > 30% Ps / 1% In

• Internal Leakage (30 L/min variant): ≤ 1.7 L/min (0.45 gpm)

• Null Bias: ≤ ±3%

• Null Shift with Supply Pressure (80%~110% Ps): ≤ ±2%

• Null Shift with Return Pressure (0~20% Ps): ≤ ±2%

• Temperature Null Shift (-30~+150°C): ≤ ±4%

• Frequency Response (Amplitude -3dB): ≥ 100 Hz

• Phase Frequency (-90°): ≥ 100 Hz

• Net Weight: Approx. 400 g

• Housing Material: All-stainless steel

• Working Medium: YH-10, YH-12 aviation hydraulic oil

• Operating Temperature Range: -30°C to +150°C

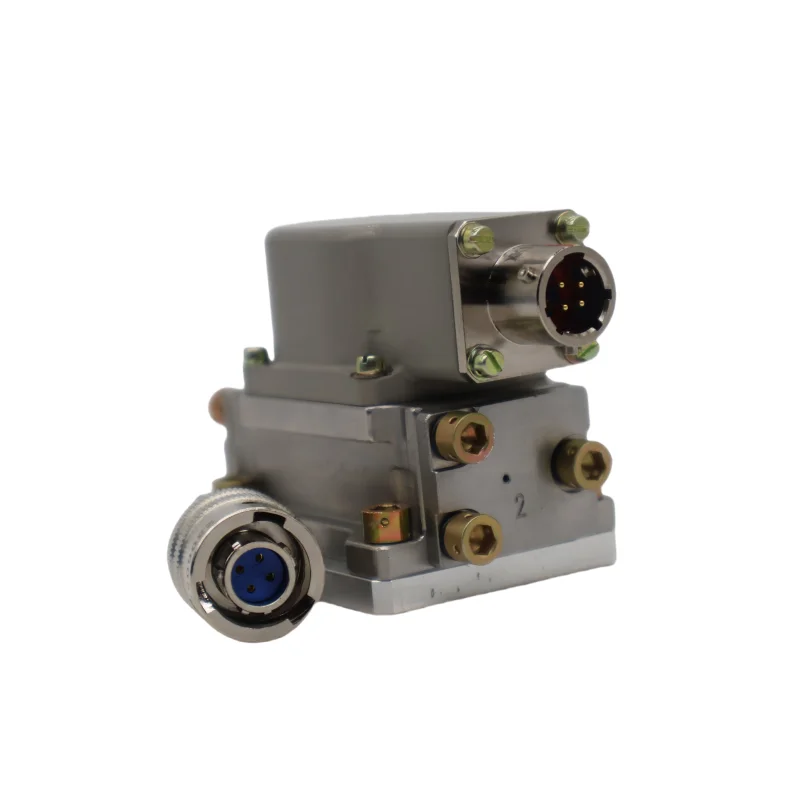

• Electrical Connection: Plug and socket installation direction selectable per requirements

• Coil Connection Modes: Individual coils (2+, 1- or 4+, 3-); Series coils (connecting 1 with 4; 2+, 3-); Parallel coils (connecting both 1 with 3 and 2 with 4)

Note: Specifications are based on verified supplier technical pages (Qingdao Beizhong bzzbkj.com, JLC FA Mechanical Design Handbook jlc-jdgf.com, Made-in-China, etc.). The FF-102 series offers six rated flow specifications: 2, 5, 10, 15, 20, and 30 L/min, with FF-102/30 being the maximum flow specification. The series is fully interchangeable with Moog 31 in terms of technical data and dimensions. Customized services are available for special current, flow, weight, and working medium requirements.

Key Technical Advantages

1. Force Feedback Closed-Loop Control Architecture with High Resolution and Low Hysteresis

The FF-102/30 employs a force feedback two-stage dual-nozzle flapper architecture. When an electrical command signal is applied to the torque motor coils, the flapper deflects between two nozzles, creating a differential pressure across the spool ends that drives spool displacement. Spool movement applies force through a feedback spring to the torque motor armature assembly, establishing a mechanical force feedback closed loop. This architecture does not rely on electronic displacement sensors, offering exceptional immunity to electromagnetic interference and long-term stability. Hysteresis does not exceed 4%, resolution does not exceed 1%, and pressure gain exceeds 30% Ps/1% In, satisfying precision flow control requirements.

2. All-Stainless Steel Housing with Compact Structure for Demanding Environments

The FF-102/30 features an all-stainless steel housing with a compact internal structure, high structural strength, and relatively small volume and weight (net weight approx. 400 g). The stainless steel housing provides excellent corrosion resistance and wide temperature adaptability, with an operating temperature range covering -30°C to +150°C, suitable for aviation, aerospace, and industrial systems with demanding environmental conditions and high reliability requirements.

3. 100 Hz High Frequency Response with Low Null Drift

The FF-102/30 achieves amplitude frequency response (-3dB) and phase frequency response (-90°) of no less than 100 Hz, delivering rapid dynamic response for high-frequency dynamic loading and rapid switching control requirements. Supply pressure null shift does not exceed ±2% (80%~110% Ps), return pressure null shift does not exceed ±2% (0~20% Ps), and temperature null shift does not exceed ±4%, ensuring stable null output under varying pressure and temperature conditions.

4. Moog 31 Drop-In Interchangeability with Versatile Coil Configuration

The FF-102/30 is fully interchangeable with the Moog 31 (D061 series) in terms of technical data and dimensions, enabling direct replacement of imported servo valves without hydraulic circuit or control wiring modification. The valve supports individual, series, and parallel coil connection modes, with rated current options of 10 mA or 40 mA and corresponding coil resistances of 700 Ω and 50 Ω, facilitating flexible selection based on existing controller configurations.

5. 100% Simulation-Based Testing and Low Power Consumption Design

Every FF-102/30 undergoes 100% simulation-based testing prior to shipment. Test protocols cover rated flow calibration, hysteresis and linearity measurement, pressure gain verification, and internal leakage detection. The valve features a low power consumption design, significantly lower than comparable servo valve products, helping reduce system heat generation and extend continuous operating time. The plug and socket installation direction can be selected according to requirements, facilitating wiring in compact installation spaces.

Application Areas

• Small and Medium-Sized Rolling Mills: Precision position and pressure closed-loop control for rolling mill hydraulic gap systems (AGC)

• Blow Molding Machines: Parison wall thickness control and mold clamping pressure regulation

• Test Equipment: Precision flow control for electro-hydraulic servo loading systems

• Aviation Hydraulic Systems: Electro-hydraulic servo control of flight control surface actuators

• Aerospace Hydraulic Systems: Precision control of spacecraft hydraulic drive mechanisms

• Material Testing Systems: Loading control for electro-hydraulic servo fatigue test rigs

• Industrial Automation Lines: Integration with PLC and motion controllers for precision position, velocity, or force control

• Petroleum Pipeline Systems: Flow metering and control accuracy improvement, limiting flow from main lines to branch lines

Expert Maintenance Tips

Pre-Installation Checks:

• Verify mounting surface dimensions are compatible with the Moog 31 interface; ensure mounting surface is clean and free of burrs

• Flush all piping with clean hydraulic fluid prior to installation; ensure system cleanliness meets servo valve requirements

• Inspect O-ring seals for damage and confirm compatibility with the hydraulic fluid in use

• Verify electrical connector (plug and socket) contact integrity; confirm coil wiring mode (individual/series/parallel) matches the controller

Operational Maintenance:

• Use precision pressure filters matched to the servo valve (≤ 10 μm absolute filtration recommended); replace filter elements at regular intervals

• Recommended working medium: YH-10, YH-12 aviation hydraulic oil; maintain operating temperature within -30°C to +150°C

• Maintain supply pressure within 2 – 28 MPa range; rated supply pressure is 21 MPa

• Periodically verify coil resistance remains within rated range (700 Ω or 50 Ω); insulation resistance ≥ 50 MΩ

• System return back pressure must not exceed 20% Ps to avoid excessive back pressure causing null offset

• Periodically monitor internal leakage; FF-102/30 specification internal leakage should be ≤ 1.7 L/min

Troubleshooting Guide:

• Spool fails to actuate or responds abnormally: Check command signal reaches the coil (rated current 10 mA or 40 mA), measure coil resistance against 700 Ω ± 70 or 50 Ω ± 5 range, confirm plug and socket engagement is reliable

• Null-point drift: After ruling out fluid contamination, inspect feedback spring for fatigue or deformation; verify pilot stage nozzle-flapper clearance has not changed due to wear

• Insufficient flow: Confirm system supply pressure is within the 2 – 28 MPa allowable range; check spool metering edges for partial blockage by contaminant particles

• Increased internal leakage: Check system cleanliness level; inspect spool/sleeve for wear; replace seals if necessary

• Slow response: Check system cleanliness level; verify pilot stage nozzles are not partially blocked by contaminant particles
