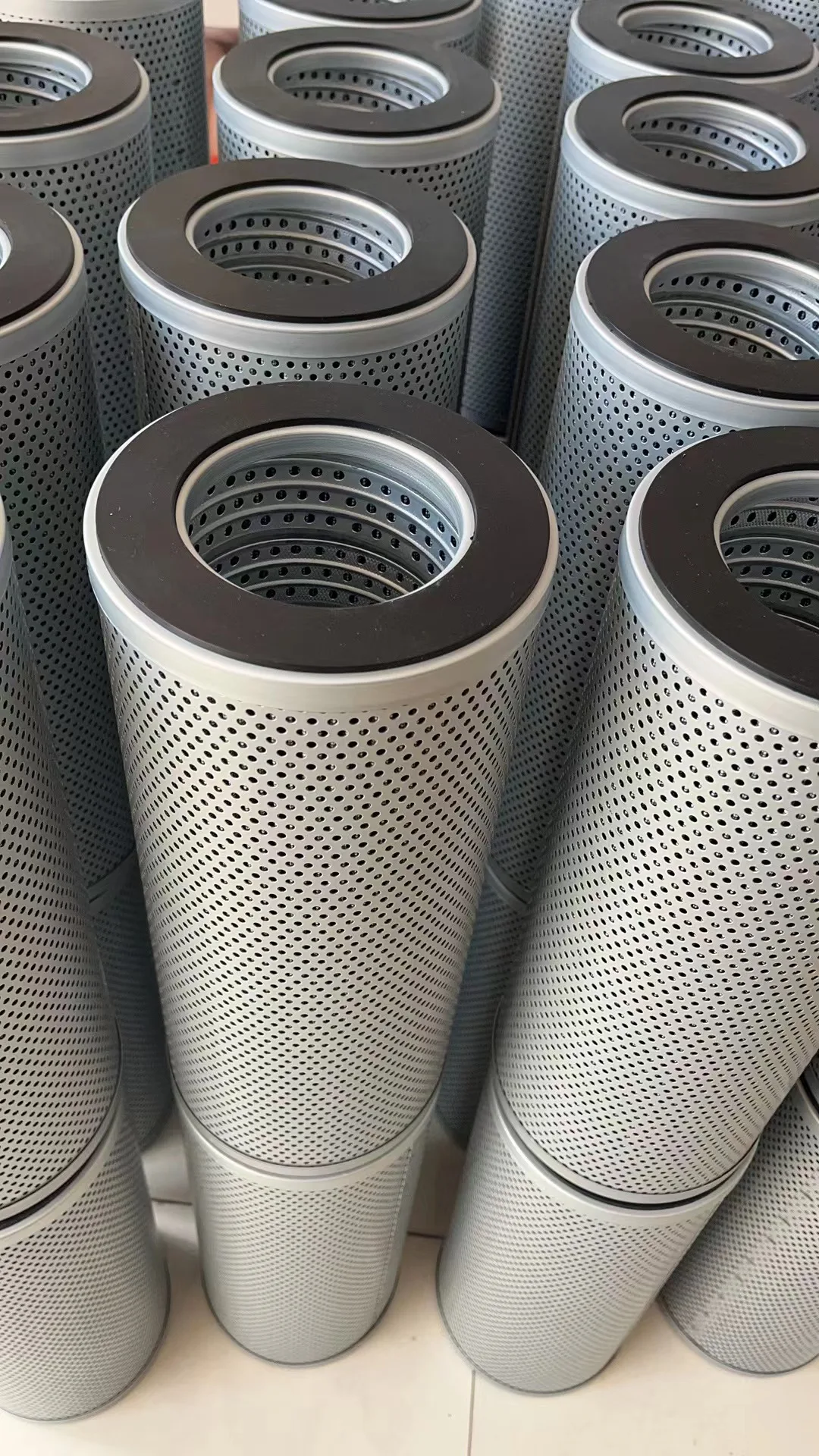

1300R005BN4HC HYDAC Return Filter Element 5 Micron

Model Number	1300R010BN4HC

Product Description

Product Overview

The 1300R005BN4HC Hydraulic Oil Filter Element is an engineering-grade, high-efficiency filtration solution designed as a direct 100% interchangeable replacement for HYDAC 1300 R series return line elements. Engineered in compliance with international ISO fluid power standards, this filter utilizes premium multi-layer inorganic glass fiber media (Betamicron® standard) supported by robust steel wire mesh and corrosion-resistant zinc-plated end caps. Every element undergoes 100% simulated operating condition testing and differential pressure testing to maintain absolute fluid cleanliness (ISO 4406 standard) under severe pressure pulses and high-viscosity cold startups, protecting high-pressure pumps, hydraulic motors, and proportional valves from system wear.

Technical Specifications

Model Code: 1300R005BN4HC (Cross-compatible series: 1300R010BN4HC, 1300R010BN, 0300R010BN, 1300R003BN4HC, 1300R020BN4HC)
Filtration Rating: 5 µm absolute ( $\beta_x(c) \ge 200$ )
Filter Material: BN4HC (Multi-layer inorganic glass fiber, Betamicron® technology)
Collapse Pressure Rating: 20 bar (2.0 MPa / 290 psi)
Operating Temperature Range: -30°C to +100°C (-22°F to +212°F)
Sealing Material: NBR (Nitrile Rubber standard, FKM/Viton optional)
Flow Direction: Out-to-In
Element Type: Series R (Return Line Filter Element)
Net Weight: Approx. 4.10 kg

Key Technical Advantages

Optimized Pleat Geometry & High Dirt-Holding Capacity: Multi-layered inorganic glass fiber media offers superior porosity and a maximum effective surface area, providing over 30% higher dirt-holding capacity and extending maintenance intervals.
Exceptional Collapse Resistance: Reinforced with heavy-duty galvanized wire mesh and an inner perforated core, preventing pleat collapse and fiber fatigue under high differential pressure surges or cold fluid startups.
Minimal Initial Delta-P ( $\Delta p$ ): Precision-spaced pleats reduce internal fluid resistance, minimizing system power losses and protecting upstream hydraulic pumps against cavitation risks caused by backpressure.
100% Drop-In Interchangeability: Manufactured strictly to OEM envelope dimensions and machining tolerances, allowing seamless direct replacement in original filter housings without modifications.

Application Areas

Metallurgy & Steel Mills: Continuous casting hydraulic systems, AGC roll positioning, and heavy lubrication units.
Plastics & Injection Molding: High-tonnage injection molding machinery and servo-hydraulic power units.
Heavy Mining & Construction Equipment: Hydraulic excavators, mobile crushers, and rotary drilling rigs.
Power Generation: Wind turbine pitch/yaw control systems and steam turbine EH fluid loops.

Expert Maintenance Tips

Differential Pressure Monitoring: Always equip the housing with a differential indicator. Replace the 1300R005BN4HC element when the differential pressure reaches 2.5 bar, and ensure element servicing before reaching 3.0 bar.
Proper Installation Protocol: Thoroughly clean the interior housing cavity before installing the new element. Always pre-lubricate the target O-ring seal with clean system hydraulic fluid to prevent twisting or mechanical damage during insertion.
Fluid Contamination Sampling: Take hydraulic oil samples for particle counting (ISO 4406) during filter replacement intervals to proactively monitor mechanical wear on upstream pumps and motors.
