Denison Gold Cup FRL/FRR Series Piston Pump Replacement | FRR074 FRL074 Pump

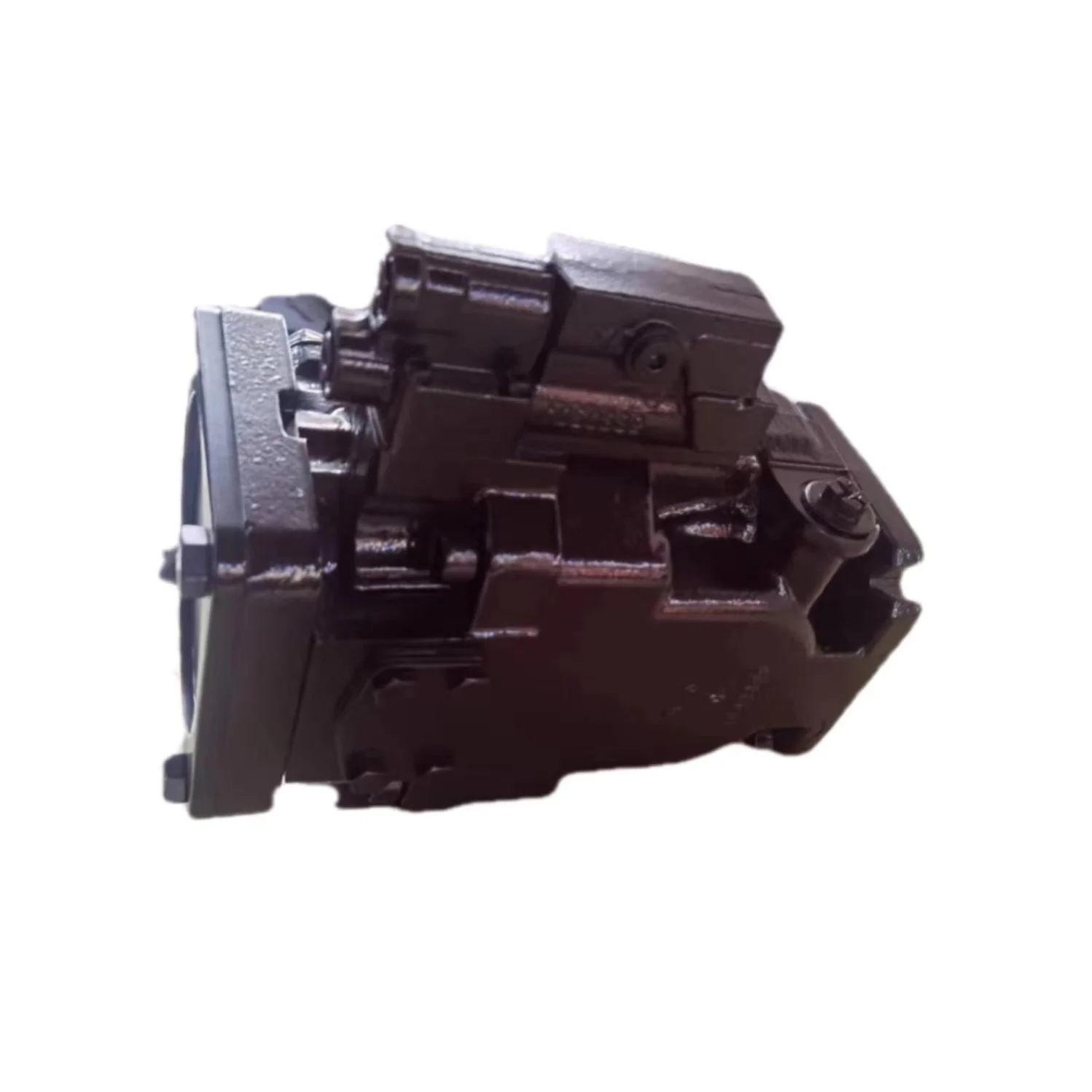

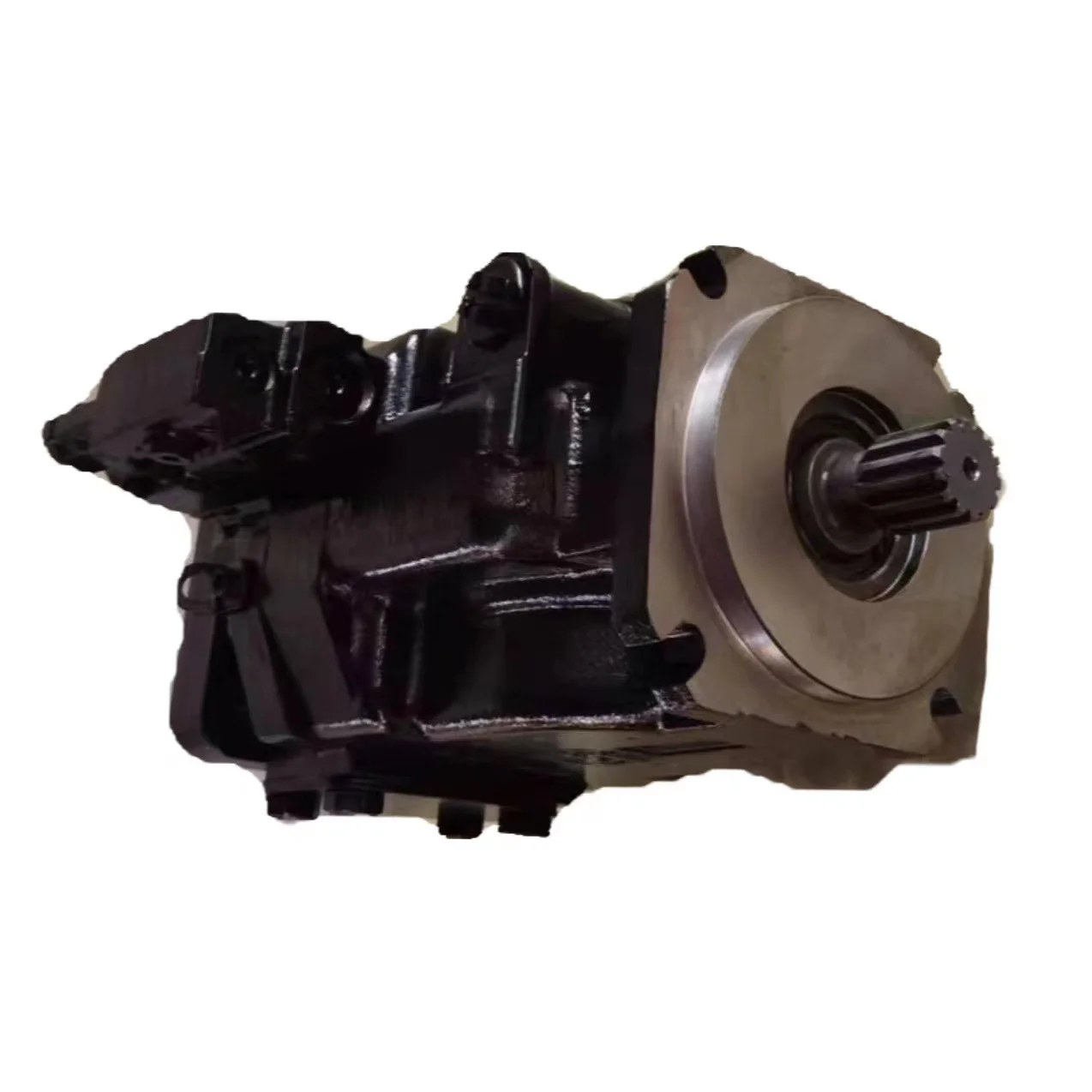

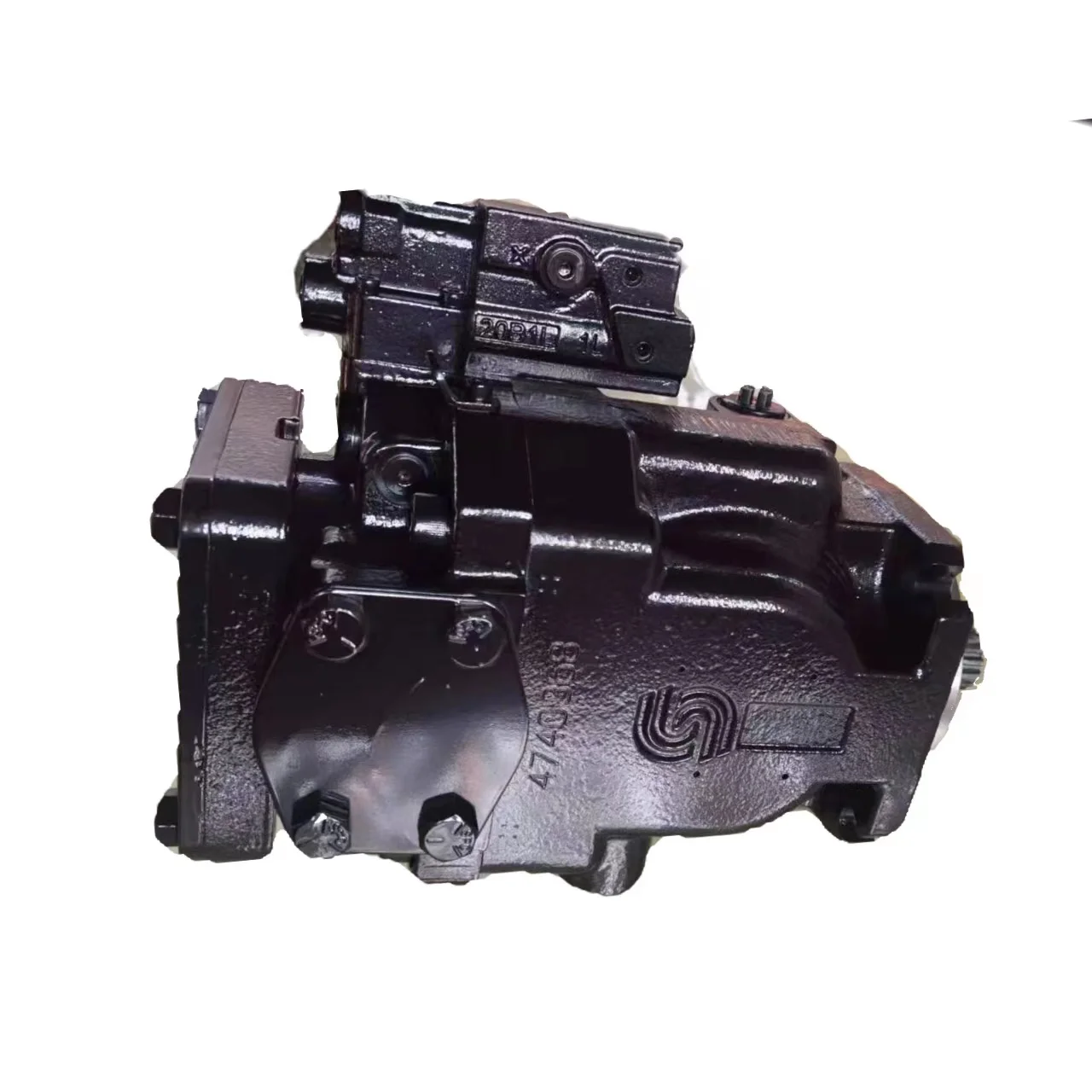

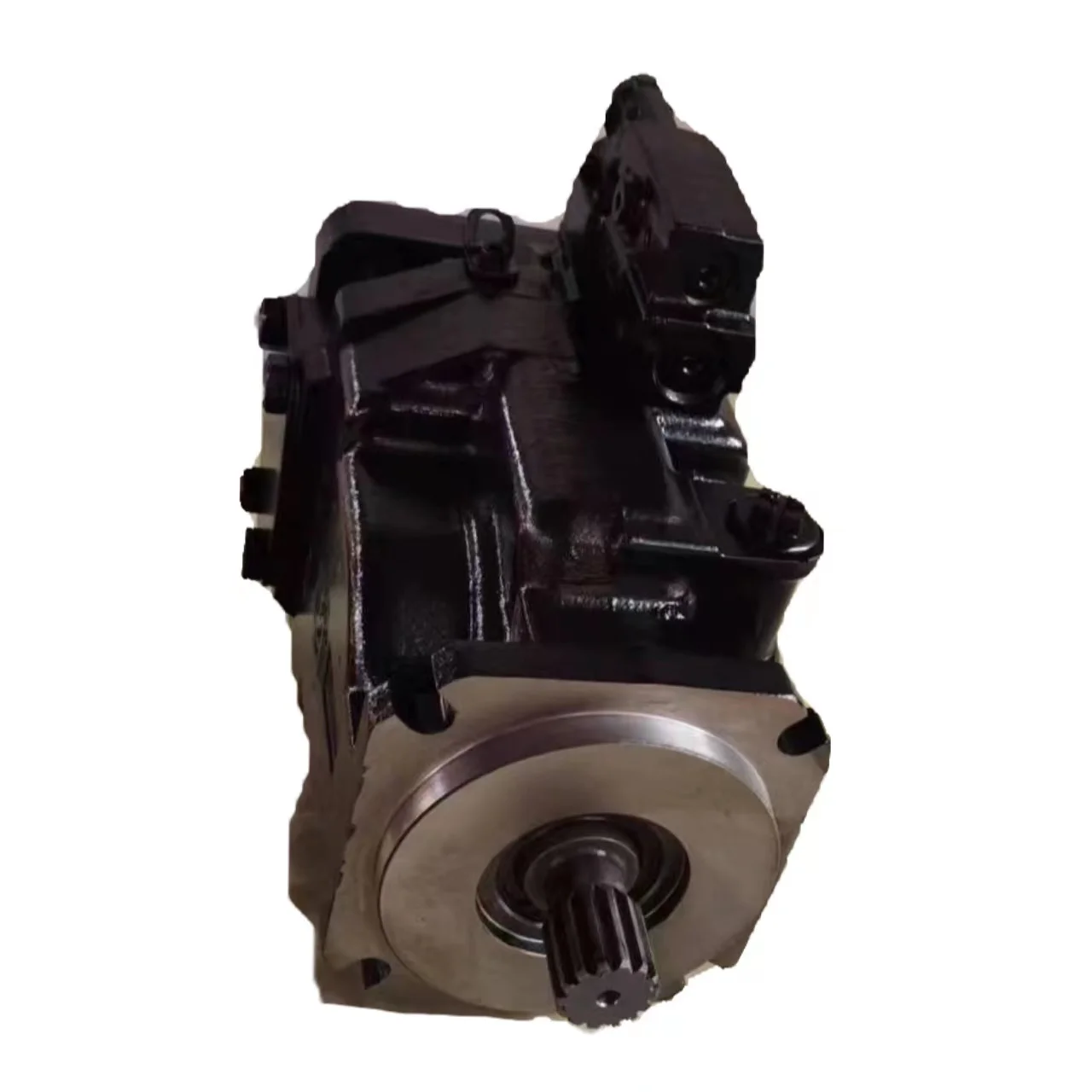

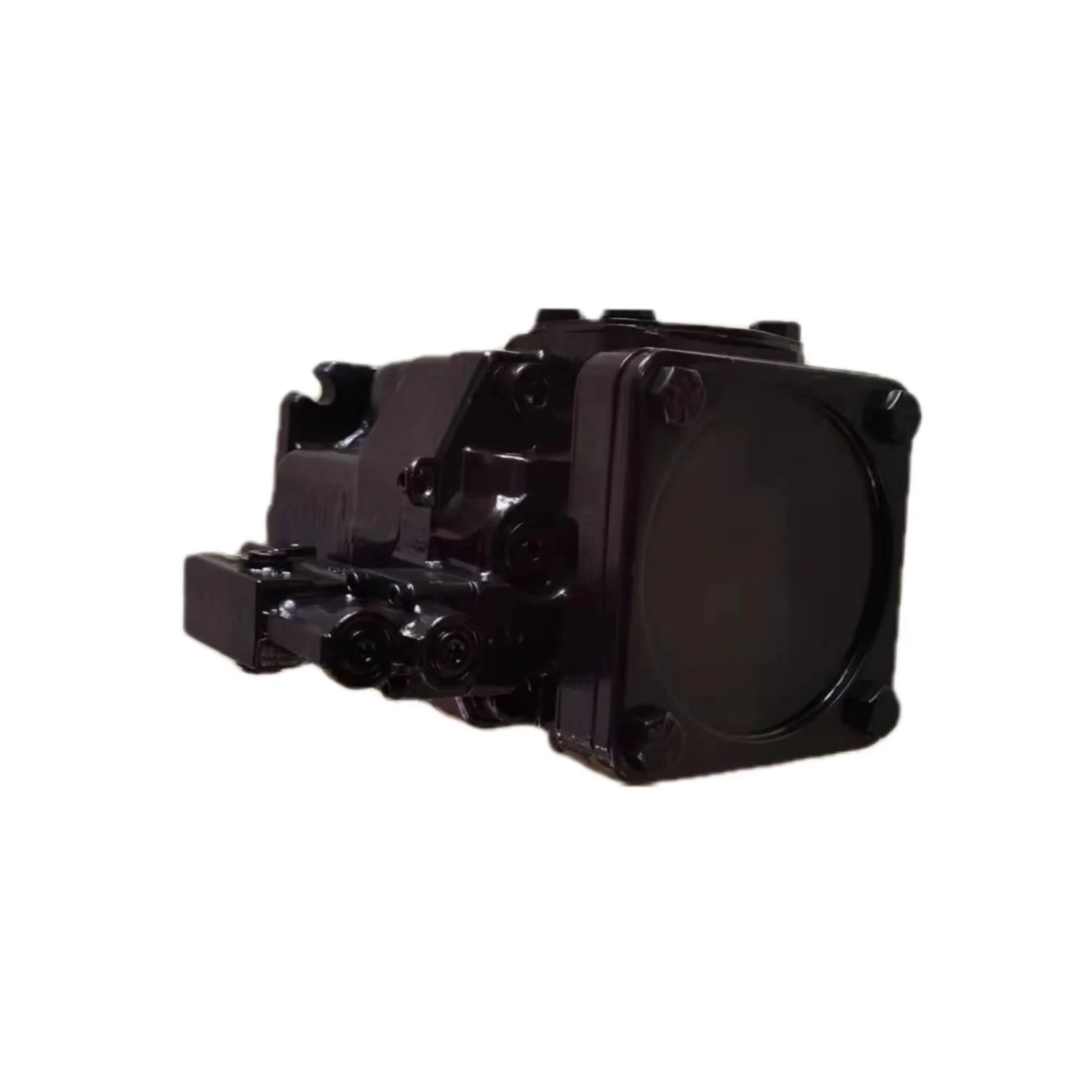

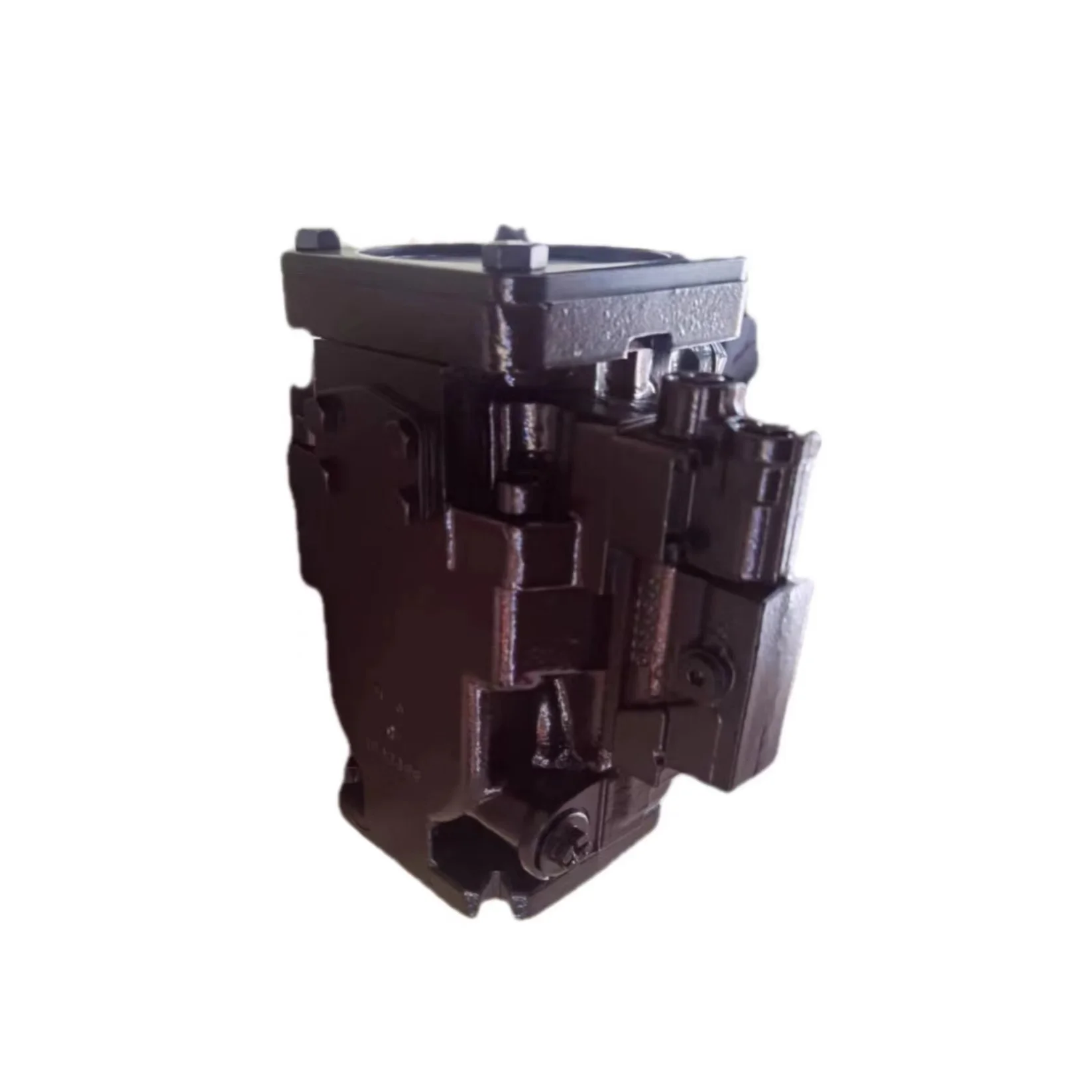

Genlu Hydraulic proudly introduces our heavy-duty FRR and FRL Series axial piston pumps. Engineered for demanding closed-loop circuits, this series is a precise drop-in replacement for the legendary Denison Gold Cup architecture, covering the FRR074, FRR090, and FRL074 specifications. We highlight our supply capacity for complex configurations such as the FRL074BBS3120NNN3S1R2A1NAAANNNNNN.

Denison Gold Cup pumps are industry benchmarks for high-pressure, high-speed, and shock-load resilience. Genlu guarantees 100% Drop-in Interchangeability across SAE mounting, dual-shaft configurations, servo-control logic, and internal rotating-group geometry compared to original Denison Gold Cup assemblies. Every unit undergoes 100% full-pressure dynamic switching and volumetric-efficiency verification on our digital closed-loop test benches, certifying elite stability for your most challenging industrial drive systems.

Technical Specifications

• Product Series: Denison Gold Cup FRR / FRL Series Closed-Loop Piston Pump

• Representative Models: FRL074BBS3120NNN3S1R2A1NAAANNNNNN, FRR074BB, FRR090CL

• Geometric Displacement: 74 cc/rev (074), 90 cc/rev (090)

• Nominal Operating Pressure: 350 bar (5000 psi)

• Peak Transient Pressure: 420 bar (6000 psi)

• Maximum Rated Speed: 3000 rpm

• Control Type: Hydraulic Servo Control (with integrated charge pump)

• Drive Configuration: Thru-drive capability

• Approximate Unit Weight: 85 – 110 kg

Key Technical Advantages:

• High-Speed Closed-Loop Durability: Designed for rapid cycling and intense pressure shocks. The integrated charge pump ensures positive pressure throughout the closed circuit, preventing cavitation during directional switching and maximizing component life.

• Responsive Servo Compensation: Advanced servo-control logic enables instantaneous displacement adjustment in response to system pressure transients, providing elite control precision for complex drive cycles.

• Hardened Rotating Group: Precision-ground piston-to-bore tolerances combined with wear-resistant surface treatments maintain volumetric efficiency above 95%, even under continuous 350 bar operation, drastically reducing system thermal loads.

• Modular Thru-Drive Flexibility: Engineered with the characteristic Gold Cup dual-shaft design, supporting modular control-valve integration for space-constrained industrial environments.

Application Areas:

• Port Machinery: Ship cranes, winch drives, and heavy-duty material handling.

• Mining Equipment: Primary drives for excavators, heavy-duty drills, and power units.

• Heavy Industry: Industrial extrusion presses, injection molding systems, and high-load test rigs.

Expert Maintenance Tips:

• Maintain Charge Pressure: The Gold Cup series is highly sensitive to charge pressure. Ensure a steady 15-20 bar charge. Insufficient charge pressure is the leading cause of slipper-to-swashplate scoring at startup.

• Rigorous Air-Bleeding: Closed-loop systems trap air easily. Always utilize the high-point bleed screws to purge the housing completely. Run at low pressure for 15 minutes to stabilize the system before ramping to full load.

• Strict Filtration Requirements: Utilize 10μm charge-line filtration and monitor it closely. Contamination in this precision pump can lead to servo-valve seizure; preventive maintenance is mandatory for long-term reliability.
