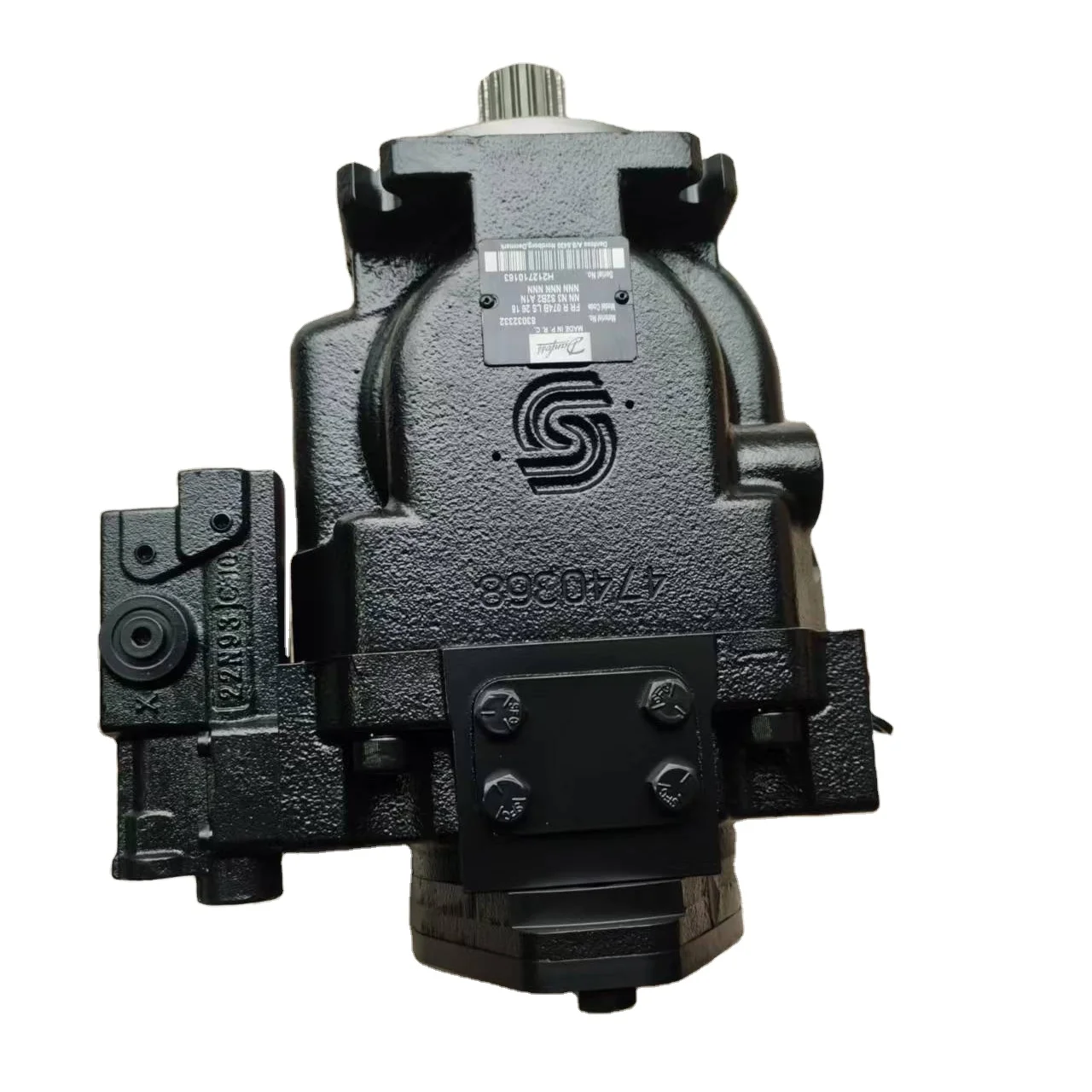

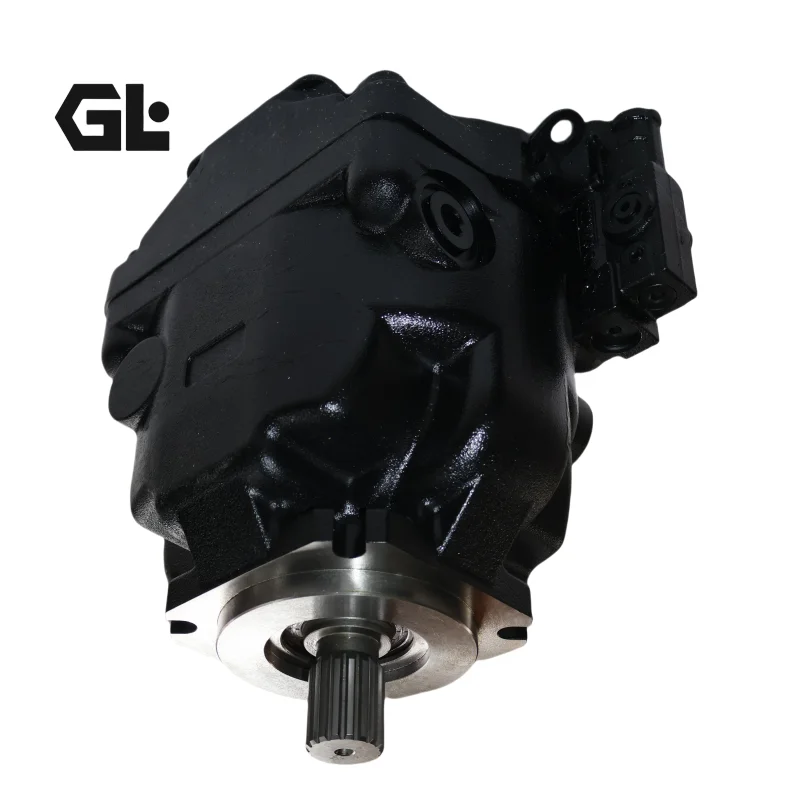

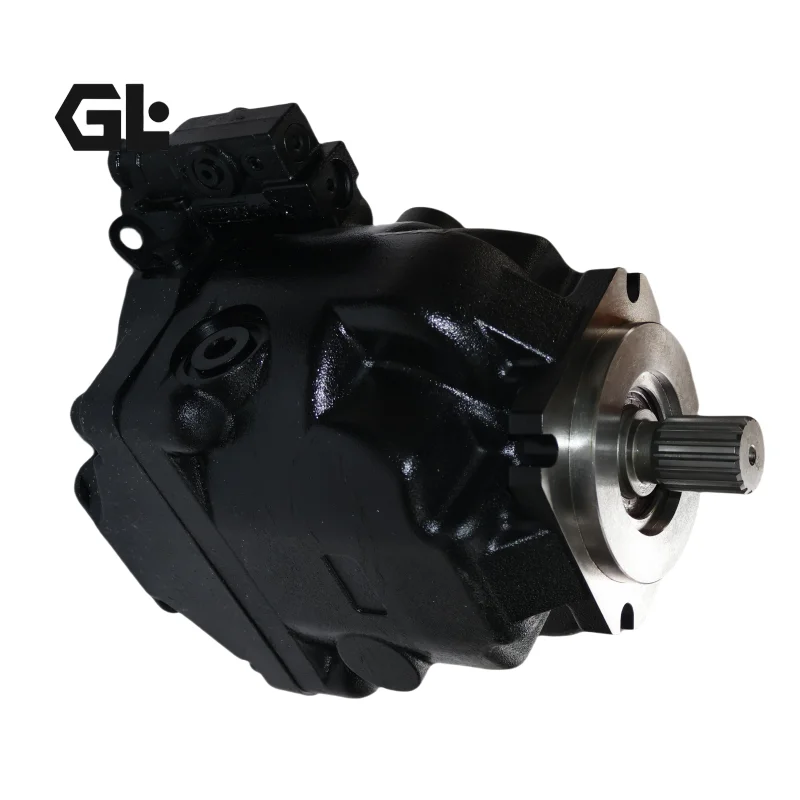

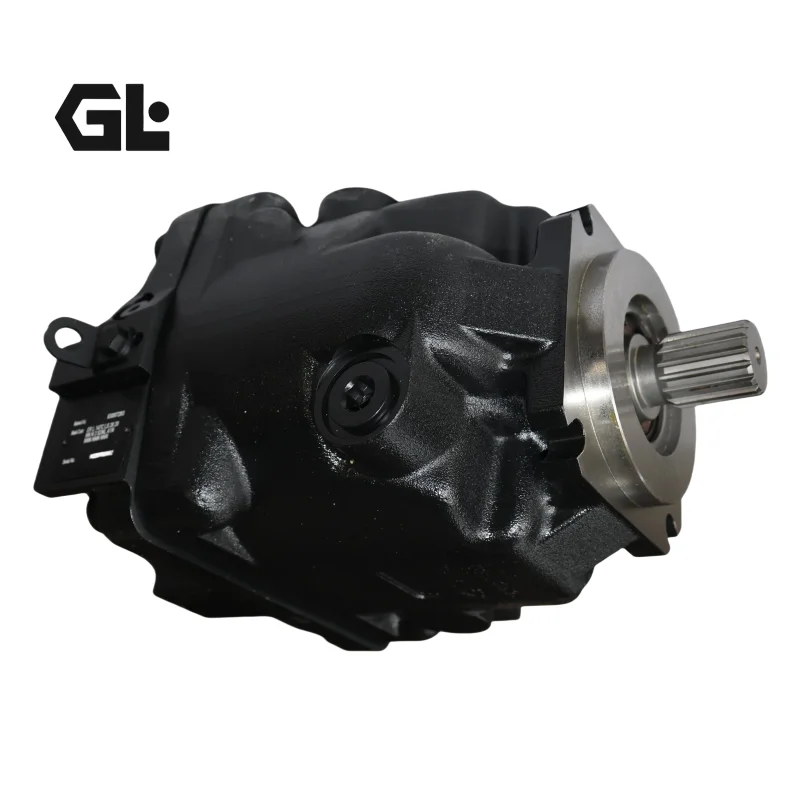

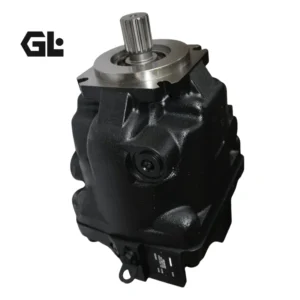

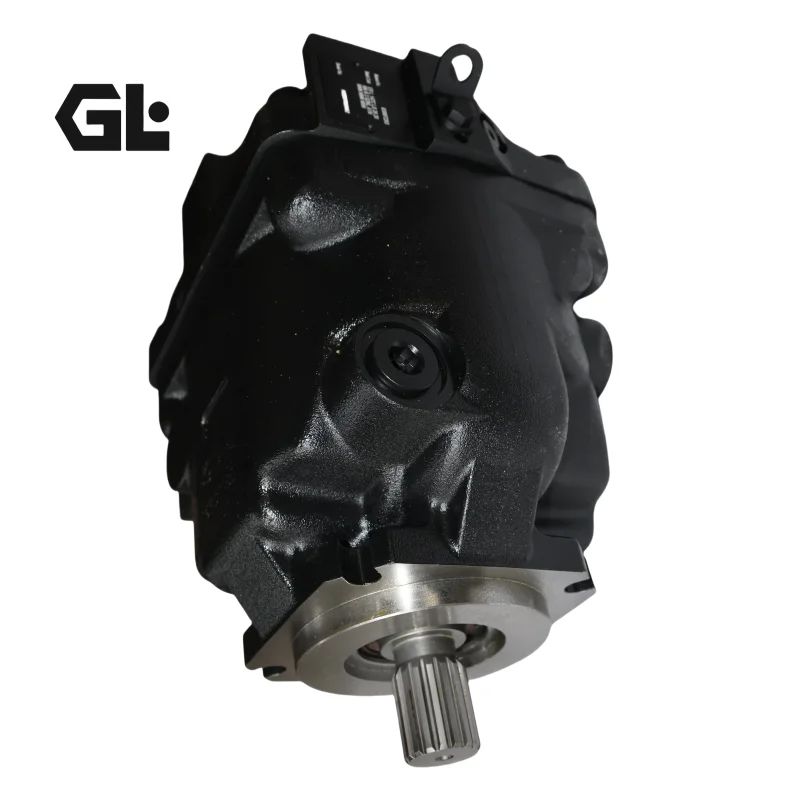

FRR074 FRR090 Danfoss Series 45 Hydraulic Piston Pump 74/90cc

Model Number	AT432422, 83024764

Product Description

Product Overview

The FRR074 / FRR090 / FRL074 / FRL090 series (OEM cross-references 83024764, AT432422, etc.) is a high-precision, fully interchangeable replacement for the Danfoss (formerly Sauer-Danfoss) Series 45 Frame F open-circuit axial piston variable displacement pumps. Designed for mobile equipment, this series offers 74 cm³/r and 90 cm³/r displacement options with continuous pressure ratings up to 310 bar, supporting advanced controls including load sensing, pressure compensation, and Electronic Torque Limiting (ETL). Featuring a nine-piston rotating group and precision valve plate, the pumps deliver low noise, high efficiency, and compact installation. Every unit undergoes 100% simulated operating condition testing to ensure exact dimensional, interface, control, and performance interchangeability with the original Danfoss FRR/FRL series—enabling true drop-in replacement without modification.

Technical Specifications

Model: FRR074 / FRL074 / FRR090 / FRL090 (OEM: 83024764, AT432422, etc.)
Displacement:
- FRR074 / FRL074: 74 cm³/r (4.52 in³/r)
- FRR090 / FRL090: 90 cm³/r (5.49 in³/r)
Continuous Rated Pressure:
- 074 series: 310 bar (4500 psi)
- 090 series: 260 bar (3770 psi)
Peak Pressure:
- 074 series: 400 bar (5800 psi)
- 090 series: 350 bar (5075 psi)
Continuous Speed:
- 074 series: 2400 rpm
- 090 series: 2200 rpm
Maximum Speed:
- 074 series: 2800 rpm
- 090 series: 2600 rpm
Minimum Speed: 500 rpm
Control Options: Load sensing (LS), pressure compensation (PC), Electronic Torque Limiting (ETL), etc.
Rotation: FRR (clockwise), FRL (counterclockwise)
Weight (approx.): 29.5–32.6 kg (axial/radial port configurations)
Circuit Type: Open circuit
Theoretical Flow at Rated Speed: approx. 178 L/min (074), 198 L/min (090)

Key Technical Advantages

Nine-Piston High-Precision Rotating Group: Optimized pistons and slippers deliver high volumetric efficiency and low pulsation, ideal for the frequent load changes of mobile equipment.
Advanced Controls with Electronic Torque Limiting: Load-sensing and ETL functions protect the engine from overload and stall in real time while providing fast response and improved system efficiency.
Compact Frame F Design with Rear Flange Expansion: Supports tandem auxiliary pumps without increasing axial length, saving space and enabling multi-flow systems from a single drive.
High Pressure and Long-Life Bearings: Continuous pressure up to 310 bar combined with reinforced bearings and valve plate extends service life and reduces maintenance costs.
Full Interchangeability and Rigorous Testing: 100% simulated condition testing guarantees exact match of mounting interfaces, shaft ends, and control ports to original equipment, minimizing downtime and retrofit costs.

Application Areas:

Main hydraulic systems of John Deere motor graders (670G, 672G, 770G, 772G, 870G, 872G, etc.)
Wheel loaders, telehandlers, cranes, and backhoe loaders
Agricultural machinery, forestry equipment, asphalt pavers, and mining machines
Mobile open-circuit applications requiring medium-to-high pressure and fast-response variable control
Direct replacement for original Danfoss Series 45 FRR/FRL pumps

Expert Maintenance Tips

Ensure absolute inlet pressure meets requirements and size suction lines adequately to prevent cavitation.
Fully bleed the system before initial start-up and verify control and case drain pressures.
Maintain fluid cleanliness at ISO 4406 18/16/13 or better; recommended viscosity 16–40 cSt; replace filters regularly.
Avoid prolonged simultaneous operation at peak pressure and maximum speed to maximize bearing and valve-plate life.
Use correct seal kits during service; check maximum displacement stop and control valve settings.
Periodically inspect the swashplate bearings and piston assembly for wear and operate within recommended temperature ranges.

Related models：

FR‑R‑074B‑LS‑16‑18‑NN‑N‑3‑S2B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1N2‑A3N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S2C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S2R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S2N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑22‑15‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1N2‑A3N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑24‑20‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑28‑25‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑21‑20‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑21‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑12‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑20‑20‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S2C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑30‑25‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S2B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑20‑20‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑18‑NN‑N‑3‑S2B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑20‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑21‑20‑NN‑N‑3‑S1T2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑30‑15‑NN‑N‑3‑K4R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑20‑20‑NN‑N‑3‑S1V2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BC‑31‑NN‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S2A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑20‑15‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1V2‑A1N‑NNN‑NNN‑CCP
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑RP‑17‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑28‑NN‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S2A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S2A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑27‑20‑NN‑N‑3‑K4N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑25‑NN‑N‑3‑S1R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S2V2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LB‑25‑20‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑20‑NN‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑29‑30‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑PC‑10‑NN‑NN‑N‑3‑K4C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑K4C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑25‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LB‑25‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑K4A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LB‑26‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑P00
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑PC‑20‑NN‑NN‑N‑3‑S1N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BP‑31‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BP‑31‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑30‑12‑NN‑N‑3‑K4B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S2B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑12‑20‑NN‑N‑3‑K4C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑23‑NN‑N‑3‑S2T2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑21‑25‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑20‑NN‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑20‑NN‑NN‑N‑3‑S1R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑24‑NN‑N‑3‑S1V2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑RP‑17‑20‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑17‑20‑NN‑N‑3‑S1A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑PC‑14‑NN‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑18‑20‑NN‑N‑3‑S2N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑12‑12‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑K4B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑14‑20‑NN‑N‑3‑K4B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑21‑17‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑C3N2‑A3N‑NNN‑NNN‑NNN
FR‑R‑074B‑RP‑14‑20‑NN‑N‑3‑K4V2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑17‑30‑NN‑N‑3‑K4N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BC‑29‑NN‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑20‑20‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LB‑25‑20‑NN‑N‑3‑S1A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑AN‑26‑26‑NN‑N‑3‑S2B2‑A1N‑NNN‑NNN‑NNC
FR‑R‑074B‑BS‑30‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑S2A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑26‑20‑NN‑N‑3‑K4N2‑A3N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BP‑31‑11‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BC‑31‑NN‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑22‑20‑NN‑N‑3‑S1A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LB‑20‑30‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑20‑20‑NN‑N‑3‑K4R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑20‑20‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑29‑10‑NN‑N‑3‑S2C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑S1A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑27‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑27‑20‑NN‑N‑3‑K4C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑K4R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LB‑26‑20‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑28‑NN‑NN‑N‑3‑S1N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑20‑20‑NN‑N‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑10‑NN‑N‑3‑S2C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑PC‑21‑NN‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑K4B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑21‑20‑NN‑N‑3‑S2C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑RP‑21‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LB‑22‑20‑NN‑N‑3‑S1A2‑A3N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑20‑30‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑30‑20‑NN‑N‑3‑S1T2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑30‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑26‑18‑NN‑N‑3‑S1B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑18‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑22‑23‑NN‑N‑3‑S1V2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑21‑20‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑C3N2‑A3N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1V2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑21‑16‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑21‑NN‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑22‑20‑NN‑N‑3‑S1B2‑A1N‑AAA‑NNN‑NNN

FR‑R‑074B‑LS‑26‑26‑NN‑N‑3‑S2B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑26‑26‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑20‑26‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑22‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑32‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BB‑31‑21‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BB‑31‑30‑NN‑N‑3‑S2N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BB‑31‑30‑NN‑N‑3‑S2N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑22‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑K4R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑29‑20‑NN‑N‑3‑K4N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑24‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑15‑18‑NN‑N‑3‑S1B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑15‑18‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑22‑20‑NN‑N‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑20‑NN‑N‑3‑S2C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑20‑NN‑N‑3‑S1R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑RP‑26‑20‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑20‑NN‑N‑3‑S2R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑K4R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑E‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑30‑20‑NN‑N‑3‑S1E8‑ACN‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑26‑18‑NN‑N‑3‑S2B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑E‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑30‑NN‑E‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑14‑21‑NN‑N‑3‑S1A2‑A3N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S2C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑22‑15‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑24‑20‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑25‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑21‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S2C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑30‑25‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S2B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BC‑31‑NN‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑25‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑20‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑20‑20‑NN‑N‑3‑S1V2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑20‑15‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑PC‑25‑NN‑NN‑N‑3‑K4A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BP‑31‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BP‑31‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S2B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BC‑29‑NN‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑22‑23‑NN‑N‑3‑S1V2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑PC‑21‑NN‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BB‑31‑30‑NN‑N‑3‑S2N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑22‑20‑NN‑N‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑20‑NN‑N‑3‑S2C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑20‑NN‑N‑3‑S2R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑20‑20‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑21‑20‑NN‑N‑3‑S1T2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑28‑NN‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑25‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑20‑NN‑N‑3‑K4N2‑A3N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑20‑20‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑29‑10‑NN‑N‑3‑S2C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑28‑NN‑NN‑N‑3‑S1N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑10‑NN‑N‑3‑S2C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑18‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑K4R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑16‑18‑NN‑N‑3‑S2B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑21‑24‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑21‑24‑NN‑N‑3‑S1B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑28‑34‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑TC‑31‑28‑NN‑E‑3‑S1B2‑A1R‑NNN‑ANS‑NNN
FR‑R‑074B‑BS‑29‑20‑NN‑N‑3‑K4N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑S2V2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑22‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑AL‑28‑27‑NN‑F‑3‑S1A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑RP‑21‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑S2C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑20‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑25‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑29‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑17‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑32‑30‑NN‑E‑3‑S1N4‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑TC‑32‑28‑NN‑E‑C‑S1B2‑A1R‑NNN‑ANS‑NNN
FR‑R‑074B‑BS‑29‑20‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑29‑20‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑29‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LB‑23‑27‑NN‑E‑3‑S1B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑NN‑NN‑NN‑NN‑N‑N‑S1N4‑A1N‑NNN‑NNN‑P00
FR‑R‑074B‑NN‑NN‑NN‑NN‑N‑N‑S1R2‑A1N‑NNN‑NNN‑P00
FR‑R‑074B‑NN‑NN‑NN‑NN‑N‑N‑S1R2‑A1R‑NNN‑ANS‑P00
FR‑R‑074B‑RP‑28‑30‑NN‑N‑3‑S2N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑21‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑CN‑20‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑NN‑NN‑NN‑NN‑N‑N‑S1N2‑A1N‑NNN‑NNN‑P00
FR‑R‑074B‑LS‑20‑21‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑BLX
FR‑R‑074B‑BS‑29‑25‑NN‑N‑3‑S1B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑20‑28‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑16‑14‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LB‑15‑20‑NN‑N‑3‑S1N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BC‑31‑NN‑NN‑N‑3‑S2B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑24‑25‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑N‑3‑K4N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑27‑NN‑NN‑N‑3‑K4R2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑23‑NN‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑29‑20‑NN‑N‑3‑K4B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑PC‑17‑NN‑NN‑N‑3‑K4V2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S2C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑26‑30‑NN‑N‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑E‑3‑S2N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑AR‑17‑10‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑20‑NN‑N‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑SD‑22‑NN‑NN‑R‑E‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑S1V2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑10‑NN‑N‑3‑K4B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑28‑34‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑21‑20‑NN‑N‑3‑S1N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑28‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑PC‑23‑NN‑NN‑N‑3‑S1A2‑A3N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑28‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑25‑30‑NN‑N‑3‑S1N4‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑16‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LB‑28‑30‑NN‑N‑3‑S1C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑21‑NN‑N‑3‑S1A2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑RP‑26‑20‑NN‑N‑3‑S1A2‑A3N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑21‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑24‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑30‑20‑NN‑F‑3‑S2C2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑25‑20‑NN‑E‑3‑S1R2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑28‑25‑NN‑N‑3‑S1A2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑30‑20‑NN‑N‑3‑S1C2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑LS‑23‑20‑NN‑N‑3‑S1N2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑E‑3‑S1N2‑A3N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑31‑15‑NN‑N‑3‑K4N2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑LS‑26‑20‑NN‑N‑3‑S1B2‑A1N‑NNN‑NNN‑NNN
FR‑R‑074B‑BS‑31‑20‑NN‑N‑3‑S1B2‑A1N‑AAA‑NNN‑NNN
FR‑R‑074B‑BS‑30‑20‑NN‑N‑3‑S1N4‑A1N‑NNN‑NNN‑NNN

Company Profile

Frequently Asked Questions

1.What ls our Main Products?

1.Hydraulic pump
2.Hydraulic valve
3.Hydraulic motor
4.Hydraulic cylinder
5.Hydraulic parts

2. What about the MOQ?

MOQ: 1pcs— we support sample and small quantity orders.

3.What are your advantages?

Adhere to quality first.
Support customization, ODM & OEM service.
1-year warranty and complete after-sales support.
Safe and fast shipping worldwide.
24-hour online service for your inquiries.

4.Are you a manufacturer? What’s your delivery time?

Yes, we are a manufacturer with our own factory.

Common models are in stock, and orders are usually shipped within 1–3 days.

5.Which payment methods are accepted?

We accept T/T, L/C, PayPal, VISA, Western Union, Apple Pay, Google Pay, Afterpay (Clearpay), Klarna, and Trade Assurance.

For full orders: 30% deposit, balance before shipment.

For small/sample orders: full payment in advance.

6.How will you deliver my goods?

We offer flexible shipping options: DHL, UPS, FedEx, TNT, EMS, as well as air or sea freight.

All deliveries ensure door-to-door fast and safe service.

7.How do you inspect and guarantee your products?

All products are tested before shipment to ensure perfect working condition.

We offer a 12-month warranty — if a product fails due to quality issues, we provide free spare parts or repair support.

8.What about after-sales service?

If you encounter any problem during use, please contact your sales manager or our support team at any time.

We will respond quickly and help solve the issue efficiently.

9.What are your main applications?

Hydraulic systems
Agricultural machinery
Construction machinery
Automobile industry
Local distributors and maintenance centers

10.Can I get a discount for bulk orders?

Yes. We offer competitive wholesale prices and try our best to give benefits to long-term partners.

Shoot Us An Email

Professional Manufacturer
