Product Overview

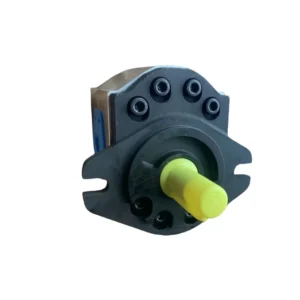

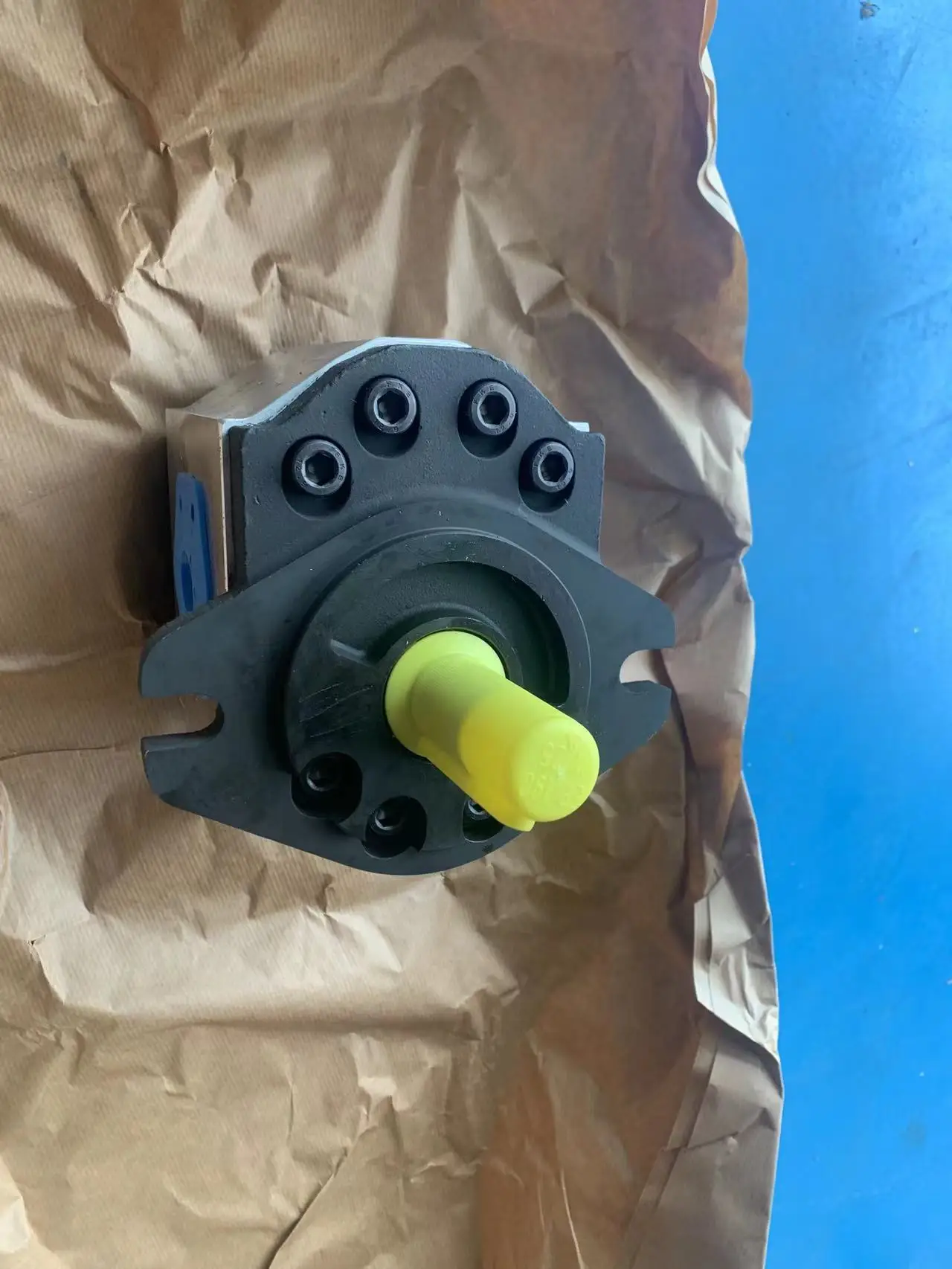

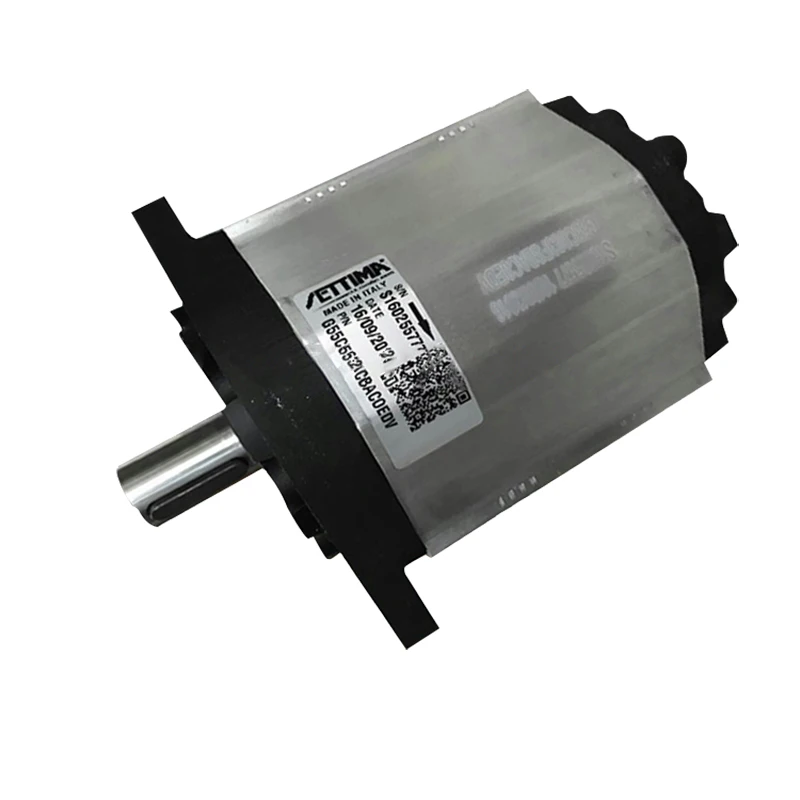

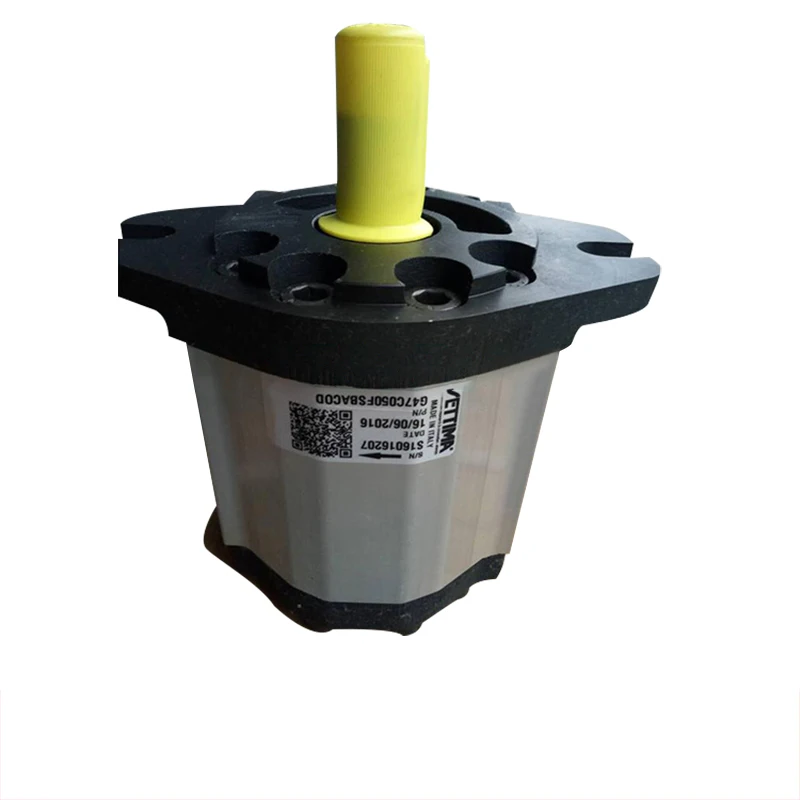

The G55C063FSBT150ED is a highly representative high-pressure servo screw pump from SETTIMA—a renowned Italian manufacturer of silent hydraulic pumps (founded in 1978, family-owned, headquartered in Bologna)—within the G55C series. This series covers multiple specifications from G28, G33, G38, G47, G55, G72, to G90, with displacements ranging from 4 to 220 cm³/rev. Featuring CONTINUUM® (continuous flow) technology, this series delivers high-pressure silent operation, ultra-low pulsation, and high-speed efficiency, widely used in injection molding machines, die-casting machines, construction machinery, and various industrial servo hydraulic systems.
As a professional hydraulic component manufacturer, we provide 100% interchangeable replacement solutions for the SETTIMA G55C series. Every G55C series servo pump undergoes 100% performance testing under simulated actual operating conditions—from displacement accuracy and pressure stability to volumetric efficiency—fully benchmarked against SETTIMA original equipment standards.

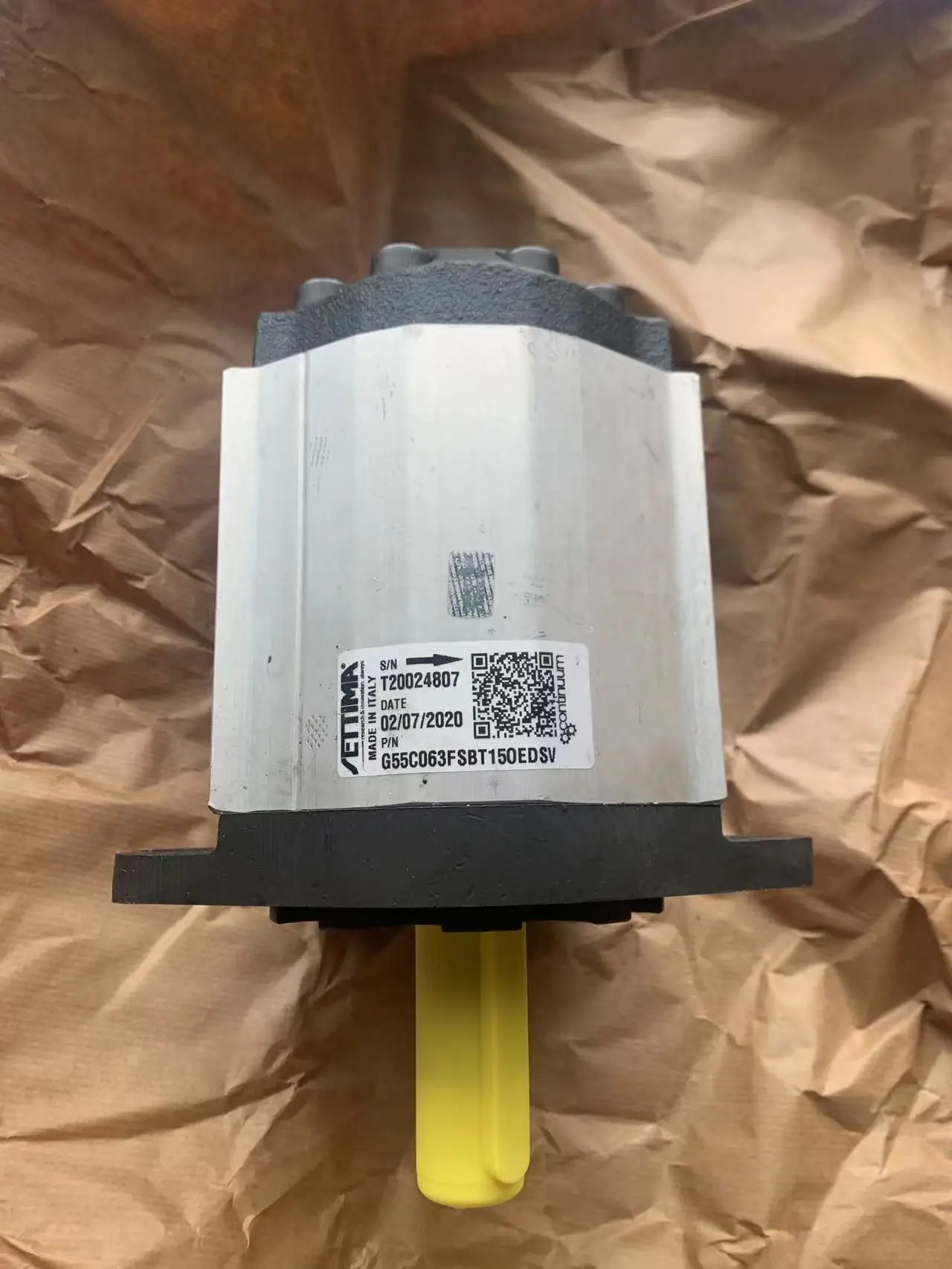

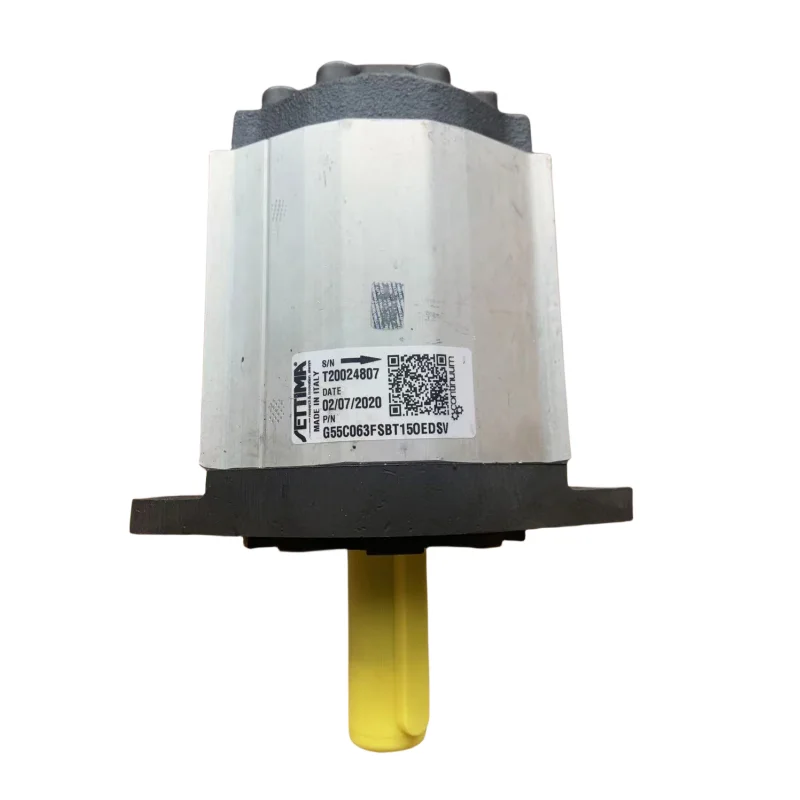

Model Code G55C063FSBT150ED Breakdown:
G: Product series—SETTIMA high-pressure gear/screw pump series
55: Frame size (G55 series)
C: Series variant (specific configuration version)
063: Displacement code—corresponds to 63 cm³/rev
FSBT: Mounting flange type and shaft configuration (spline shaft)
150ED: Special configuration/seal options code
Technical Specifications
G55C063FSBT150ED
Brand: SETTIMA (Italy)
Series: G55C High-Pressure Servo Screw Pump
Displacement: 63 cm³/rev
Rated Operating Pressure: 250 bar
Maximum Speed: 6,500 rpm
Minimum Speed: 150 rpm
Speed Range: 150–6,500 rpm
Control Type: Fixed displacement screw pump
Rotation Direction: Clockwise (viewed from shaft end) / Counter-clockwise optional
Mounting Type: Flange mounting (SAE standard)
Shaft Type: Spline shaft (FSBT) / Plain key shaft (FSBA) optional
Housing Material: Aluminum alloy
Noise Level: Low noise (< 68 dB)
Pressure Pulsation: Extremely low (< 1–2%)
Fluid Compatibility: Hydraulic oils, lubricating oils
Operating Temperature Range: -20°C to +150°C
Weight: Approx. 30 kg
Country of Origin: Italy
G Series Full Specifications Reference
G28 Series: Displacement 6–28 cm³/rev
G33 Series: Displacement 10–33 cm³/rev
G38 Series: Displacement 16–38 cm³/rev
G47 Series: Displacement 28–50 cm³/rev
G55 Series: Displacement 50–90 cm³/rev
G72 Series: Displacement 72–92 cm³/rev
Speed Range: 150–6,500 rpm
Operating Pressure: Continuous up to 275 bar
Important Note: The above specifications are compiled from SETTIMA official technical documentation and publicly available industry data. Different suffix codes represent different shaft types (spline/plain key) and seal configurations. Please refer to the product nameplate or technical agreement for exact specifications.
Key Technical Advantages
1. CONTINUUM® Continuous Flow Technology — Pulse-Free Delivery
The G55C series features SETTIMA’s patented CONTINUUM® (continuous flow) technology. Unlike conventional gear pumps, the continuous meshing motion of the screws fundamentally eliminates pressure pulsation, achieving ultra-low pulsation (< 1–2%) fluid delivery. This characteristic effectively protects valves, sensors, and actuators from hydraulic shock, significantly improving system stability and precision.
2. Ultra-Low Noise Operation (< 68 dB) — Silent and Energy-Efficient
The G55C series servo pump operates at exceptionally low noise levels, far below conventional gear pumps. The rolling motion of the screws suppresses vibration-induced noise with no metal-to-metal impact during operation—particularly suitable for noise-sensitive injection molding workshops, medical equipment, and precision manufacturing environments. The aluminum alloy housing further enhances heat dissipation and vibration damping.
3. Ultra-Wide Speed Range (150–6,500 rpm) — Perfect for Servo Systems
The G55C series offers an exceptionally wide speed range from 150 to 6,500 rpm. Stable flow output is maintained at low speeds, while ample flow is delivered at high speeds. This characteristic makes it the ideal partner for servo motor drives, enabling real-time speed and flow adjustment based on load demands for on-demand oil supply and significant energy savings.
4. High-Strength Aluminum Alloy Housing — Lightweight and Corrosion-Resistant
The G55C series pump body is manufactured from high-strength aluminum alloy, offering lightweight construction, corrosion resistance, and excellent heat dissipation. With total weight of only approximately 30 kg, low mechanical inertia, and fast response, it is particularly suitable for weight-sensitive mobile equipment and high-speed servo systems.
5. Excellent Fluid Compatibility and Extended Service Life
The G55C series handles a wide viscosity range of hydraulic and lubricating oils, with operating temperatures from -20°C to +150°C. Combined with the no axial load design between screws, pump service life is significantly extended. The full series is compatible with traditional gear pump mounting dimensions, facilitating equipment upgrades and retrofits.
Application Areas
Injection Molding Machine Hydraulic Systems: Main pumps for servo energy-saving retrofits, enabling on-demand oil supply
Die-Casting Machine Hydraulic Systems: Stable high-pressure oil supply with fast response
Construction Machinery: Hydraulic systems for excavators, loaders, and related equipment
Metalworking Equipment: Hydraulic power supply for machine tools and stamping equipment
Extruders & Pelletizers: Continuous stable hydraulic oil delivery
Wind Power Generation: Gearbox lubrication systems
Elevators & Lifting Equipment: Power units for hydraulic elevators
Metallurgical Equipment: Rolling mill hydraulic systems, coilers, etc.
Expert Maintenance Tips
1. Verify Rotation Direction
Viewed from the shaft end, the G55C series pump’s standard rotation is clockwise. For counter-clockwise rotation, contact SETTIMA for custom configuration. Always verify alignment with the drive motor’s rotation before installation. Reverse operation is strictly prohibited.
2. First Start-up and Priming
Screw pumps have self-priming capability, but ensure the pump cavity is fully primed before first start-up. Never start the pump dry—this will cause severe wear or seizure of screws and bushings.
3. Fluid Cleanliness Management
Screw pumps require proper fluid cleanliness. Install appropriately rated filters on the pump suction line and regularly inspect filter element condition. Recommended cleanliness level is NAS 1638 Class 8 or ISO DIS 4406 17/14.
4. Speed Range Control
The G55C series speed range is 150–6,500 rpm. In servo system applications, set the speed range appropriately based on load demands to avoid prolonged operation at extreme speeds.
5. Pressure Limits
Rated Operating Pressure: 250 bar. Never exceed rated pressure—peak pressure is permitted for short-term transient conditions only (single occurrence < 10 minutes).
6. Seal Material Selection
Standard seals are suitable for conventional hydraulic oils. Based on fluid temperature and chemical compatibility, FKM is available for high-temperature applications, and EPDM for specific chemical media environments.
7. Regular Inspection and Maintenance
Regularly inspect the system filter element condition. Regularly monitor the pump for abnormal operating noise—if abnormal noise or system pressure drop is detected, shut down immediately for inspection. The SETTIMA G series features long design life with few wear parts and low maintenance costs. In servo system applications, a comprehensive inspection every 2,000 operating hours is recommended.
