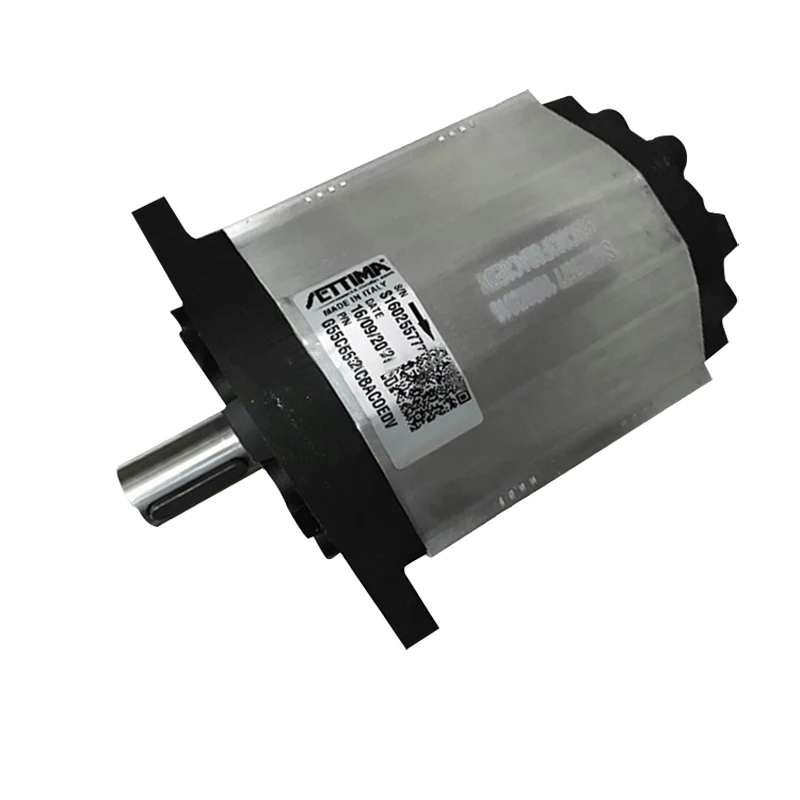

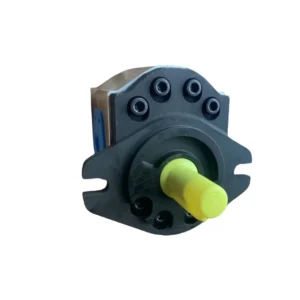

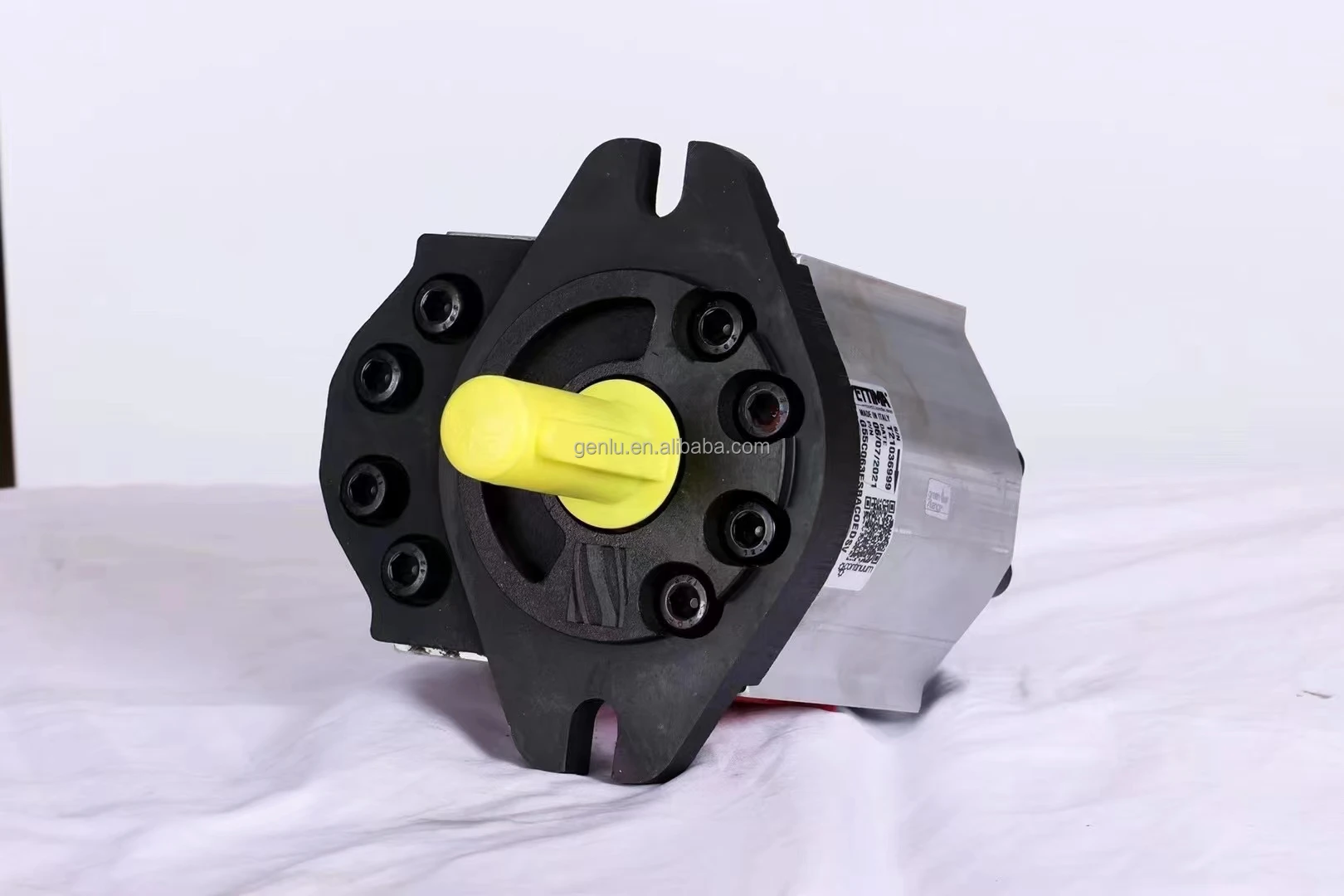

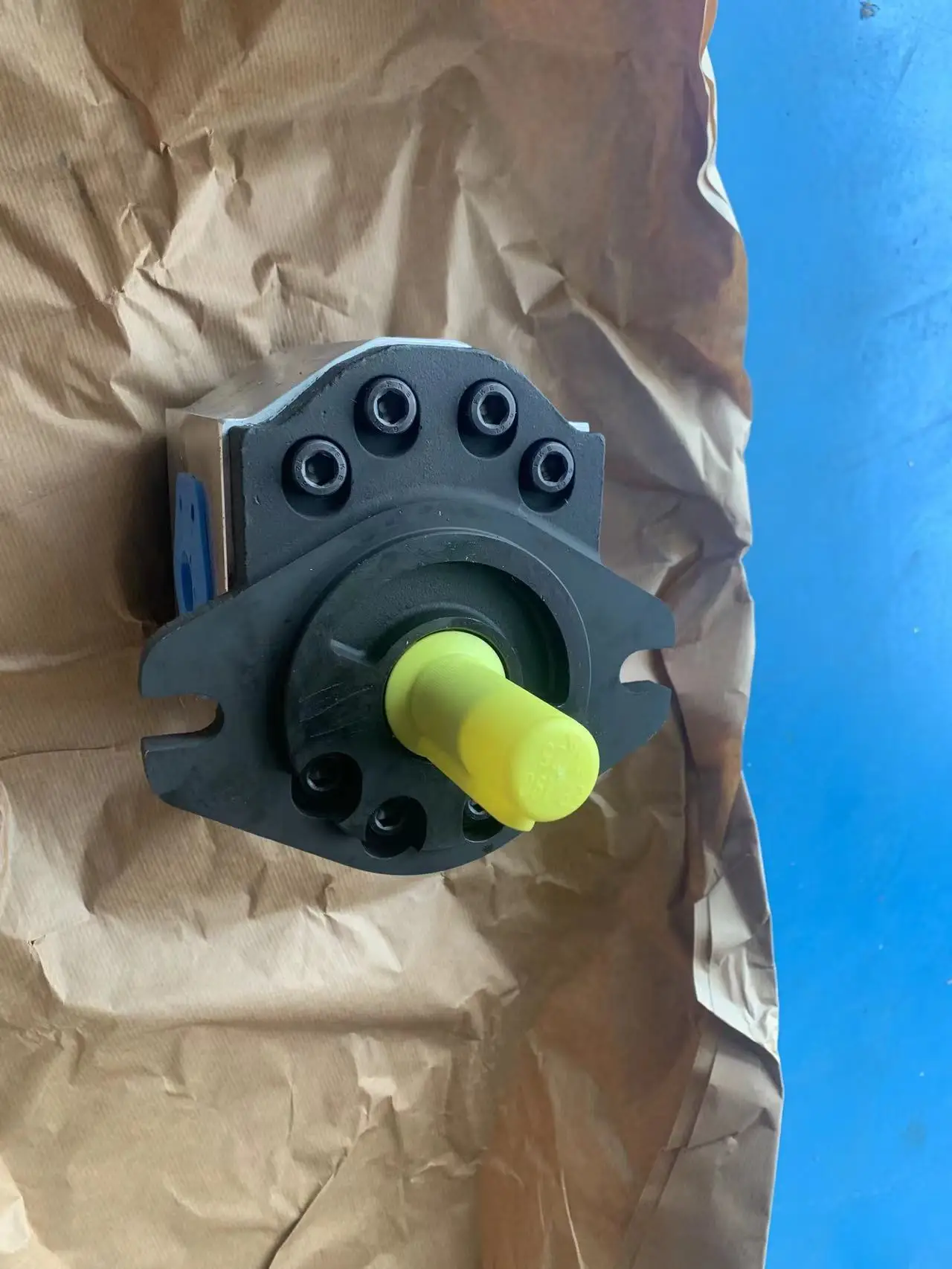

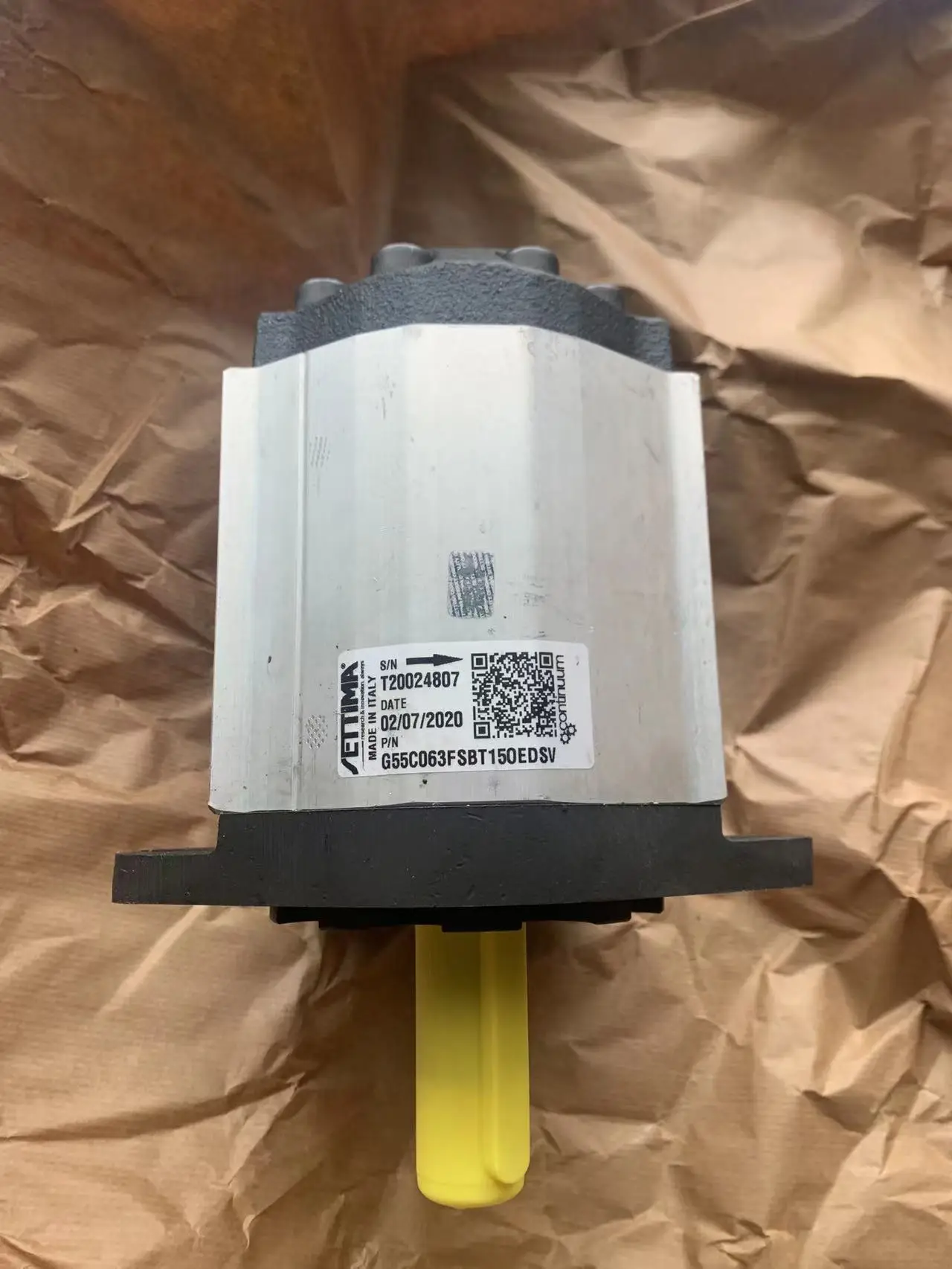

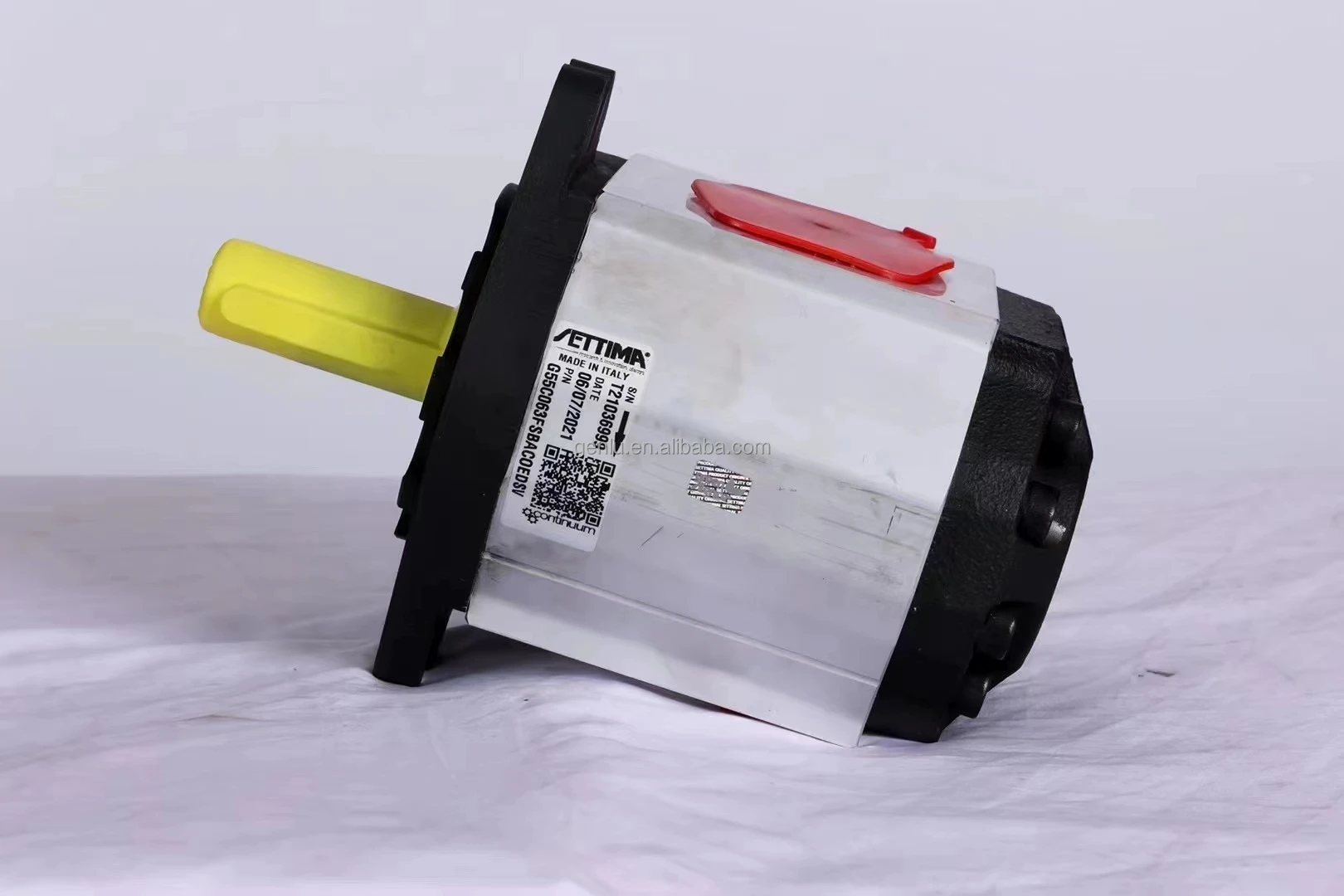

G55C063FSBT150EDV Settima Screw Pump G55 Series

Product Overview

The G55C063FSBT150EDV is associated with the Settima G55C family of industrial screw pumps. Importantly, Settima’s current official product portfolio classifies its core technology as screw pumps, rather than conventional external gear pumps. The company positions its products around low-noise technology and screw-pump engineering.

A three-screw pump uses a precisely coordinated screw set to create continuously moving sealed chambers. This produces smoother fluid transfer than the cyclic displacement principle of a conventional external gear pump and is particularly valuable where low pulsation, stable flow and reduced hydraulic noise are important.

Public supplier listings associate G55C063FSBT150EDV with the Settima G55C family, but the complete engineering definition of the FSBT150EDV suffix could not be independently verified through Settima’s publicly accessible official technical documentation. Therefore, exact displacement, rated pressure, peak pressure, maximum speed and weight are intentionally not stated as confirmed OEM values.

Our replacement units are manufactured around the original installation requirements and undergo 100% simulated operating-condition testing, including flow, pressure, leakage, noise and running stability checks.

Technical Specifications

G55C063FSBT150EDV

• Model: G55C063FSBT150EDV
• Brand Reference: Settima
• Product Family: G55C
• Pump Type: Three-Screw Pump / Screw Pump
• Primary Applications: Hydraulic power, lubrication, cooling, filtration and fluid circulation
• Series Code: G55C
• Configuration Code: 063
• Mounting / Configuration Code: FSBT150
• Suffix Configuration: EDV
• Displacement Control: Fixed Displacement
• Drive Principle: Rotary Mechanical Drive
• Exact Geometric Displacement: Not independently verified from Settima public OEM documentation
• Rated Pressure: Not independently verified
• Peak Pressure: Not independently verified
• Maximum Speed: Not independently verified
• Weight: Not independently verified

Settima’s official website identifies screw pumps as a primary product category and lists high pressure, no-noise technology, high flows, low viscosity and high viscosity among its technology areas.

Third-party listings associate the model with G55C063, but their published pressure and speed figures are inconsistent and therefore are not treated here as verified OEM specifications.

Key Technical Advantages

Continuous Three-Screw Pumping

The screw set creates continuously moving sealed chambers, producing smooth positive-displacement flow with significantly reduced cyclic pulsation compared with traditional gear-pump architectures.

Low-Noise Operation

Settima officially positions No Noise technology as one of its core areas of development and reports more than 40 years of research and production experience with over one million pumps manufactured.

Low Flow Pulsation

The continuous screw engagement principle helps reduce source-induced pressure pulsation and hydraulic vibration, making the technology particularly attractive for sensitive industrial hydraulic and lubrication systems.

Lubrication and Cooling Capability

Settima’s official application portfolio explicitly includes lubrication, cooling, filtration and transfer, covering applications such as gearbox lubrication, fluid circulation and industrial cooling loops.

Continuous-Duty Industrial Design

When operated within the correct viscosity, inlet and pressure conditions, screw pumps are well suited to continuous circulation duties in industrial hydraulic and lubrication systems.

Broad Industrial Application Base

Settima officially serves markets including:

• Lift and elevator systems
• Energy and power
• Oil and gas
• Plastic injection
• Presses
• Machine tools
• Compressors and rotating equipment
• Marine
• Agriculture
• Material handling
• Electric/hybrid vehicles
• Mining
• Truck hydraulics

Application Areas

Potential application areas for the G55-series screw-pump technology include:

• Industrial hydraulic power units
• Hydraulic oil circulation systems
• CNC machine lubrication
• Machine-tool lubrication systems
• Industrial cooling circuits
• Filtration systems
• Gearbox lubrication
• Wind-turbine gearbox lubrication
• Turbine and compressor lubrication
• Auxiliary hydraulic circulation systems
• Plastic injection machinery
• Heavy industrial machinery

Settima’s official Energy & Power information specifically identifies applications in turbine and compressor lubrication, wind-turbine gearbox lubrication and seal-oil systems.

Expert Maintenance Tips

Verify the Complete Ordering Code

Do not match a replacement solely by G55C063. The complete code G55C063FSBT150EDV should be checked because the suffix configuration may define critical mechanical or sealing characteristics.

Protect the Suction Circuit

Check suction-line sizing, filter condition, oil level and inlet pressure. Excessive suction restriction or high cold-fluid viscosity can cause noise, vibration and performance degradation.

Select Hydraulic Fluid by Viscosity

Settima officially identifies both low-viscosity and high-viscosity applications as technology areas. Fluid selection must therefore be based on the exact pump configuration and operating conditions.

Avoid Unverified Pressure Settings

Because an OEM pressure curve for this exact G55C063FSBT150EDV configuration has not been located in the publicly accessible official documentation, third-party pressure figures should not be used as the basis for system relief-valve settings.

Check Shaft Alignment

Correct motor-pump alignment is critical to minimizing shaft, bearing, seal and coupling loading. Verify both angular and parallel alignment during installation.

Clean the Hydraulic Circuit During Replacement

When replacing a worn pump, inspect:

• Hydraulic oil
• Suction filter
• Return filter
• Reservoir cleanliness
• Shaft coupling
• Pipework cleanliness

Contamination from the previous pump can otherwise shorten the service life of the replacement unit.
