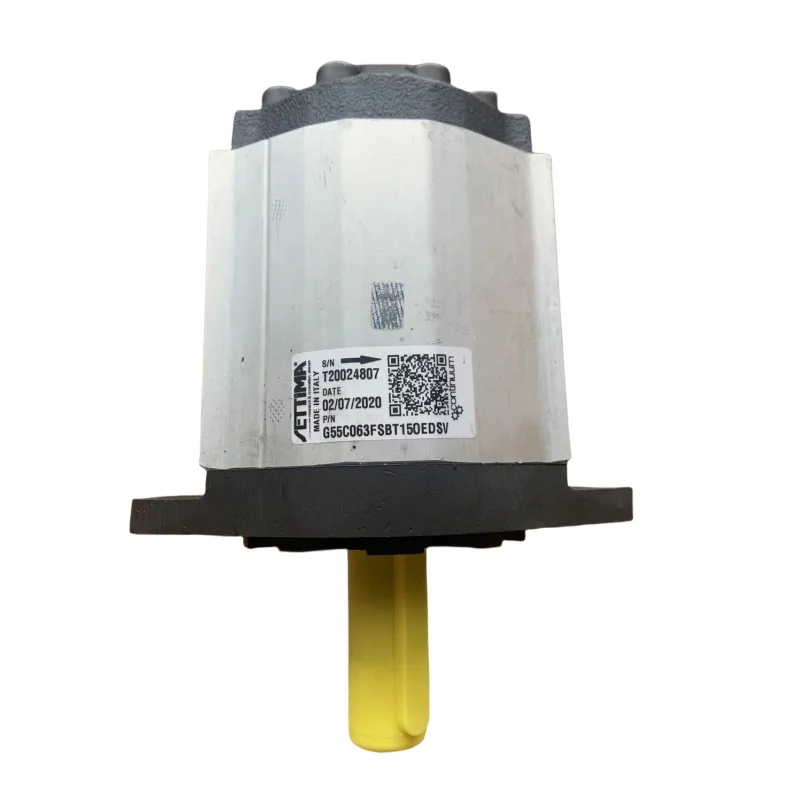

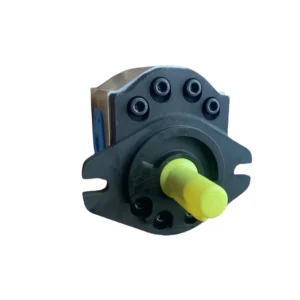

G55C075FSBT150EDSV Hydraulic Gear Pump 75 cc 200 bar 3000 rpm

Product Overview

The G55C075FSBT150EDSV is a high-pressure internal gear pump from the SETTIMA GR55 Series, featuring helical gear technology for superior noise reduction and operational smoothness. Available in displacements ranging from 50 cc to 90 cc, the G55C series is widely deployed in injection molding machines, hydraulic presses, and servo hydraulic systems.

The G55C075FSBT150EDSV delivers 75 cc/rev displacement, with a rated pressure of 178–200 bar and peak pressure capability up to 300 bar. The pump is engineered with full dimensional and interface compliance to original SETTIMA specifications, enabling direct interchangeability without requiring modifications to hydraulic lines or mounting brackets. Every unit undergoes 100% factory testing under simulated working conditions to guarantee consistent performance and reliability.

Model Code Breakdown: G55C — Product series (GR55 Series, internal gear pump); 075 — Nominal displacement 75 cc; FSB — Mounting flange type; T150 — Shaft type (spline); ED — Seal and port configuration; SV — Special version identifier.

Technical Specifications

G55C075FSBT150EDSV Core Specifications

• Model: G55C075FSBT150EDSV

• Series: GR55 / G55C

• Pump Type: Internal Gear Pump

• Gear Type: Helical Gear

• Nominal Displacement: 75 cc/rev

• Rated Pressure: 178–200 bar

• Max. Continuous Pressure: 275 bar

• Peak Pressure: 300 bar

• Speed Range: 150 – 3000 RPM

• Volumetric Efficiency: ≥ 95% (typical)

• Noise Level: 15dB(A) lower than standard external gear pumps

• Fluid Medium: Mineral oil, synthetic oil

• Oil Temperature Range: -20°C to +80°C

• Ambient Temperature Range: -15°C to +60°C

• Installation Position: External and/or under oil

• Inlet Pressure: 0.6 – 3 bar

• Weight: Approx. 20–30 kg

G55C Series Common Variants

• G55C050FSBACOEDV / G55C050FSBT15OED — 50 cc, parallel key / spline shaft

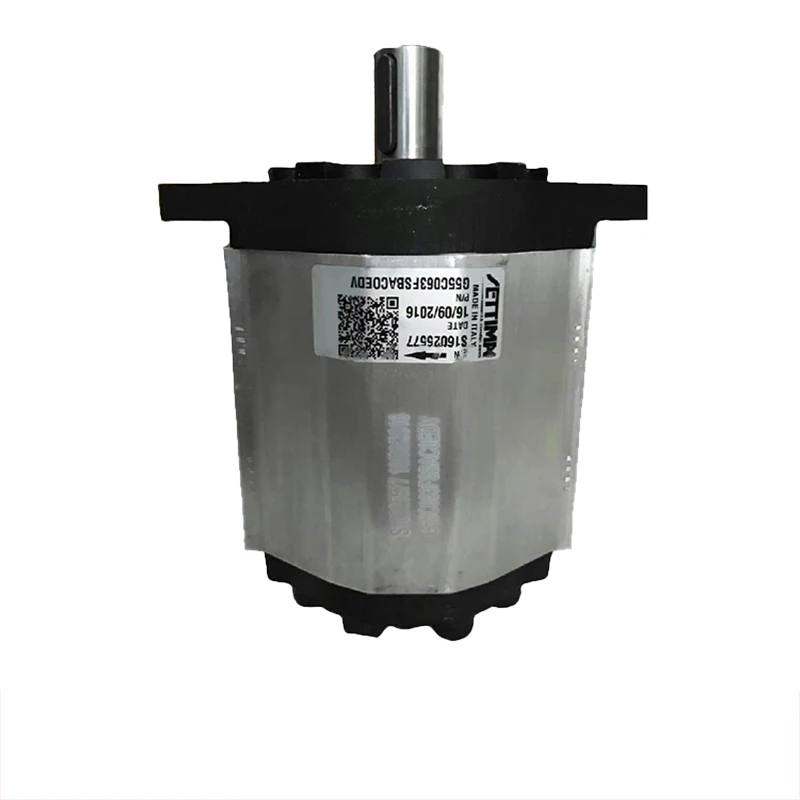

• G55C063FSBACOEDV / G55C063FSBT15OED — 63 cc, parallel key / spline shaft

• G55C075FSBACOEDV / G55C075FSBT15OED — 75 cc, parallel key / spline shaft

• G55C090FSBACOEDV / G55C090FSBT15OED — 90 cc, parallel key / spline shaft

Key Technical Advantages

1. Helical Gear Design for Ultra-Low Noise Operation
The helical gear technology delivers an average noise reduction of 15dB(A) compared to conventional external gear pumps. This makes the G55C series ideal for noise-sensitive industrial environments such as injection molding workshops and precision machining centers, while eliminating the need for secondary noise suppression measures.

2. Extremely Low Pressure Pulsation & Vibration
The internal gear pump design provides exceptionally low pressure pulsation, dramatically reducing system vibration and preventing energy dissipation. The G55C series delivers performance comparable to more expensive piston pumps and internal gear pumps at a significantly more economical cost.

3. Wide Speed Range for Diverse Operating Conditions
With a speed range spanning 150 to 3000 RPM, the pump performs reliably across applications from low-speed high-torque to high-speed high-efficiency operations. Combined with 300 bar peak pressure capability, it meets the demands of conventional hydraulic systems as well as high-performance servo applications.

4. High Efficiency & Superior Contamination Tolerance
The internal gear pump design offers simple construction, excellent contamination tolerance, and typical volumetric efficiency exceeding 95%. Compared to piston pumps, it demonstrates greater tolerance to fluid contamination, resulting in lower maintenance costs and extended service life.

5. 100% Factory Testing Under Simulated Working Conditions
Every pump undergoes comprehensive performance verification on test benches that simulate actual operating conditions, including pressure-flow characterization, volumetric efficiency measurement, noise level assessment, and seal integrity testing—ensuring batch-to-batch quality consistency and reliability.

Application Areas

• Injection Molding Machines: High-pressure injection molding pump systems

• Hydraulic Presses: Hydraulic forming equipment power units

• Servo Hydraulic Systems: Servo pump integration

• Extruders: Plastic extrusion equipment

• Machine Tools: Metalworking machinery hydraulic systems

• Lifting Equipment: Hoisting and elevating device hydraulic systems

• General Industrial Hydraulic Systems

Expert Maintenance Tips

1. Model & Configuration Verification
Confirm that the pump model code matches your requirements, paying special attention to displacement (050/063/075/090), shaft type (parallel key FSBAC or spline FSBT), and rotation direction. Verify the nameplate specifications against your system design requirements before installation.

2. Port Cleanliness & System Flushing
Ensure the inlet port and suction lines are free from debris, metal chips, and contaminants before installation. Perform a thorough circulating flush of the entire hydraulic system to achieve cleanliness levels of NAS 1638 Class 9 or ISO 4406 18/15 or better.

3. Shaft Alignment
Verify the alignment accuracy between the pump shaft and the drive motor shaft. Ensure the connection produces no axial or radial loads. Use flexible couplings and maintain concentricity within 0.05 mm.

4. Inlet Pressure Monitoring
The G55C series requires inlet pressure to be maintained between 0.6 and 3 bar. Keep suction lines as short and straight as possible to minimize inlet resistance. Install a vacuum pressure gauge on the suction line for real-time monitoring.

5. Pre-Start Priming & Air Bleeding
Fill the pump cavity with hydraulic oil before installation. During initial start-up, loosen the drain port or outlet fitting to purge air from the system. Retighten only after continuous oil flow appears free of bubbles. Never operate the pump under dry suction conditions.

6. Fluid Cleanliness & Temperature Management
Maintain hydraulic fluid cleanliness to NAS 1638 Class 9 or ISO 4406 18/15 or better. Keep oil temperature within the -20°C to +80°C range. Replace filters regularly and monitor system oil cleanliness through routine sampling and analysis.
