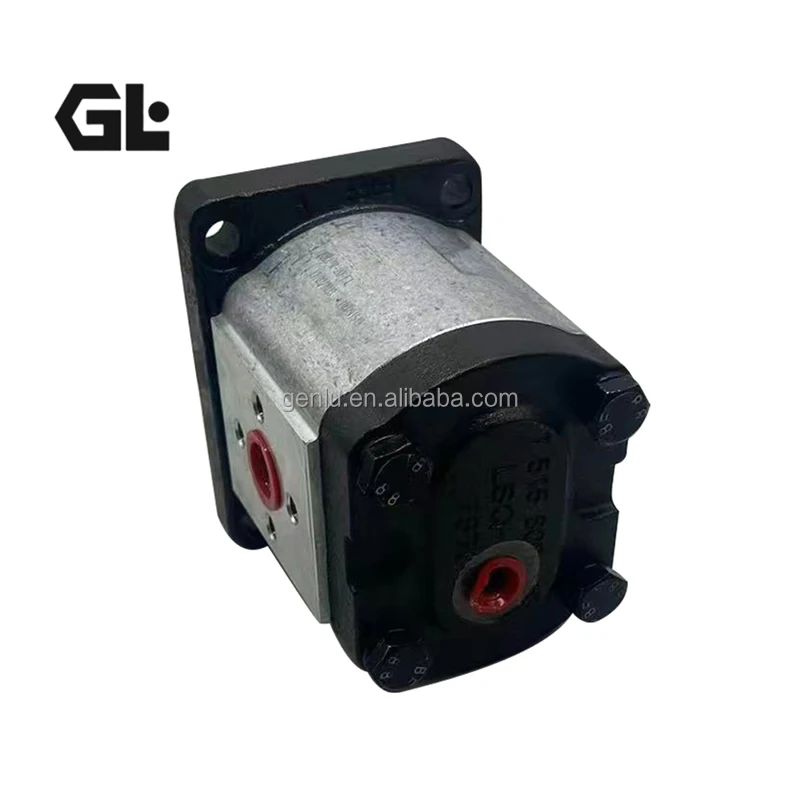

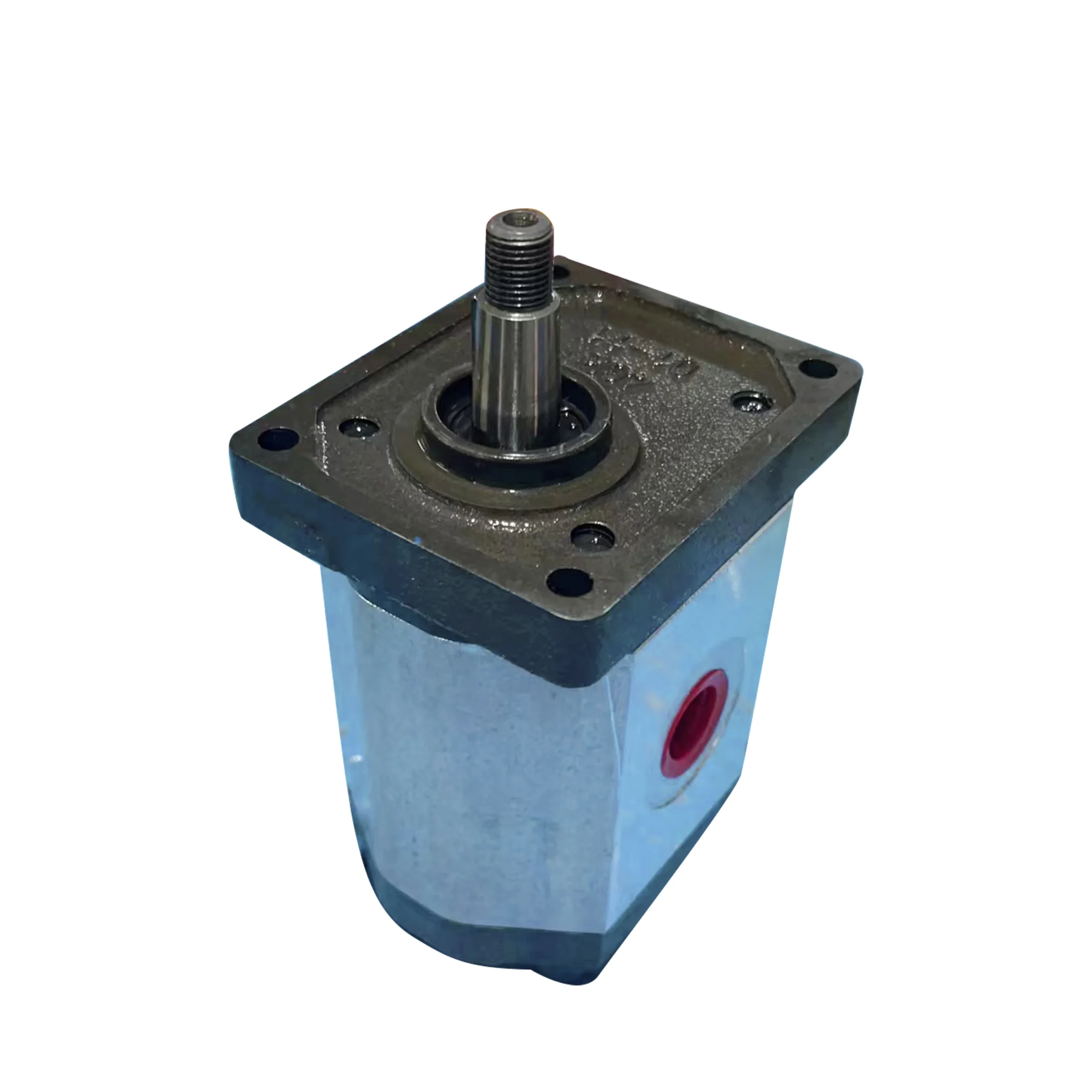

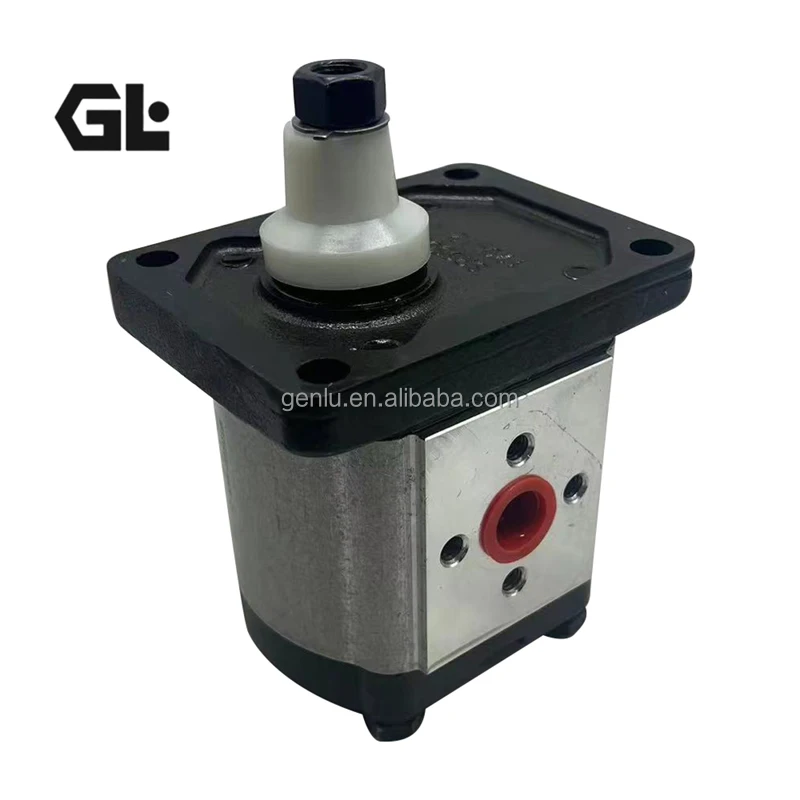

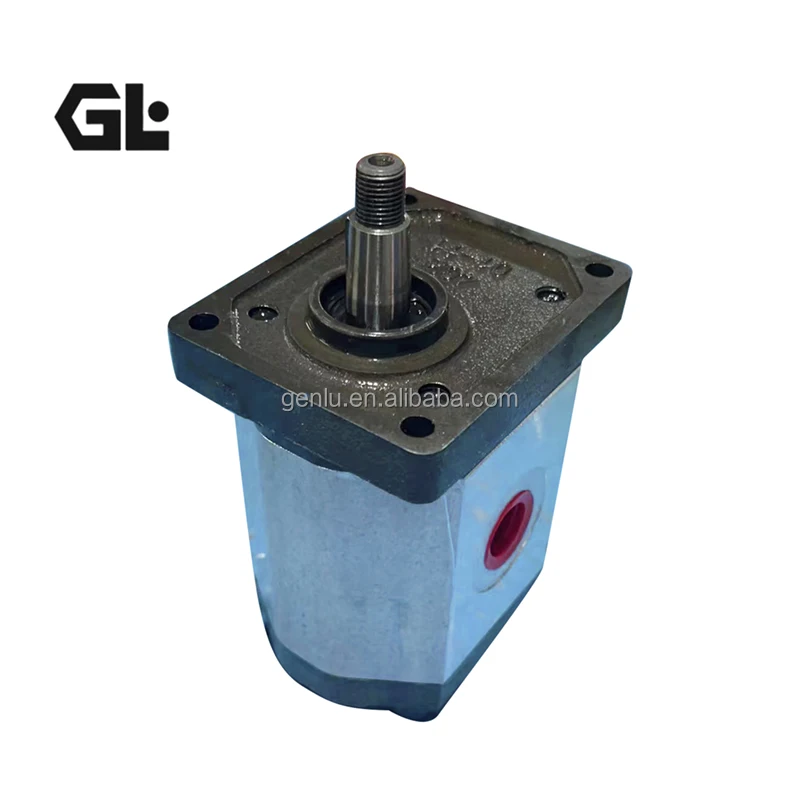

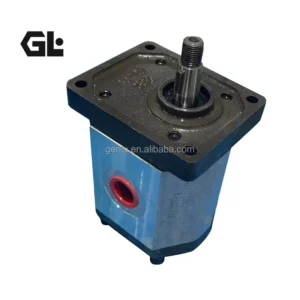

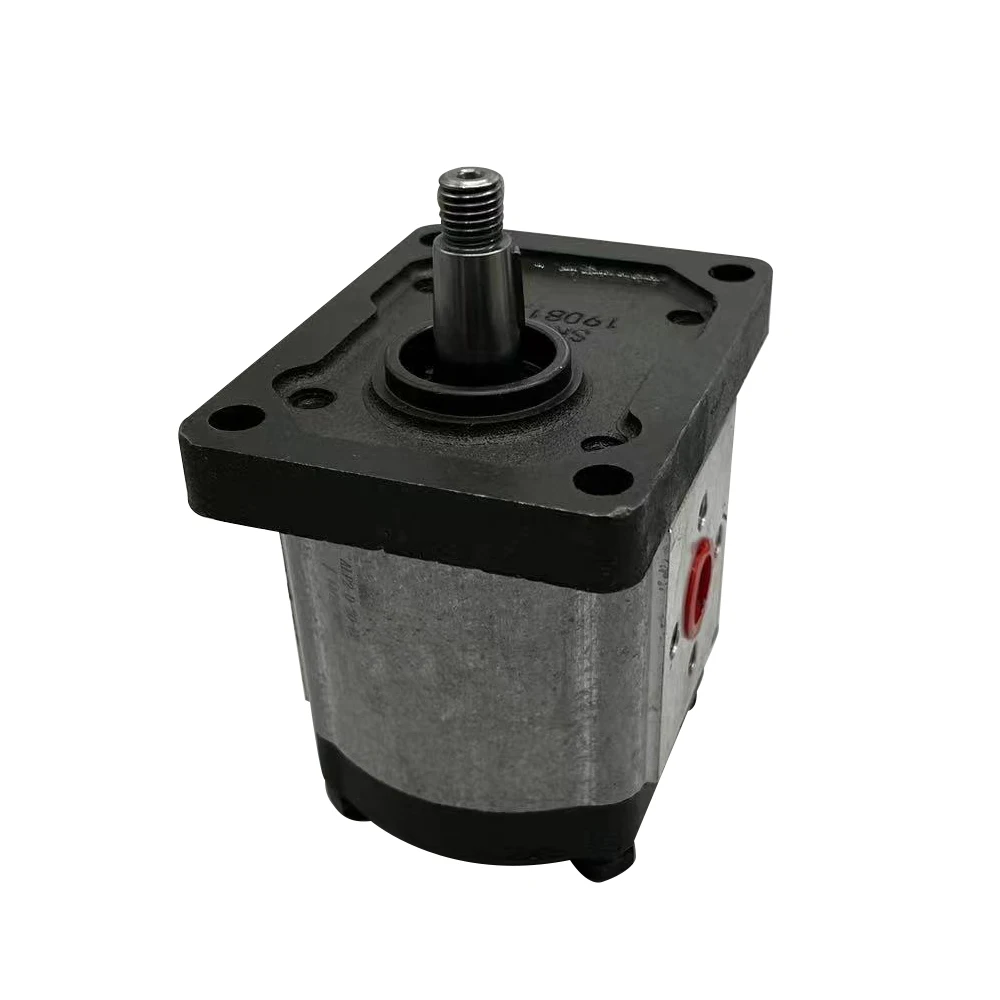

GHPA2-D-6 Marzocchi Gear Pump 4.5 cm³ High Pressure

Model Number

GHP1-D-4-CO/CO, GHPP1-D-5, GHPA2-D-6+GHPP2-D-6

Inquiry
SKU N/A Categories ,

Product Description

Product Overview:

The GHPA2-D-6+GHPP2-D-6, GHPP1-D-5 and GHP1-D-4-CO/CO belong to the Marzocchi GHP/GHPA/GHPP series of high-pressure external gear pumps. Fixed-displacement design featuring aluminum housing with steel covers, engineered for high-pressure mobile and industrial hydraulic systems. Compact construction, low noise and high volumetric efficiency. Fully interchangeable with original Marzocchi mounting dimensions, shaft ends, flanges and ports – true drop-in replacement. Every unit undergoes 100% simulated operating-condition testing to guarantee reliable output under rated pressure and speed. Ideal for OEMs and aftermarket applications demanding interchangeability, high-pressure performance and consistency.

Technical Specifications

  • Models: GHPA2-D-6+GHPP2-D-6, GHPP1-D-5, GHP1-D-4-CO/CO (GHP / GHPA / GHPP series)
  • Brand: Marzocchi
  • Type: High-pressure external gear pump (fixed displacement, single or modular multiple)
  • Displacement: GHPA2-D-6 / GHPP2-D-6 = 4.5 cm³/rev; GHP1-D-4 = 2.8 cm³/rev; GHPP1-D-5 = 3.5 cm³/rev
  • Continuous pressure: GHPA2-D-6 = 280 bar; GHP1-D-4 = 270 bar
  • Intermittent pressure: GHPA2-D-6 = 295 bar; GHP1-D-4 = 290 bar
  • Peak pressure: GHPA2-D-6 = 310 bar; GHP1-D-4 = 310 bar
  • Maximum speed: GHPA2-D-6 = 4000 rpm; GHP1-D-4 = 5000 rpm
  • Minimum speed: approx. 500–800 rpm
  • Control: Fixed displacement
  • Direction of rotation: Clockwise (D)
  • Drive shaft: European tapered 1:8
  • Mounting flange: European standard flange
  • Port connections: Flanged or threaded (CO/CO etc.)
  • Housing material: High-strength aluminum (steel covers)
  • Weight: Depends on configuration (single pump approx. 3–4 kg)

Key Technical Advantages:

  1. High-pressure reinforced design: Steel covers and precision machining enable continuous pressure up to 280 bar and peak 310 bar, suitable for demanding high-pressure applications.
  2. Precision gear machining and pressure-compensated gap sealing: Low internal leakage and reduced heat generation maintain high volumetric efficiency under high-pressure conditions.
  3. Full interchangeability: Mounting dimensions, shaft ends, flanges and ports match original Marzocchi exactly – true drop-in replacement without system modifications.
  4. Low noise and modular design: Optimized tooth profile reduces pressure pulsation and noise; supports single and modular multiple-pump configurations for high flexibility.
  5. 100% simulated-condition testing: Every unit is tested under actual working pressure, speed and load before shipment, ensuring consistent performance and reliability.

Application Areas:

Construction machinery (auxiliary circuits on excavators and loaders), agricultural equipment, forklifts, port machinery, industrial hydraulic power units, mobile cranes and any high-pressure fixed-displacement hydraulic systems. Particularly suited for space-constrained, high-pressure applications with strict interchangeability requirements in both OEM and aftermarket use.

Expert Maintenance Tips:

Install strictly according to original rotation direction and flange alignment to avoid additional radial or axial loads. Bleed the system thoroughly and verify suction-line sealing before first operation to prevent cavitation. Use mineral-based hydraulic oil meeting ISO/DIN standards (recommended operating viscosity 12–100 mm²/s) and maintain cleanliness class ISO 4406 19/17/14 or better. Monitor shaft-seal and housing temperatures regularly and stay within the allowed ambient temperature range. For long-term storage, seal all ports and fill with preservative oil. When replacing, always select the identical model or a fully tested interchangeable unit to maintain system matching and service life.
