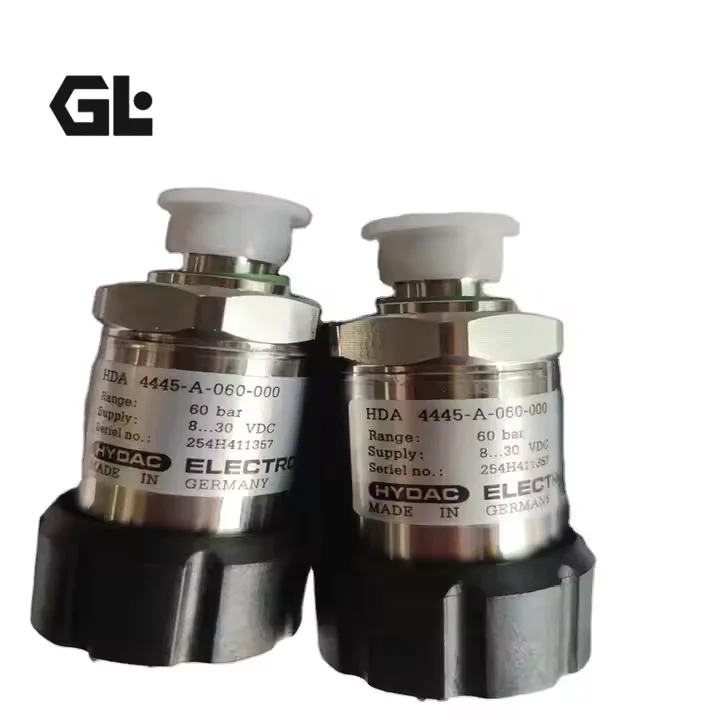

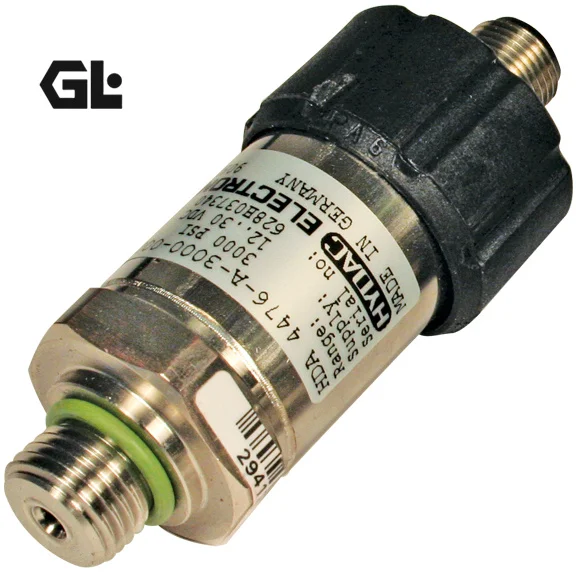

HDA4444-A-400-000 HYDAC Pressure Transmitter 400 bar
| Model Number | HDA4744-A-016-000, HDA4744-C-400-000, HDA4845-E-250-000, HDA4444-A-400-000 |
|---|
Product Description
Product Overview
The HDA4444-A-400-000, HDA4845-E-250-000, HDA4744-C-400-000, HDA4744-A-016-000, HDA4445, HDA4400 and HDA4845 belong to the HYDAC HDA 4400/4700/4800 series of electronic pressure transmitters. Featuring thin-film strain gauge technology on a stainless steel membrane, these sensors provide standard 4–20 mA or 0–10 V output signals for precise pressure monitoring in mobile and industrial hydraulic and pneumatic systems. Fully interchangeable with original HYDAC HDA units, every transmitter undergoes 100% simulated operating-condition testing to ensure high accuracy, robustness and excellent long-term stability.
Technical Specifications
- Model: HDA4444-A-400-000 / HDA4845-E-250-000 / HDA4744-C-400-000 / HDA4744-A-016-000 etc. (HDA 4400/4700/4800 series)
- Type: Electronic pressure transmitter (relative pressure)
- Measuring ranges: common 16 / 60 / 100 / 250 / 400 / 600 bar (model-dependent)
- Overload pressure: typically 1.5–2 × measuring range (e.g. approx. 800 bar for 400 bar)
- Burst pressure: typically 2–3 × or higher (e.g. approx. 2000 bar for 400 bar)
- Accuracy: ≤ ±0.5 % FS typ. (max. ≤ ±1 % FS); BFSL ≤ ±0.25 % FS typ.
- Output signal: 4–20 mA (2-wire) or 0–10 V (3-wire)
- Mechanical connection: G1/4 A (ISO 1179-2)
- Recommended tightening torque: 20 Nm
- Wetted parts: Stainless steel + FKM seal
- Electrical connection: Binder M18, DIN 43650, M12×1 etc.
- Protection class: IP65 / IP67 (connector-dependent)
- Compensated temperature range: –25 to +85 °C
- Operating temperature range: –25 to +85 °C (medium up to higher)
- Rise time: ≤ 1–2 ms
Key Technical Advantages
- High-precision thin-film strain gauge sensing: Full-bridge thin-film technology on stainless steel membrane delivers high accuracy, low temperature error and excellent long-term stability (≤ ±0.3 % FS/year).
- Robust construction: Stainless steel wetted parts combined with high overload and burst capability provide resistance to vibration and shock in mobile and industrial environments.
- True interchangeability and standard outputs: Identical mechanical and electrical interfaces to original HYDAC HDA series enable direct drop-in replacement; standard current/voltage signals are fully compatible with PLCs and monitoring systems.
- 100% functional verification under simulated conditions: Every unit is fully tested across pressure and temperature characteristics before shipment, guaranteeing consistency and reliability.
Application Areas
- Pressure monitoring on mobile hydraulic equipment (construction and agricultural machinery)
- Industrial hydraulic power units and pump stations
- Injection molding, die-casting and press systems
- Pneumatic systems and test stands
- Marine and metallurgical hydraulic circuits
Expert Maintenance Tips
Install with correct sealing and tighten to the specified 20 Nm torque; avoid over-tightening that could damage threads or the membrane. Ensure correct electrical connection matching the signal type (2-wire/3-wire) and provide proper shielding against EMC. Maintain clean system media to protect the membrane from particles. Periodically check zero and full-scale drift and recalibrate if necessary. For long-term storage keep dry and avoid extreme temperatures. Always confirm pressure range and output signal compatibility before replacement; never exceed the rated pressure.
