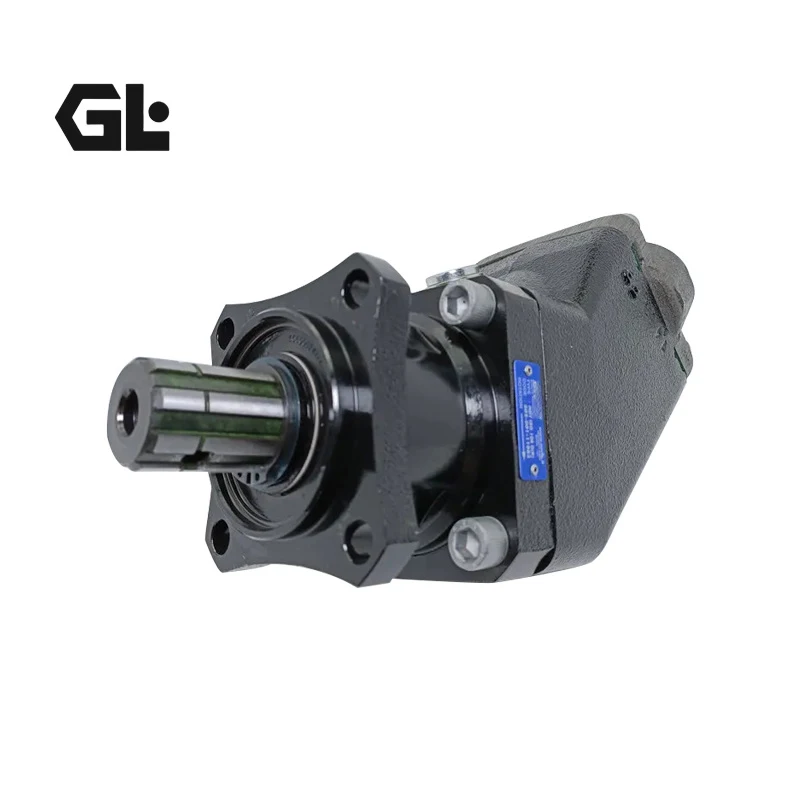

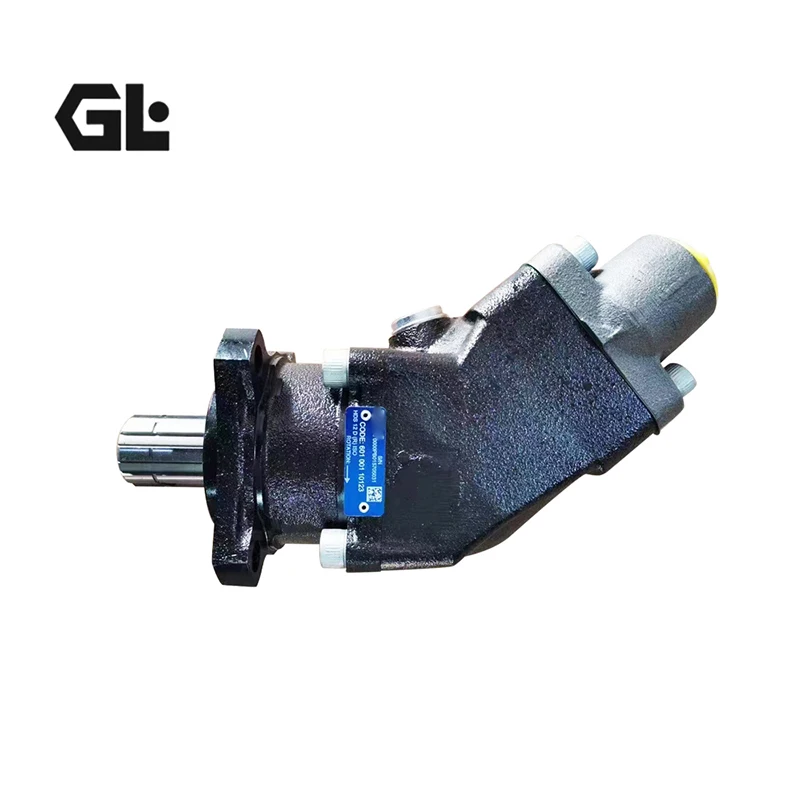

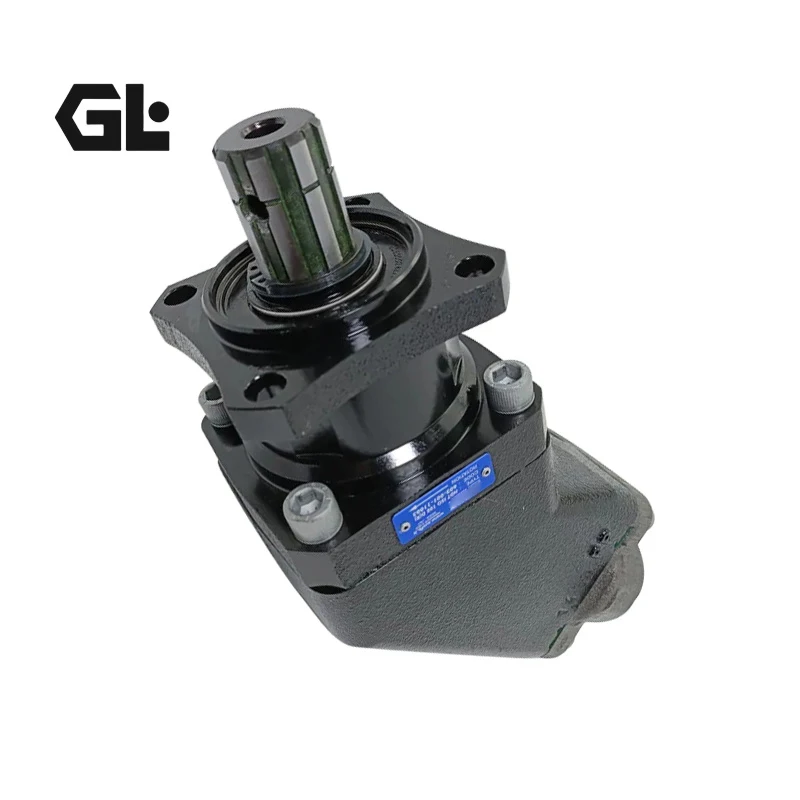

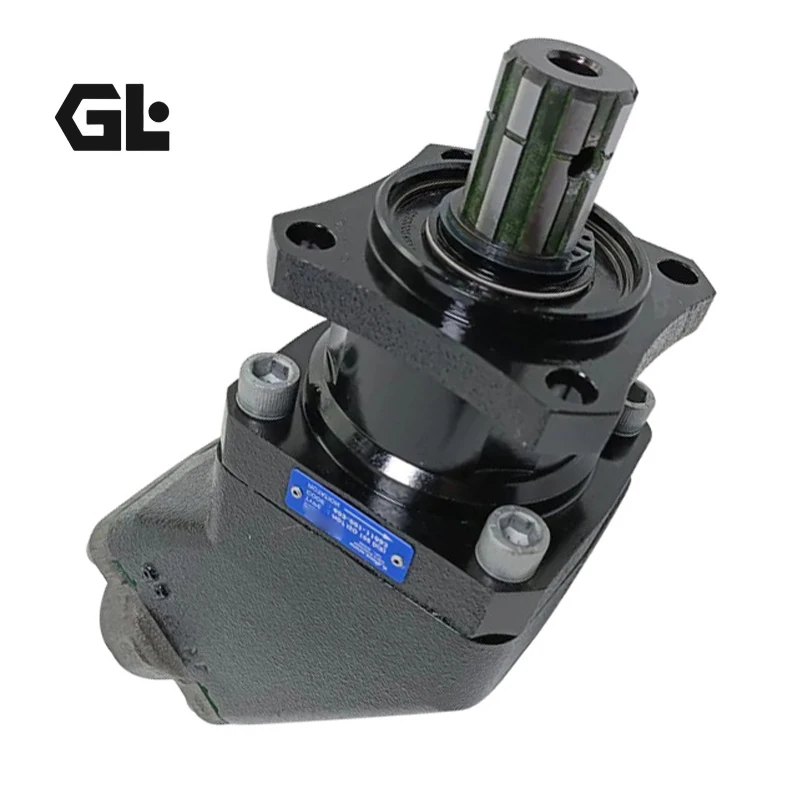

HDT108S-R HDT75D OMFB HDT Bent Axis Piston Pump 350bar

Product Overview

The HDT75D, HDT75S, HDT84D, HDT84S, HDT96S, HDT108D and HDT108S-R (including HDT ISO 108 S(L) 602-001-11089) are precision-engineered interchangeable fixed-displacement bent-axis piston pumps fully compatible with the OMFB HDT Series. Designed with fixed displacement in bent-axis configuration, flow is proportional to drive speed. The compact body shape facilitates installation in restricted spaces, particularly with coaxial PTOs and large propeller shafts. They deliver 100% form-fit-function interchangeability with original OMFB models. Every pump undergoes rigorous 100% simulated operating-condition testing to guarantee volumetric efficiency, mechanical efficiency and reliability under continuous rated conditions.

Technical Specifications

• Models: HDT75D/S, HDT84D/S, HDT96S, HDT108D/S-R (ISO 108 example code 602-001-11089)
• Geometric displacement: HDT75 – 75.5 cm³/rev; HDT84 – 84.2 cm³/rev; HDT96 – 95.5 cm³/rev; HDT108 – 107 cm³/rev
• Continuous pressure (P1): 350 bar
• Peak pressure (P3, max 6 sec): 370 bar
• Maximum continuous speed without load (V0): 2300 rpm
• Maximum continuous speed (V1): 1500 rpm
• Maximum intermittent speed (V2): 2000 rpm
• Minimum speed: 300 rpm
• Control type: Fixed displacement (no variable mechanism)
• Direction of rotation: Right-hand (D) or left-hand (S) available
• Ports: ISO 228 (suction G1-1/4, delivery G1) or other SAE/ISO options
• Housing material: High-strength cast iron
• Approximate weight: 14.5–15 kg
• Design: Bent-axis fixed-displacement piston pump

Key Technical Advantages

1. Bent-axis design with pistons directly supported on the drive shaft delivers high mechanical and volumetric efficiency with stable torque output.
2. Compact body shape enables easier installation in restricted spaces, especially with coaxial PTOs and large propeller shafts.
3. High continuous pressure capability (350 bar) and wide speed range (300–2300 rpm) suit diverse mobile hydraulic applications.
4. Robust cast-iron housing provides excellent rigidity and vibration resistance, supported by precision sealing for continuous high-pressure duty.
5. Full dimensional and functional interchangeability with original OMFB HDT units, including mounting, shaft and ports, allows true drop-in replacement without system modifications.

Application Areas

Suitable for commercial vehicles, truck hydraulic systems, concrete mixer trucks, refuse vehicles, crane auxiliary circuits, agricultural machinery and any mobile equipment requiring fixed-displacement high-pressure flow.

Expert Maintenance Tips

Ensure precise shaft alignment and adequate suction-line conditions during installation (pump at least 100 mm below minimum tank level) to prevent cavitation. Bleed air and confirm case drain arrangement before start-up. Use specified mineral-based or synthetic hydraulic oil and maintain recommended cleanliness levels with regular filter changes. Do not exceed peak pressure time limit (6 seconds). Periodically inspect the port plate, pistons and bearings; replace serviceable wear components as needed to restore performance. Avoid prolonged over-pressure or overspeed operation.
