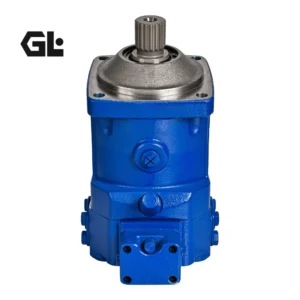

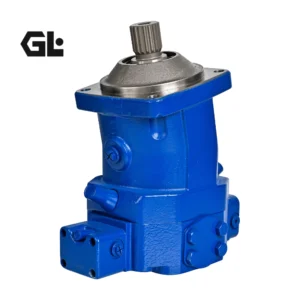

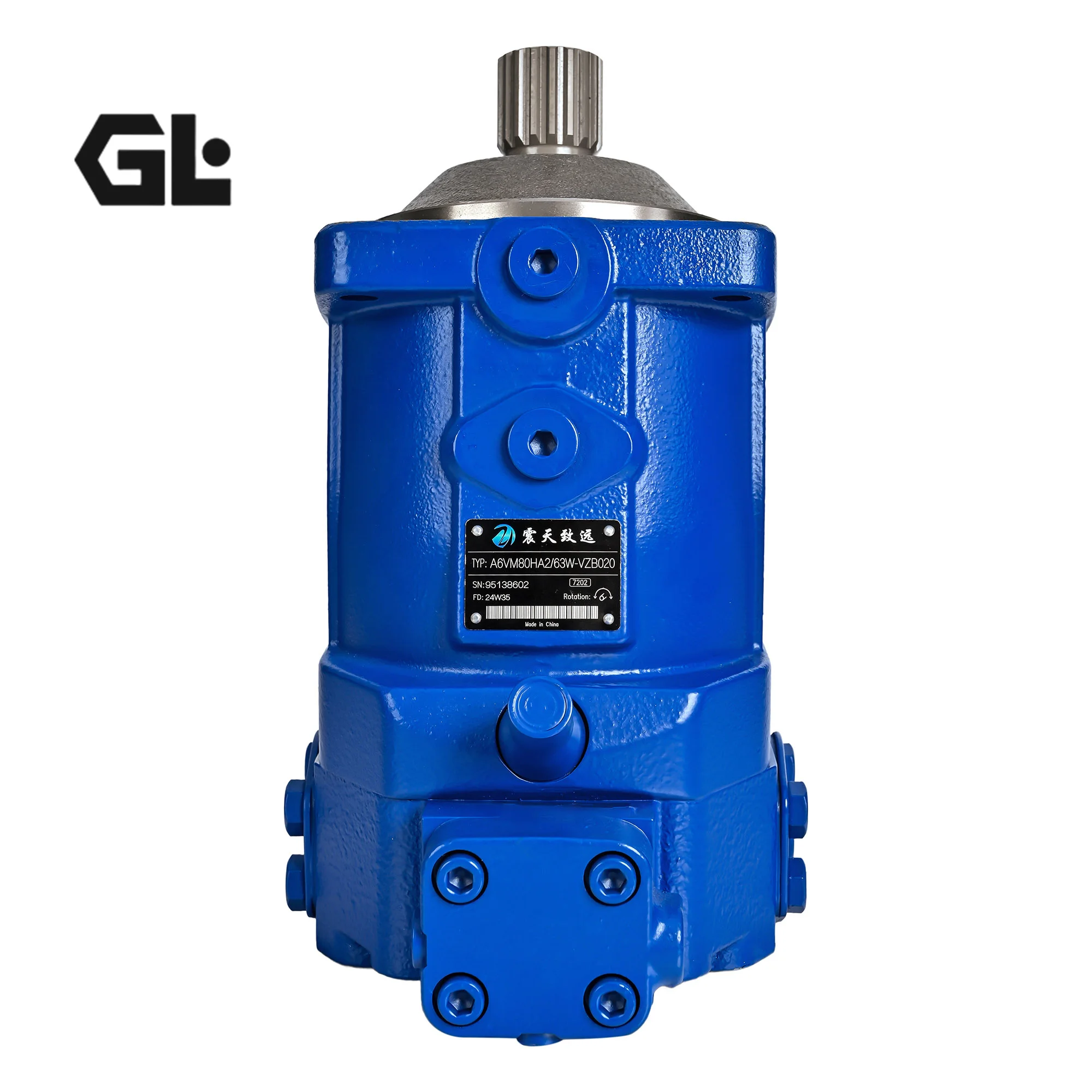

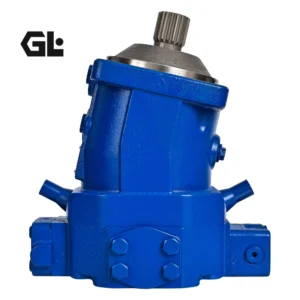

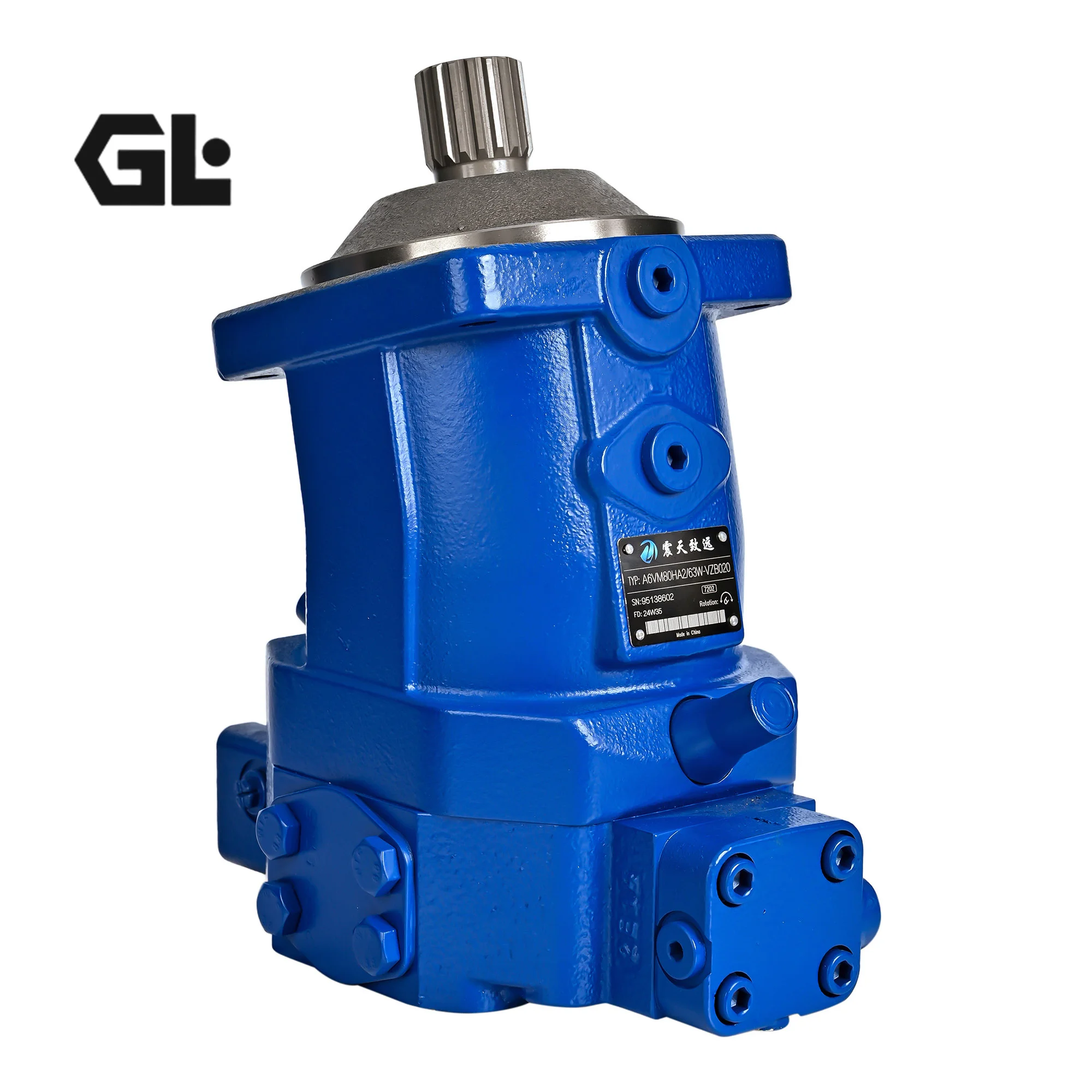

A6VM160HA1TD/63W-VZB380A-SK Rexroth A6VM Motor

Product Overview

The A6VM160HA1TD/63W-VZB380A-SK and related models (A6VM80, A6VM107, A6VM115, A6VM170, A6VM215) belong to the Bosch Rexroth A6VM series of high-pressure axial piston variable motors (bent-axis design). Engineered for open and closed circuit hydrostatic drives, these motors feature continuously variable displacement from Vg max down to near zero, covering high-speed and high-torque requirements. Fully interchangeable with original Rexroth specifications and interfaces (100% dimensional and performance match), each unit undergoes 100% simulated operating condition testing. Ideal for demanding mobile and stationary applications, the series delivers high power density, excellent starting characteristics, compact robust construction and long service life through precision manufacturing.

Technical Specifications

(Verified from Bosch Rexroth official data sheets RE 91604 / related series documentation; no fabricated data)

• Model: A6VM160HA1TD/63W-VZB380A-SK (Series 63, HA1 hydraulic control configuration)
• Max. displacement Vg max: 160 cm³/rev
• Min. displacement: adjustable to near 0
• Nominal pressure: 400 bar
• Peak pressure: 450 bar
• Max. speed at Vg max: approx. 3100 rpm
• Higher speed at Vg < Vg x: approx. 4900 rpm
• Control type: Variable axial piston (HA1 hydraulic proportional and other options)
• Max. torque at Δp = 400 bar: approx. 1019 Nm
• Approximate weight: 64 kg
• Model: A6VM80
• Max. displacement: 80 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed at Vg max: approx. 3900 rpm
• Max. torque at 400 bar: approx. 509 Nm
• Approximate weight: 34 kg
• Model: A6VM107
• Max. displacement: 107 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed at Vg max: approx. 3550 rpm
• Max. torque at 400 bar: approx. 681 Nm
• Approximate weight: 47 kg
• Models: A6VM115 / A6VM170 / A6VM215 (related series sizes)
• Max. displacement: approx. 115–216 cm³/rev range
• Nominal pressure: 400–450 bar (depending on Series 65/71)
• Peak pressure: up to 530 bar (certain sizes)
• Max. speed at Vg max: approx. 2900–3550 rpm range
• Control type: Variable axial piston with multiple hydraulic/electric proportional options
• Weight: increases with size

Suitable for open and closed circuits with high starting efficiency and low swing torque.

Key Technical Advantages

1. Precision bent-axis piston and high-strength materials for high volumetric efficiency and power density, enabling continuous displacement adjustment for high-speed light-load or low-speed heavy-load operation.
2. Wide control range and excellent starting characteristics: Displacement can be reduced to near zero; high starting torque and smooth low-speed running reduce shock and noise.
3. Long-life bearings and compact robust design: Approved for very high rotational speeds, withstands high-pressure peaks and vibration in mobile applications for extended service life.
4. 100% simulated duty testing and full interchangeability: Exact match to original Rexroth interfaces, controls and performance curves—true drop-in replacement with no modifications.
5. Versatile control options and high torque output: Flexible HA/HD/EP controls adapt to system needs, delivering high torque at Δp = 400 bar.

Application Areas

Travel drives in construction machinery, excavator swing drives, cranes, rollers/compactors, agricultural machinery, mining equipment, marine propulsion and stationary industrial drives requiring high-pressure variable motors for wide speed ratios and high torque.

Expert Maintenance Tips

Ensure the housing is properly filled with oil and the case drain is connected before start-up to prevent dry running. Use hydraulic fluid meeting recommended viscosity and cleanliness (ISO 4406). Periodically check control pressure and seals; perform moderate-load break-in initially. Observe maximum allowable inlet flow and speed limits to avoid overspeed. When replacing, strictly verify the complete model code (including control and bearing options) for full interchangeability. Refer to official Rexroth data sheets (e.g., RE 91604) for precise torque-speed curves and load ratings.
