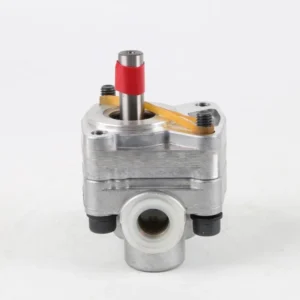

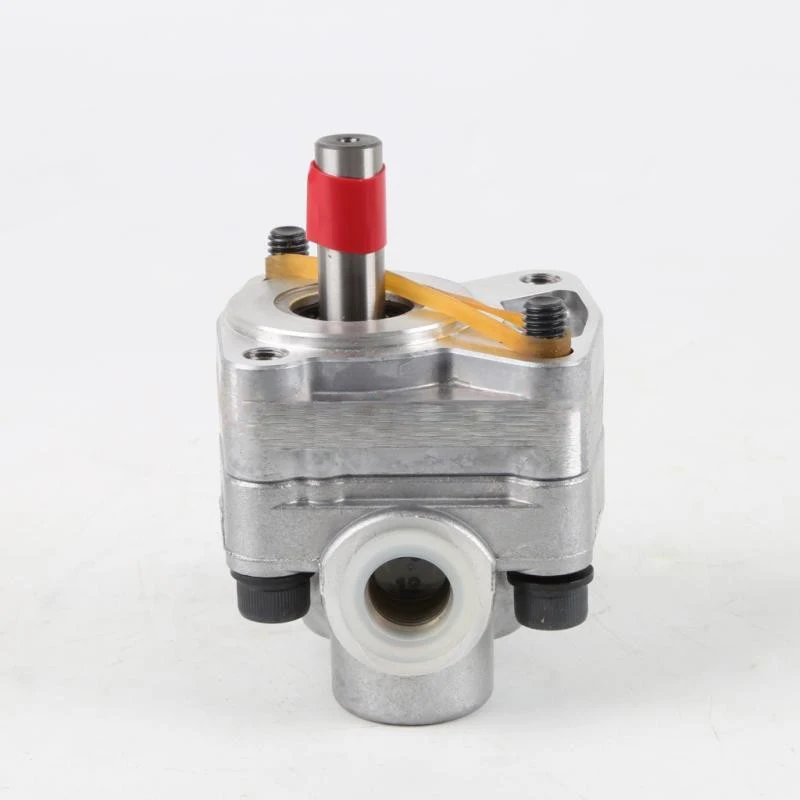

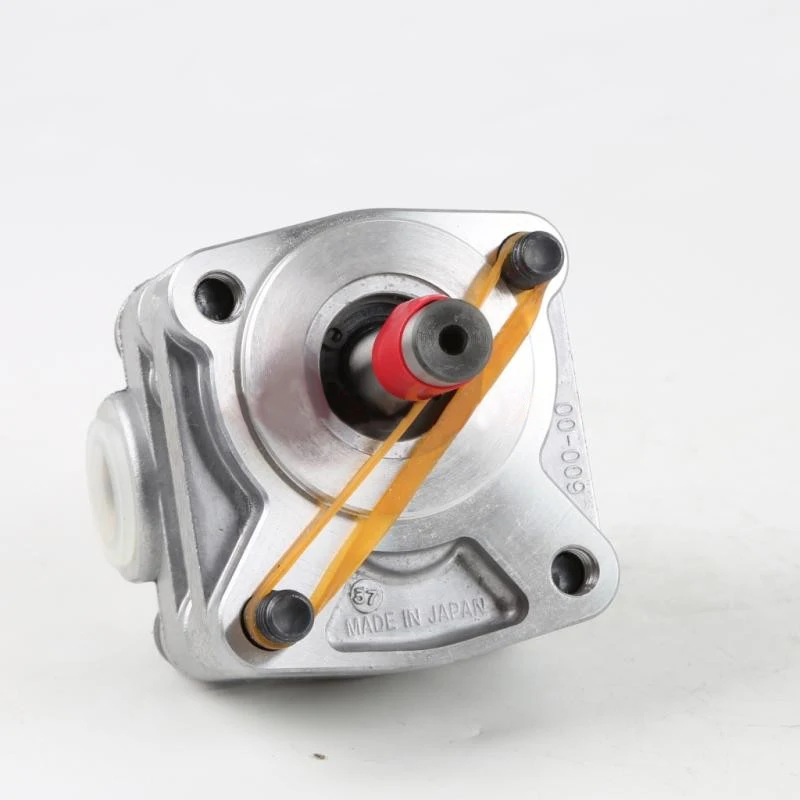

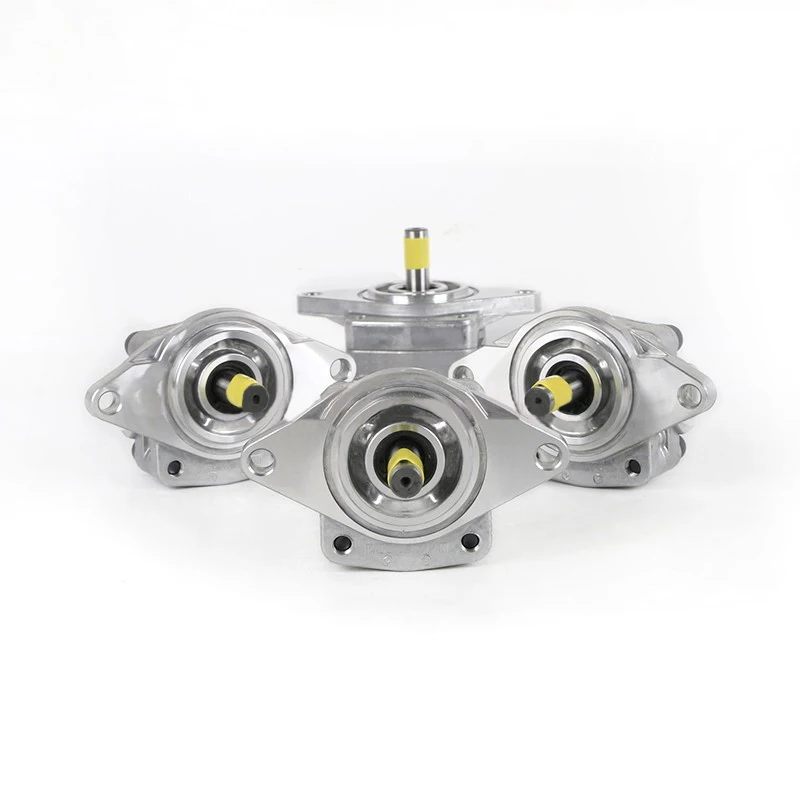

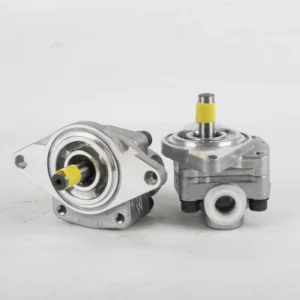

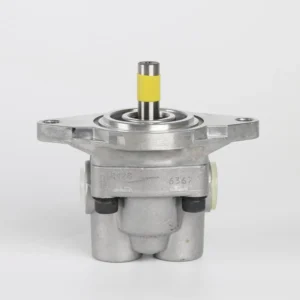

YP10-3D2H2-L Shimadzu Compatible High Pressure Gear Pump 20.6MPa

Product Overview

The YP10-3D2H2-L, YP10-3A2H2-R, YP10-5A2H2-R and YP10-7D2D2-L models are high-pressure external gear pumps fully interchangeable with the genuine Shimadzu YP10 (and related YP15) series. Constructed with a high-strength aluminum alloy body, alloy steel gears, special alloy side plates and precision bushings, these units deliver high volumetric efficiency and low noise. Every pump undergoes 100% simulated duty-cycle testing to guarantee exact matching of mounting flanges, shaft end (woodruff key), ports (G-thread side or rear), rotation direction and performance curves with original Shimadzu units. Ideal for forklifts, construction equipment and industrial hydraulic systems, they provide a reliable drop-in replacement that reduces spare-part costs and downtime.

Technical Specifications

• Models: YP10-3D2H2-L / YP10-3A2H2-R / YP10-5A2H2-R / YP10-7D2D2-L (Shimadzu YP10 series)
• Displacement (YP10-3): 3.07 cm³/rev
• Displacement (YP10-5): 4.99 cm³/rev
• Displacement (YP10-7): 7.04 cm³/rev
• Rated pressure: 20.6 MPa (206 bar / 2987 psi) for sizes 0.8–5; 17.2 MPa (172 bar) for YP10-7
• Peak / instantaneous max pressure: approx. 22.6 MPa (reference related series)
• Max speed: 4000 rpm (smaller sizes); approx. 3400 rpm (YP10-3.5); 2400 rpm (YP10-5); 3100/1700 rpm (YP10-7 depending on configuration)
• Min speed: 500–800 rpm (size dependent)
• Control type: Fixed displacement external gear pump
• Port position: A = side ports; D = rear ports
• Port configuration: 2 = G screw thread
• Mounting: H = horizontal 2-bolt; D = diagonal 2-bolt
• Shaft end: 2 = woodruff key
• Rotation (viewed from shaft end): L = counterclockwise; R = clockwise
• Body material: Aluminum alloy
• Gear material: Alloy steel
• Side plate material: Special alloy
• Typical mass: 0.6–0.8 kg (size dependent)
• Inlet pressure range: –0.02 to 0.1 MPa

Key Technical Advantages

1. High-strength aluminum alloy body combined with precision alloy-steel gears and special-alloy side plates ensures high volumetric efficiency and stable output under elevated pressure.
2. Optimized internal flow paths and gear geometry deliver low operating noise, suitable for noise-sensitive mobile and indoor applications.
3. Full dimensional interchangeability with genuine Shimadzu YP10 series (flange, shaft, ports and rotation) verified by rigorous testing, allowing true drop-in replacement without modification.
4. 100% simulated duty-cycle testing covering pressure, speed and flow curves guarantees factory performance matching the original units and minimizes field failures.
5. Lightweight design (0.6–0.8 kg) with high power density simplifies installation and improves overall system efficiency.

Application Areas

Forklift hydraulic systems, construction machinery auxiliary circuits, agricultural equipment, material-handling machinery, compact industrial power units, aerial work platforms and other mobile or stationary systems requiring a compact high-pressure gear pump.

Expert Maintenance Tips

• Ensure precise shaft alignment using a flexible coupling; avoid applying radial or axial loads directly to the woodruff-key shaft end.
• Keep suction line diameter at least equal to the pump inlet, minimize length and fittings, and maintain inlet pressure within –0.02 to 0.1 MPa to prevent cavitation.
• On first start-up, set the system relief valve to the lowest setting, run at low speed under no load for several minutes to purge air, then gradually raise pressure to operating level.
• Use ISO VG32 hydraulic oil at 40 °C and maintain high fluid cleanliness; replace filters regularly.
• Periodically check shaft-seal condition and mounting-bolt torque (standard M8 bolts approx. 24.5–27.5 N·m); keep the seal area clean to extend service life.
