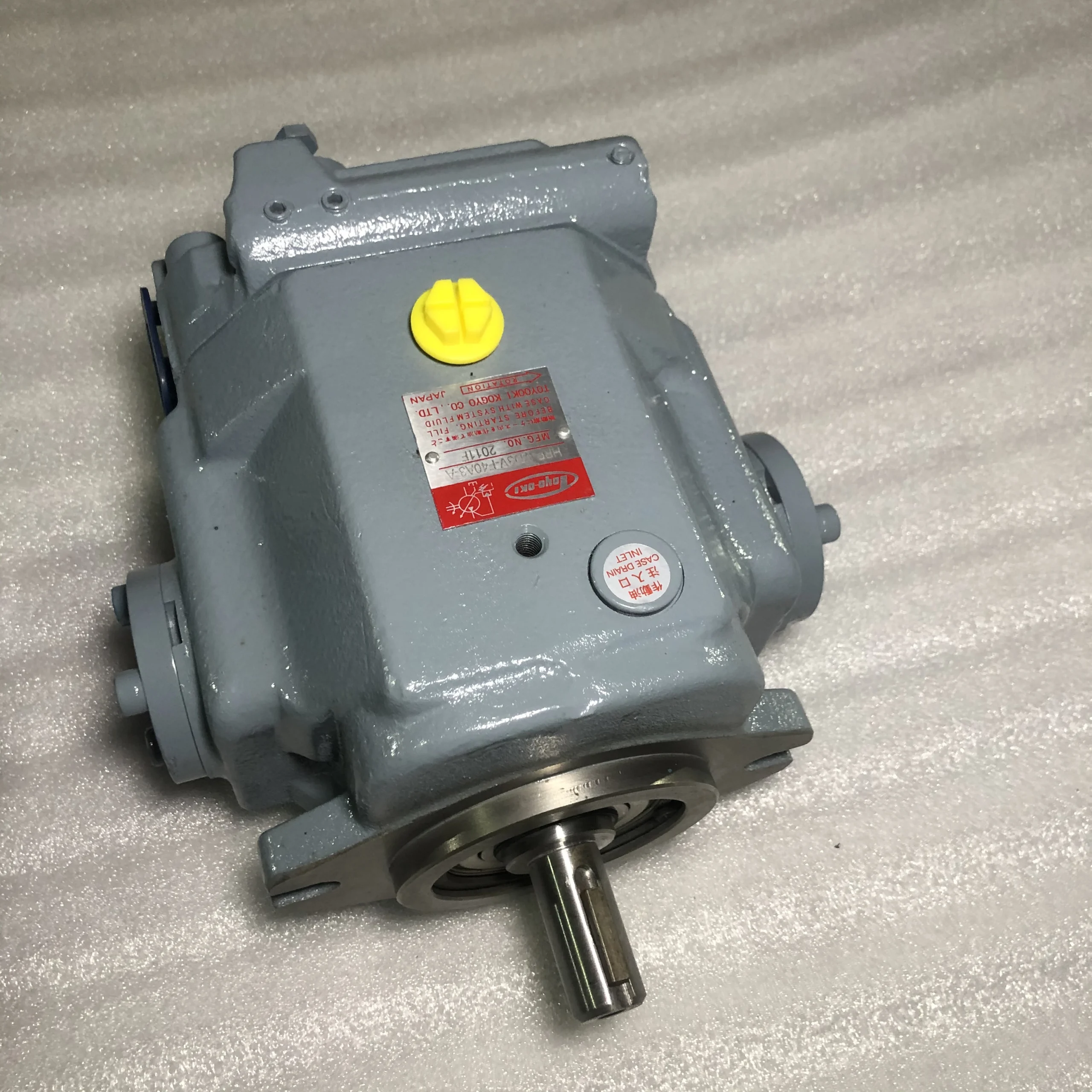

HPP-VB2V-F8A3-EE JTEKT Piston Pump 8.0 cm³/rev 14 MPa

Product Overview

The HPP-VB2V series is a highly representative swashplate-type variable displacement piston pump product line from JTEKT (formerly TOYOOKI) . This series features a displacement of 8.0 cm³/rev, available in both flange mounting (F) and foot mounting (L) types, with side board and axial port (-EE) connection options. Representative models include HPP-VB2V-F8A3, HPP-VB2V-F8A5, HPP-VB2V-L8A3, HPP-VB2V-L8A5, and -EE suffix axial port variants, widely used in high-pressure hydraulic systems, construction machinery, machine tools, and industrial equipment.

As a professional hydraulic component manufacturer, we provide 100% interchangeable replacement solutions for the JTEKT/TOYOOKI HPP-VB2V series. Every HPP-VB2V series piston pump undergoes 100% performance testing under simulated actual operating conditions—from displacement accuracy and pressure stability to volumetric efficiency—fully benchmarked against JTEKT/TOYOOKI original equipment standards.

Model Code Explanation (using HPP-VB2V-F8A3-EE-B as an example):

• HPP: Variable displacement piston pump series code

• VB2V: Series code, displacement 8.0 cm³/rev

• Mounting Method: F = Flange type; L = Foot mounting

• 8: Displacement code, corresponding to 8.0 cm³/rev

• A3: Pressure adjustment range 1–7 MPa

• A5: Pressure adjustment range 3–14 MPa

• -EE (optional): Axial port type (no suffix indicates side board type)

• -B: Product version code (changed from -A to -B effective February 2016)

• -G (optional): Water-glycol fluid specification (no code indicates petroleum-based fluid)

Technical Specifications

HPP-VB2V-F8A3 / HPP-VB2V-F8A3-EE

• Brand: JTEKT / TOYOOKI

• Series: HPP-VB2V Swashplate-Type Variable Piston Pump

• Theoretical Displacement: 8.0 cm³/rev

• Rated Pressure: 14 MPa

• Pressure Adjustment Range: 1–7 MPa (A3 suffix)

• Rated Speed: 1,800 min⁻¹

• Maximum Speed: 2,500 min⁻¹

• Minimum Speed: 500 min⁻¹

• Control Type: Pressure-compensated variable piston pump (Fixed displacement type A)

• Mounting Method: Flange type (F)

• Pipe Connection Method: Side board type (no suffix) / Axial port type (-EE)

• Fluid Compatibility: Petroleum-based (no suffix) / Water-glycol (-G suffix)

• Minimum Discharge Rate: ≥ 4 L/min (independent of speed)

• Port Size: Rc1/2 (side board) / Φ18 (axial port)

• Noise Level: 53 dB(A) at cut-off, 58 dB(A) before cut-off

• Volumetric Efficiency: ≥ 95%

• Total Efficiency: ≥ 90% (at 13.5 MPa, 1,800 min⁻¹)

• Weight: Approx. 16 kg

HPP-VB2V-F8A5 / HPP-VB2V-F8A5-EE

• Theoretical Displacement: 8.0 cm³/rev

• Rated Pressure: 14 MPa

• Pressure Adjustment Range: 3–14 MPa (A5 suffix)

• Rated Speed: 1,800 min⁻¹

• Maximum Speed: 2,500 min⁻¹

• Minimum Speed: 500 min⁻¹

• Control Type: Pressure-compensated variable piston pump (Fixed displacement type A)

• Mounting Method: Flange type (F)

• Pipe Connection Method: Side board type (no suffix) / Axial port type (-EE)

• Fluid Compatibility: Petroleum-based (no suffix) / Water-glycol (-G suffix)

• Minimum Discharge Rate: ≥ 4 L/min (independent of speed)

• Port Size: Rc1/2 (side board) / Φ18 (axial port)

• Noise Level: 53 dB(A) at cut-off, 58 dB(A) before cut-off

• Volumetric Efficiency: ≥ 95%

• Total Efficiency: ≥ 90% (at 13.5 MPa, 1,800 min⁻¹)

• Weight: Approx. 16 kg

HPP-VB2V-L8A3 / HPP-VB2V-L8A3-EE

• Theoretical Displacement: 8.0 cm³/rev

• Rated Pressure: 14 MPa

• Pressure Adjustment Range: 1–7 MPa (A3 suffix)

• Rated Speed: 1,800 min⁻¹

• Maximum Speed: 2,500 min⁻¹

• Minimum Speed: 500 min⁻¹

• Control Type: Pressure-compensated variable piston pump (Fixed displacement type A)

• Mounting Method: Foot mounting (L)

• Pipe Connection Method: Side board type (no suffix) / Axial port type (-EE)

• Fluid Compatibility: Petroleum-based (no suffix) / Water-glycol (-G suffix)

• Minimum Discharge Rate: ≥ 4 L/min (independent of speed)

• Noise Level: 53 dB(A) at cut-off, 58 dB(A) before cut-off

• Volumetric Efficiency: ≥ 95%

• Total Efficiency: ≥ 90% (at 13.5 MPa, 1,800 min⁻¹)

• Weight: Approx. 16 kg

HPP-VB2V-L8A5 / HPP-VB2V-L8A5-EE

• Theoretical Displacement: 8.0 cm³/rev

• Rated Pressure: 14 MPa

• Pressure Adjustment Range: 3–14 MPa (A5 suffix)

• Rated Speed: 1,800 min⁻¹

• Maximum Speed: 2,500 min⁻¹

• Minimum Speed: 500 min⁻¹

• Control Type: Pressure-compensated variable piston pump (Fixed displacement type A)

• Mounting Method: Foot mounting (L)

• Pipe Connection Method: Side board type (no suffix) / Axial port type (-EE)

• Fluid Compatibility: Petroleum-based (no suffix) / Water-glycol (-G suffix)

• Minimum Discharge Rate: ≥ 4 L/min (independent of speed)

• Noise Level: 53 dB(A) at cut-off, 58 dB(A) before cut-off

• Volumetric Efficiency: ≥ 95%

• Total Efficiency: ≥ 90% (at 13.5 MPa, 1,800 min⁻¹)

• Weight: Approx. 16 kg

Important Note: The above specifications are compiled from JTEKT/TOYOOKI official technical documentation. Different suffix codes (-EE, -B, -G, etc.) represent different pipe connection methods, versions, and fluid compatibility. The model suffix changed from -A to -B effective February 2016. Please refer to the product nameplate or technical agreement for exact specifications.

Key Technical Advantages

1. Ultra-Low Noise Performance Across the Entire Pressure Range

The HPP-VB2V series features a swashplate-type variable displacement design that maintains excellent low-noise performance across the entire pressure range. At 14 MPa rated pressure and 1,200 min⁻¹ speed, noise measured at 1 meter from the pump is only 53 dB(A) at cut-off and 58 dB(A) before cut-off. This noise level is among the best in its class, making it ideal for noise-sensitive environments.

2. Exceptional Efficiency for Significant Energy Savings

The pump achieves 95% volumetric efficiency and 90% total efficiency (at 13.5 MPa, 1,800 min⁻¹). This ultra-high efficiency means minimal power loss and reduced fluid temperature rise, allowing the use of smaller reservoirs for system miniaturization and cost reduction.

3. Superior Response Characteristics

The HPP-VB2V series features high responsiveness, integrating multiple control methods into a complete control system with comprehensive advantages including energy savings, compact size, and low cost. The built-in pressure compensation mechanism simplifies hydraulic system design by eliminating complex additional control valve groups.

4. Compact Lightweight Design — Space Saving

The HPP-VB2V series features compact lightweight design with total weight of only approximately 16 kg. The compact structure makes it particularly suitable for applications with limited installation space. Port orientation can be flexibly changed for convenient installation.

5. High Reliability with Long Service Life

Manufactured from high-strength cast iron with precision machining processes, the mature swashplate-type variable design ensures proven reliability. Bearings are designed for long service life, maintaining stable performance across the entire pressure range. Minimal power loss further enhances overall system reliability.

Application Areas

• Hydraulic Presses & Forming Machinery: Providing stable high-pressure oil supply for pressing processes

• Construction Machinery: Hydraulic systems for excavators, loaders, and related equipment

• Machine Tool Hydraulic Systems: Spindle drives, feed systems, and more

• Injection Molding & Die-Casting Machines: Precise speed and pressure control

• Marine Hydraulic Systems: Steering gears, winches, and other marine hydraulic power supplies

• Wind Turbine Pitch Control Systems: Multi-pump synchronous control applications

• Metallurgical Equipment: Rolling mill hydraulic systems, coilers, and more

• Test Equipment: High-pressure oil sources for aerospace ground test facilities

Expert Maintenance Tips

1. Verify Rotation Direction

Viewed from the shaft end, rotation is clockwise (right-hand rotation) . Always verify alignment with the drive motor’s rotation before installation. Reverse operation is strictly prohibited.

2. First Start-up and Priming

Fill the pump body with working oil through the filler port before starting the pump. When connecting the drain line, start from the highest drain port. Never start the pump dry—this will cause severe wear or seizure of pistons and slippers.

3. Drain Back Pressure and Suction Pressure Control

Drain allowable back pressure should be set below 0.03 MPa. Suction pressure should be set within -0.02 MPa. Use a check valve with 0.005 MPa cracking pressure.

4. Fluid Cleanliness Management

Piston pumps are extremely sensitive to fluid cleanliness. Install 10–20 μm line filters. Maintain fluid cleanliness to NAS Class 7 or higher. Standard models are designed for petroleum-based hydraulic fluids; for water-glycol fluids, select the dedicated -G suffix model.

5. Pressure Adjustment Precautions

• A3 suffix models: Pressure adjustment range 1–7 MPa

• A5 suffix models: Pressure adjustment range 3–14 MPa

• Do not exceed the maximum adjustment range for each model, as this may damage internal control components

6. Discharge Rate Adjustment

For the HPP-VB2V series, the minimum discharge rate should be set at 4 L/min or more, independent of speed.

7. Regular Inspection and Maintenance

Regularly inspect the system filter element condition. Regularly monitor the pump for abnormal operating noise—if abnormal noise or system pressure drop is detected, shut down immediately for inspection.
