Product Overview

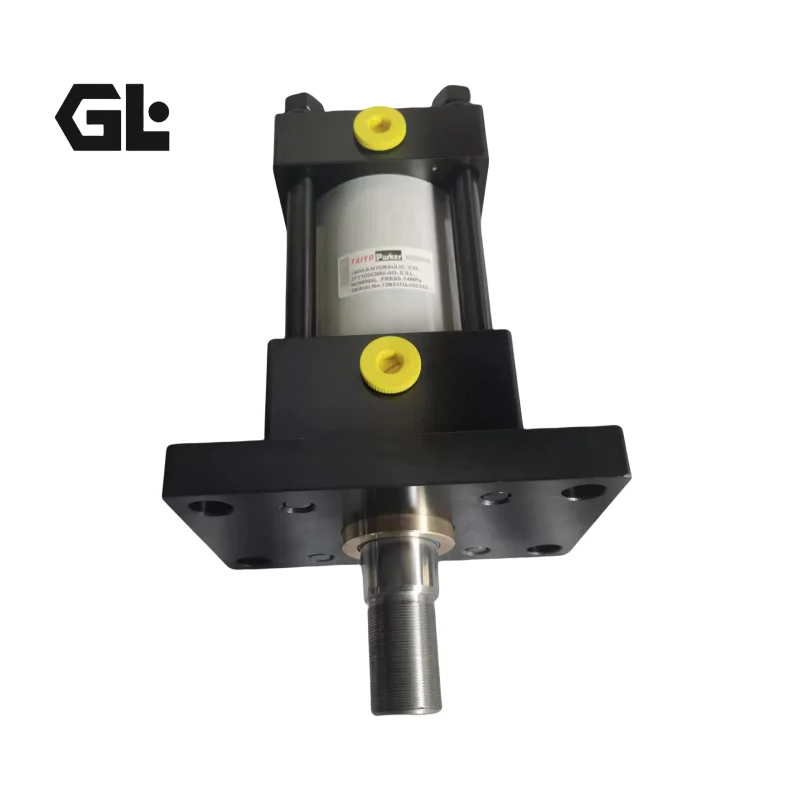

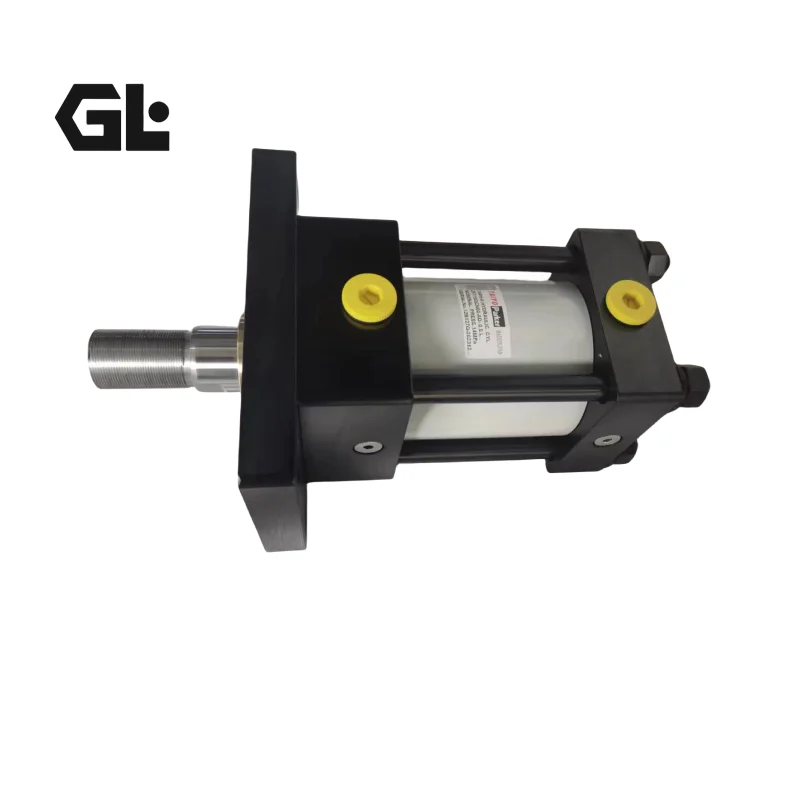

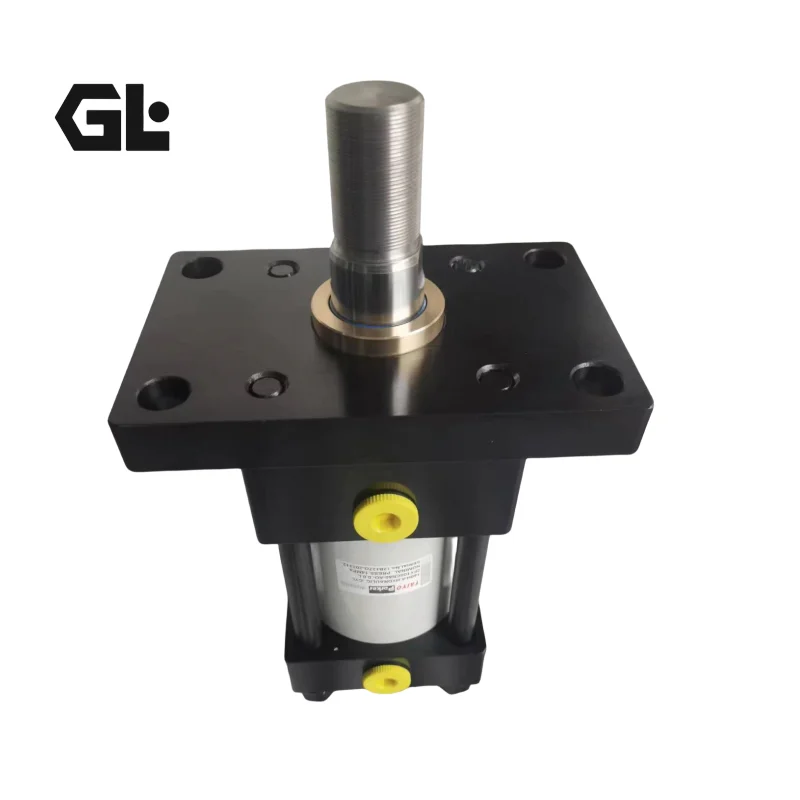

The HQS26SD80N70T is part of the Parker TAIYO HQS26 heavy-duty hydraulic cylinder platform.

Parker’s Cylinder Central identifies TAIYO as part of its hydraulic actuator portfolio and provides dedicated TAIYO cylinder catalogs. Parker has also confirmed its long-standing corporate relationship with TAIYO, with TAIYO operating within Parker’s global hydraulics organization.

Public Parker product records confirm the HQS26 family as Parker products, including exact models such as HQS26SD40N40T and HQS26SD40N70T. The HQS26SD40N70T listing identifies Parker Material Number 28049369.

The complete HQS26SD80N70T configuration identifies an 80 mm bore and 70 mm rod diameter within the HQS26 product family.

Compared with the N60 version, the larger Ø70 mm rod increases rod-side structural capacity and resistance to buckling under suitable mounting and loading conditions.

Our replacement cylinders are manufactured around the complete original ordering code and installation geometry, then subjected to 100% simulated operating-condition testing covering pressure holding, leakage, rod movement, friction and dynamic operation.

Technical Specifications

• Manufacturer / Brand: Parker TAIYO
• Product Family: HQS26
• Model: HQS26SD80N70T
• Product Type: Heavy-Duty Hydraulic Cylinder
• Cylinder Configuration: Double-Acting Hydraulic Cylinder Platform
• Bore Diameter: Ø80 mm
• Rod Diameter: Ø70 mm
• Series: HQS26
• Configuration: SD
• Rod Code: N70
• End / Connection Code: T
• Working Medium: Hydraulic Oil
• Actuation: Hydraulic pressure-driven reciprocating motion
• Piston Area: approximately 5,026.5 mm²
• Annular Area: approximately 3,848.0 mm²
• Stroke: Must be confirmed from the complete original ordering document
• Overall Length: Must be confirmed from the original drawing
• Weight: Must be confirmed from the original drawing
• Model-Specific Maximum Working Pressure: Must be verified against the original Parker/TAIYO technical document
• Maximum Speed: Application-dependent
• Displacement: Not applicable
• Rotational Speed: Not applicable

The current public Parker product ecosystem confirms the HQS26 product family, while an exact public engineering sheet for HQS26SD80N70T was not located. For this reason, pressure, stroke, weight and speed are intentionally not assigned unsupported values.

Key Technical Advantages

Large-Diameter Rod Architecture

With an Ø80 mm bore and Ø70 mm rod, the cylinder provides a relatively high rod-to-bore ratio.

Theoretical hydraulic areas are approximately:

• Piston area: 5,026.5 mm²
• Annular area: 3,848.0 mm²

The theoretical hydraulic force follows:

F = P × A

Actual cylinder output must also account for friction, pressure losses and operating conditions.

Heavy-Duty HQS26 Platform

HQS26 is a genuine Parker product-family identification rather than a generic aftermarket designation. Parker product records include multiple HQS26 ordering numbers and identify Parker as the brand.

Increased Rod Strength

A larger rod diameter can provide improved resistance to bending and buckling, provided the mounting geometry and unsupported rod length are correctly engineered.

Industrial Reciprocating Duty

The cylinder architecture is suited to applications where hydraulic force must be repeatedly converted into controlled linear motion.

Service life depends strongly on:

• Alignment
• Side loading
• Rod-surface condition
• Seal friction
• Hydraulic-fluid cleanliness
• Pressure cycling
• Temperature

Application Areas

• Hydraulic Presses
• Metal Processing Machinery
• Machine Tools
• Industrial Automation
• Material Handling Equipment
• Construction Machinery
• Hydraulic Clamping Systems
• Industrial Positioning Systems
• Heavy-Duty Linear Actuation

Expert Maintenance Tips

Verify the Complete Stroke

The model code should not be used to infer stroke. Before replacement, confirm:

• Stroke
• Overall retracted length
• Mounting
• Port configuration
• Rod-end configuration
• Cushioning

Avoid Side Loading

The cylinder should primarily transmit axial force. Use guides or spherical rod-end arrangements where the machine mechanism introduces misalignment or lateral forces.

Maintain Hydraulic Cleanliness

Check:

• Particulate contamination
• Water contamination
• Oil viscosity
• Oil temperature

Contamination can accelerate rod-seal and guide wear.

Check Alignment Before Installation

Verify:

• Cylinder centerline
• Mounting-pin alignment
• Port orientation
• Rod-end alignment
• Full-stroke clearance

Perform Dynamic Testing

After installation, verify:

• Extension speed
• Retraction speed
• Breakaway force
• External leakage
• Internal bypass
• Rod alignment
• End-of-stroke behavior

A complete dynamic test is more informative than a static pressure-hold test alone.
