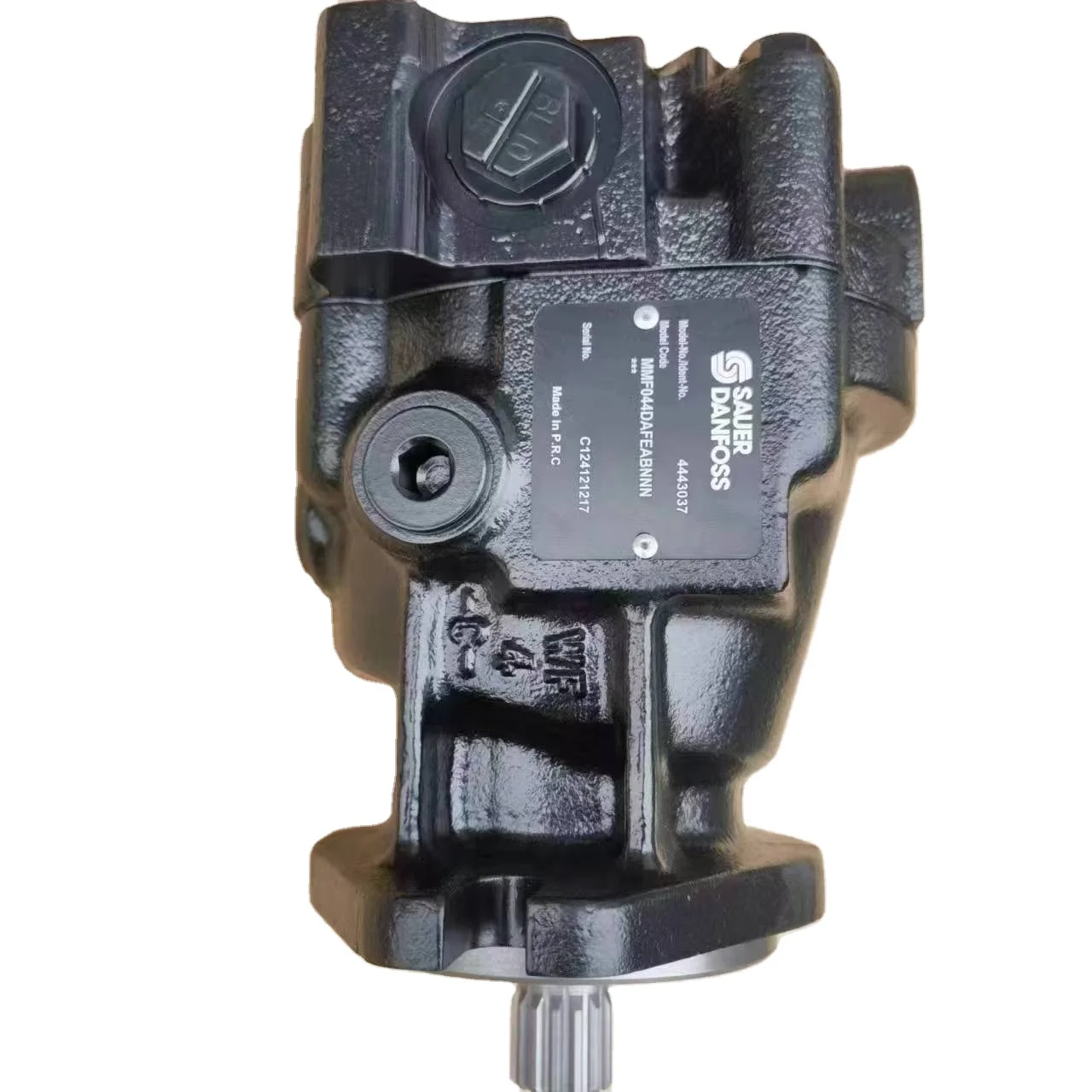

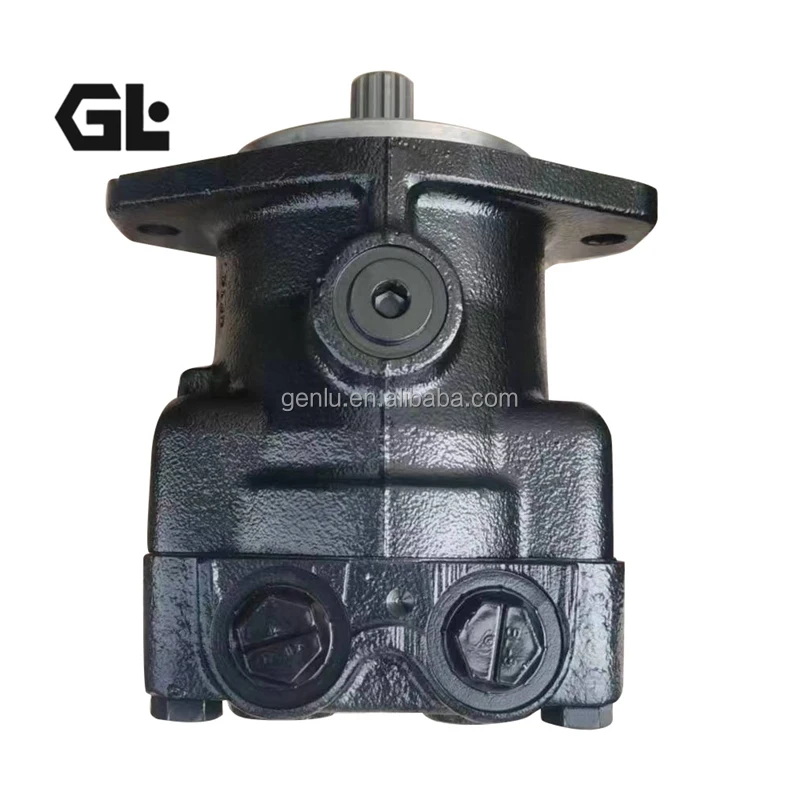

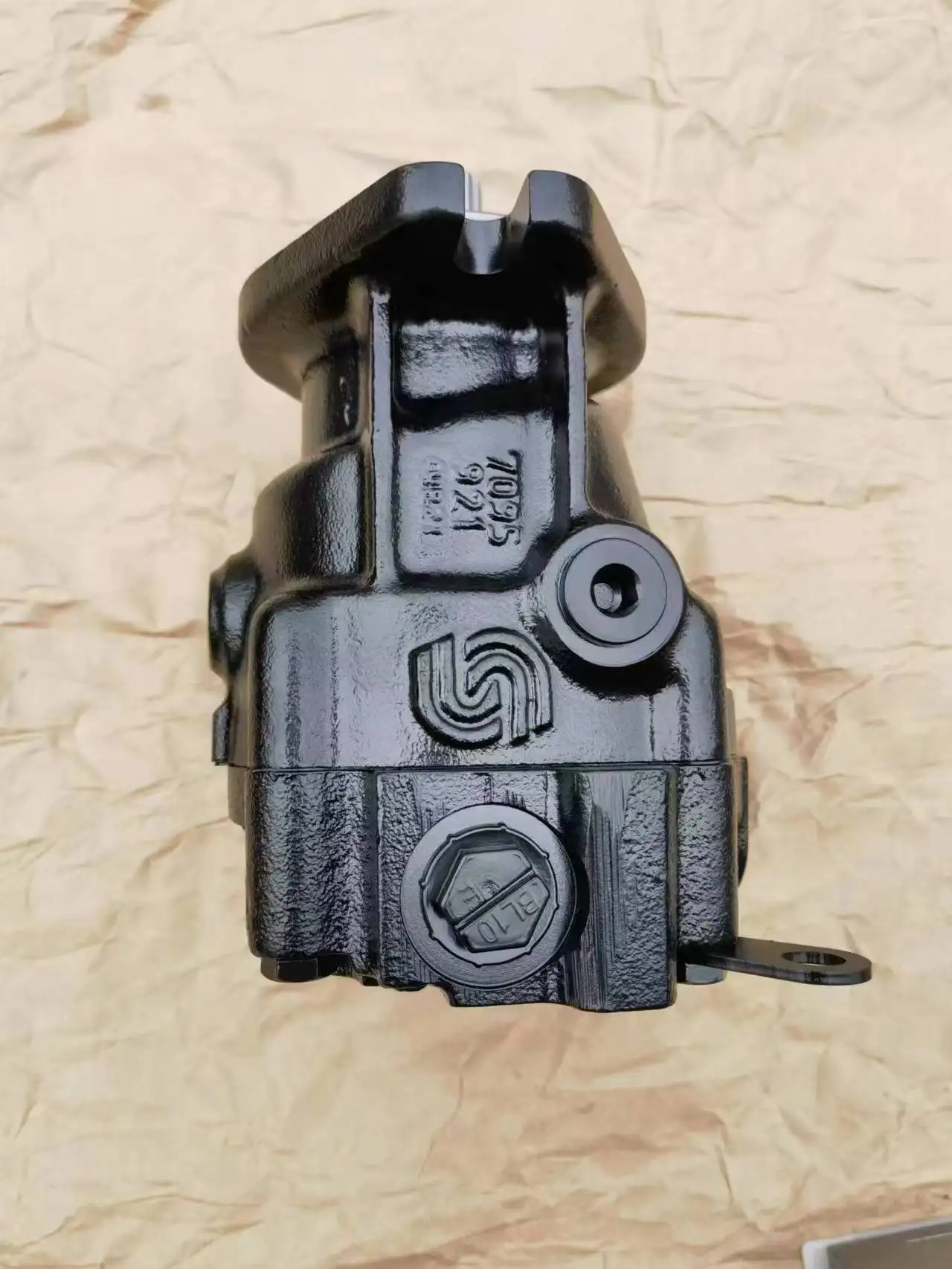

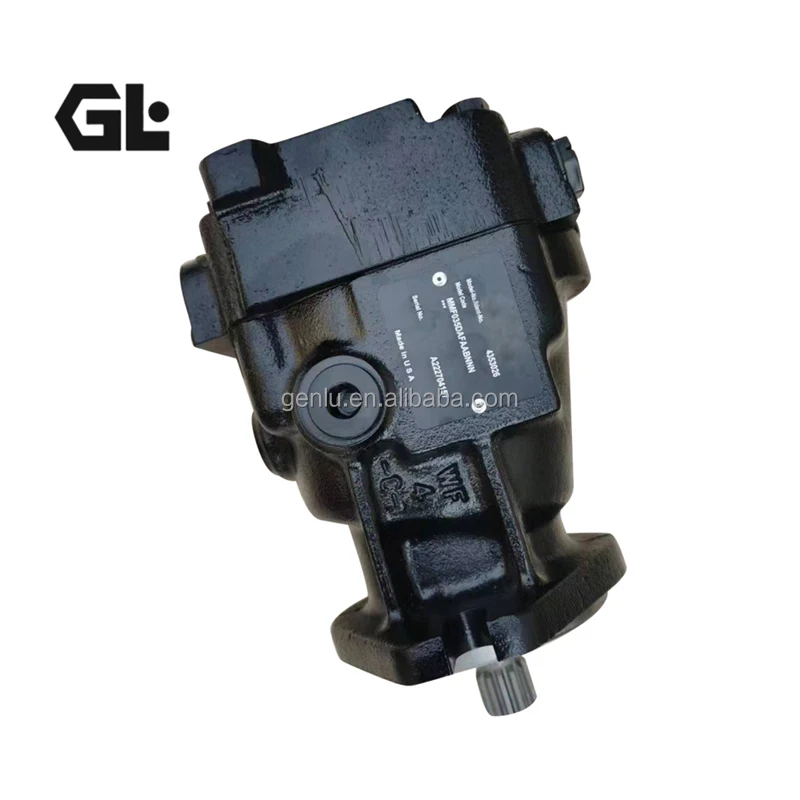

Danfoss MMF044 MMF025 Axial Piston Motor | MMF044DAFGABNGA MMF044DAFHABNNN Replacement

Genlu Hydraulic specializes in engineering fluid power systems for heavy-duty off-highway propulsion, material handling fleets, and high-efficiency fan cooling networks. We proudly present our premier line of MMF / MM Series (including MMF044, MMF025, and MM035 chassis platforms) heavy-duty axial fixed displacement piston hydraulic motors. This series is fully engineered to meet global standards and offers a seamless, high-value drop-in replacement for Danfoss (formerly Sauer-Danfoss) 45 series and light-medium closed or open loop applications, explicitly targeting high-frequency custom configurations such as MMF044DAFGABNGA (Material Number: 4443101) and MMF044DAFHABNNN. The structured alphanumeric technical nomenclature governs its precise modular architecture: MMF defines it as an axial swashplate fixed displacement motor; 044/025 denotes geometric displacement code in $\text{cc/rev}$; D establishes the latest structural housing and valve plate design generation; A declares standard SAE mounting flanges; while F/H specifies custom configurations for invoute splined drive shafts, end-face or side-mounted porting layout, and integrated valve block options.

Operating as critical fluid power actuators within hydrostatic transmissions, these piston motors feature optimized transient fluid dynamics to withstand high-frequency directional reversals and intense pressure spikes. Genlu guarantees 100% Drop-in Interchangeability across standard SAE mounting pilots, input drive shaft splines, port centerlines (split-flange configurations or threaded manifolds), and external case drain ports compared to original Danfoss assemblies. Every single piston motor undergoes a rigorous 100% automated inspection testing protocol under full load and starting torque simulation on our digital benches, certifying elite volumetric retention, reliable mechanical torque efficiency, and continuous stability under severe working cycles.

Technical Specifications

• Product Series: Danfoss MMF / MM Series Swashplate Axial Fixed Displacement Piston Hydraulic Motor

• Core Model Configurations: MMF044DAFGABNGA (4443101), MMF044DAFHABNNN (Encompassing baseline frames MMF025 & MM035)

• Geometric Displacement Matrix:

  • MMF025 Variant: $25.0 \text{ cc/rev}$

  • MM035 Variant: $35.0 \text{ cc/rev}$

  • MMF044 Variant: $44.3 \text{ cc/rev}$

• Nominal Continuous Operating Pressure: $21.0 \text{ MPa}$ ($210 \text{ bar} / 3045 \text{ psi}$)

• Maximum Permissible Peak Pressure: $35.0 \text{ MPa}$ ($350 \text{ bar} / 5075 \text{ psi}$) (Engineered to survive transient load stall spikes)

• Maximum Continuous Rated Speed: $3600 \text{ rpm}$ (For 044 frame under continuous rated system pressure)

• Maximum Permissible Intermittent Speed: $4200 \text{ rpm}$

• Minimum Permissible Operating Velocity: $50 \text{ rpm}$ (Ensures steady low-speed output without cogging or slip effects)

• Drive Shaft Specification Profile: Code F/H (Standard SAE 13-tooth or 15-tooth involute splined variants)

• Maximum Continuous Housing Case Pressure: $0.5 \text{ MPa}$ ($5 \text{ bar}$ continuous), with transient peak spikes up to $0.8 \text{ MPa}$

• Approximate Baseline Weight: $16.0 \text{ kg}$ (Standard bare single unit for 044 frame sizes)

Key Technical Advantages:

• Nine-Piston Monoblock Swage-Ball Slipper Kinematic Assembly: The internal rotating kit utilizes a 9-piston asymmetric distribution layout balanced for fluid dynamics. The piston heads are machined from high-frequency quenched alloy steel, paired with precision brass slippers using an advanced spherical swaging technique. This nine-piston geometry dampens output torque and flow pulsations at low speeds, ensuring smooth performance.

• Bimetallic Sintered Spherical Valve Plate Friction Pair: The interface between the rotating cylinder block and the stationary valve plate incorporates a dual-metal design. High-purity anti-friction bronze alloy is molecularly sintered onto a structural steel backing and precision-lapped to micron-level flatness. This mechanism maintains a hydro-dynamic fluid film even during $3600 \text{ rpm}$ high-speed cycles, preventing scoring and keeping volumetric efficiency above 95%.

• High-Rigidity Monoblock Die-Cast Aluminum Frame Casing: To meet the weight-reduction demands of modern mobile machinery, the main outer housing is die-cast from high-strength structural aluminum alloy. The internal structural rib distribution is optimized via Finite Element Analysis (FEA) to provide high torsional strength under $35.0 \text{ MPa}$ peak loads while absorbing fluid-borne and mechanical noise generation.

• Heavy-Duty Large-Span Tapered Roller Bearing Infrastructure: The front bearing housing features large-span, high-capacity tapered roller bearings. This design gives the output shaft high radial and axial overhung load capacities, allowing it to interface directly with external pulleys, gear meshes, or high-tension universal links without causing shaft deflection or premature bearing fatigue.

Application Areas:

• Agricultural Machinery & Specialized Harvesting Equipment: Auxiliary wheel-assist lines for combine harvesters, primary header auger drives, and hydrostatic propulsion loops for high-clearance crop sprayers.

• Construction & Municipal Vocational Vehicles: Auxiliary transit concrete mixer drum drives, hydrostatic traction loops for compact vibratory rollers, and auxiliary sleek-rotator assemblies for truck cranes.

• Industrial Cooling Loops & Environmental Fleets: High-output hydraulic fan drive networks for refuse packers, and automated sweep-broom rotation blocks for road sweepers.

Expert Maintenance Tips:

• Mandatory Initial Pre-Filing of the Motor Chassis Prior to First Engine Ignition: The internal sliding elements of a piston motor rely on a full casing of clean oil for splash lubrication. Before starting the system, fill the motor housing through its highest available case drain port with clean hydraulic fluid until it overflows, then torque the drain line. Running the unit dry will cause metal-to-metal scoring on the slipper-swashplate interface within seconds of startup, rendering the motor unserviceable.

• Isolate the Case Drain Routing Independently and Monitor Internal Backpressure Boundaries: Configurations like the MMF044DAFGABNGA require an unrestricted case drain line connected directly back to the reservoir. Never tee this line into the main system return line or high-pressure plumbing. Ensure the case pressure remains under $0.5 \text{ MPa}$ during operation; excessive backpressure will blow out the front shaft seal and can unseat the slippers from the cylinder block face.

• Enforce Rigid Fluid Viscosity Auditing to Protect the Bimetallic Layer from Delamination: Piston components require an optimal operating viscosity range of $16 – 36 \text{ mm}^2/\text{s}$. If the hydraulic fluid becomes contaminated with water or falls below NAS 9 cleanliness levels, it can trigger micro-cavitation and galvanic corrosion on the bimetallic valve plate. This breaks down the sintered bronze lining, causing rapid loss of pressure and speed.
