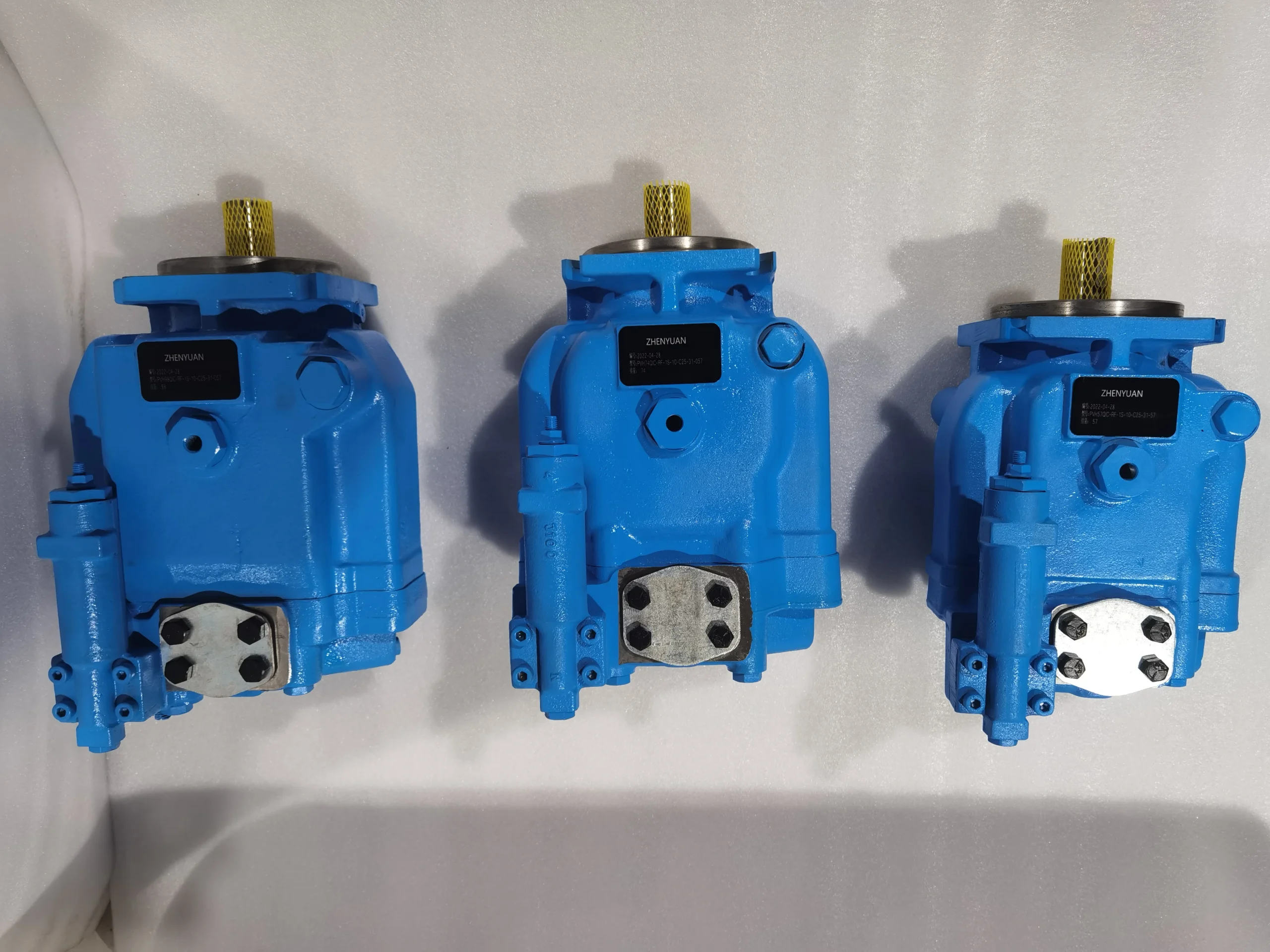

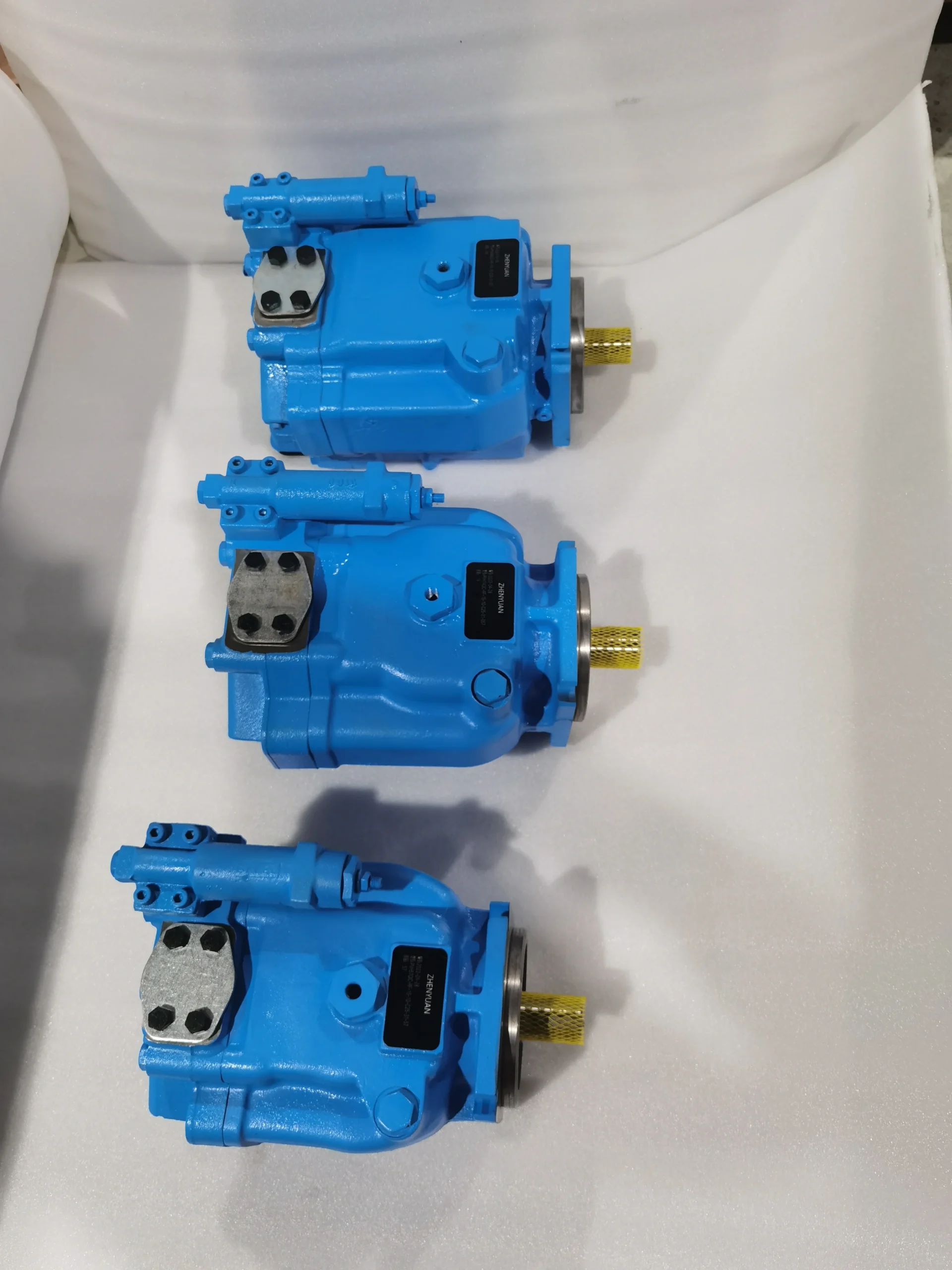

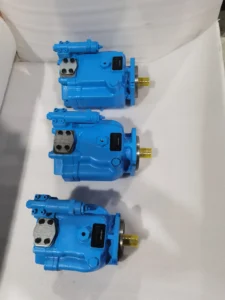

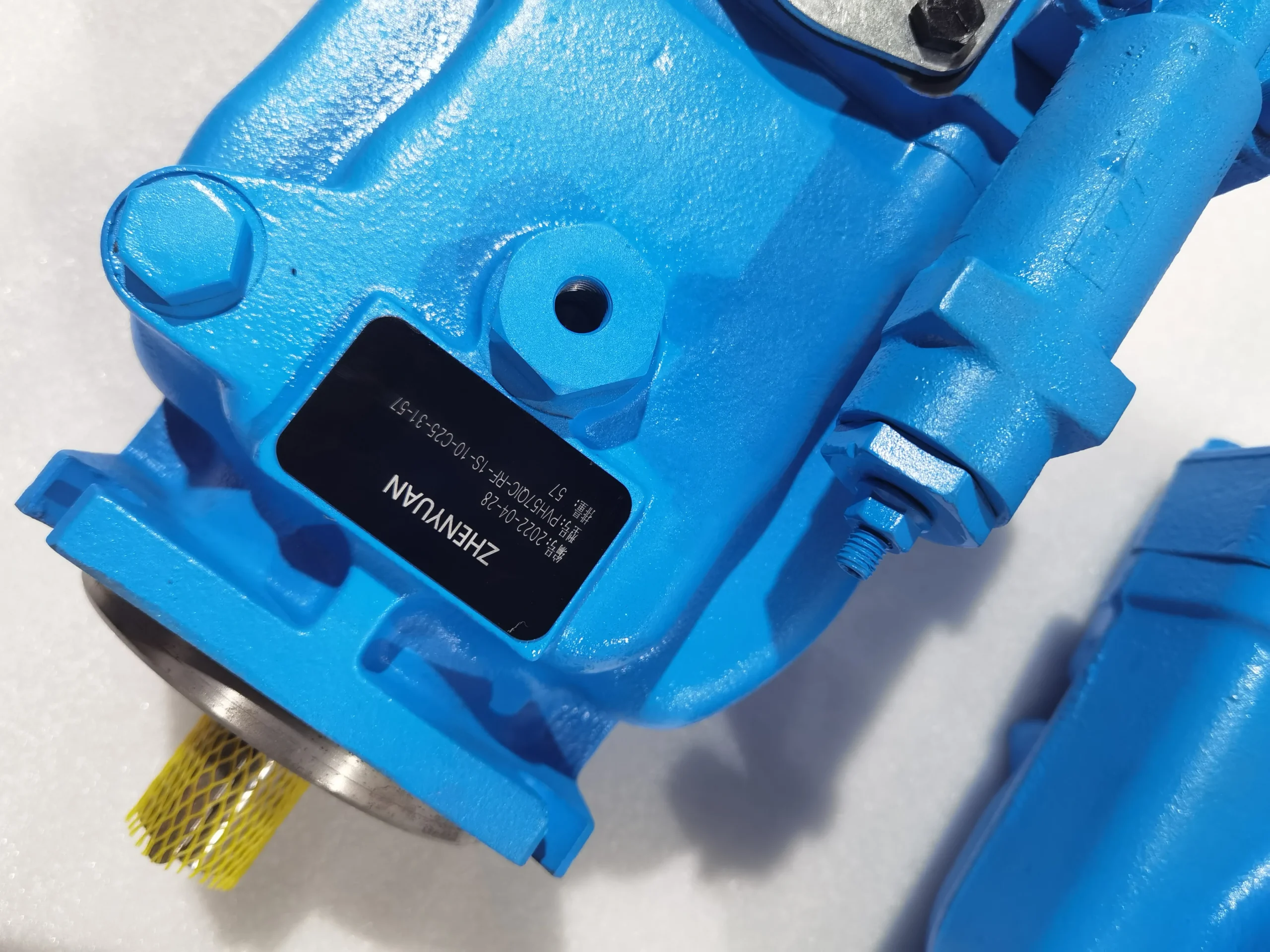

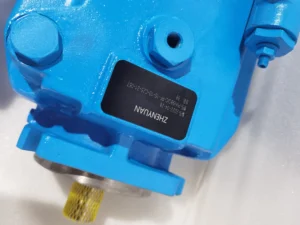

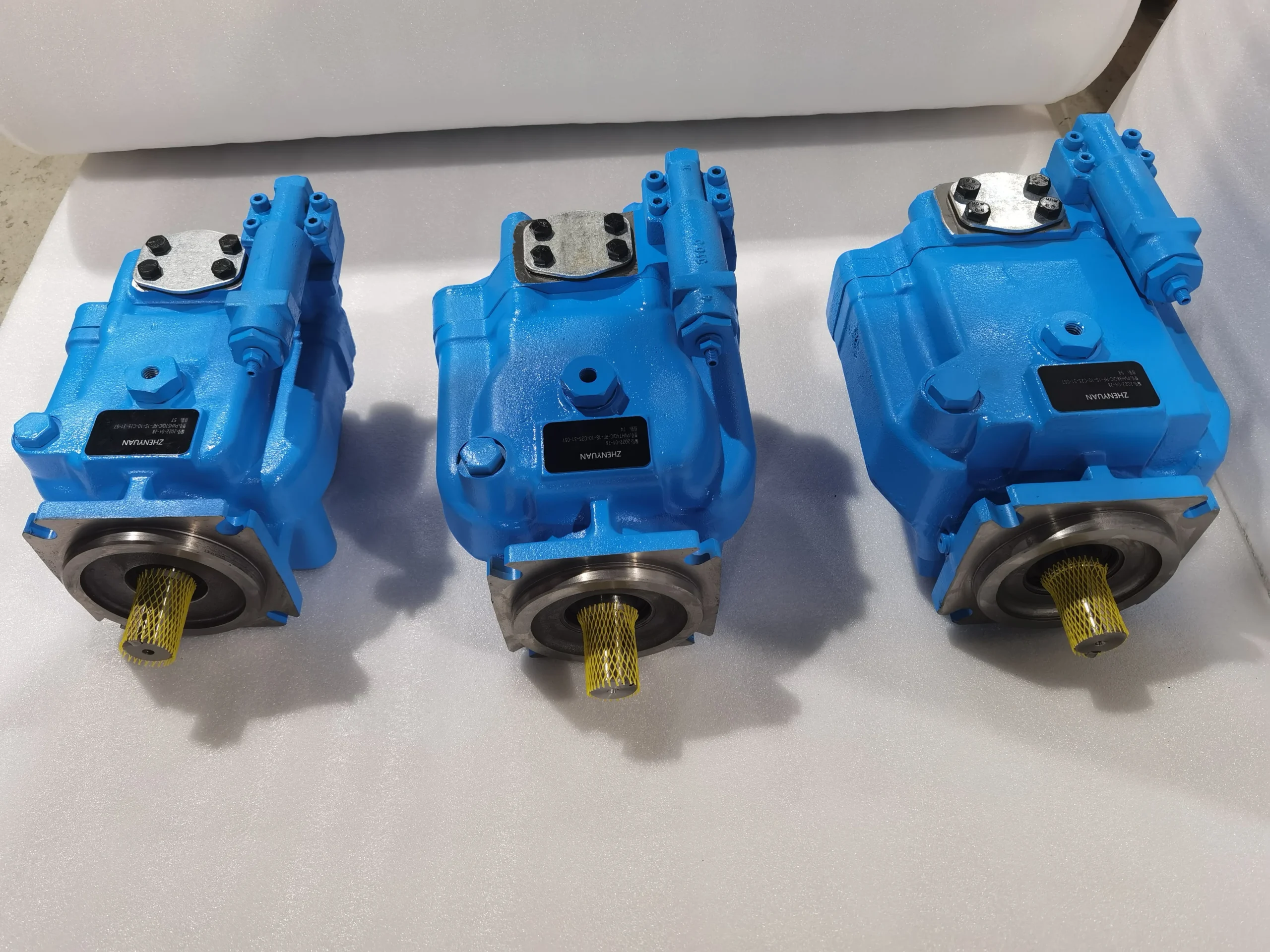

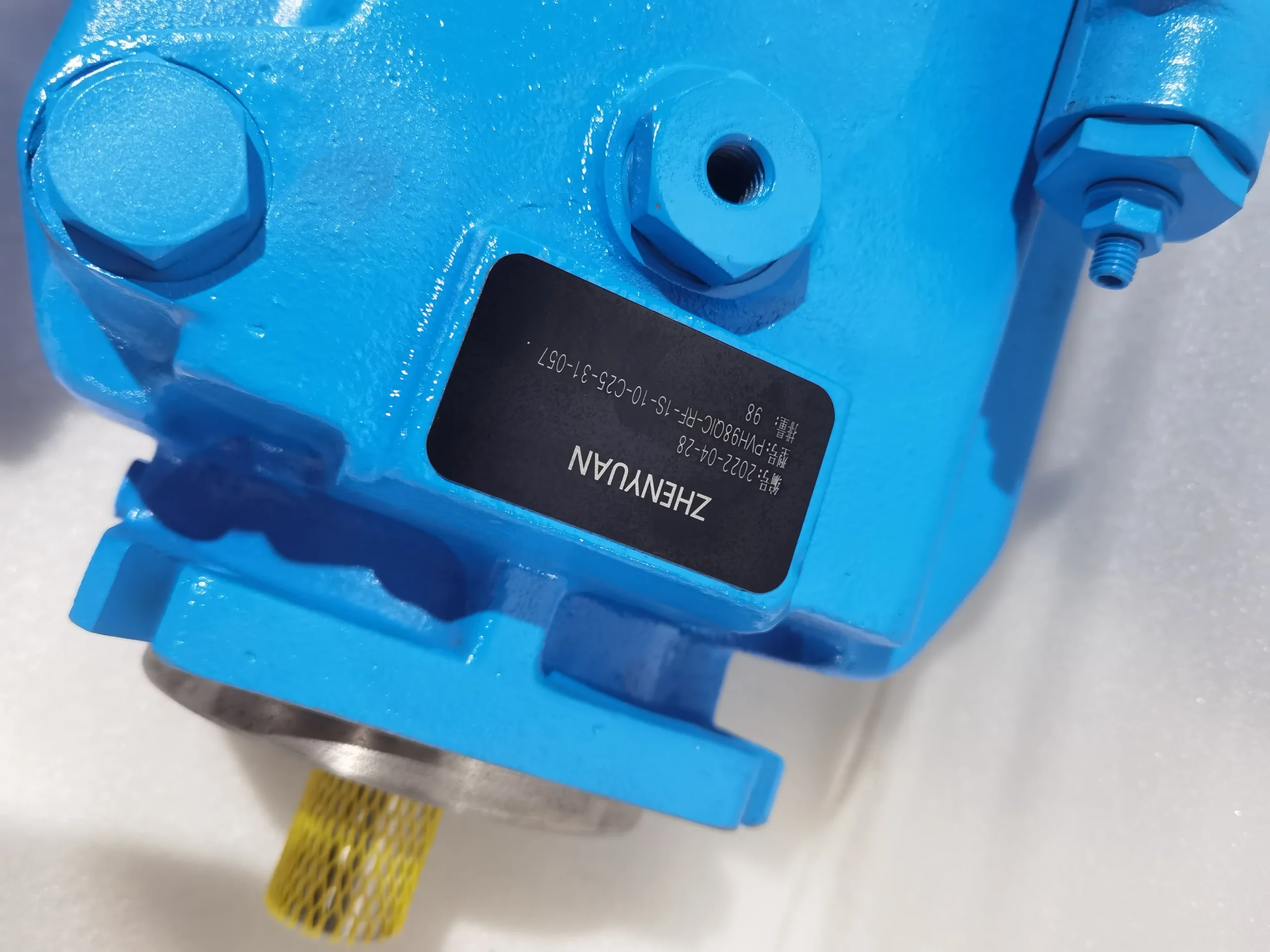

PVH57QIC-RF-1S-10-C25-31-57 Eaton Vickers Piston Pump 57cc

Product Overview

The PVH57QIC-RF-1S-10-C25-31-57 is an Eaton Vickers PVH Series size 57 open-circuit variable displacement axial piston pump with a nominal displacement of 57.4 cm³/rev (3.5 in³/rev), rated continuous working pressure of 250 bar (3625 psi), peak impact pressure of 280 bar (4060 psi), recommended speed range of 1200–2200 rpm (commonly 1800 rpm), theoretical flow of 103.3 L/min at 1800 rpm, volumetric efficiency ≥ 94%, overall efficiency ≥ 90%, and weight of approximately 30–36 kg.

The PVH Series is Eaton Vickers’ classic industrial and mobile dual-purpose heavy-duty piston pump platform, covering displacements from 57 to 141 cm³/rev, including PVH57, PVH63, PVH74, PVH81, PVH98, PVH106, PVH131, and PVH141. The model code decodes as follows: “PVH” represents the heavy-duty swashplate axial variable piston pump, industrial/mobile dual-purpose; “57” denotes nominal displacement of 57.4 cm³/rev; “Q” specifies quiet structure optimized for industrial low-noise environments; “I” specifies load sensing + pressure compensation combined control (Integrated), enabling on-demand oil supply and overload prevention; “C” specifies with remote pressure adjustment interface; “R” indicates right-hand rotation (clockwise, viewed from shaft end); “F” specifies SAE-C flange mounting; “1S-10” specifies standard through-shaft structure, basic variable mechanism; “C25” specifies rated pressure rating 250 bar (25 MPa); “31-57” specifies custom seals, port direction, and factory calibration parameters.

The pump employs a swashplate-type axial piston design, achieving suction and pressure strokes through reciprocating piston movement within the cylinder block. The cylinder block is rotated by the drive shaft, with pistons connected through piston shoes and a shoe plate bearing against an angled swashplate. As the block turns, the piston shoes follow the swashplate, causing the pistons to reciprocate — passing the inlet as they are pulled out and passing the outlet as they are forced back in. In variable displacement models, the swashplate is installed in a movable yoke; pivoting the yoke on pintles changes the swashplate angle to increase or decrease the piston stroke.

The PVH57QIC-RF-1S-10-C25-31-57 features SAE-C flange mounting and standard shaft, with SAE Code 61 flange ports (2-inch inlet / 1-inch outlet) and #8 O-ring case drain ports. The pump’s mounting flange, shaft specifications, and port layouts conform to Eaton Vickers PVH Series standards, enabling drop-in interchangeability with same-series PVH57QIC configurations.

Every PVH57QIC-RF-1S-10-C25-31-57 undergoes 100% simulated duty-cycle testing prior to shipment — covering pressure holding, flow output, compensator response, and internal leakage — ensuring complete drop-in interchangeability with original Eaton Vickers products without installation or plumbing modifications.

Technical Specifications

PVH57QIC-RF-1S-10-C25-31-57 Main Model Specifications:

• Model: PVH57QIC-RF-1S-10-C25-31-57

• Brand: Eaton Vickers

• Series: PVH Series, size 57

• Pump Type: Open-circuit swashplate axial variable displacement piston pump

• Nominal Displacement: 57.4 cm³/rev (3.5 in³/rev)

• Rated Continuous Pressure: 250 bar (3625 psi / 25 MPa)

• Peak Impact Pressure: 280 bar (4060 psi / 28 MPa)

• Recommended Speed Range: 1200–2200 rpm (commonly 1800 rpm)

• Theoretical Flow at 1800 rpm: 103.3 L/min

• Volumetric Flow at 1800 rpm: 98 L/min (26 gpm)

• Control Type: QIC load sensing + pressure compensation (LS + PC)

• Volumetric Efficiency: ≥ 94%

• Overall Efficiency: ≥ 90%

• Direction of Rotation: R (right-hand, clockwise, viewed from shaft end)

• Mounting Flange: SAE-C four-bolt flange (Ø 127 mm)

• Shaft Type: SAE-C standard shaft (1-1/4 inch keyed shaft)

• Inlet Port: 2-inch SAE Code 61 flange

• Outlet Port: 1-inch SAE Code 61 flange

• Case Drain Ports: #8 O-ring port

• Seals: NBR (Nitrile)

• Housing Material: Cast iron

• Weight: Approx. 30–36 kg

• Fluid Cleanliness Requirement: ISO 4406 18/16/13

• Recommended Fluid: ISO VG46 / VG68 anti-wear hydraulic oil

• Operating Oil Temperature: 0–60 ℃

• Inlet Pressure: Absolute pressure ≥ 0.8 bar

PVH Series Same-Family Displacement Reference (250 bar rated conditions):

• PVH057: 57.4 cm³/rev (3.5 in³/rev), flow at 1500 rpm 83 L/min, flow at 1800 rpm 98 L/min, 250 bar rated, weight 30–36 kg

• PVH063: 63.1 cm³/rev (3.85 in³/rev), flow at 1500 rpm 102 L/min, flow at 1800 rpm 125 L/min, 230 bar rated, weight 30–36 kg

• PVH074: 73.7 cm³/rev (4.5 in³/rev), flow at 1500 rpm 140 L/min, flow at 1800 rpm 170 L/min, 250 bar rated, weight 39–45 kg

• PVH081: 81.0 cm³/rev (4.94 in³/rev), flow at 1500 rpm 186 L/min, flow at 1800 rpm 223 L/min, 230 bar rated, weight 39–45 kg

• PVH098: 98.3 cm³/rev (6.0 in³/rev), flow at 1800 rpm 170 L/min, 250 bar rated, weight 43–49 kg

• PVH106: 106.5 cm³/rev (6.5 in³/rev), flow at 1800 rpm 183 L/min, 230 bar rated, weight 43–49 kg

• PVH131: 131.1 cm³/rev (8.0 in³/rev), flow at 1500 rpm 223 L/min, 250 bar rated, weight 60–66 kg

• PVH141: 141.1 cm³/rev (8.6 in³/rev), flow at 1500 rpm 236 L/min, 230 bar rated, weight 60–66 kg

Data based on Eaton Vickers PVH Series official technical specifications.

PVH Series Alternate Fluid Ratings:

• Petroleum-based hydraulic oil: Max pressure 250 bar (3625 psi)

• Polyol ester: Max pressure 230 bar (3335 psi)

• Water glycol: Max pressure 172 bar (2494 psi)

• Thickened HWBF (90-10): Max pressure 155 bar (2248 psi)

Key Technical Advantages

1. QIC Load Sensing + Pressure Compensation Combined Control — On-Demand Flow and System Energy Savings

The PVH57QIC-RF-1S-10-C25-31-57 features QIC load sensing + pressure compensation combined control, integrating load sensing (LS) and pressure compensation (PC) functions in a single controller. The load sensing function automatically adjusts pump displacement by sensing actuator load pressure, precisely matching output flow to actual system demand; pressure compensation automatically reduces displacement to only leakage flow when system pressure reaches the set point, eliminating relief losses. This control method supports automatic flow distribution during simultaneous multi-actuator operations, delivering significant energy savings and lower system heat generation. The pump also features a remote pressure adjustment interface (C code) for remote adjustment of the pressure compensator setting to meet system pressure requirements under different operating conditions.

2. Quiet Q-Type Structure — Low-Noise Industrial Environment Optimization

The “Q” code in the PVH Series represents quiet structure optimization, significantly reducing noise levels below standard designs by minimizing flow pulsation and fluid-borne noise in industrial environments. This optimization is achieved through precision-machined valve plate flow passages, optimized piston kinematics parameters, and rigid compact housing structure. For injection molding workshops, precision machine tools, and other indoor industrial environments with stringent acoustic requirements, the Q-type structure PVH57QIC pump offers significant acoustic advantages, helping to improve working environments and meet noise regulation requirements.

3. High Volumetric and Overall Efficiency — Precision Engineering Control

The PVH57QIC-RF-1S-10-C25-31-57 delivers volumetric efficiency ≥ 94% and overall efficiency ≥ 90%, leading among comparable products. The swashplate axial piston design with precision-machined piston assemblies and valve plates effectively reduces internal leakage, ensuring stable flow output over extended operation. The pump features a high-strength cast iron housing and optimized rotary group, maintaining stable operation at 250 bar continuous working pressure. The pump supports mineral oil, synthetic hydrocarbon oil, and other hydraulic media, with excellent adaptability to alternate fluids (polyol ester, water glycol, thickened HWBF).

4. Compact Structure and Modular Design — Flexible System Integration

The PVH57QIC-RF-1S-10-C25-31-57 weighs approximately 30–36 kg at 57.4 cm³/rev displacement, with through-drive pump (SAE A) weighing approximately 31–37 kg. The pump features modular design supporting through-shaft and tandem connection, enabling installation of gear pumps or same-series piston pumps on the same drive shaft for compact multi-circuit hydraulic system integration. SAE-C flange mounting, SAE-C standard shaft, and SAE Code 61 flange ports are standard configurations, enabling simple installation and direct coupling with industrial motors or mobile machinery drive systems.

5. Exceptional Field Interchangeability and Series Selection

The PVH57QIC-RF-1S-10-C25-31-57 features mounting flange (SAE-C four-bolt), shaft specifications, and port layouts conforming to Eaton Vickers PVH Series standards, enabling drop-in interchangeability with same-series PVH57QIC configurations (such as PVH57QIC-RF-2S-11-CM731). The PVH Series covers a wide displacement range of 57–141 cm³/rev within a shared mounting flange system, offering QIC (pressure compensation + load sensing), QIW (load sensing), QIS (proportional control), and other control options for flexible selection in system design and equipment maintenance.

Application Areas

• Small-to-Medium Injection Molding Machines: Main pump for clamping, injection, and holding pressure circuits, with QIC control enabling on-demand flow and energy-efficient operation

• Die-Casting Machines: Shot and intensification system auxiliary hydraulic circuits, with high pressure and large flow meeting fast shot demands

• Hydraulic Presses: Four-column hydraulic press, bending machine, and forging equipment power sources

• Machine Tools and Tool Machines: CNC lathes, machining centers, and grinding machine clamping, feed, and tailstock drive hydraulic systems

• Metallurgical Equipment: Rolling mill, forging equipment, and continuous casting machine hydraulic power stations

• Construction Machinery: Small excavator, loader, and concrete mixing equipment auxiliary hydraulic systems

• Aerial Work Platforms: Scissor lift and boom lift hydraulic power units

• Marine and Offshore: Deck machinery, winch, and steering gear hydraulic systems

• Automated Production Lines: Large machine tool and automated production line hydraulic power sources

• Port Machinery: Port auxiliary machinery hydraulic systems

The PVH57QIC-RF-1S-10-C25-31-57 is ideally suited for industrial hydraulic systems requiring 250 bar continuous working pressure and displacements in the 57 cm³/rev range — the classic configuration for injection molding machine and press hydraulic power units.

Expert Maintenance Tips

1. Shaft Alignment and Coupling Requirements

Maintain concentricity between the pump shaft and drive shaft within 0.05 mm. Flexible couplings are strongly recommended to accommodate minor angular misalignment. The PVH57QIC-RF-1S-10-C25-31-57 features SAE-C four-bolt mounting flange (Ø 127 mm) and SAE-C standard shaft (1-1/4 inch) — never strike the shaft end during installation to avoid damaging internal seals and bearings. Tighten mounting flange bolts in diagonal sequence to the specified torque. Couplings must be equipped with protective guards. Motor-to-pump shaft alignment should be checked after installation and again after 500 hours of operation.

2. Pre-Start Priming Procedure (Mandatory)

Before initial startup, the pump must be slowly filled through the case drain port with clean hydraulic oil to ensure adequate lubrication, cooling, and sealing during startup. Operating an axial piston pump dry — even for a few seconds — will score the swashplate, valve plate, and piston slippers, causing immediate total pressure loss and irreversible damage. Start the pump in jog mode until the pump and piping are sufficiently filled and vented. After complete venting, run at low pressure for 5–10 minutes, then gradually increase to rated pressure. The case drain must be on top of the pump, with a separate line unrestricted to the reservoir extending below the oil level.

3. QIC Controller Commissioning

Commission the QIC load sensing + pressure compensation controller ensuring coordination between load sensing differential and pressure compensation setting. The pressure compensation setting should be at least 10–15 bar below the system relief valve setting. The C code indicates the pump features a remote pressure adjustment interface, allowing flexible adjustment of the compensator setting through remote pressure relief valves. During commissioning, first turn the pressure setting screw to the lowest pressure position, then gradually increase to the target pressure. In multi-pump systems, stagger the compensator settings to prevent simultaneous adjustment-induced pressure oscillation.

4. Fluid Cleanliness and Filtration

The PVH57QIC-RF-1S-10-C25-31-57 requires fluid cleanliness of ISO 4406 18/16/13. ISO VG46 or VG68 anti-wear hydraulic oil is recommended, with operating oil temperature of 0–60 ℃. Use pressure line filters with a filtration ratio β10 ≥ 75 (per ISO 4572). Suction filtration accuracy ≤100 μm, pressure side filtration accuracy ≤10 μm. Avoid suction filters, which increase suction resistance and cavitation risk. Inlet pressure should be maintained at absolute pressure ≥ 0.8 bar.

5. Restart Procedure After Extended Shutdown

If the pump has been idle for more than 30 days, manually rotate the shaft several turns to verify free rotation before restarting. Check for abnormal leakage at the case drain port. After startup, operate at low pressure for 10–15 minutes until oil temperature reaches normal operating range before applying full load. Regularly inspect the keyed shaft engagement with the drive coupling, ensuring sufficient keyway engagement length.
