Hydraulic Bladder Accumulator Replacement | NXQ NXQA NXQAB Series 0.63L-10L

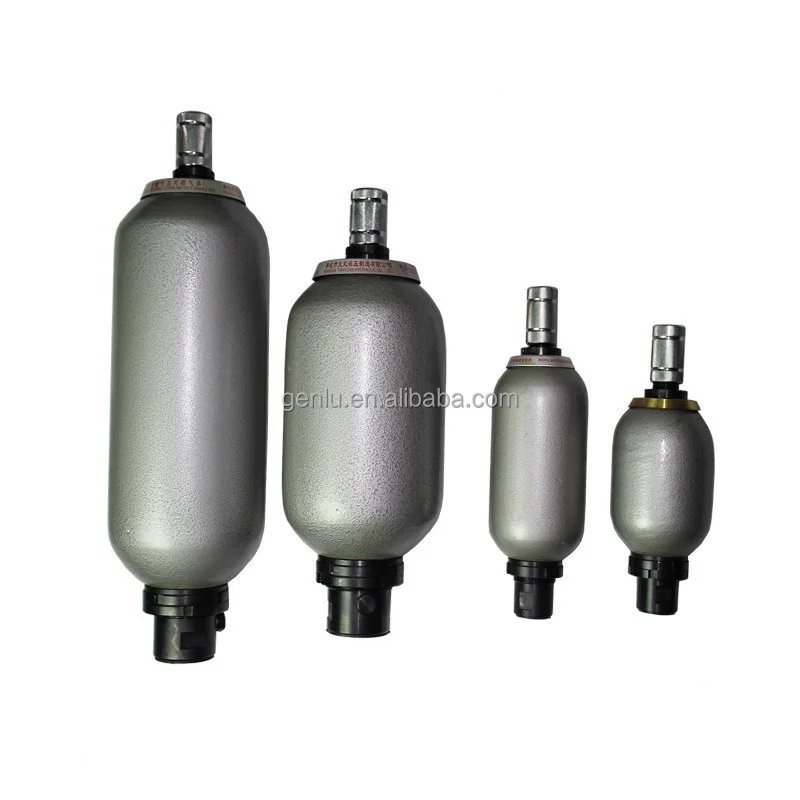

Genlu Hydraulic proudly introduces our industrial-grade NXQ Series bladder-type hydraulic accumulators. This series is essential for energy storage, pulsation dampening, leakage compensation, and pressure stabilization in complex hydraulic circuits. We offer a comprehensive range of NXQ, NXQA, and NXQAB models, ranging from 0.63L, 1L, 2.5L, 4L, to 10L+, including specific drop-in solutions for models like NXQ1.6L-Y-10MP and NXQAB-80/10-L-Y.

The NXQ series utilizes premium-grade NBR (or FKM) bladders, engineered for elite elasticity and high-cycle fatigue resistance. Genlu guarantees 100% Drop-in Interchangeability across mounting dimensions, charging valve configurations, port threading, and pressure ratings compared to original NXQ series units. Every accumulator undergoes 100% pressure-seal and bladder-integrity testing on our digital test benches, certifying reliable performance under intense pressure spikes and rigorous operating cycles.

Technical Specifications

• Product Series: NXQ / NXQA / NXQAB Series Bladder Accumulator

• Available Volumes: 0.63L, 1L, 1.6L, 2.5L, 4L, 10L, 80L (Custom available)

• Nominal Pressure: 10 MPa (100 bar) / 20 MPa (200 bar) / 31.5 MPa (315 bar)

• Applicable Media: Hydraulic Oil, Emulsions, Lubricants

• Bladder Material: Standard Nitrile (NBR) or High-temp Fluoroelastomer (FKM)

• Mounting Configuration: Vertical (Recommended) or Horizontal

• Pre-charge Media: High-purity Nitrogen ($N_2$)

Key Technical Advantages:

• Elite Pulsation Dampening: Rapid response to system pressure transients effectively filters out pump-generated pulsations, reducing noise and vibrations while protecting delicate components from shock loading.

• Advanced Bladder Engineering: Manufactured using state-of-the-art compression molding, our bladders feature uniform wall thickness, offering exceptional fatigue life and aging resistance during repetitive compression cycles.

• Multi-Level Safety Protection: The accumulator shell undergoes rigorous burst-pressure testing. The anti-extrusion design at the base prevents gas from entering the system even if the bladder fails, ensuring total operational safety.

• Universal Drop-in Compatibility: From compact 0.63L units to massive 80L storage tanks, all interface dimensions comply strictly with industrial standards, allowing for “plug-and-play” replacement without modifying existing mounts.

Application Areas:

• Pulsation Suppression: Smoothing high-frequency pressure fluctuations in plastic injection and die-casting machines.

• Emergency Power Supply: Providing critical oil supply during power failure for emergency safety resets of hydraulic mechanisms.

• Pressure Compensation: Managing leakage-related pressure drops in closed-loop circuits to maintain system-wide performance stability.

Expert Maintenance Tips:

• Pre-charge Maintenance: Pre-charge pressure is the heart of accumulator performance. Check levels monthly. Failure to maintain correct pre-charge causes the bladder to over-stretch, leading to premature failure.

• Charging Valve Care: Always use dedicated charging tools to avoid port damage. Follow the “Gas-First” protocol: Never inject hydraulic fluid into the accumulator until the bladder is properly pre-charged with nitrogen.

• Temperature Compatibility: Ensure fluid compatibility with bladder materials. For operating temperatures exceeding 80°C (176°F), always specify FKM (Fluorocarbon) bladders to avoid rubber hardening and cracking.
