SCEA-LAN SUN Direct Acting Sequence Valve Cartridge 350bar

Product Overview

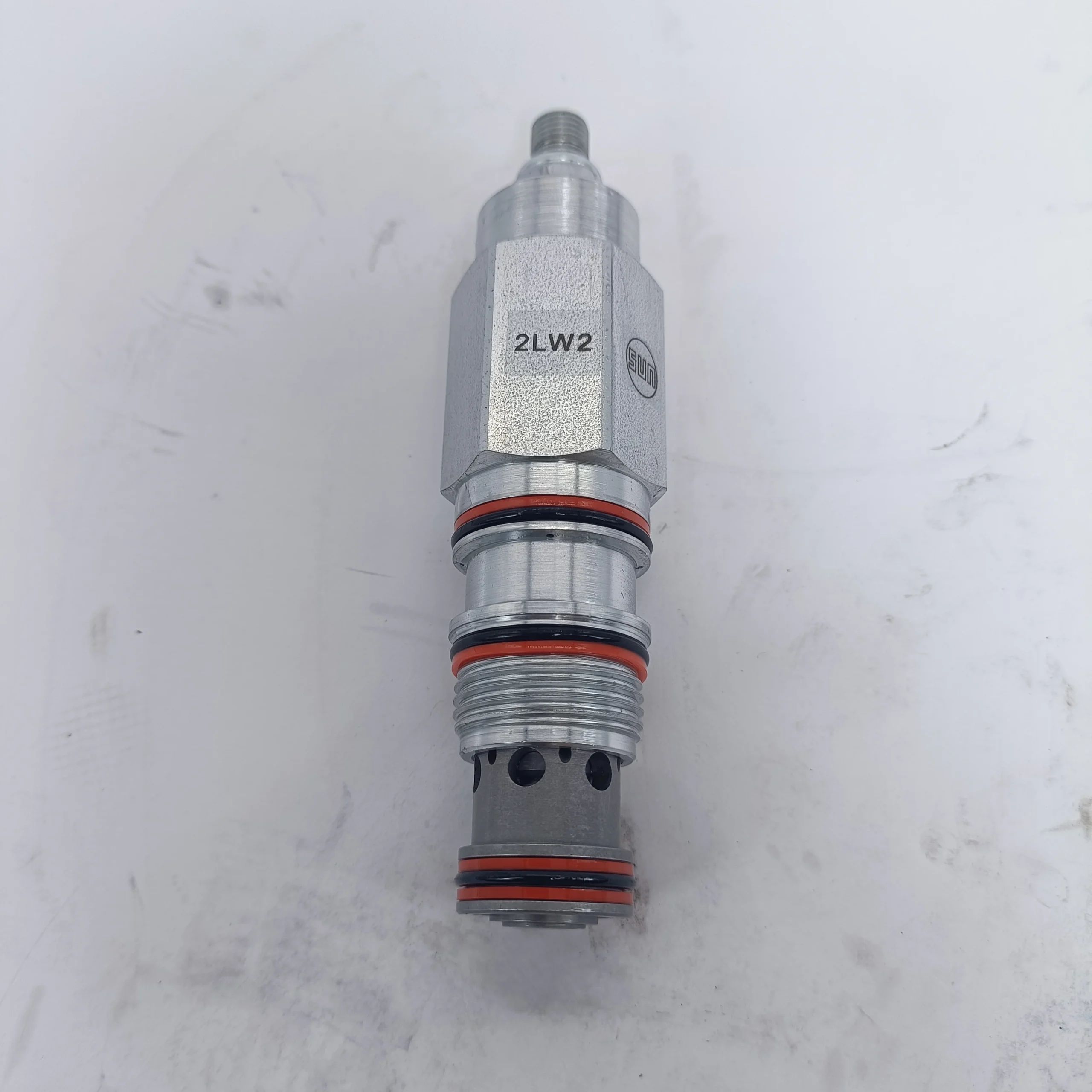

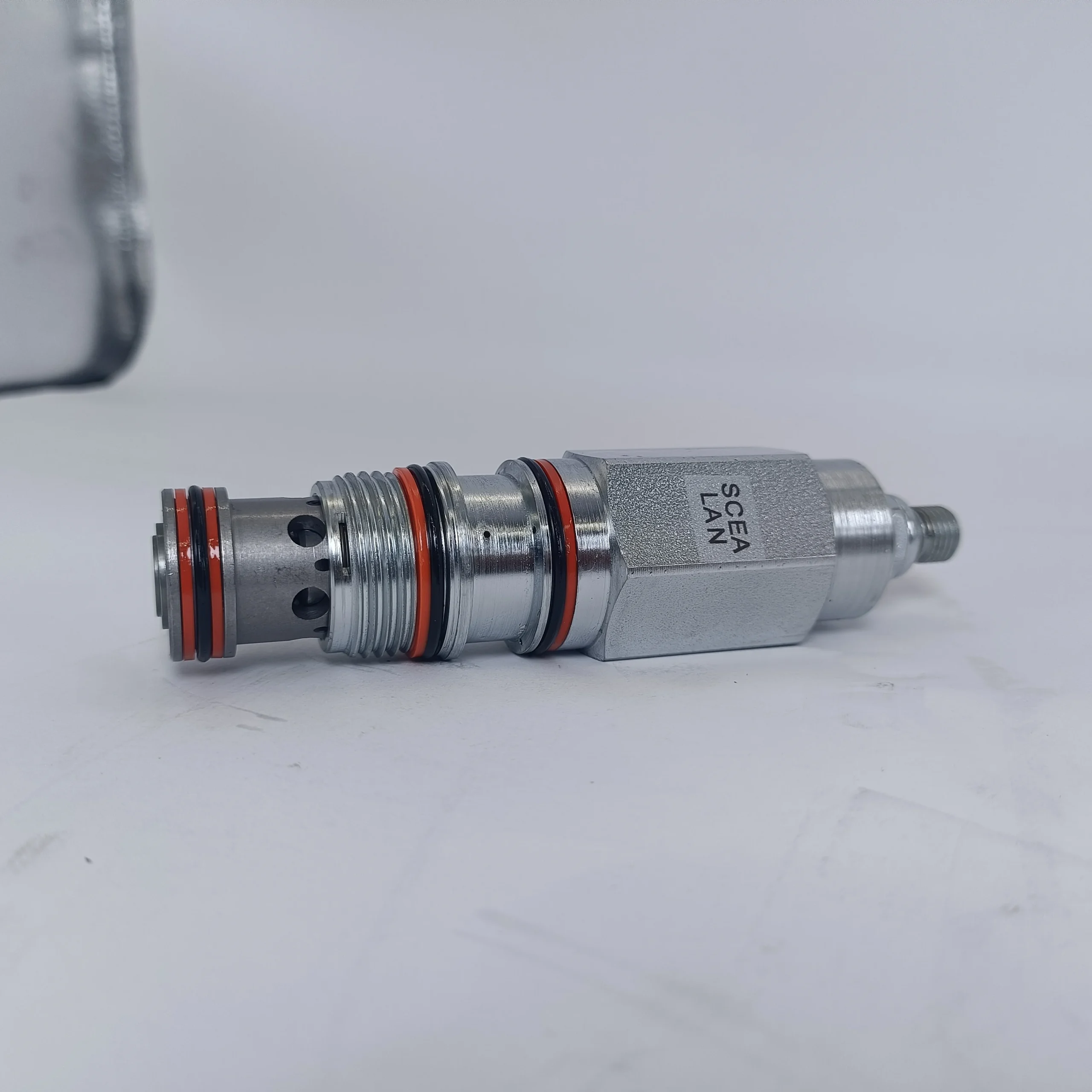

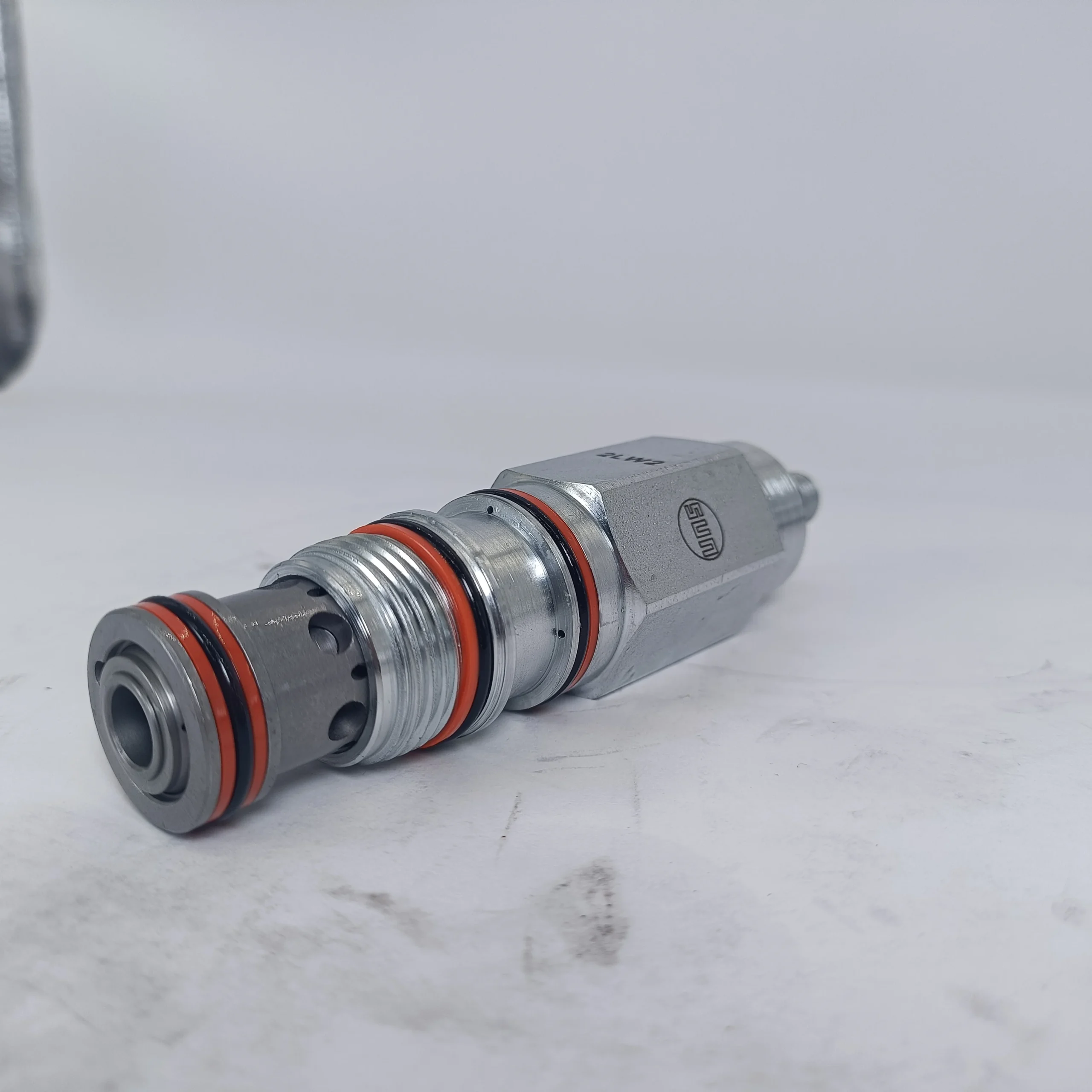

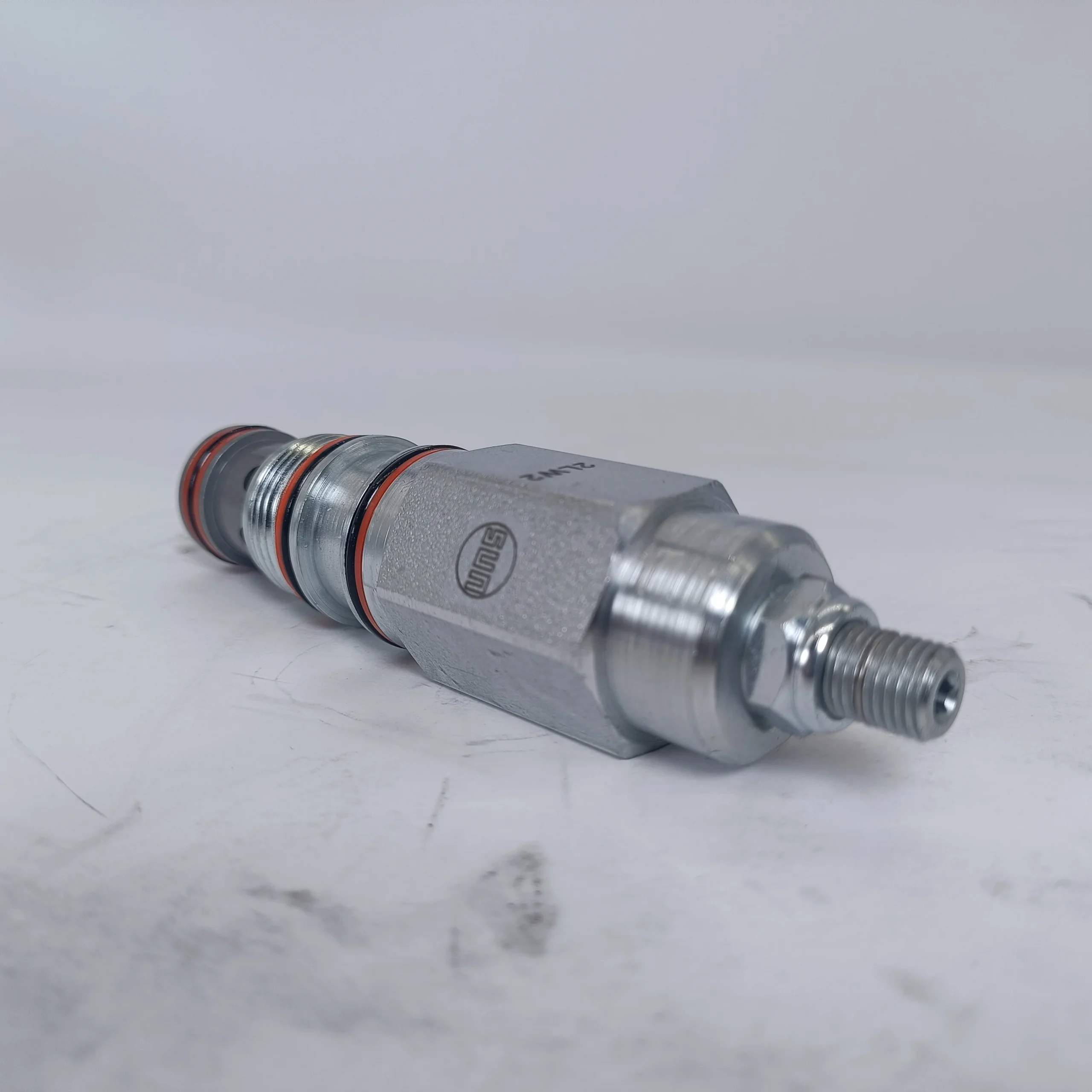

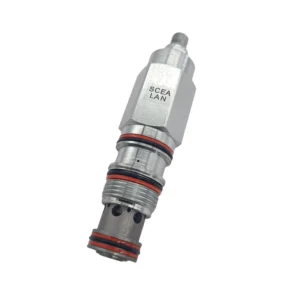

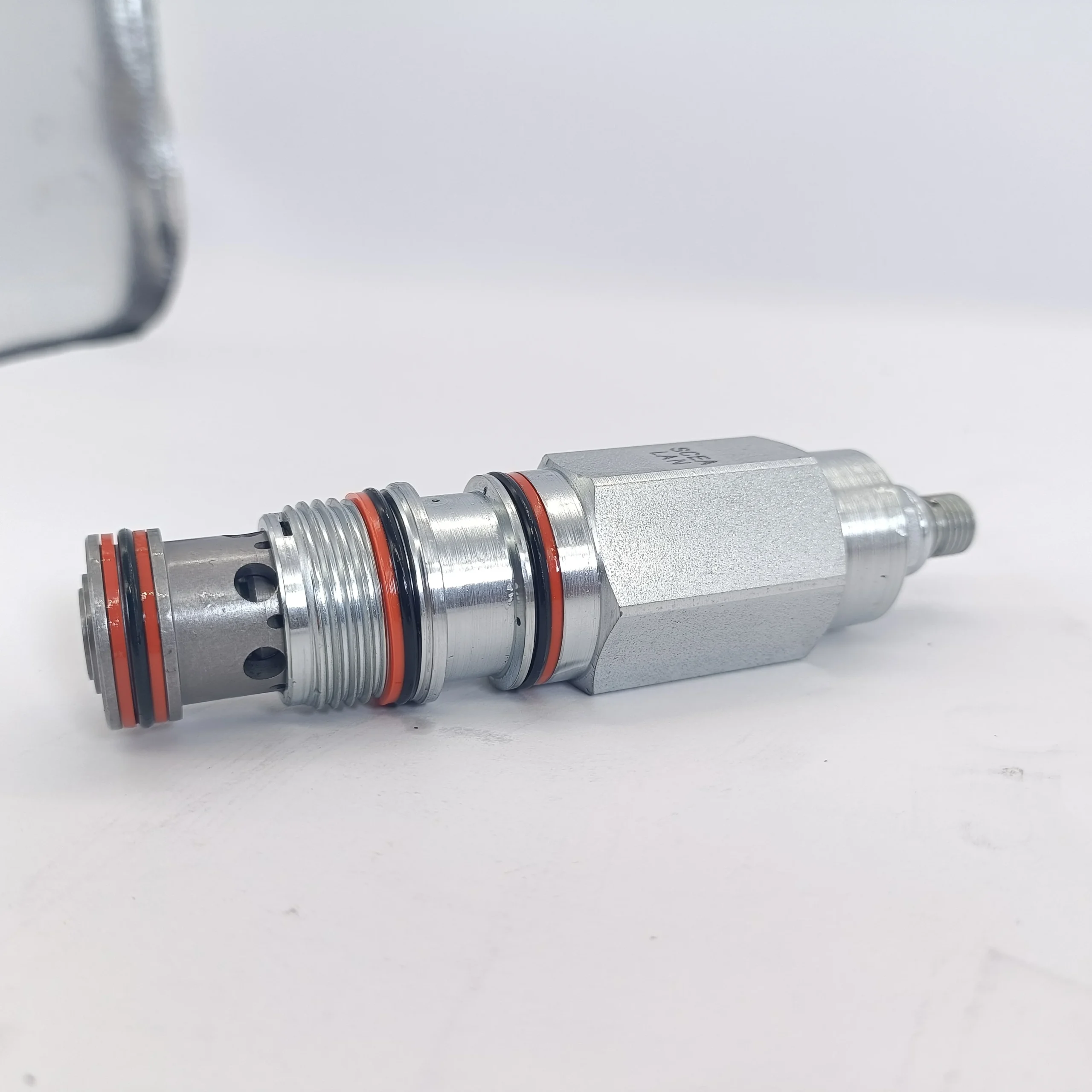

The SCEA-LAN is a SUN Hydraulics direct-acting sequence valve with integral reverse-flow check. It supplies flow to a secondary circuit (port 2) once the inlet pressure at port 1 exceeds the valve setting, while allowing free reverse flow from port 2 to port 1. This zero-pilot-flow design requires port 3 (drain) to remain open to maintain a pressure reference in the control chamber. Featuring SUN’s floating construction and exact T-2A cavity/flow-path compatibility, the valve offers 100% drop-in interchangeability and is validated through simulated operating condition testing. The family includes SCEA-LWN (alternative adjustment range), SCGA-LAN and SCIA-LAN (higher flow capacities), and SXCA-LAN (version without reverse-flow check), providing flexible solutions for sequential pressure control and load-holding applications.

Technical Specifications

• Model: SCEA-LAN (related models: SCEA-LWN, SCGA-LAN, SCIA-LAN, SXCA-LAN)
• Type: Direct-acting sequence valve with reverse flow check
• Capacity: 30 gpm (120 L/min)
• Cavity: T-2A (Series 2)
• Maximum Operating Pressure: 5000 psi (350 bar)
• Adjustment Range (A): 500–3000 psi (35–210 bar), factory standard setting approx. 1000 psi (70 bar)
• Control: L (Standard Screw Adjustment)
• Seal Material: N (Buna-N)
• Factory Pressure Settings Established at: 2 in³/min (30 cc/min)
• Maximum Valve Leakage at Reseat: 10 drops/min (0.7 cc/min)
• Check Cracking Pressure: 25 psi (1.7 bar)
• Response Time – Typical: 2 ms
• Adjustment: Approximately 5 clockwise turns from minimum to maximum setting
• Valve Hex Size: 1-1/8 in. (28.6 mm)
• Installation Torque: 45–50 lbf·ft (61–68 Nm)
• Adjustment Screw Internal Hex: 5/32 in. (4 mm)
• Locknut Hex Size: 9/16 in. (15 mm)
• Locknut Torque: 80–90 lbf·in (9–10 Nm)
• Weight: Approx. 0.60 lb (0.30 kg)
• Seal Kits: Buna 990202007; Viton 990202006 and others available

Key Technical Advantages

• Direct-acting design delivers very fast response (typical 2 ms), low hysteresis, and high reseat ratio (reseats above 85% of set pressure) for precise sequential control.
• Integral reverse free-flow check allows unrestricted return flow from the secondary circuit, simplifying circuit design and reducing pressure drop.
• SUN floating construction compensates for cavity tolerances and installation torque variations, minimizing internal binding risk and ensuring long-term interchangeability.
• Zero pilot flow reduces energy consumption and makes the valve suitable for load-holding applications; pressure at port 3 adds directly (1:1) to the setting (must not exceed 350 bar).
• Precision machining, robust materials, and 100% simulated-duty testing guarantee stable performance, low leakage, and extended service life under 350 bar and repeated cycling.

Application Areas

Ideal for pressure sequencing and load-holding in multi-actuator hydraulic systems, including sequential cylinder motion on injection molding machines, die-casting equipment, metal-forming presses, construction machinery multi-function circuits, machine-tool clamping and unloading sequences, test benches, packaging and automation equipment sequential control, and any industrial application requiring a secondary circuit to be pressurized only after the primary circuit reaches a set pressure.

Expert Maintenance Tips

Verify that the T-2A cavity is clean and free of burrs before installation. Tighten to the specified 45–50 lbf·ft torque. Port 3 (drain) must remain open and connected to tank—never plug it, as seal weepage can cause malfunction. When adjusting, loosen the locknut, turn the screw clockwise to increase setting, then re-torque the locknut. Remember that pressure at port 3 adds directly (1:1) to the valve setting. Maintain fluid cleanliness at ISO 4406 18/15 or better and inspect seals periodically. Use only recommended seal kits. After initial installation, verify sequencing pressure and reverse free-flow function.
