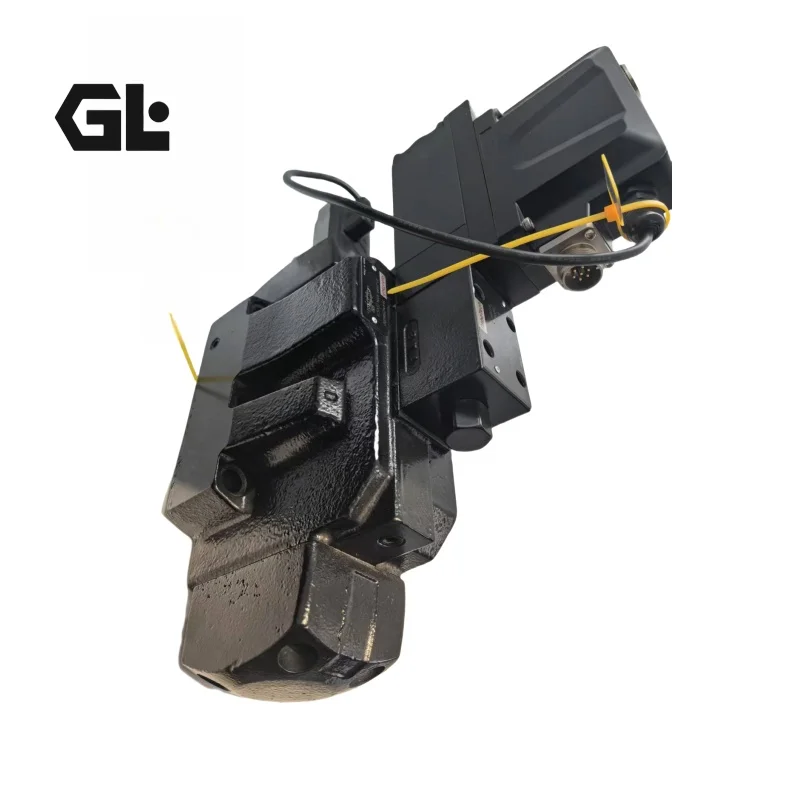

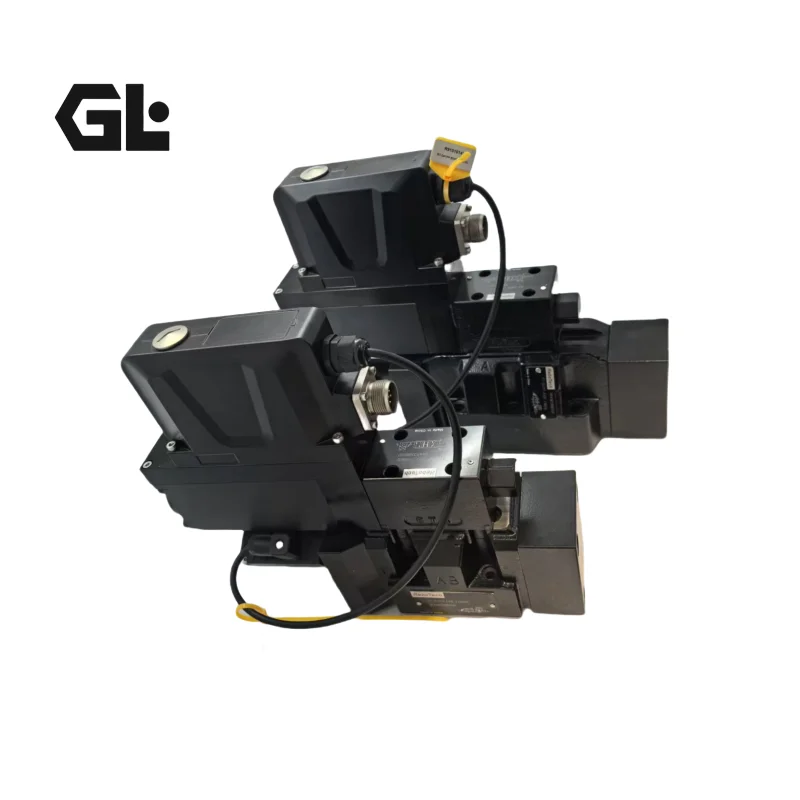

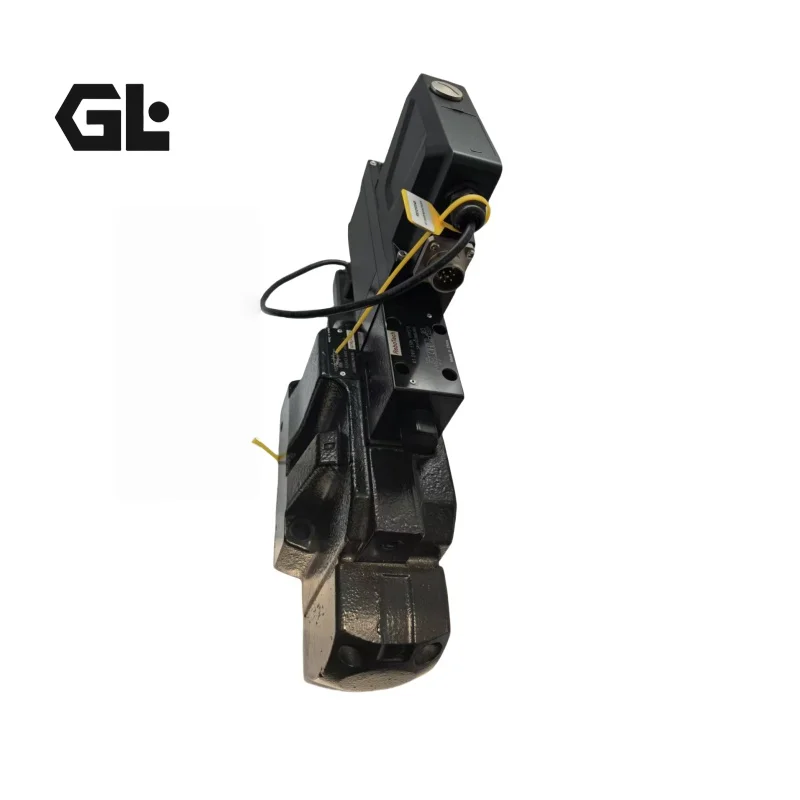

D41FHE01E1NB00 Parker Proportional Directional Valve NG16 350 bar

Product Overview

The D41FHE01E1NB00 is a pilot-operated proportional directional control valve from Parker Hannifin’s D41FH series, featuring integrated spool position feedback and onboard electronics. The valve employs a two-stage control architecture with a D1FVE50BCVLB pilot stageand a main stage, delivering precise flow and direction control with high repeatability. Rated at NG16 (CETOP 07) with ISO 4401 mounting interface, this valve is designed for demanding industrial applications requiring accurate proportional control of flow rate and direction.

As a direct OEM-replacement solution, this valve maintains 100% mechanical and functional interchangeability with the original Parker unit. Every valve undergoes rigorous simulation testing—including pressure cycling, thermal variation, and full-stroke endurance validation—to guarantee factory-grade performance. Ideal for hydraulic systems where precision, dynamic response, and long-term reliability are paramount.

Technical Specifications

• Model: D41FHE01E1NB00

• Brand: Parker Hannifin

• Valve Type: 4/3 Proportional directional valve, solenoid-operated

• Nominal Size: NG16 (CETOP 07 / NFPA D07)

• Mounting Interface: ISO 4401

• Number of Positions: 3

• Spool Type: E01 (overlap spool, P→A/B→T configuration)

• Rated Operating Pressure: 350 bar (35 MPa)

• Peak Pressure: 350 bar (ports P, A, B, T, X)

• Max Flow Rate: 105–200 L/min (depending on spool type and pressure differential)

• Pilot Valve: D1FVE50BCVLB

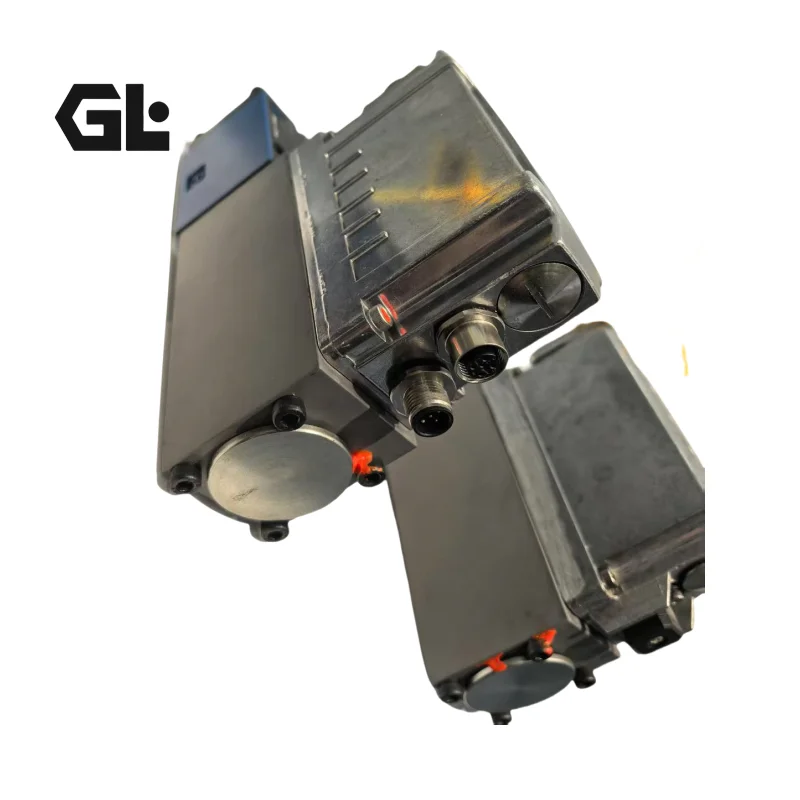

• Control Type: Proportional solenoid with integrated onboard electronics and spool position feedback

• Coil Voltage: 24V DC

• Control Signal: 0–10V or 4–20mA (amplifier dependent)

• Seal Material: NBR (Nitrile)

• Operating Temperature Range: -20°C to +60°C

• Ambient Temperature Range: -20°C to +50°C

• Vibration Resistance: 25g, 3-dimensional vibration (24 hrs)

• Weight: Approx. 11.6 kg

• Mounting Position: Optional

Key Technical Advantages

1. Closed-Loop Spool Position Feedback for Superior Repeatability
The D41FHE series incorporates integrated spool position feedback with closed-loop control architecture. The onboard electronics continuously monitor the actual main spool position against the command signal, ensuring highly repeatable spool displacement. This design maintains exceptional control precision under frequent shifting and variable flow conditions, making it ideal for applications demanding stringent position and velocity accuracy.

2. Pilot-Operated Two-Stage Design – High Flow Capacity with Fast Dynamic Response
The two-stage control architecture—featuring the D1FVE50BCVLB pilot valve driving the main stage—delivers both high flow capacity (up to 200 L/min)and the fast dynamic response characteristic of proportional valves. The pilot stage handles signal amplification and fine control while the main stage manages high-volume flow output, achieving precise flow modulation even with small input signals.

3. Premium Materials and Precision Manufacturing for Long-Term Reliability
The valve body is constructed from high-strength cast steelwith precision-machined mating surfaces, complemented by high-quality NBR seals. The design ensures stable operation across a wide temperature range of -20°C to +60°C. Validated through 25g 3-dimensional vibration testing, the valve demonstrates exceptional vibration resistance and environmental durability for continuous operation in harsh industrial conditions.

4. Drop-In Interchangeability – Minimized Downtime and Retrofit Costs
The D41FHE01E1NB00 strictly adheres to Parker’s original mounting dimensions and functional specifications, with ISO 4401 interface compliance. Whether for new system design or legacy system upgrades, this valve offers 100% mechanical and electrical interchangeability with the original Parker unit—eliminating the need for manifold modifications or piping changes, significantly reducing downtime and retrofit expenses.

5. Low Leakage and High Frequency Response – Enhanced System Efficiency
The spool-type valve design, combined with precision-fitted spool and sleeve, achieves minimal internal leakage. Optimized flow path design delivers high flow capacity with low pressure drop, improving overall hydraulic system energy efficiency. The high-frequency response characteristic ensures precise control even in rapid cycling applications.

Application Areas

• Injection Molding Machinery – Clamping, injection, and holding pressure control with multi-stage velocity and pressure profiling

• Presses and Stamping Equipment – Slide velocity and position closed-loop control for hydraulic presses

• Metallurgical and Rolling Mill Equipment – High-reliability shifting and flow regulation in demanding environments

• Mobile and Construction Equipment – Compound motion control and proportional speed regulation for work attachments

• Test Rigs and Simulation Systems – Precision hydraulic excitation signal control for laboratory and production testing

• Marine and Offshore Equipment – Proportional flow and direction regulation in onboard hydraulic systems

Expert Maintenance Tips

1. Fluid Cleanliness Control
Proportional valves of the D41FHE series are highly sensitive to fluid contamination. Maintain system fluid cleanliness to ISO 4406 16/14/11 or better (equivalent to NAS 1638 Class 7). Install return or pressure filters with a minimum filtration rating of 10μm (β₁₀≥75) upstream of the valve.

2. Pilot Supply Pressure and Return Backpressure
This valve requires stable pilot supply pressure for the D1FVE50BCVLB pilot stage. Maintain pilot supply pressure within 15–25 bar. Ensure return line backpressure at ports T and Y does not exceed allowable limits, as excessive backpressure may compromise main spool shifting performance and position feedback accuracy.

3. Electrical Connections and Signal Matching
The D41FHE01E1NB00 requires a compatible driver amplifier. Verify that the control signal type (0–10V or 4–20mA) and coil voltage (24V DC) match the amplifier output. Use shielded cables for control signal transmission with single-point grounding of the shield to effectively suppress electromagnetic interference.

4. Installation and Sealing
Carefully review the Parker product documentation prior to installation. Ensure the mounting manifold is flat and smooth, and tighten mounting bolts evenly to specified torque. Take care not to damage or omit seals during assembly. Purge air from the system before initial power-up to prevent response degradation.

5. Periodic Inspection and Maintenance
Regularly verify the consistency between spool position feedback signals and command signals; recalibrate if deviation is detected. During scheduled system maintenance, inspect the pilot valve filter element condition and replace hydraulic fluid and filters according to service intervals and operating conditions.
