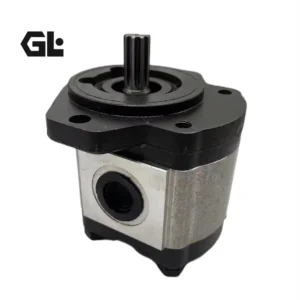

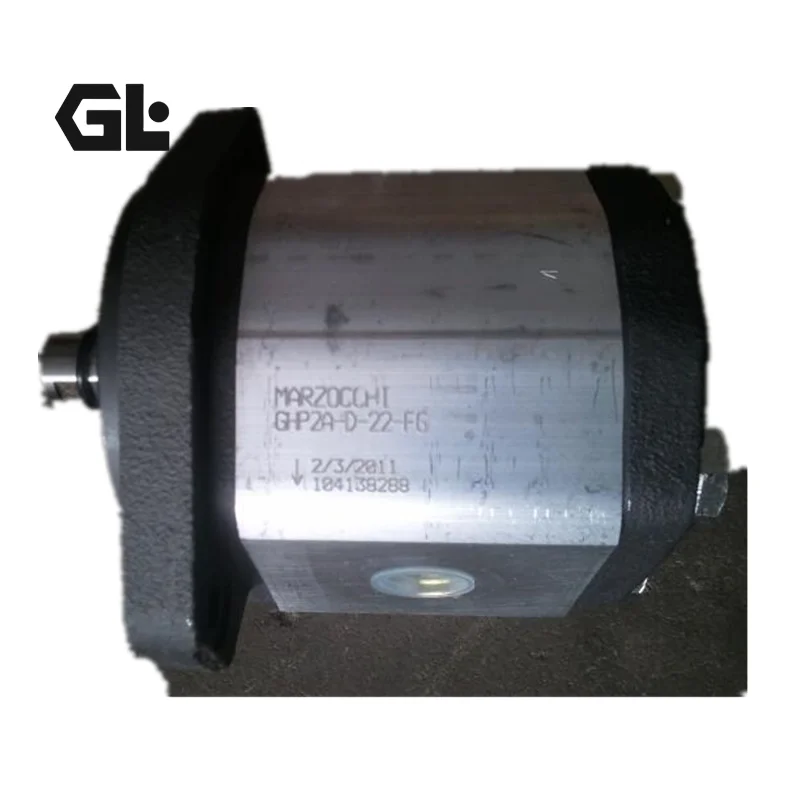

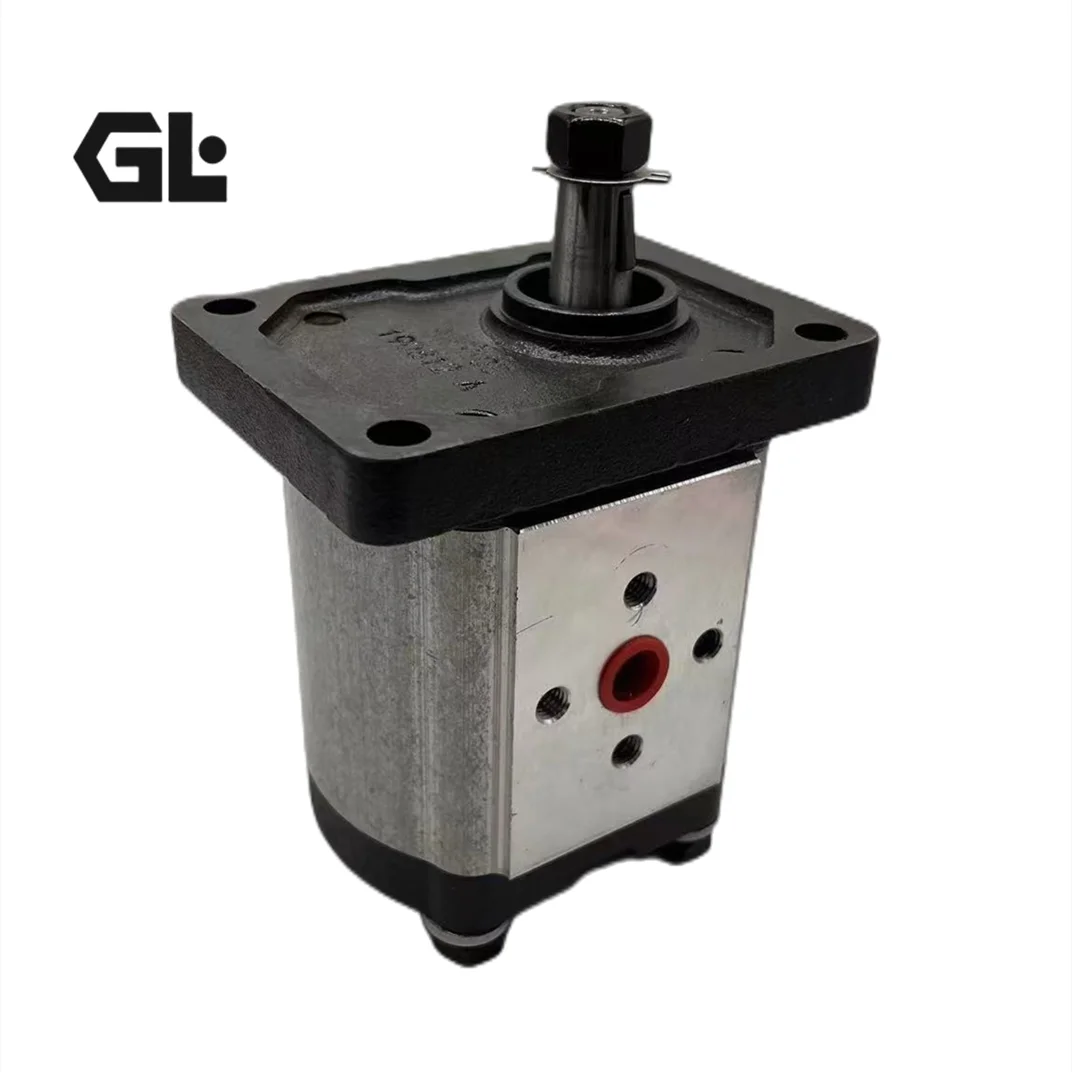

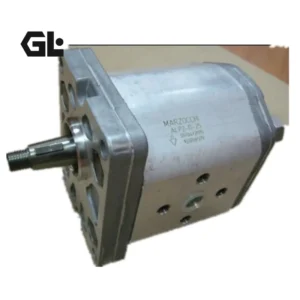

Hydraulic Gear Pump Series | 1M1IF09R 1L12IE10R 1PLA84DE10B Replacement

Genlu Hydraulic proudly introduces our series of high-precision hydraulic gear pumps, extensively covering industrial and mobile applications. This series is a precise match for industry standards, supporting models including 1M1IF09R, 1L12IE10R, 1L05DE10R, 1L03DE10R, 1L05DH09S, 1G8CIE10R/V11, 1PLA84DE10B, 1G6CDE10R, and 1L12DE10R. Genlu unequivocally guarantees 100% Drop-in Interchangeability in mounting flanges, splined drive shafts, port configurations, and pressure handling. Backed by our uncompromising 100% Simulation Load Testing, each unit is validated for volumetric efficiency, seal durability, and noise performance before dispatch, ensuring relentless, stable, and high-efficiency fluid power for your critical applications.

Technical Specifications

• Product Series: Universal Hydraulic Gear Pump Series

• Models Covered: 1M1IF09R, 1L12IE10R, 1L05DE10R, 1L03DE10R, 1L05DH09S, 1G8CIE10R/V11, 1PLA84DE10B, 1G6CDE10R, 1L12DE10R

• Rated Operating Pressure: 16 – 25 MPa (Model-dependent)

• Peak Pressure: 28 MPa

• Speed Range: 500 – 3000 rpm

• Structural Configuration: High-strength aluminum or cast iron housing, hardened-tooth external gear architecture

• Fluid Compatibility: ISO VG 32-68 hydraulic oil

• Mounting: Flange-mounted (SAE/ISO standard)

Key Technical Advantages:

• Precision Gear Mesh Technology: Utilizing advanced gear-grinding processes, we optimize the tooth-mesh profile to significantly reduce pressure pulsation and mechanical noise, ensuring operational stability across the entire speed range.

• High-Strength Floating Side-Plates: Our unique floating compensation structure automatically adjusts axial clearance based on system pressure, drastically reducing internal leakage under high loads and boosting volumetric efficiency.

• Shock-Resistant Bearing Design: Equipped with heavy-duty needle bearings capable of withstanding high radial loads, ensuring the pump can effectively handle pressure transients inherent in hydraulic systems, extending service life.

• Modular Compatibility: Designed for direct replacement; every aspect—from port locations and mounting dimensions to drive shaft types—is engineered for a 1:1 match, ensuring “plug-and-play” installation without modifying existing plumbing.

Application Areas:

• Industrial Hydraulic Power Units: Machine tools, presses, injection molding auxiliary units.

• Mobile Equipment: Dump trucks, cranes, agricultural tractor hydraulics.

• Material Handling: Forklift hydraulics and lifting platforms.

• Municipal Maintenance: Refuse collection vehicles and street sweepers.

Expert Maintenance Tips:

• Port Protection: Never start the pump under load to avoid cavitation. Ensure the suction-side piping is airtight during installation to prevent air ingestion.

• System Cleanliness: Gear pumps are highly sensitive to contamination. We strongly recommend using 20μm (or finer) filters to maintain fluid cleanliness at ISO 4406 18/16/13 to protect the gear side-plates from wear.

• Periodic Temperature Monitoring: Operating temperatures should not consistently exceed 80°C. Excessive heat degrades lubrication, directly leading to accelerated gear wear and seal deterioration.
