OMS Hydraulic Motor | Danfoss OMS125 OMS200 OMS315 Replacement

Genlu Hydraulic stands as a premier enterprise in the precision R&D, structural engineering, and global logistics of high-capacity, mobile-grade low-speed high-torque (LSHT) orbit hydraulic motors. The OMS Series Medium-to-Heavy Duty Disc Valve Orbit Hydraulic Motor is purposefully manufactured as a robust, high-pressure, and 100% drop-in interchangeable alternative to the global fluid power industry benchmark Danfoss classic OMS series (disc valve configuration, 151F- prefix family) orbital lines. We manage comprehensive manufacturing and ready-to-ship supply chains for all definitive frame displacements and manufacturer part numbers, prominently delivering replacement assemblies for OMS125, OMS200 (Part Number: 151F0570), OMS250, and OMS315 (Part Number: 151F0548).

Across severe applications ranging from industrial winch drives to heavy construction crawler tracks and agricultural harvester headers, the motor’s startup torque efficiency, heavy side-load rating, and the anti-wear integrity of the disc distribution plate define the machine’s lifetime. Genlu’s OMS series orbit motors align precisely with original product manuals. We guarantee flawless mechanical interchangeability across standard SAE A 4-bolt square mounting flanges, Ø32 mm cylindrical parallel keyed output shafts, and standard fluid connection ports. Prior to dispatch authorization, every single motor undergoes 100% Full-Simulation Condition Testing on digitized hydraulic test bays to ensure optimal volumetric efficiency and zero-leak pressure stability under full rated load.

Technical Specifications

• Product Line: OMS Series Heavy-Duty Disc Valve Hydraulic Orbit Motor (Fully compatible with Danfoss 151F- platforms)

• Core Covered Models & Part Numbers:

  • OMS125 Layout (Geometric Displacement: 125.0 $cc/rev$)

  • OMS200 Layout (Part Number: 151F0570, Geometric Displacement: 200.0 $cc/rev$)

  • OMS250 Layout (Geometric Displacement: 250.0 $cc/rev$)

  • OMS315 Layout (Part Number: 151F0548, Geometric Displacement: 315.0 $cc/rev$)

• Continuous Rated Operating Pressure: 150 bar to 210 bar (15.0 MPa to 21.0 MPa / up to 3045 psi, depending on selected displacement size)

• Maximum Intermittent Peak Pressure: 175 bar to 250 bar (17.5 MPa to 25.0 MPa / 3625 psi transient spikes)

• Continuous Rated Output Torque: From 450 $N\cdot m$ (OMS125) up to 820 $N\cdot m$ (OMS315)

• Maximum Permissible Continuous Flow Feed: 75 $L/min$ (Adjusted based on high-displacement limits under heavy thermal load)

• Maximum Continuous Rotational Velocity: 240 rpm (OMS315) up to 600 rpm (OMS125)

• Fluid Distribution Configuration: Disc Valve Geometry (Independent distribution plate with automatic wear compensation)

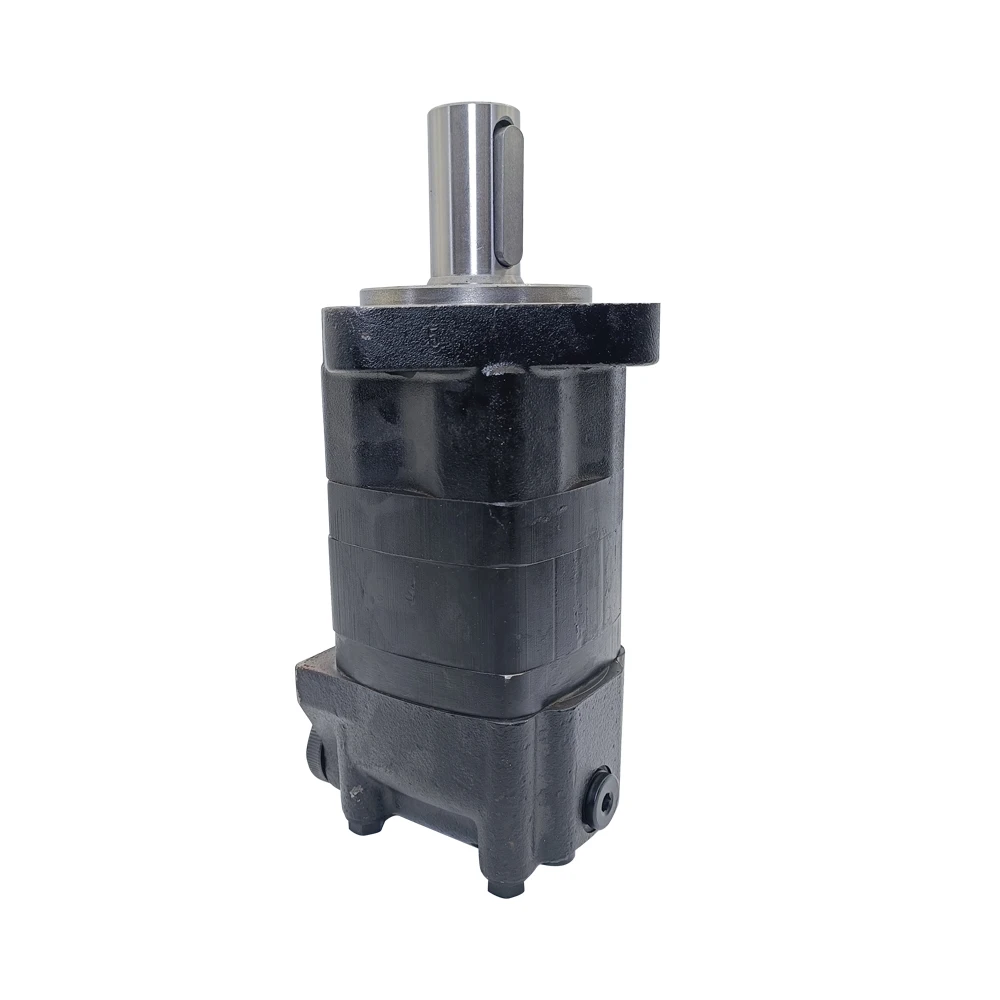

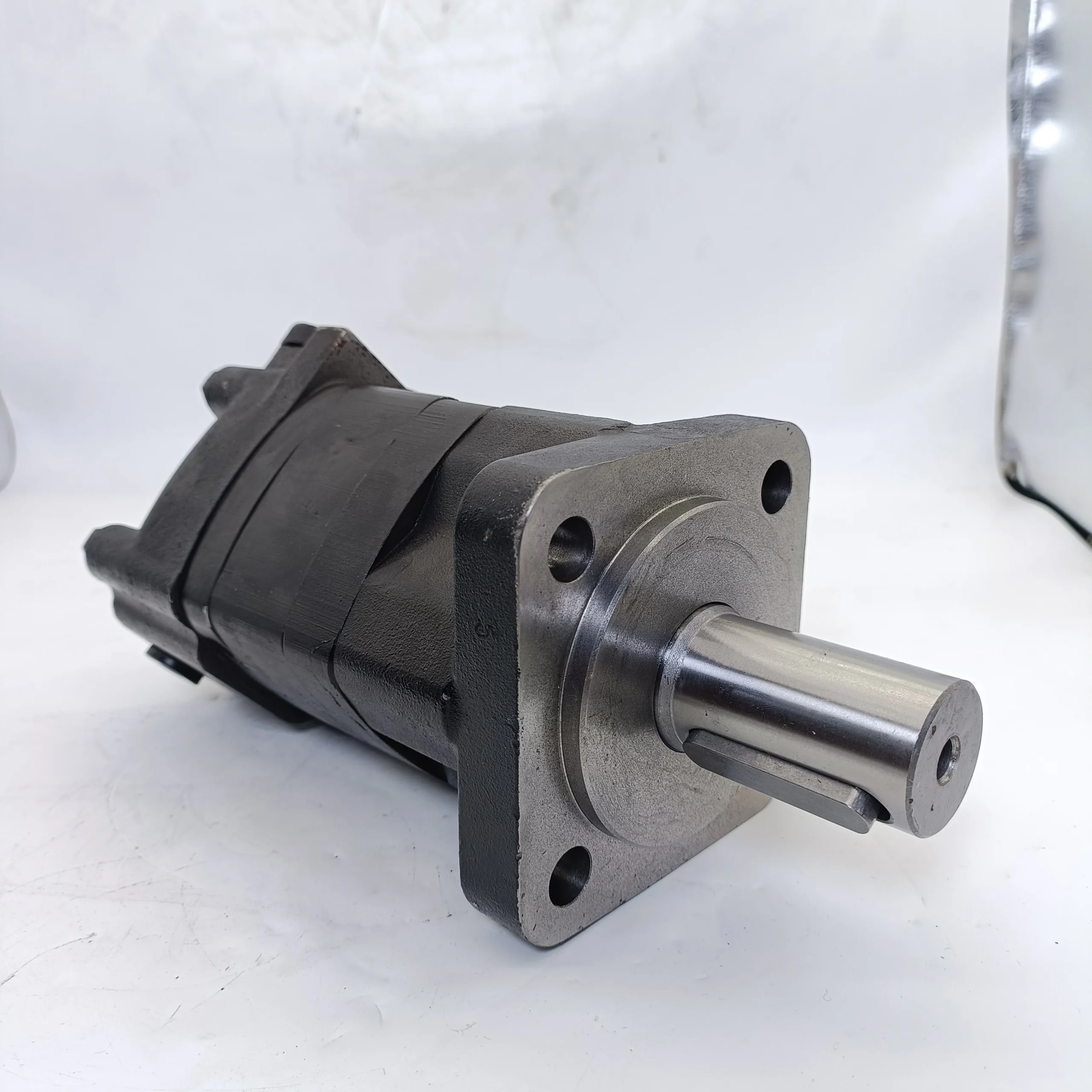

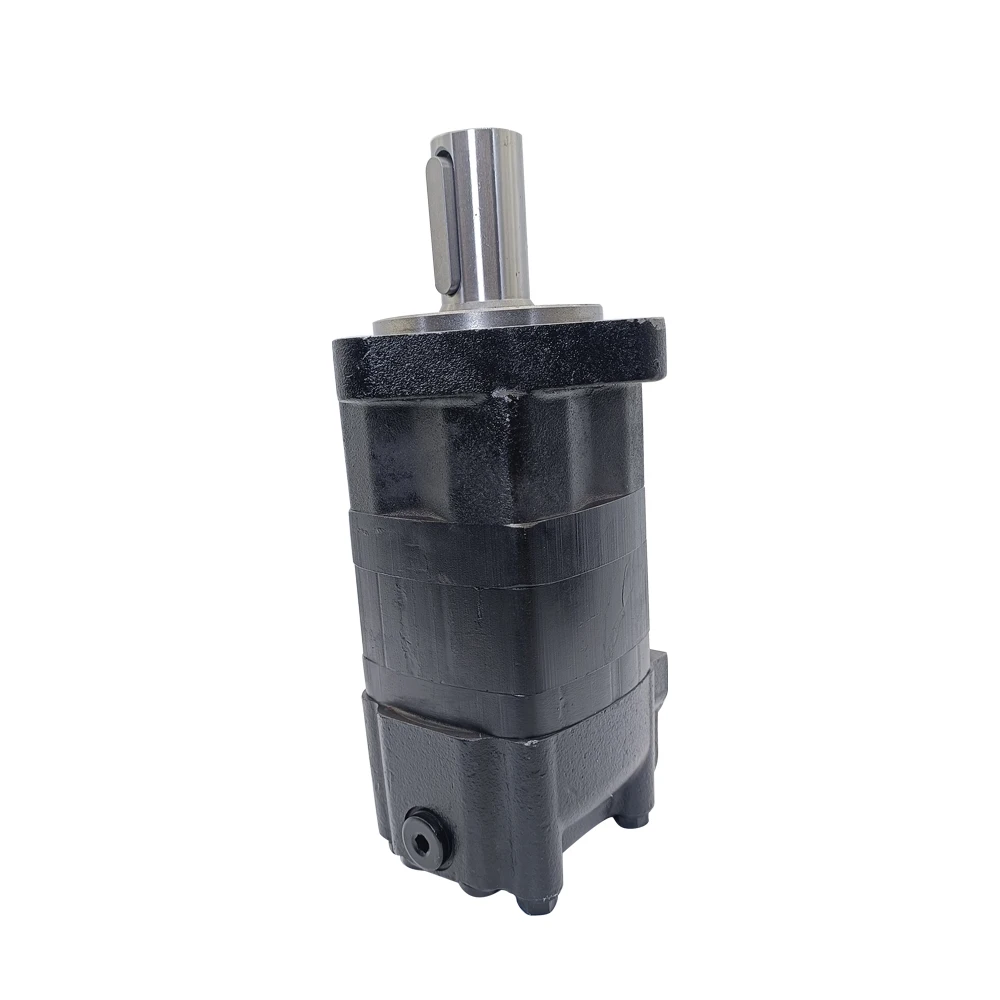

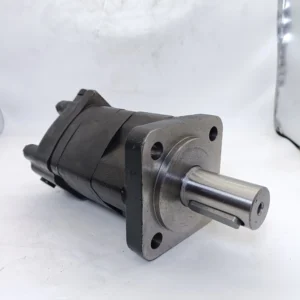

• Output Drive Shaft Profiles: Ø32 mm cylindrical straight shaft with parallel flat key (10x8x45 mm, matching 151F0570 & 151F0548 standards)

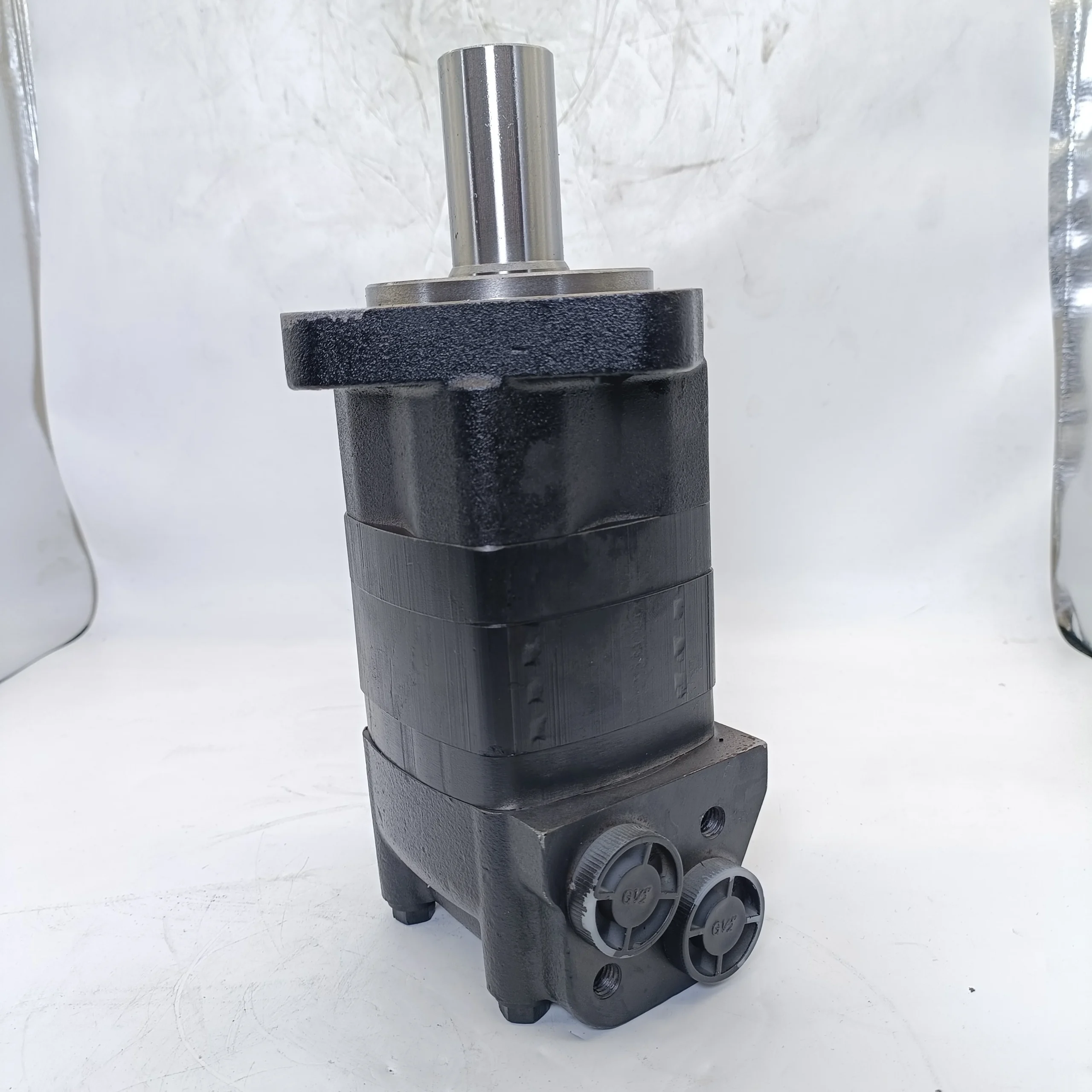

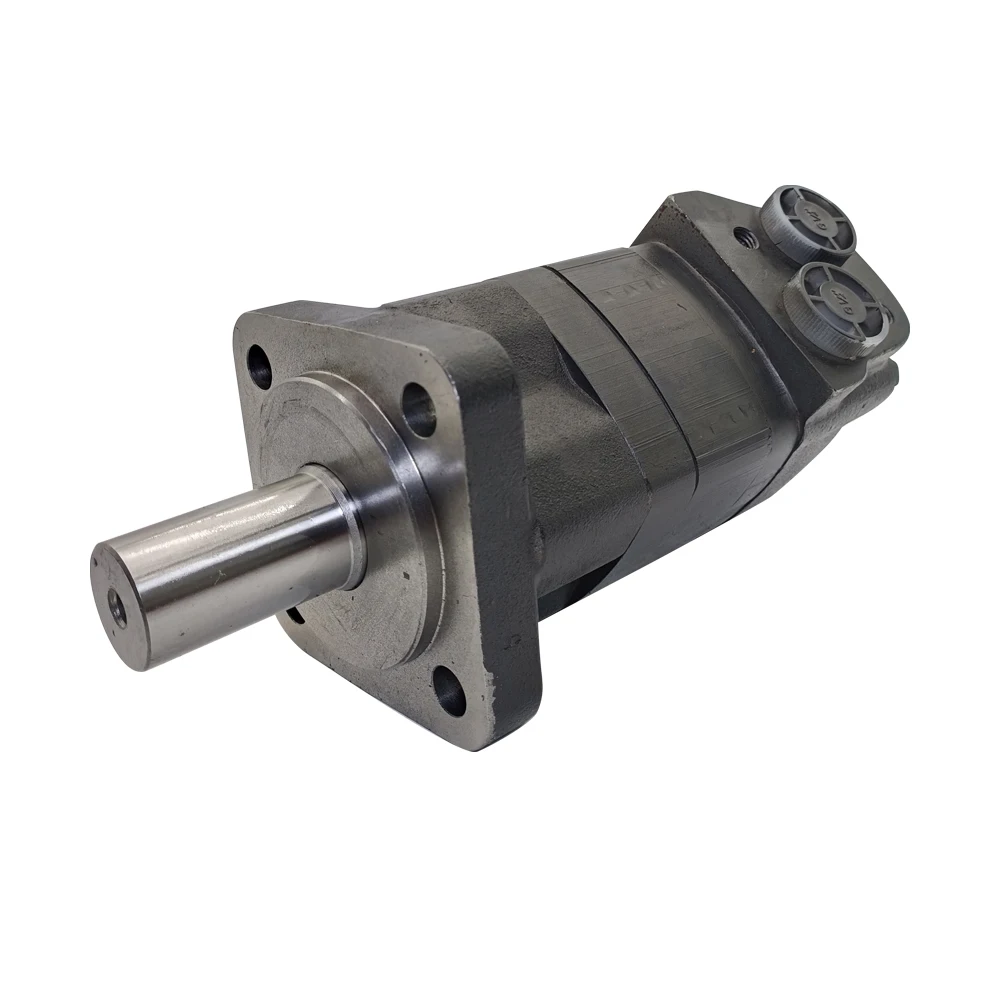

• Main Fluid Connection Interfaces: Main ports configured with G 1/2″ standard BSPP threads, independent case drain port with G 1/4″ threads

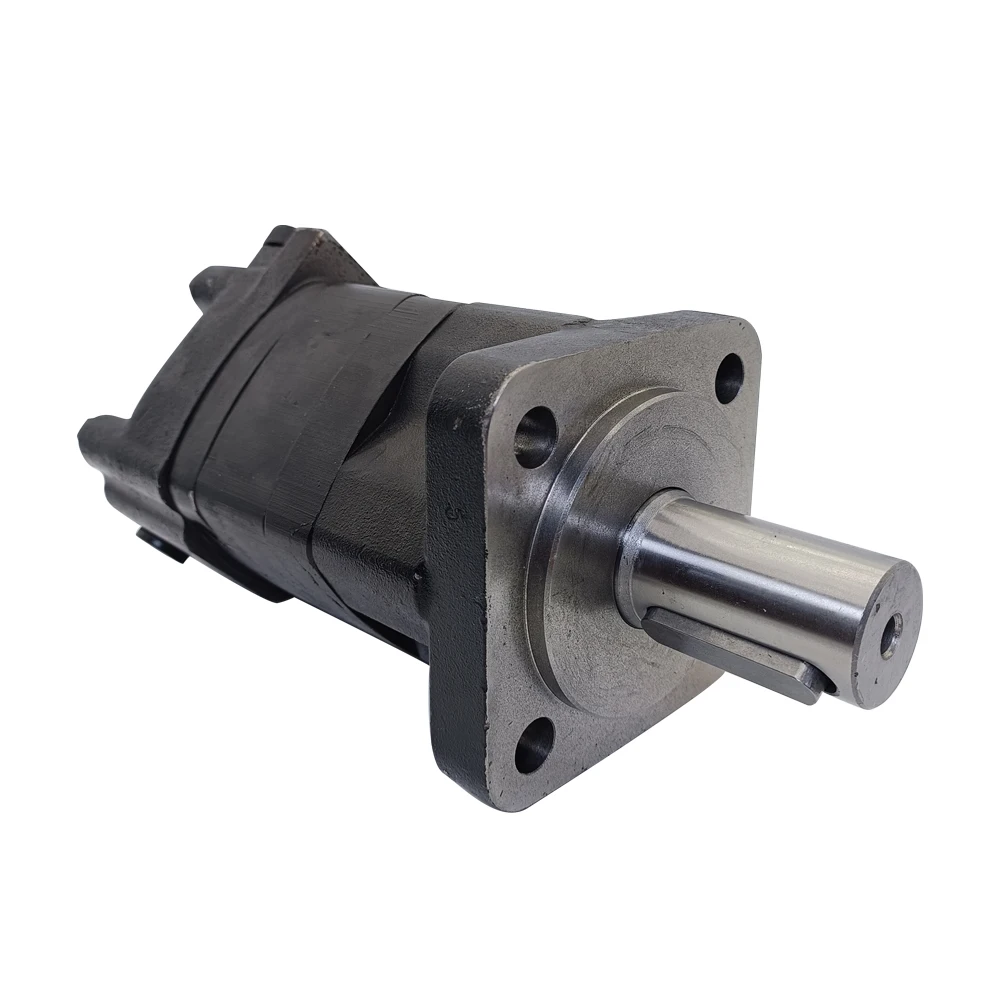

• Mounting Flange Specification: Standard 4-bolt square pattern (Pilot Location Diameter: Ø82.5 mm, Bolt Circle Distance: 106.4 mm)

Key Technical Advantages:

• Advanced Disc Valve Geometry for Optimal Volumetric Efficiency: Unlike standard spool-valve motors, the OMS series utilizes an independent disc valve mechanism with automatic wear compensation and optimized flow-timing channels. This configuration minimizes internal fluid slippage under high working pressures (up to 210 bar), achieving superior volumetric efficiency and delivering a starting torque exceeding 85% of its theoretical rating.

• High Side-Load Capacity Front Support via Tapered Roller Bearings: The output shaft assembly is securely supported by dual heavy-duty tapered roller bearings at both ends. This rigid bearing layout enables the drive shaft to withstand substantial radial and axial forces, allowing operators to directly mount pinions, sprocket hubs, or drive wheels without installing secondary external pillow blocks.

• High-Durability Geroler Gear Set with Integrated Rollers: The stator/rotor mechanism utilizes micro-engineered alloy steel rollers set into the gear tooth profiles. Replacing standard sliding friction with rolling contact minimizes localized wear and cold-start resistance. This structural design enhances resistance to rapid thermal shocks and extends service life during high-frequency directional reversals.

• Reinforced High-Pressure Shaft Seal with Internal Check-Valve Balancing: Outfitted with a premium, fluorinated elastomer heavy-duty dynamic shaft seal loop. Backed by dual internal check valves that automatically dump back-pressure accumulation into the low-pressure suction side, the seal envelope provides zero-leak isolation even under temporary return line pressure surges up to 100 bar.

Application Areas:

• Construction & Earthmoving Machinery: Track drive units for mini-excavators, industrial vehicle-mounted recovery winches, and rotational controllers for concrete mixer discharge assemblies.

• Heavy Duty Agricultural & Forestry Implements: Cutting-header drive loops for combine harvesters, automated round baler tension nets, and feed-roll drives for heavy forestry de-barking attachments.

• Industrial Bulk Logistics & Material Handling: Drive drums for high-torque industrial conveyor lines and auxiliary hydraulic slewing gears on automated port cranes.

Expert Maintenance Tips:

• Verify Mounting Dimensions via the 151F Suffix Identification: Danfoss OMS motors are ordered with highly specific shaft and flange combinations. While part numbers 151F0570 and 151F0548 call for a 4-bolt square flange with a Ø32 mm straight shaft, alternative configurations utilize 2-bolt oval pilots or splined shafts for the same displacement. Always verify the 151F- prefix on the original nameplate before ordering a replacement to prevent physical assembly mismatches.

• Mandatory External Case Drain Connection for High-Pressure Tracks: Although internal check valves manage transient back-pressures, operating the motor continuously above 160 bar or plumbing multiple units in series generates substantial internal friction heat. We strongly recommend opening the top G 1/4″ case drain port and routing a dedicated unrestrictive line directly to the oil tank. This reduces internal seal cavity pressure and heat, extending bearing life.

• Initial Bearing Cavity Pre-Lubrication Protocol: Prior to final system plumbing and initial startup, remove the upper case drain plug and fill the motor housing with 150-200 ml of clean, filtered system oil. This guarantees immediate lubrication for the tapered roller bearings and disc faces before the main circuit builds full pressure, preventing dry-run scoring within the internal cavities.
