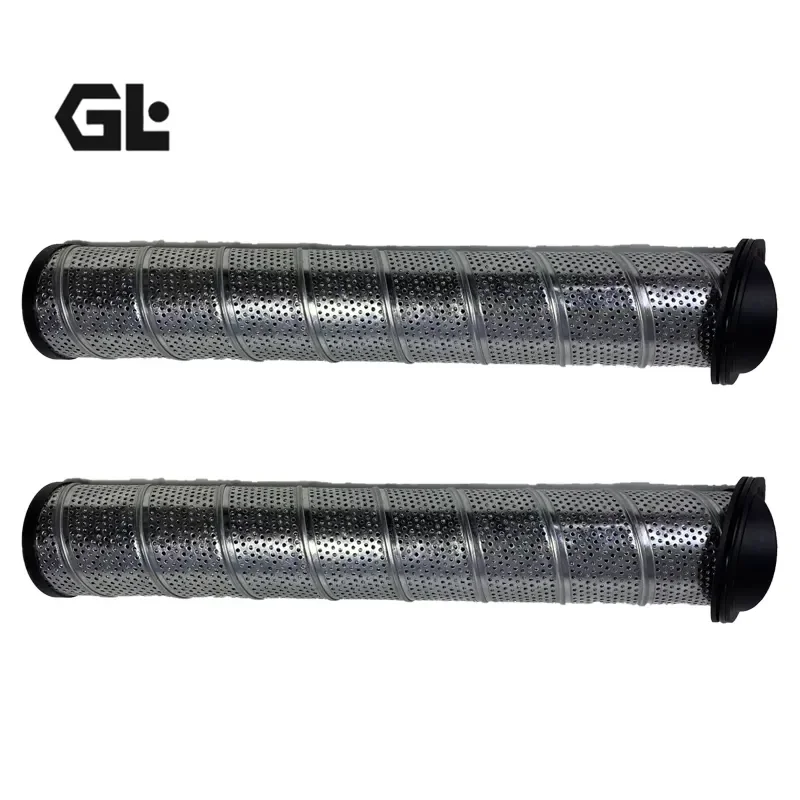

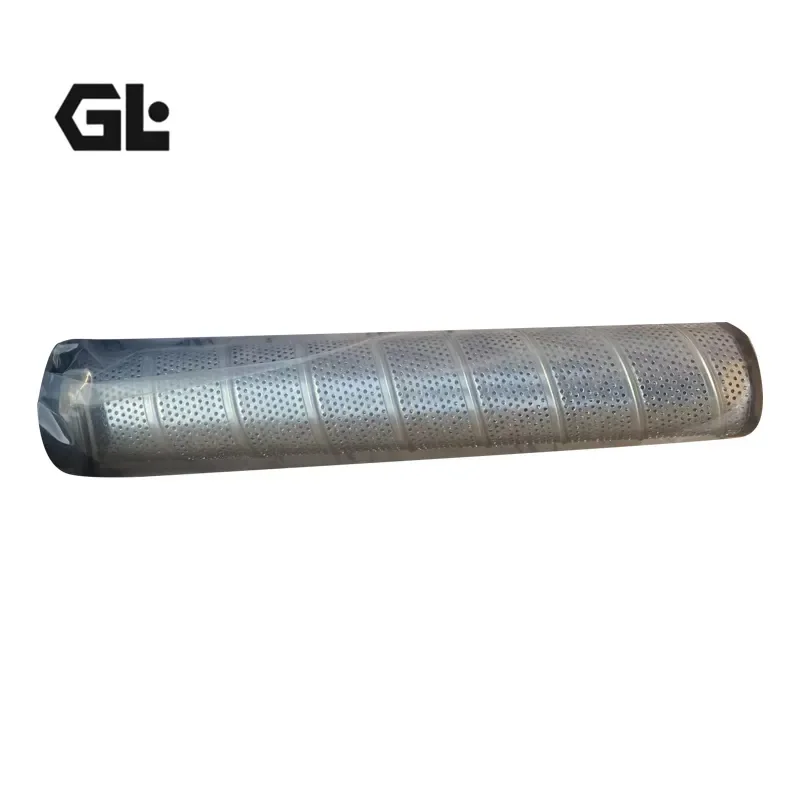

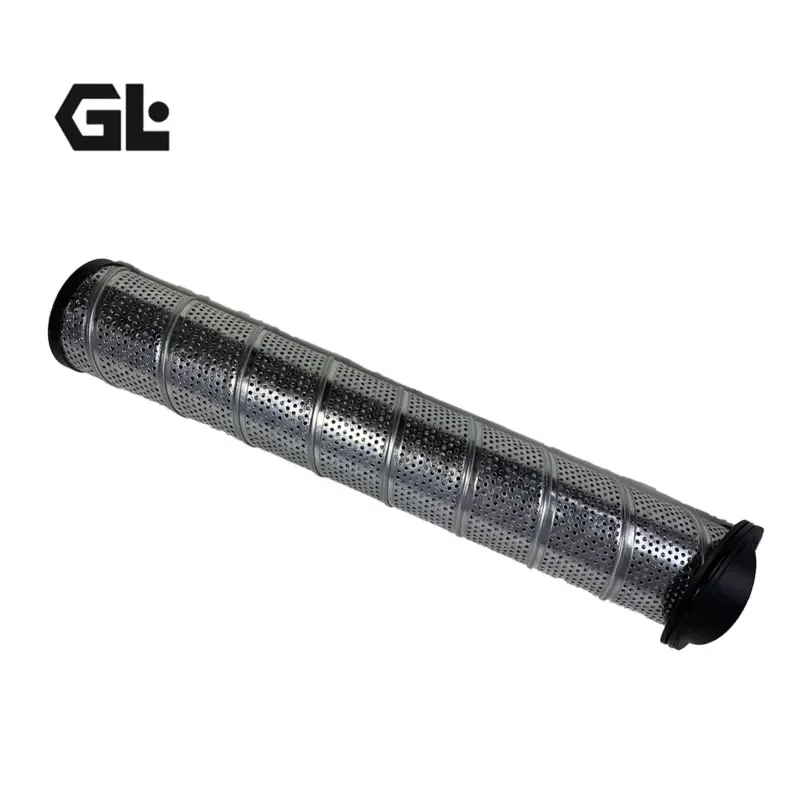

Hydraulic & Air Compressor Filter Element | Parker 932651Q 932683Q Replacement

Genlu Hydraulic proudly introduces our comprehensive lineup of premium replacement hydraulic oil and rotary screw air compressor filter elements. Engineered to safeguard high-pressure hydraulic manifolds and high-tolerance compressor lubrication lines, this product array delivers a precision-manufactured, drop-in replacement for classic Parker and leading OEM compressor filtration architectures. We specialize in cross-referencing and supplying heavy-duty, high-efficiency part codes, including 932651Q, 939942Q, 932683Q, 932874Q (featuring advanced Microglass filtration media) alongside 927736-10C and 921999-10C.

Acting as the vital shield for hydraulic pumps, motors, valvetrains, and compressor screw air-ends, Genlu’s replacement elements conform strictly to global filtration protocols (ISO 2941/2942/2943/3968/16889). We guarantee 100% Drop-in Interchangeability across standard end-cap geometries, inner structural core crush resistance, seal groove metrics, and delta-P (pressure drop) performance curves. Every single batch is subjected to rigorous 100% bubble-point integrity and multi-pass efficiency testing, delivering elite particulate containment under aggressive operational pressures and elevated thermal environments.

Technical Specifications

• Product Line: Industrial Hydraulic Fluid & Rotary Screw Compressor Lubrication Filter Elements

• Cross-Reference Part Configurations: 932651Q, 939942Q, 932683Q, 932874Q, 927736-10C, 921999-10C

• Filtration Media Material: “Q” designated codes deploy premium, multi-layered inorganic glass fiber (Microglass); “10C” models utilize high-density resin-impregnated cellulose media

• Filtration Efficiency (Beta Rating):

  • Q Series Microglass: $\beta_x(c) \ge 1000$ (Delivering absolute particle retention at 2, 5, or 10 microns depending on code specification)

  • 10C Series: 10-micron nominal/absolute industrial rating

• Structural Collapse Pressure Rating: Ranging from 20 bar to 210 bar (Matched to low-pressure return lines or severe high-pressure inline placements)

• Fluid Compatibility: Mineral oils, synthetic lubes, polyglycol (PAG) compressor oils, ester-based lubricants, and anti-wear hydraulic fluids

• Structural Construction: Corrosion-resistant galvanized steel or glass-reinforced nylon end caps paired with helical louvers on steel inner support tubes

• Sealing Elements: Upgraded Viton (Fluorocarbon) or high-nitrile (NBR) O-rings packed as standard

Key Technical Advantages:

• Advanced Microglass Multi-Layer Filtration Media: Faithfully replicating original multi-tier gradient technology, the element features an open outer boundary to intercept coarse scale and a tight inner matrix to trap microscopic metal fines. This structure yields a dirt-holding capacity 2 to 3 times higher than standard paper alternatives.

• High-Rigidity Pleat Optimization with Steel Wire Support: Pleat depth and frequency are uniformized using advanced CNC pleating machinery, backed by heavy-duty mesh wire screens. This architecture eliminates pleat bunching, flexing, or collapse under high-viscosity cold starts and erratic circuit pressure ripples, keeping 100% of the area active.

• Anti-Static Discharge Engineering: Rapid fluid routing in air-end loops and high-pressure lines can generate high electrostatic charges. Genlu elements integrate dedicated grounding paths to continuously bleed off static accumulation, avoiding localized arc-over punctures that compromise media integrity.

• High-Polymer Epoxy End-Cap Bonding: The filter media pack is fully potted into the metal or polymer end caps using high-molecular-weight epoxy. This robust seal will not degrade, turn brittle, or delaminate under continuous 120°C oil thermal cycles, preventing unfiltered oil from bypassing the media pack.

Application Areas:

• Rotary Screw Air Compressors: Installed as main lubrication path elements to intercept micron-sized metallic dust, carbon deposits, and oxidation byproducts generated within the air-end.

• High-Pressure Hydraulic Power Units (HPUs): Protecting highly sensitive proportional and servo valves in steel milling machinery, cement casting systems, and power generation plants.

• Mobile Earthmoving & Heavy Duty Construction: Cleanliness preservation for heavy excavators, rotary drilling rigs, and specialized industrial mining machinery.

Expert Maintenance Tips:

• Monitor Differential Pressure Indicators: When the mechanical visual button or electronic pressure transducer on the filter housing trips, or when differential pressure crosses 2.5 bar, the element is saturated. Replace the element during the next routine downtime; delayed service forces the integrated bypass valve open, introducing raw debris straight into downstream components.

• Installation Cleanliness Routine: Before placing the fresh replacement inside the filter bowl, fully drain residual oil and wipe the internal canister surfaces clean using a lint-free industrial cloth. Lightly lubricate the new element O-ring with fresh, clean oil prior to seating to guarantee a smooth seal without binding or crimping.

• Synergy with Air Compressor Oil Lifecycles: Within compressor platforms, filter element service limits are heavily linked to the condition of the fluid charge. If a newly installed replacement triggers a delta-P warning unusually quickly, test the lubricant sample for thermal varnishing or high acid numbers, as sludge build-up blind-plugs filter pores instantly.

Hydraulic Oil Filter Elements

• 927736-10C
• 932651Q
• 939942Q
• 921999-10C
• 932683Q
• 932874Q

Air Compressor Spare Parts

General Spare Parts

• RK22788
• FF22610
• KN40404
• RK16017
• RK22609
• RK22682
• FTAE1A20Q
• G04272
• PR3152

Q-Series & Other Spare Parts (Duplicates Removed)

• 937393Q
• 937394Q
• 937395Q
• 937396Q
• 937397Q
• 937398Q
• 937399Q
• 937400Q
• 937401Q
• 937402Q
• 937403Q
• 937404Q
• 937405Q
• 937406Q
• 937407Q
• 937408Q
• 933153Q
• 933366Q
• 933809Q
• 933155Q
• 933367Q
• 933810Q
• 933156Q
• 933368Q
• 933811Q
• 932686Q
• 932692Q
• 932689Q
• 932695Q
• 932687Q
• 932693Q
• 932690Q
• 932696Q
• 932688Q
• 932694Q
• 932691Q
• 932697Q
• 933116Q
• 933117Q
• 933118Q
• 933119Q
• 933193Q
• 933467Q
• 933812Q
• 933194Q
• 933468Q
• 933814Q
• 933195Q
• 933486Q
• 933816Q
• 933196Q
• 933487Q
• 933818Q
• 933202Q
• 933488Q
• 934121Q
• 933203Q
• 933489Q
• 934122Q
• 933204Q
• 933576Q
• 934123Q
• 933205Q
• 933577Q
• 934124Q
• 933210Q
• 933578Q
• 934194Q
• 933211Q
• 933579Q
• 933212Q
• 933580Q
• 933213Q
• 933581Q
• 933218Q
• 933582Q
• 934264Q
• 933219Q
• 933583Q
• 934265Q
• 933220Q
• 933742Q
• 934308Q
• 937836Q
• 937839Q
• 937736Q
• 937769Q
• 932611Q
• 932617Q
• 932618Q
• 932624Q
• 933068Q
• 932670Q
• 932669Q
• 932612Q
• 932610Q
• 940974Q
• 944097Q
• 944098Q
• 944012Q
• 944013Q
• 944014Q
• 944015Q
• 944016Q
• 944017Q
• 944022Q
• 944023Q
• 944024Q
• 944025Q
• 943999Q
• 940802Q

Non-Q Series Spare Parts

• 935140
• 935141
• 935142
• 935143
• 935144
• 935145
• 935146
• 935147
• 935148
• 935149
• 935150
• 935151
• 935152
• 935153
• 935154
• 935155
• 935156
• 935157
• 934200
• 934234
• 934236
• 934476
• 930091
• 932627
• 932616Q
• 932623Q
• 932622Q
• 940803
• 940802
• 940972
• 940973
• 940736
• 924732
• 921999
• 925023
• 924448
• 924450
• 924455
• 924452Q
• 924453Q
• 926541
• 924451
• 982131
