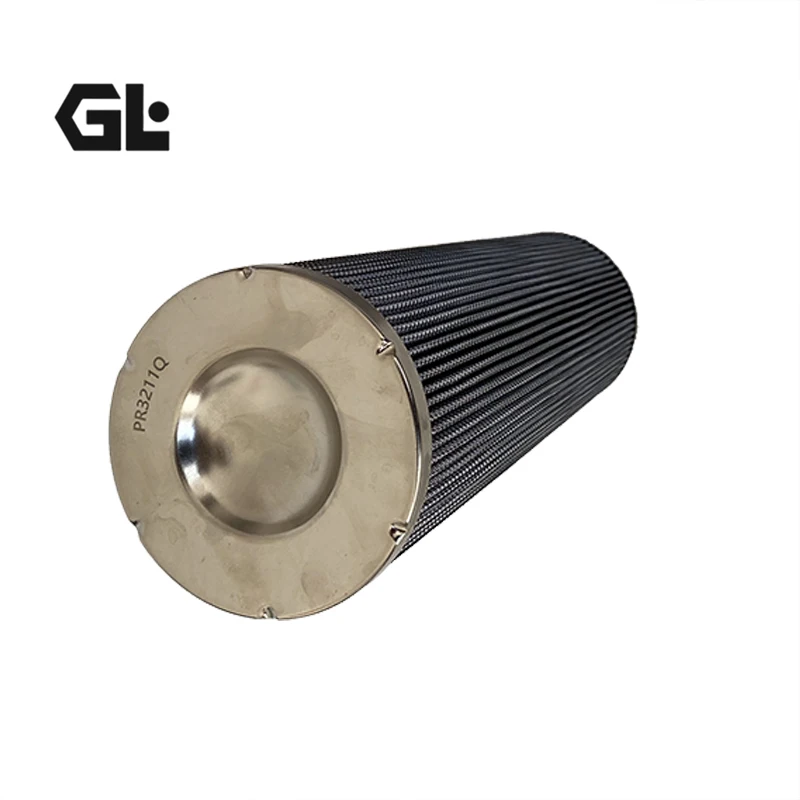

Hydraulic Oil Filter Element PR3211Q PR3211P PR3211R PR3101Q PR3301Q

Keep the oil clean: It is the last key line of defense to ensure the cleanliness of the hydraulic system, keeping the oil returning to the tank clean and thus protecting all components in the system.

Protect hydraulic components: Prevent wear, jamming or failure of precision and expensive hydraulic components (such as pumps, valves, cylinders) caused by contamination, and extend the service life of equipment.

Enhance system reliability: By continuously maintaining the cleanliness of the oil, system failures are reduced, and the operational reliability and stability of the entire machine are improved.

Ii. Working Principle
The working principle of the PR3211Q filter element is a combination of surface filtration and depth filtration.

Interception: When the oil in the hydraulic system flows back to the oil tank in the return oil line, it will pass through the filter element. The filter element is made of special filtering materials (glass fiber or synthetic fiber), with intricate micro-pore channels inside.

Capture: Solid particle contaminants in the oil, when their size exceeds the pore size of the filter material, will be directly intercepted on the surface of the filter material (surface filtration). Smaller particles, on the other hand, are captured due to inertial collisions, diffusion deposition and adsorption effects as they flow through the tortuous paths within the filter material (deep filtration).

Clean oil output: The clean oil filtered by the filter element flows out from the inside of the filter element and enters the oil tank, ready to be sucked in again by the hydraulic pump to participate in the next working cycle.

Important accessories: Bypass valve and blockage transmitter

Bypass valve: When the filter element is clogged due to the accumulation of contaminants and the pressure difference between the inlet and outlet reaches the set value (for example, 3 bar), to prevent the filter element from being crushed and the pump from being sucked empty, the bypass valve will automatically open, allowing the unfiltered oil to flow directly back to the oil tank. This is a protective function, but at this point the system is already in a non-filtering state and the filter element should be replaced as soon as possible.

Clogging transmitter: When the filter element is clogged and the pressure difference reaches a preset alarm value (for example, 2 bar), the transmitter will send an electrical signal or mechanical indication (pop up a red button) to remind the operator that the filter element needs to be replaced.

Iii. Operation and Installation
Installation steps

Preparatory work

Make sure the hydraulic system has been shut down and the pressure has been released.

Clean around the filter housing to prevent contaminants from entering the system.

Prepare the new PR3211Q filter element and the tools needed for replacement.

Replace the filter element

Unscrew the top end cover of the filter housing or remove the entire housing.

Carefully remove the old filter element to prevent residual contaminants from falling into the interior of the housing.

Thoroughly clean the interior and sealing areas of the filter housing.

Check whether the O-rings of the new filter element are in good condition and apply a small amount of clean hydraulic oil on them.

Accurately install the new filter element onto the positioning seat inside the housing and ensure it is installed in place.

Installation completed

Install and tighten the filter end cover to ensure a good seal.

Tighten the vent plug (if any).

Operation check

Start the hydraulic system and run it under low pressure for a few minutes to check if there is any leakage at the connection points.

Operate the equipment to make the hydraulic oil flow through the new filter element. At this point, the indicator blocking the transmitter should be reset (if it is resettable).

After the system operates normally, it can be put into normal use.

Iv. Usage Scenarios
PR3211Q filter elements are widely used in the return oil pipelines of hydraulic systems in various industrial equipment and mobile machinery, especially:

Injection molding machine

Machine tools (stamping, shearing, bending machines)

Construction machinery (excavators, loaders, cranes)

Metallurgical equipment

Ship deck machinery

Electric power equipment

Any hydraulic system that requires high cleanliness and uses P series return oil filters.

V. Product Attributes/Technical Specifications
Attribute description

The filtration accuracy is usually 10μm (this is the most common accuracy for this model, and the specific accuracy needs to be confirmed on the label of the filter element).
The filter medium is glass fiber or high-performance synthetic fiber
Structural material filter material: glass fiber/synthetic fiber; Central tube: Metal; End cover: Metal
Sealing parts: Nitrile rubber (NBR) O-rings
The pressure difference resistance capacity can withstand typical cold start pressure differences and blockage pressure differences
Bypass valve Settings are usually integrated within the filter housing rather than on the filter element
The transmitter Settings are usually integrated within the filter housing rather than on the filter element
Vi. List of Series Models
The P series return oil filters have a complete model system, and PR3211Q is one of them. The following are the naming rules of its series of models and some common examples:

Model pattern

PR: Series code for return oil filter elements.

3: Filter element length series.

2: Filtration accuracy code (for example, 2 might represent 10μm).

11: The interface form, sealing size and internal design code of the filter element.

Q: Filter material type code (for example, Q may stand for glass fiber).

Common models in the same series:

Different levels of precision

PR3211P: Possibly with a precision of 20μm.

PR3211R: It may have a precision of 3μm (high precision).

(Note: The precision codes P, Q, R, etc. may vary by period or region. Please refer to the physical label for accuracy.)

Different sizes/flow rates

PR3101Q: A model with a smaller diameter and lower flow rate.

PR3301Q: A model with a larger diameter and higher flow rate, suitable for larger hydraulic systems.

Alternative model

PR3211Q- (It may be followed by other suffixes, indicating different packaging or special requirements).

Summary
When choosing alternative filter elements, the most reliable method is:

Check the complete model and precision on the old filter element.

Measure the physical dimensions of the filter element (length, outer diameter, inner diameter, and sealing interface).

Confirm whether the filtration accuracy meets the equipment requirements.

Epoxy-Coated Steel Support Mesh (Upstream and Downstream Sides)

Media Support Layers (Upstream and Downstream Sides)

Optimizes media support

Protects media during pressure surges
Exceptionally low flow resistance

Excellent fluid compatibility

Benefits

Provides 73% higher dirt-holding capacity and 47% lower initial pressure drop than traditional filters, with micron ratings down to 2 micron

Protects against media damage during handling and installation

Provides excellent pleat support and spacing, which allows for maximum effective media area

Better protection from particles and contaminants

Improved effectiveness of lubricant and hydraulic fluid

Applications

Engineered to fit many competitive applications, including Hydac, Pall, Parker, Mahle, Schroeder and Fairey Arlon

Heavy-duty mobile equipment

In-plant hydraulics

Transmissions

Bearing lube oil systems
