CBT-E Series Hydraulic Gear Pump | CBT-E306 CBT-E312 Replacement | High-Efficiency Pump

Model Number	CBT-E312, CBT-E308, CBT-E306, CBT-E304

SKU N/A Categories Gear Pump, Hydraulic Pump

Product Description

Genlu Hydraulic proudly introduces our precision-engineered CBT-E Series high-pressure gear pumps, the reliable power source for agricultural machinery, light construction equipment, and material handling systems. This series serves as a precise match for the industry-standard CBT-E specifications, covering the full displacement range from CBT-E304, CBT-E306, and CBT-E308, through to CBT-E325. Genlu unequivocally guarantees 100% Drop-in Interchangeability in mounting flanges, drive shafts, port locations, and geometric displacements. Backed by our uncompromising 100% Simulation Load Testing, each unit is validated for volumetric efficiency, suction capability, and pressure sealing before dispatch, ensuring relentless, stable, and cost-effective power delivery for your hydraulic circuits.

Technical Specifications

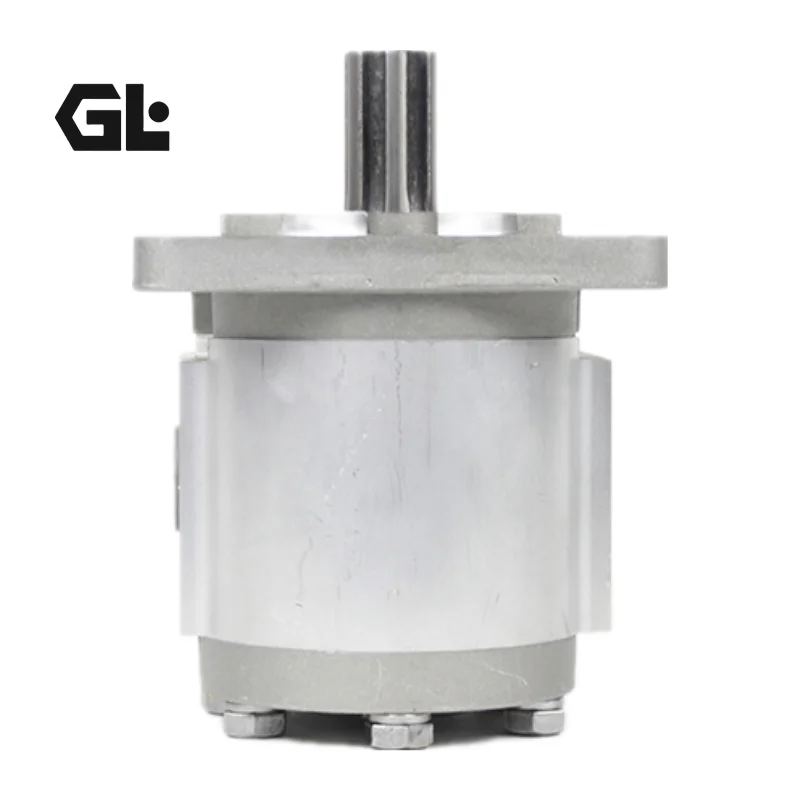

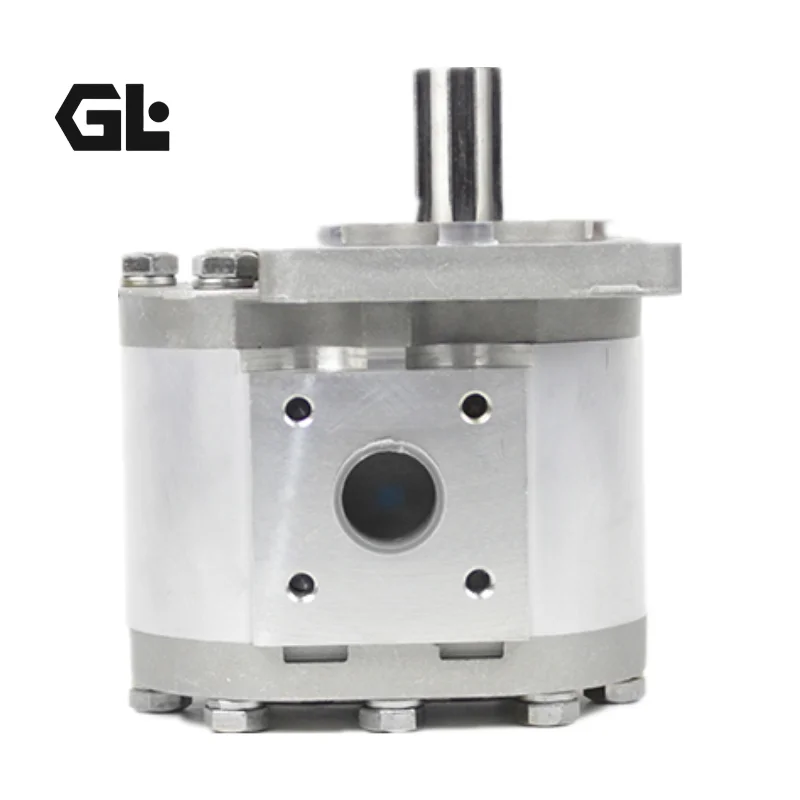

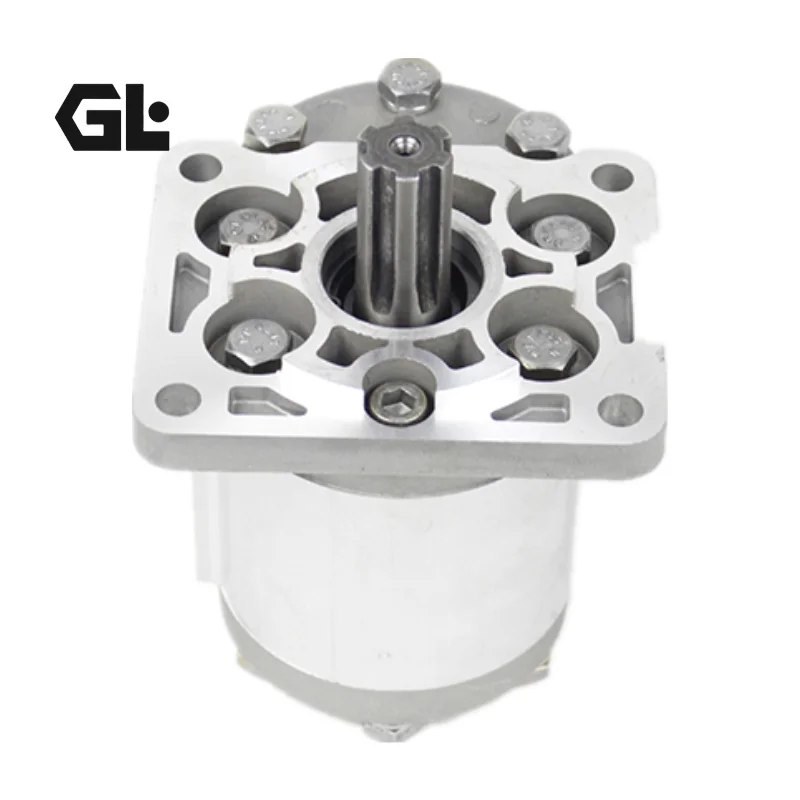

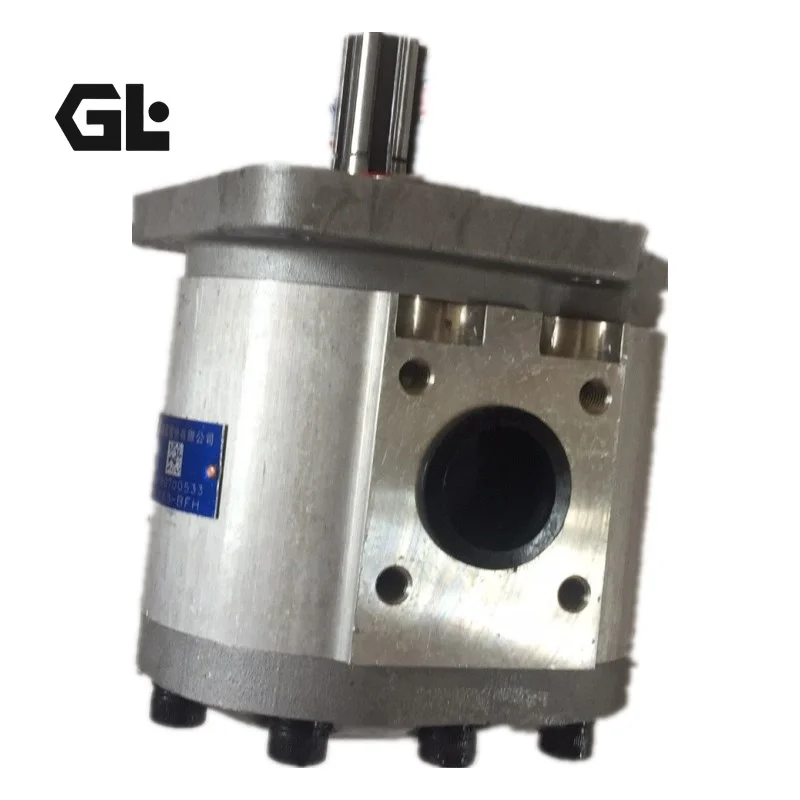

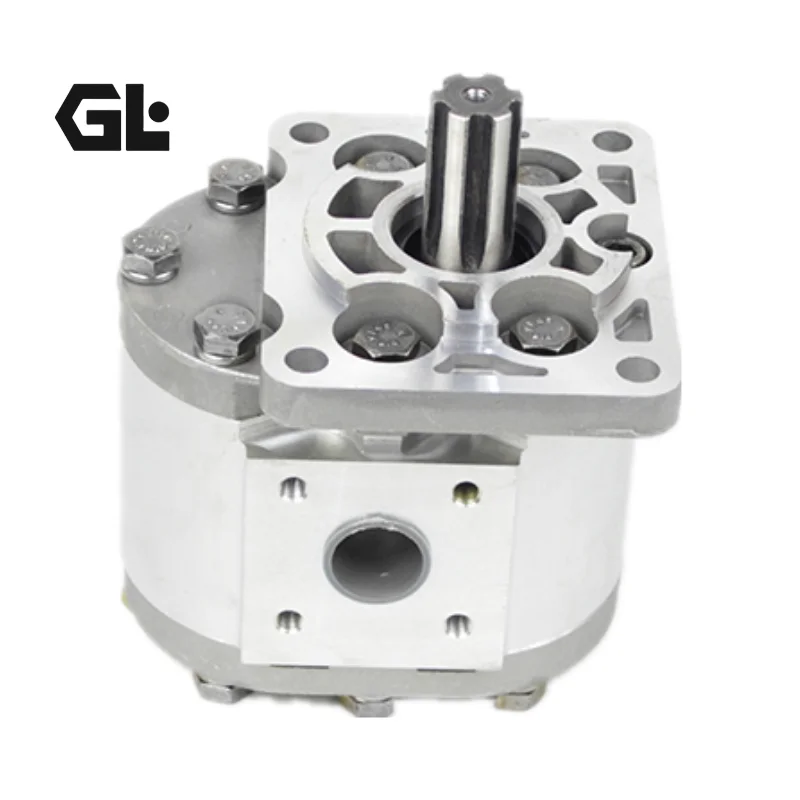

Product Series: CBT-E Series High-Pressure External Gear Pump
Representative Models: CBT-E304, CBT-E306, CBT-E308, CBT-E312, CBT-E325
Displacement Range: 4 cc/rev to 25 cc/rev
Rated Operating Pressure: 16 MPa (160 bar / 2320 psi)
Max Peak Pressure: 20 MPa (200 bar / 2900 psi)
Speed Range: 1000 – 3000 rpm
Control Mode: Fixed displacement, mechanically driven
Housing Material: High-strength aluminum alloy, front mounting flange

Key Technical Advantages:

High-Precision Extruded Aluminum Housing: Crafted from high-strength aerospace-grade aluminum alloy, the housing provides exceptional strength-to-weight performance. Internal flow channels are CFD-optimized to reduce fluid resistance and operating noise.
Bimetallic Floating Side Plates: Internally equipped with auto-compensating side plates that dynamically adjust gear side clearances based on system pressure, maintaining volumetric efficiency above 90% even under peak load.
High-Precision Gear Grinding: Utilizing advanced CNC hobbing and grinding, we achieve superior tooth-mesh overlap, significantly reducing vibration and pressure pulsations to protect your system from pulse-induced shocks.
Wear-Resistant Composite Bushings: Critical shaft support utilizes special wear-resistant alloy bushings with self-lubricating properties, maintaining oil film integrity under harsh conditions and drastically extending the service life of the pump.

Application Areas:

Agricultural Machinery: Tractor steering assist pumps, seeders, and grain elevator power sources.
Municipal Vehicles: Hydraulic lift systems for small dump trucks and refuse collectors.
Industrial Auxiliary: Small Hydraulic Power Units (HPU) and material handling cart power.

Expert Maintenance Tips:

Fluid Cleanliness Standard: Gear pumps are highly sensitive to contamination. Ensure hydraulic fluid meets ISO 4406 19/16/13 standards and replace return-line filters regularly to prevent particulate matter from scoring gear tips.
Suction Seal Integrity: Ensure there are no air leaks at the suction port during installation. Even minor air ingestion can cause cavitation within the gear pump, leading to rapid surface erosion.
Temperature Management: While aluminum pumps have good heat dissipation, prolonged operation above 80°C will cause seal degradation. Ensure your system has adequate cooling capacity to maintain the pump within its optimal temperature range.
