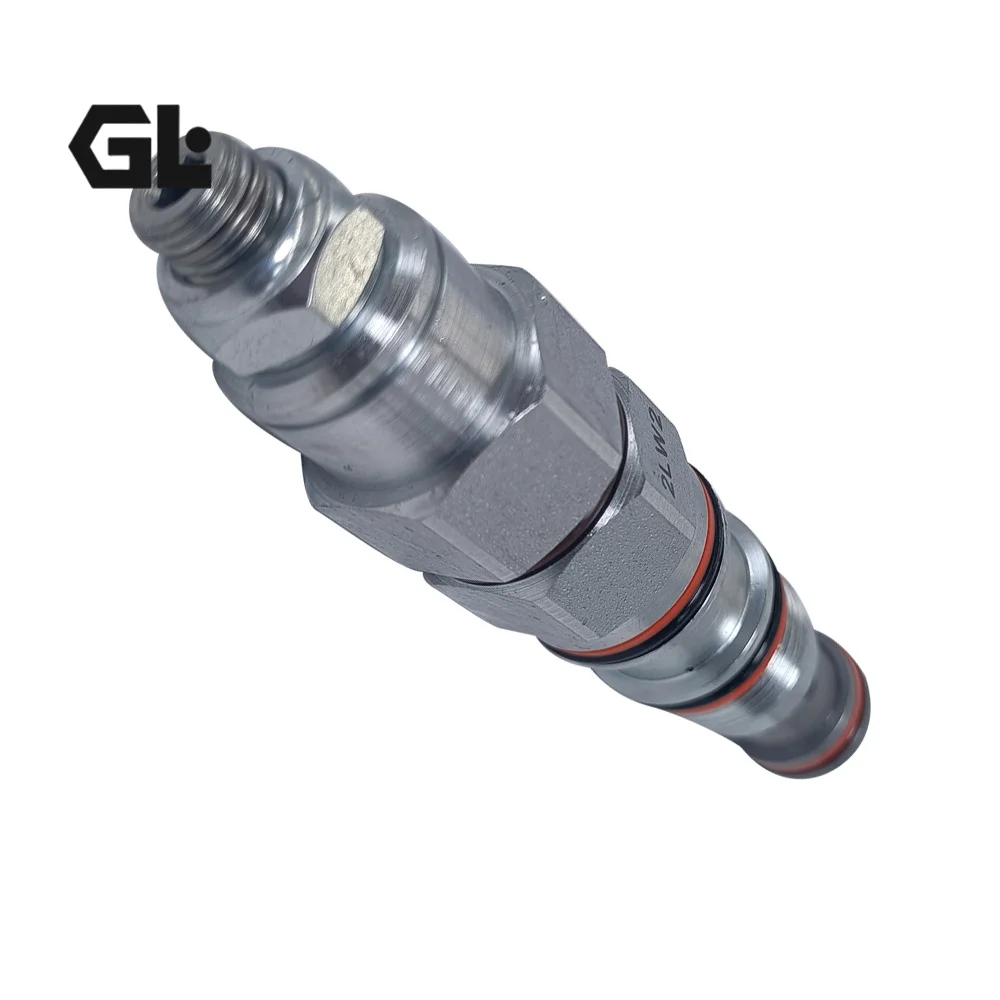

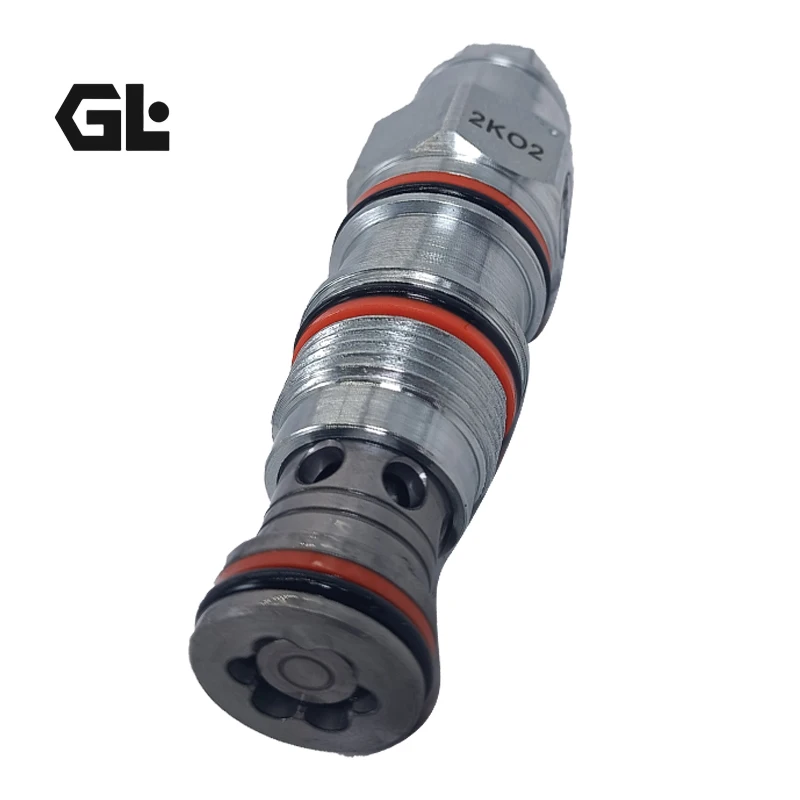

CKEB-XBN Sun Hydraulics Pilot Check Valve T-2A 120 L/min

Product Overview

The CKEB-XBN, CKEB-XDN, CKEB-XEN and CKEB-XCN are Sun Hydraulics Series 2 pilot-to-open check valves with standard pilot, designed for cavity T-2A. These valves allow free flow from the valve port (port 2) to the load port (port 1) and block reverse flow until pilot pressure proportional to the load pressure is applied at port 3. Fully interchangeable with original Sun CKEB cartridges, every unit undergoes 100% simulated operating-condition testing to guarantee extremely low leakage, reliable load holding and long service life. Ideal for hose-break protection, preventing load drift and positively locking pressurized loads in hydraulic circuits.

Technical Specifications

• Model: CKEB-XBN / CKEB-XDN / CKEB-XEN / CKEB-XCN (standard pilot, various cracking pressures and seals)
• Type: Pilot-to-open check valve (non-sealed pilot, steel seat, non-vented)
• Cavity: T-2A
• Series: 2
• Capacity: 120 L/min
• Maximum operating pressure: 350 bar
• Pilot ratio: 3:1
• Maximum valve leakage at 24 cSt (110 SUS): 0.07 cc/min
• Cracking pressure options: A 0.3 bar, B 1 bar, C 2 bar, D 3.5 bar, E 5 bar, F 7 bar
• Seal material: N (Buna-N), V (Viton), etc.
• Valve hex size: 28.6 mm
• Valve installation torque: 61 – 68 Nm
• Model weight: approx. 0.24 kg
• Seal kit (Buna): 990202007

Key Technical Advantages

1. Extremely low-leakage steel seat design: Heat-treated steel seat and poppet deliver maximum leakage of only 0.07 cc/min, providing positive load locking, drift prevention and hose-break protection.
2. Precise 3:1 pilot ratio control: Pilot pressure required at port 3 is directly proportional to load pressure at port 1; pressure at port 2 directly opposes pilot pressure for reliable opening in load-holding applications.
3. True interchangeability and modularity: Physically interchangeable with original Sun CKEB series and same-size counterbalance valves (identical cavity and flow path), enabling direct drop-in replacement without system changes.
4. 100% functional verification under simulated conditions: Every cartridge is fully tested at rated pressure and flow before shipment, ensuring consistent performance and durability up to 350 bar in demanding environments.

Application Areas

• Hydraulic cylinder load locking and anti-drift circuits
• Hose-break protection on construction and lifting equipment
• Injection molding, die-casting and machine tool hydraulic systems
• Mobile and marine equipment actuator holding
• Industrial hydraulic power units requiring positive pressure lock

Expert Maintenance Tips

Install in a correct T-2A cavity and tighten to the specified torque of 61–68 Nm to avoid distortion. Maintain fluid cleanliness at ISO 4406 18/15 or better to protect the steel seat from contamination-induced leakage. Ensure pilot lines are fully purged of air (standard non-sealed pilot aids air removal). If load drift occurs, inspect for seat damage from contamination and replace the cartridge if necessary. For long-term storage keep the valve filled with oil and cycle periodically. Always use original-specification seal kits when servicing to maintain sealing integrity.
