Parker TK Series Orbit Motor Replacement | TK0630 TK0800 TK1000 Hydraulic Motor

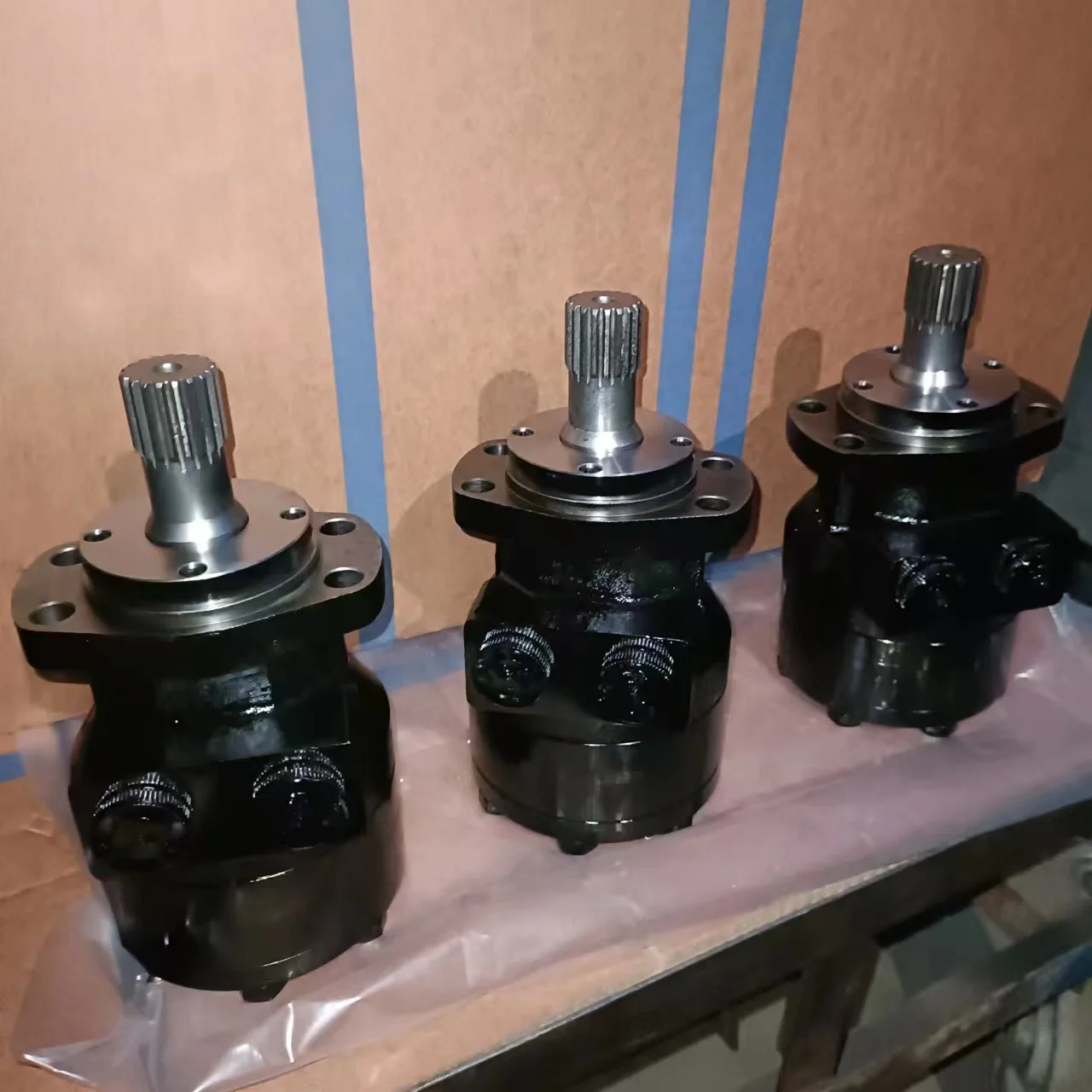

Genlu Hydraulic stands as a premier engineered fluid technology component manufacturer, heavy metallurgical casting expert, and strategic B2B global leader specializing in high-capacity, heavy-duty Low-Speed High-Torque (LSHT) orbital hydraulic motors. The TK Series Heavy-Duty Orbital Hydraulic Motor platform (encompassing specific high-torque displacements from TK0500 up to TK1000) is custom-manufactured as a premium, structurally reinforced, and 100% drop-in interchangeable alternative to the definitive global industrial benchmark—the Parker / Ross signature TK series collections. We manage highly calibrated flexible assembly setups and hold complete global logistics inventory for core high-demand field replacement codes, prominently including TK0630K5640AAA, TK0500, TK0630, TK0800, and TK1000.

Operating as the primary hydraulic power muscle driving heavy down-the-hole (DTH) drilling rotators, large capacity crane winch drums, wheel-driven loaders, heavy waste compacting shafts, and marine deck machineries, a heavy orbit motor must withstand intense high-pressure limits (up to 310 bar) and severe alternate shock reversals without losing stall torque under heavy radial overhung loads. Genlu’s TK series heavy motors conform precisely to Parker factory technical specifications. We guarantee absolute plug-and-play retrofit engineering across standard 4-bolt heavy-duty square mounting pilots, primary large-diameter splined/keyed output shaft configurations, 1-1/16″ 12 UN or split flange fluid connection ports, and internal high-pressure Geroler® profiles. Prior to final dispatch release, every single motor assembly undergoes 100% Full-Simulation Condition Testing to verify minimum low-speed cogging limits, back-pressure sealing strength, and maximum torque outputs under continuous peak loads.

Technical Specifications

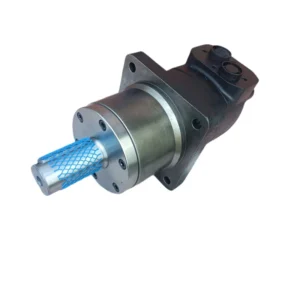

• Product Line: TK Series Heavy-Duty LSHT Disc-Valve Orbital Hydraulic Motor (100% cross-compatible with Parker TK Series)

• Core Covered Specific Configurations:

  • TK0630K5640AAA Layout (623 cc/rev displacement, K-type heavy-duty square mounting flange, 56-type large diameter shaft profile, 40-type side-mounted O-ring boss ports, AAA design series code)

  • Full Series Displacements: TK0500, TK0630, TK0800, TK1000 Series

• Model-to-Displacement Mapping Metrics:

  • TK0500 Variant: 505 $cc/rev$ ($30.8\,in^3/rev$)

  • TK0630 Variant: 623 $cc/rev$ ($38.0\,in^3/rev$)

  • TK0800 Variant: 793 $cc/rev$ ($48.4\,in^3/rev$)

  • TK1000 Variant: 991 $cc/rev$ ($60.5\,in^3/rev$)

• Continuous Rated Operating Pressure: Up to 241 bar (24.1 MPa / 3500 psi) depending on selected volumetric frame size

• Maximum Intermittent Peak Pressure: Rated up to 310 bar (31.0 MPa / 4500 psi) handling severe cyclic reversals and system shock loads

• Maximum Output Torque Boundary: Continuous delivery spanning 1600 Nm to 2300 Nm; maximum intermittent peak torque safe up to 2900 Nm

• Permissible Driving Rotational Velocity Envelope: Max continuous velocity from 150 rpm (TK1000) to 290 rpm (TK0500); minimum stable operating velocity $\le$ 5 rpm

• Fluid Distribution Mechanism: Independent Disc Valve layout featuring integrated hydrostatic clearance compensation

• Front Shaft Load Capacity: Oversized dual tapered roller bearings supporting heavy external overhung radial loads up to 35,000 N

• Total Motor Assembly Dry Mass: Approximately 31.0 kg to 36.5 kg (High power-density spatial optimization)

Key Technical Advantages:

• Oversized Drive Shaft Supported by Dual-Row Tapered Roller Bearings: Unlike standard orbit motors, the TK series features an extra large diameter drive shaft held by heavy-duty dual tapered roller bearings. This robust mechanical architecture directly supports large external radial and axial overhung loads (up to 35,000 N) from high chain sprocket tension, direct gear meshes, or vehicle wheels, eliminating the need for an external pillow block assembly.

• Independent Disc Valve Arrangement for Constant Volumetric Efficiency: The distribution loop uses a distinct disc valve isolated from the primary drive link. High-pressure system oil is routed behind the valve face to generate a hydrostatic sealing bias. Because the disc can float slightly along its axis, it automatically self-compensates for long-term face wear, maintaining peak volumetric performance above 92% under continuous high-pressure loading.

• Precision Forged Alloy Steel Geroler® Profile for Anti-Cogging Low-Speed Stability: The internal star-and-ring assembly is forged from premium alloy steel and treated with gas nitriding. The stator teeth utilize precision-machined rolling cylinders rather than solid metal contours, converting sliding contact to rolling contact. This design significantly lowers startup friction, eliminates low-speed cogging below 5 rpm, and delivers high starting torque efficiency.

• High-Pressure Dual-Lip Front Shaft Seal Backed by Internal Check Valves: The drive journal features a reinforced, dual-lip high-pressure shaft seal assembly integrated with internal side check valves. This design enables the internal casing cavity to reliably withstand back-pressures up to 140 bar continuously in open circuits without an external case drain line, protecting the front shaft seal from fluid pressure spikes.

Application Areas:

• Heavy Geotechnical Drilling & Exploration Rigs: Rotary head drives for open-pit and underground down-the-hole (DTH) drills, hydraulic anchor piling machines, and horizontal directional drilling (HDD) rotation loops.

• Material Handling Crane Equipment & Construction Machinery: Primary drum drives for large-capacity truck-mounted crane winches, and heavy-duty skid steer attachments (such as cold planers and rock crushers).

• Marine Deck Installations & Commercial Fleet Transport: Marine anchoring mooring winches, container reach stacker twistlocks, and high-torque compacting drives on municipal waste management trucks.

Expert Maintenance Tips:

• Mandatory Use of an Independent Case Drain Line for Severe-Duty Duty Cycles: Although the TK0630K5640AAA incorporates a reinforced high-pressure shaft seal, it is mandatory to remove the 7/16″ 20 UNF casing drain plug and route a dedicated soft hose directly back to the reservoir for heavy-duty, fast-reversing, or closed-loop arrangements. Keeping case back-pressure below 15 bar allows case oil circulation to carry away friction heat, extending shaft seal and internal drive link life up to threefold.

• Execute a Strict Pre-Commissioning Fluid Priming Procedure: The tight mechanical tolerances within the internal Geroler assembly require immediate lubrication at startup. When installing a new motor (such as replacing an old field variant), always manually fill the housing interior with clean system hydraulic fluid through the drain port and rotate the drive shaft by hand several times before applying power. Running dry, even for the first few seconds under high pressure, can cause friction scuffing on the component faces and degrade low-speed control.

• Maintain Rigid Alignment Tolerances and Regular Spline Engagement Audits: When coupling the motor directly to heavy mechanisms like a drilling gearbox, ensure that the shaft alignment runout error remains within 0.05 mm. Because the TK series delivers massive torque (approaching 3000 Nm), high alternating shocks can loosen fastening bolts over time. Regularly check the spline engagement depth and end retaining rings to prevent axial shaft migration.
