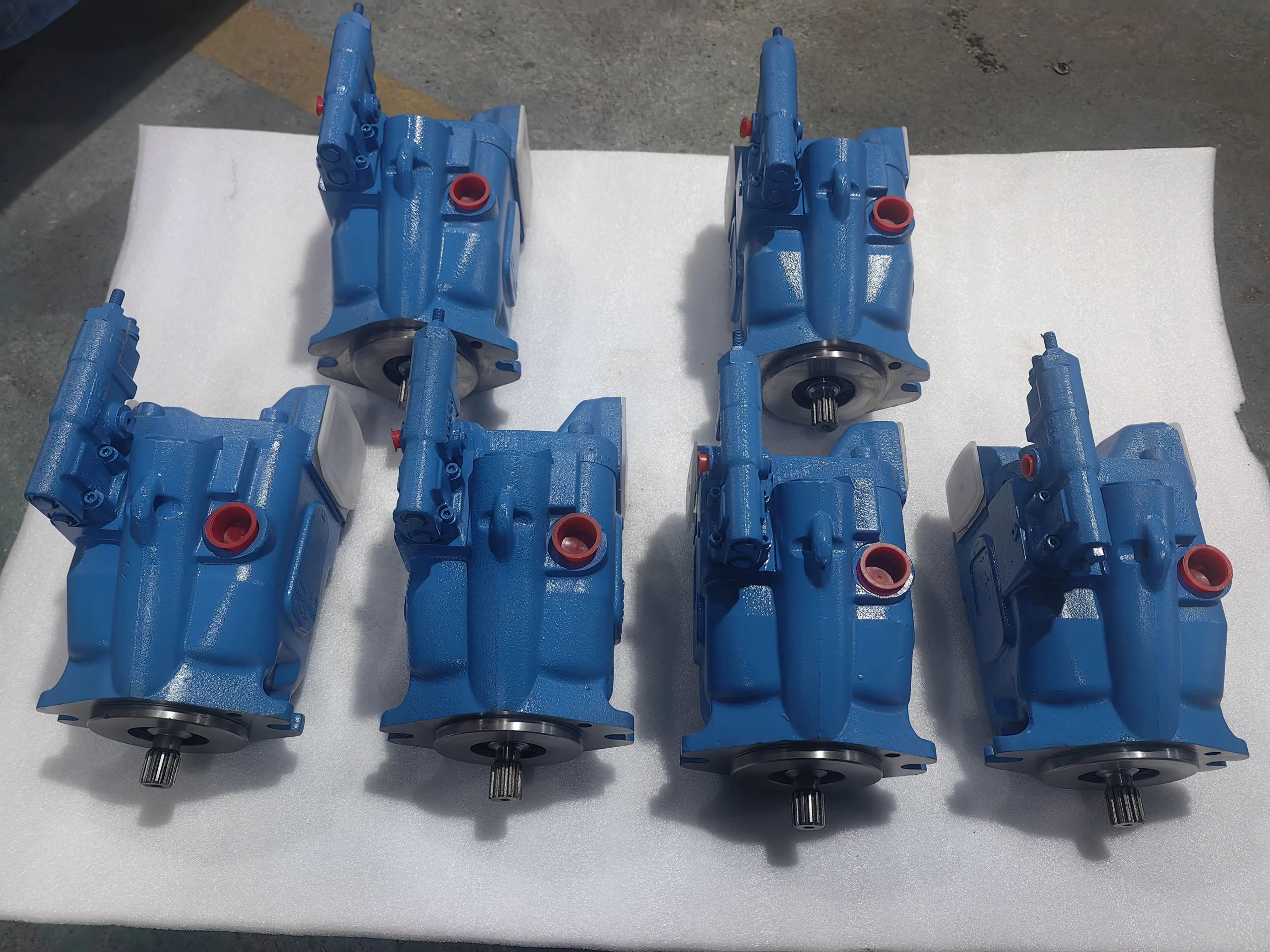

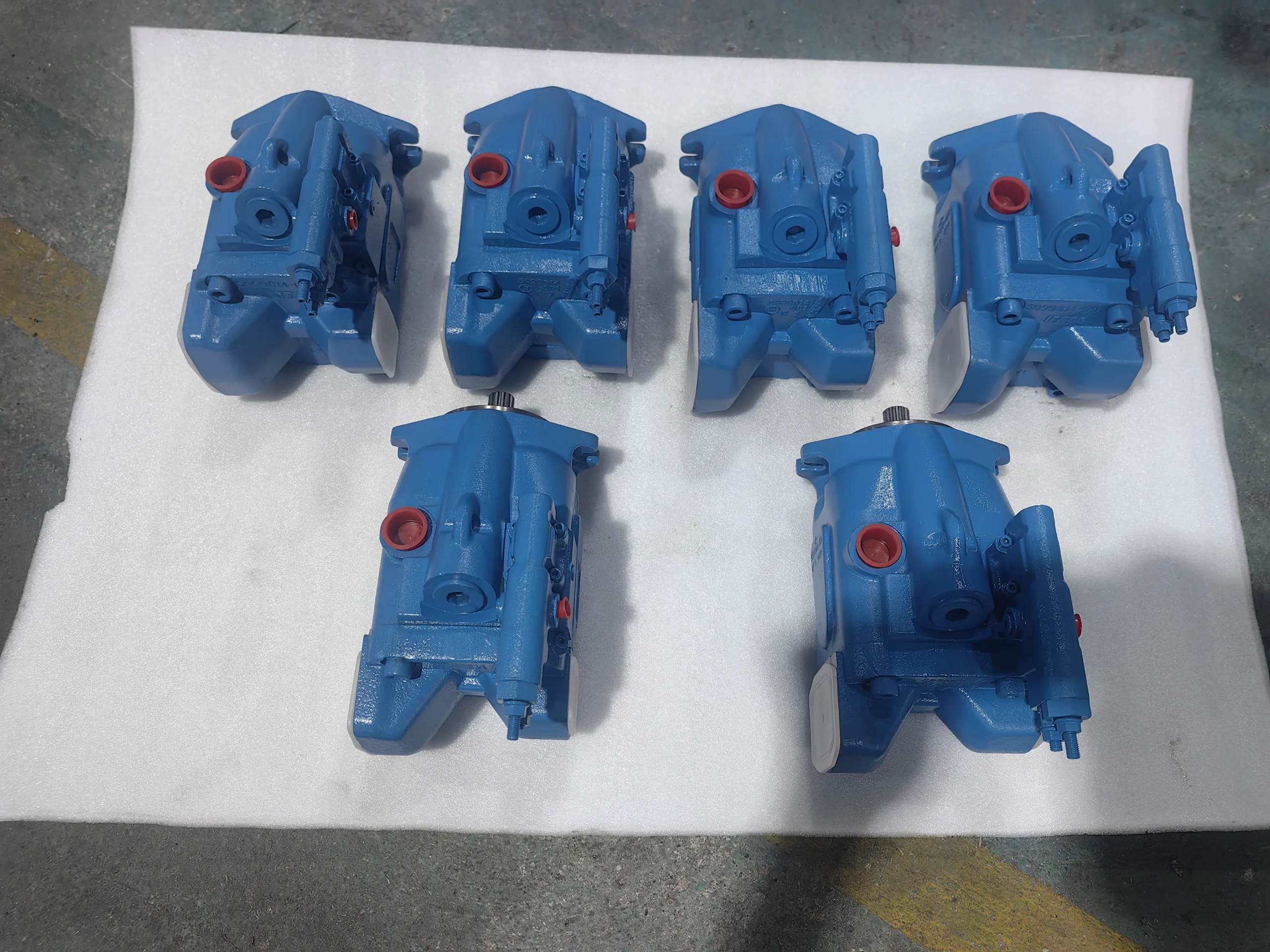

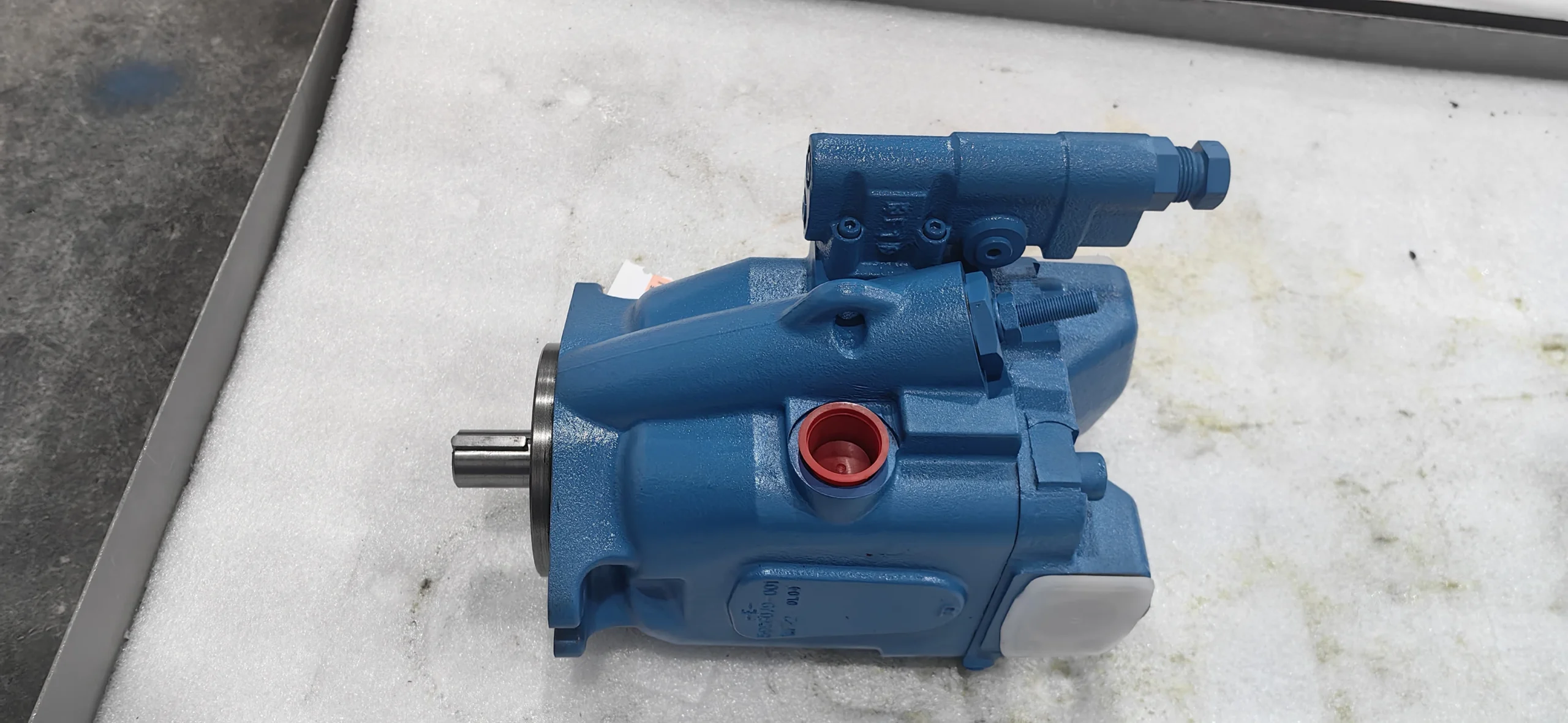

Eaton 420 Series Piston Pump Replacement ADU049

Genlu Hydraulic stands as an elite-tier global developer and high-precision manufacturer of industrial heavy-duty hydraulic pumps, open-circuit variable piston configurations, and premium pressure-control manifolds for advanced B2B material networks. The 420, 421, 420AK, 421AK, 411AK, and 411 Series Open-Circuit Axial Variable Piston Pump Line—engineered as a premium 100% drop-in interchangeable alternative to the definitive high-power open-circuit standard established by global fluid giant Eaton Vickers (specifically matching intricate selection codes like ADU049L02AD10AA432000000100100CD00C and 421AK00955B, spanning the entire volumetric displacement spectrum across ADU041, ADU049, and ADU062 frameworks)—represents an ultra-compact, high power-density positive displacement fluid solution. Extensively specified across mobile engineering vehicle systems, industrial shearing stations, concrete transport units, and compact industrial Hydraulic Power Units (HPUs), this series is recognized worldwide for its exceptional envelope compactness, rapid variable response metrics, and superior airborne noise suppression.

Under intensive load-sensing or high-frequency pressure-compensated operational loops, open-circuit axial piston pumps must withstand continuous severe hydraulic shocks as the internal swashplate rapidly adjusts its displacement angle. Specifically, when operating at a continuous 28 MPa threshold and speeds exceeding 2000 RPM, the internal 9-piston rotating group, valve plate, and slipper retaining mechanics face extreme shear and severe localized thermal stress. Low-grade aftermarket alternative pumps utilizing unhardened cast iron blocks or low-viscosity bronze valve elements succumb to rapid mechanical failure—including barrel-to-plate catastrophic galling, joint slipper separation, and variable compensator lag. Genlu’s premium 420/421 (ADU049) replacement pumps are reverse-engineered to copy the exact hydrostatic film equilibrium formulas, vacuum-fused bimetallic bonding layer technologies, and high-tensile anti-fatigue housings specified in legacy Eaton product manuals. Whether validating standard SAE 2-bolt/4-bolt mounting profiles, high-torque splined or straight driveshafts, or precision side-mounted compensator control valving interfaces, our pumps guarantee 100% mechanical and functional drop-in interchangeability. Prior to delivery, each unit passes strict verification on our Automated High-Pressure Test Rigs under Full-Simulation Conditions to evaluate dynamic compensator response times, volumetric tracing efficiency, and housing drain leak thresholds, ensuring peak performance immediately upon field installation.

Technical Specifications

• Product Pump Classification: 420 / 421 / 420AK / 421AK Series Open-Circuit Axial Variable Piston Pump Platform

• Core Cross-Reference Model Designation Codes: ADU049L02AD10AA432000000100100CD00C / 421AK00955B

• Series Volumetric Coverage Matrix: Seamless alternative for Eaton Vickers ADU041, ADU049, and ADU062 single and tandem pump combinations

• Geometric Displacement Capacity: 49.2 $cc/rev$ (“049” displacement code; series ranging from 41 to 62 $cc/rev$)

• Maximum Continuous Rated Operating Pressure: 28.0 MPa (280 bar / 4060 PSI)

• Maximum Permissible Intermittent Peak Pressure Overload: Up to 32.0 MPa (320 bar / 4640 PSI) during transient pressure spikes

• Drive Input Shaft Rotational Orientation:

  • ADU049L… Configuration: L — Left-Hand (Counter-Clockwise, CCW from shaft end view to match specific engine or rear-tandem drive rotations)

  • Standard R — Right-Hand (Clockwise, CW) configuration available upon custom order

• Control Mechanism Specification: AD10 Intelligent Control Block (Equipped with high-sensitivity Pressure Compensator and Load Sensing valving, matching original factory response curves perfectly)

• Drive Shaft & Mounting Interface Geometry: Standard SAE B/C configuration with high-torque splined or keyed drive shafts, matching original port dimensions exactly

• Total Pump Assembly Net Dry Weight: 26.0 kg — 32.0 kg (Highly compact, high power-density single-body cast-iron layout)

Key Technical Advantages:

• Vacuum-Fused Bimetallic Cylinder Block with Anti-Galling Friction Interface: The cylinder block faces are clad with a premium high-tin lead-bronze alloy via advanced vacuum-fusing processes on an alloy steel rotor. This bimetallic boundary provides superior resistance to adhesive wear under 28 MPa continuous loads. It prevents localized scoring and high-temperature thermal seizure even during short fluid starvation periods.

• Monoblock CGI High-Rigidity Shell with CFD-Optimized Low-Noise Galleries: Cast from single-piece Compacted Graphite Iron (CGI) with walls optimized via finite element analysis. This rigid shell reduces overall envelope volume by 15% compared to conventional piston pumps. Its high acoustic damping dampens structural vibrations from piston reciprocation, lowering full-load operating noise by 3–5 dB(A).

• Micro-Lapped 9-Piston Assembly with High-Dynamic Slipper Retainer: The piston ball-heads and slipper sockets undergo micron-level rolling swage bonding and mirror-finish micro-lapping. At 2000 RPM, the retainer plate applies consistent mechanical pre-load across the shoes. This keeps slippers aligned during low-to-high pressure transitions, eliminating shoe detachment or micro-pitting.

• Precision Compensator Valving with Ultra-Low Transient Response Lag: The side-mounted pressure/flow control valves feature precision-ground spools and springs calibrated to match original factory deflection parameters. The valve reacts within milliseconds to circuit load fluctuations. It adjusts the swashplate angle with minimal lag to eliminate overflow heat during servo directional changes, cutting overall HPU energy consumption by 15%.

Application Areas:

• Industrial and Mobile Heavy-Duty Hydraulic Power Units (HPUs): Main pump for compact pressing rigs, scrap shears, industrial balers, and high-altitude aerial lift stations.

• Construction and Road Infrastructure Equipment: High-pressure auxiliary fluid supply for concrete transit mixers and main control loops for asphalt pavers or cold planers.

• Non-Standard Automation Lines and CNC Machine Workstations: Perfect for manufacturing cells requiring quiet, responsive fluid power within a compact mounting envelope.

Expert Maintenance Tips:

• Mandatory Pre-Lubrication Rule for First-Run Protective Priming: The high-precision internal rotating components cannot tolerate dry friction during rapid startup. Before starting the pump for the first time, fill the housing completely with clean hydraulic oil through the highest case drain port. Manually rotate the drive shaft 3–5 times to coat the pistons and valve spools. Jog the motor under zero-pressure conditions for 5 minutes to vent trapped air before applying full system load.

• Strict Proscription Against Internal Core Restriction in Suction Lines: As a high-speed self-priming open-circuit pump, the ADU049 requires strict intake vacuum management (suction inlet pressure must not fall below -0.2 bar relative pressure). The intake line must utilize short, large-diameter steel tubing or dedicated heavy-duty suction hoses. Never use standard low-pressure braided rubber hoses, as the inner walls can collapse under high suction vacuum, causing cavitation and pump destruction.

• Enforced Case Drain Backpressure Limits for Shaft Seal Protection: Continuous internal leakage from displacement regulation creates a steady stream of hot oil that must vent from the housing. Route the independent case drain line directly to the reservoir so it discharges below the fluid level. The continuous backpressure in this loop must never exceed 0.1 MPa (1 bar). Excessive backpressure will blow out the shaft seal and disrupt the internal retainer balance, leading to early slipper wear.
