70122-LCW Danfoss 70122 Axial Piston Pump 19cc 210bar

Product Overview

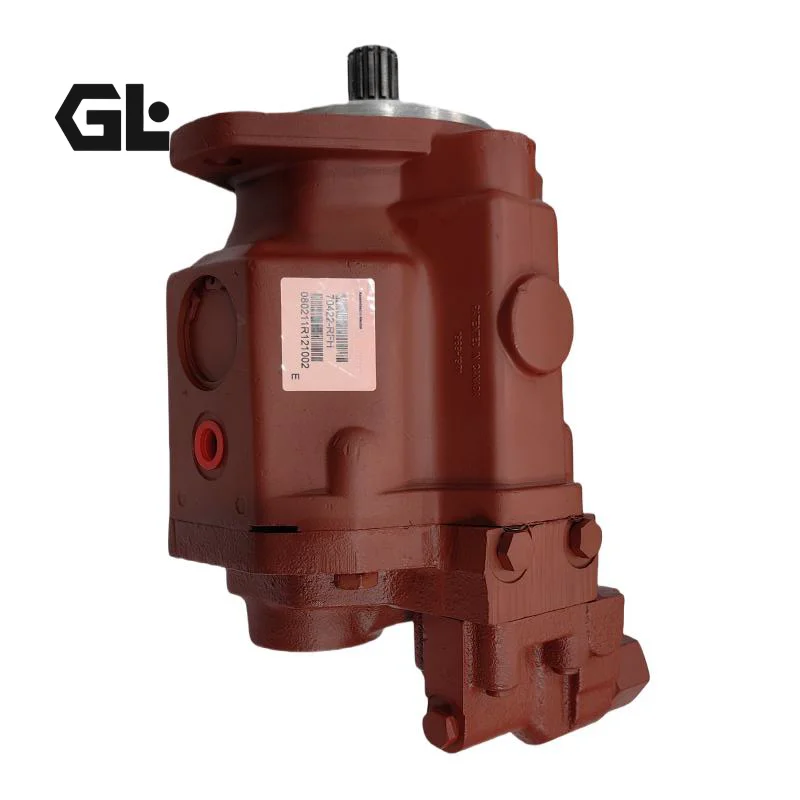

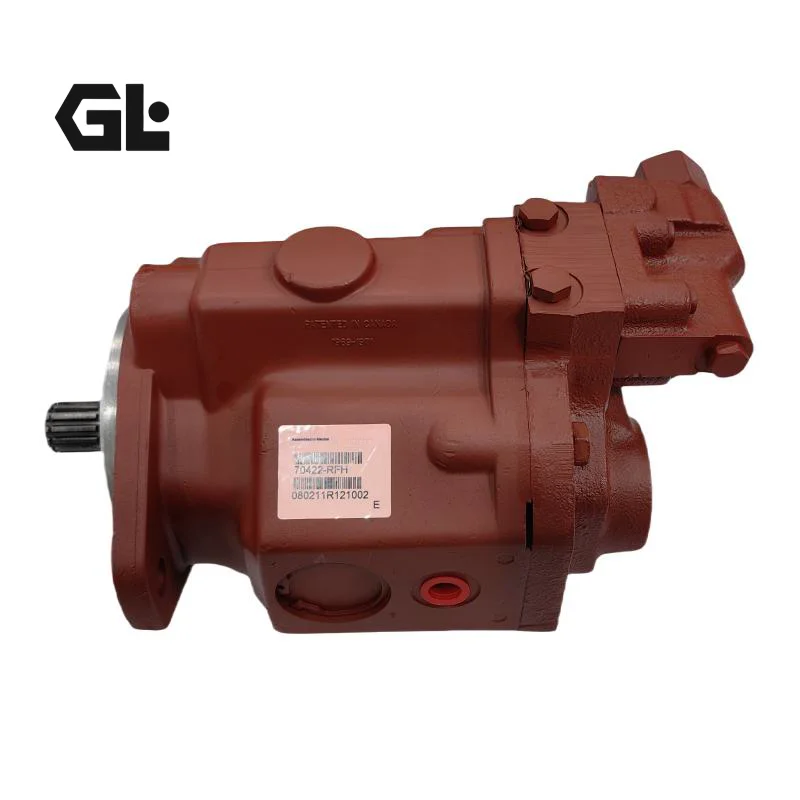

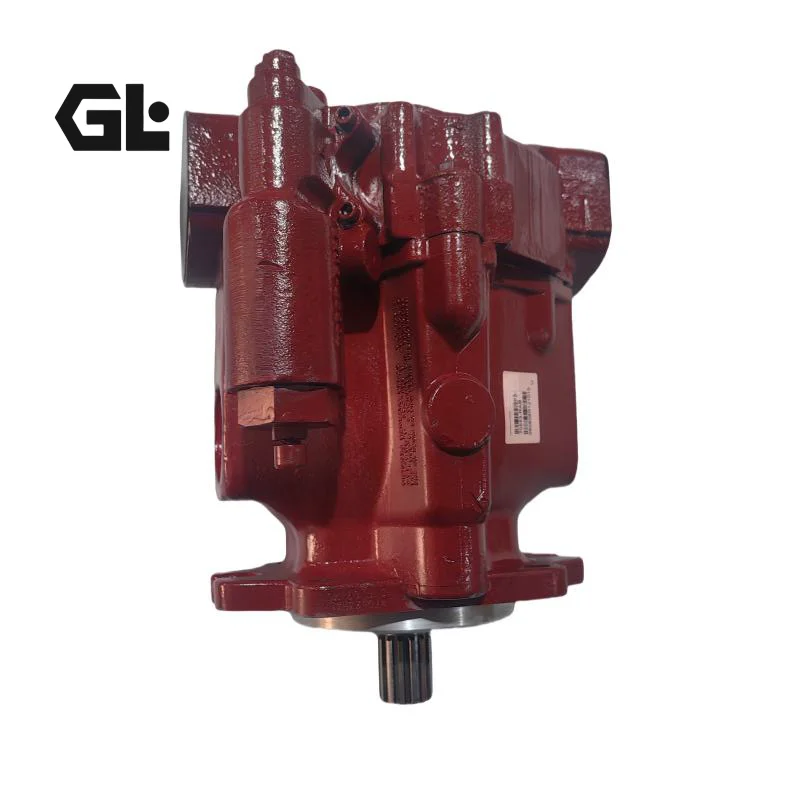

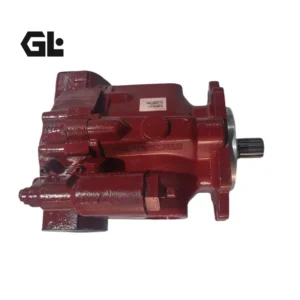

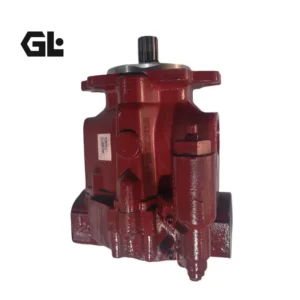

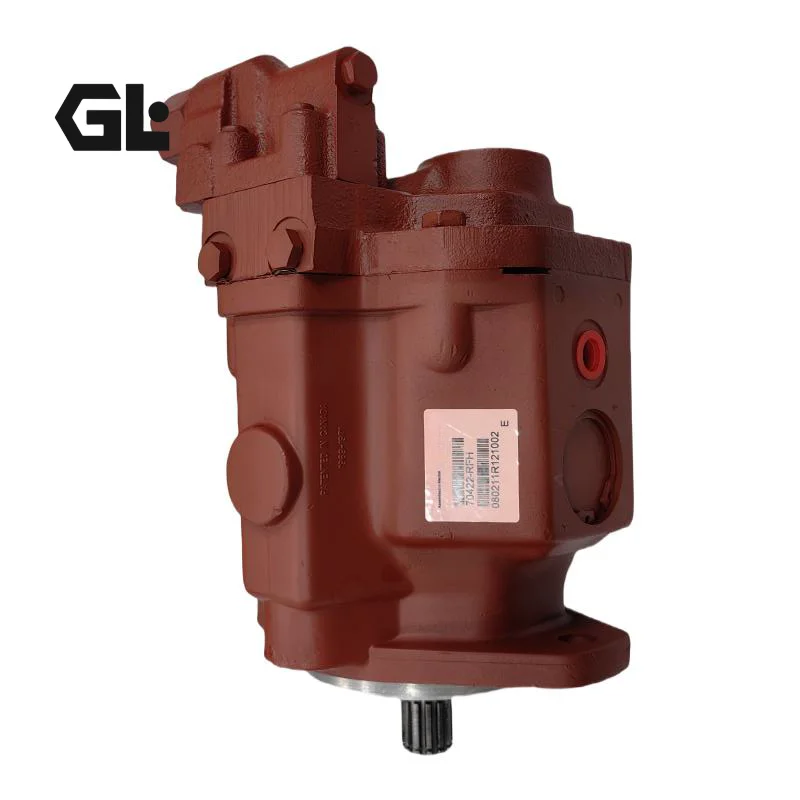

The 70122-LCW / 70122-LCU / 70122-LCT belongs to the Danfoss (formerly Eaton) Series 70122 medium-duty open-circuit pressure or pressure-flow compensated axial piston variable displacement pump. It offers true drop-in interchangeability with original Eaton/Danfoss units—SAE A mounting flange—so no piping modifications are required. Every unit is 100% tested under simulated operating conditions to guarantee reliable performance in open-circuit systems. Featuring a lightweight aluminum housing and compact design, it supports pressure compensated and pressure-flow compensated controls, ideal for applications requiring low displacement, multiple configurations, and reduced weight in small to medium mobile and industrial equipment.

Technical Specifications

• Model: 70122-LCW / 70122-LCU / 70122-LCT (Series 70122)
• Displacement: 0–19 cm³/rev
• Continuous pressure: 210 bar
• Peak/intermittent pressure: 275 bar
• Maximum speed: 2500 rpm
• Control type: Pressure compensated / pressure-flow compensated
• Weight: approximately 8 kg
• Mounting: SAE A flange
• Circuit compatibility: Open
• Case pressure: max. 2 bar

Key Technical Advantages

1. Lightweight aluminum housing: Compact and durable design reduces overall machine weight while increasing power density.
2. Precision rotating group and compensator control: Fast-response pressure/flow compensation delivers high volumetric efficiency and excellent system energy efficiency.
3. Configuration flexibility: Multiple shaft, port, and auxiliary mounting options for easy system integration.
4. Drop-in interchangeability and high reliability: SAE-standard interfaces and rigorous testing ensure long service life.
5. Low noise and easy maintenance: Optimized design reduces operating noise and simplifies servicing.

Application Areas

• Agricultural and harvesting machinery
• Construction and building equipment
• Material handling and lifting systems
• Industrial hydraulic power units
• Small to medium equipment requiring lightweight open-circuit systems

Expert Maintenance Tips

Ensure suction lines are adequately sized; route case drain independently with pressure not exceeding 2 bar. Fully bleed the system before first start-up and maintain high fluid cleanliness. Use recommended viscosity hydraulic oil and inspect filters and oil temperature regularly. Lock compensator settings after adjustment. For long-term storage, fill with clean oil and seal all ports to prevent corrosion.
