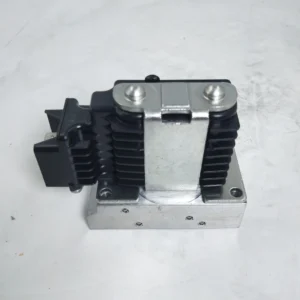

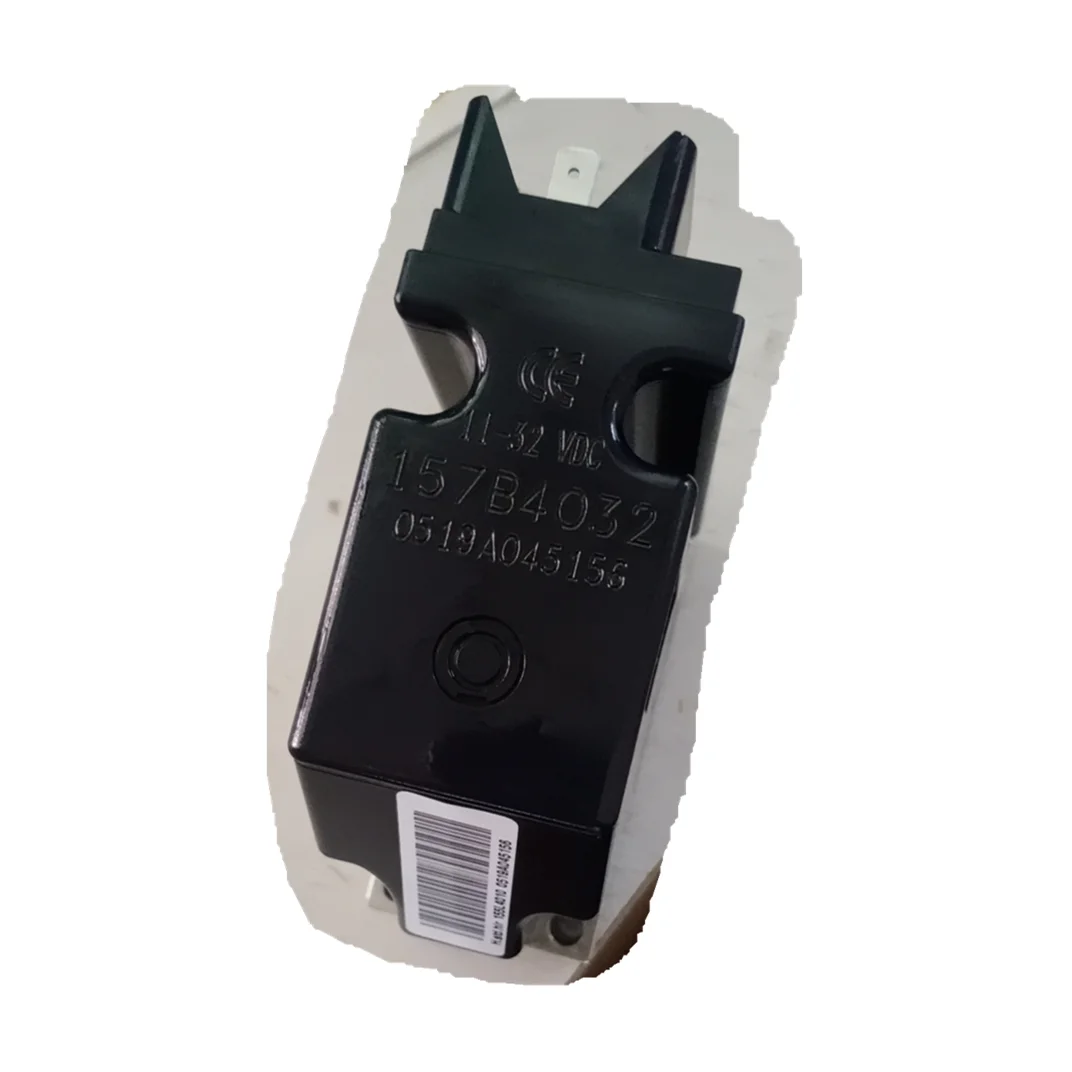

11166829 Danfoss PVEM 32 Proportional Valve Actuator

Product Overview

The 11166829 (PVEM 32 Series 7 / S7, cross-compatible with 157B4128 and related Danfoss 157B series) Electro-Hydraulic Proportional Actuator is engineered for Danfoss PVG 32 proportional valve stacks (PVB working sections). Manufactured in strict accordance with Danfoss OEM design standards, it offers 100% drop-in mechanical, hydraulic, and electrical interchangeability. The actuator integrates an internal closed-loop spool position control circuit, a microcontroller, and solid-state power electronics, translating proportional voltage input signals into precise micron-level axial spool movements. Every unit undergoes 100% factory bench testing under simulated full-load operating conditions to guarantee zero signal drift, low hysteresis, and reliable vibration resistance, providing an immediate, high-performance replacement for original Danfoss actuators.

Technical Specifications

• Full Model Code: 11166829 (PVEM 32 Series 7 / Cross-ref: 157B4128, 157B series)

• Compatible Valve System: Danfoss PVG 32 Proportional Valves (PVB basic sections)

• Operating Supply Voltage: 11 – 32 V DC (Wide range suitable for 12V/24V systems)

• Control Signal Type: Ratiometric voltage signal ($25\% – 75\% U_{DC}$, neutral at $50\% U_{DC}$)

• Max Current Consumption: Approx. 0.7 A @ 12 V DC / 0.35 A @ 24 V DC

• Nominal Response Time: Approx. 120 ms

• Electrical Connector Style: 4-pin AMP Junior-Timer

• Ingress Protection Rating: IP65 / IP66

• Operating Temperature Range: -30°C to +90°C

• Net Weight: Approx. 1.2 kg

Key Technical Advantages

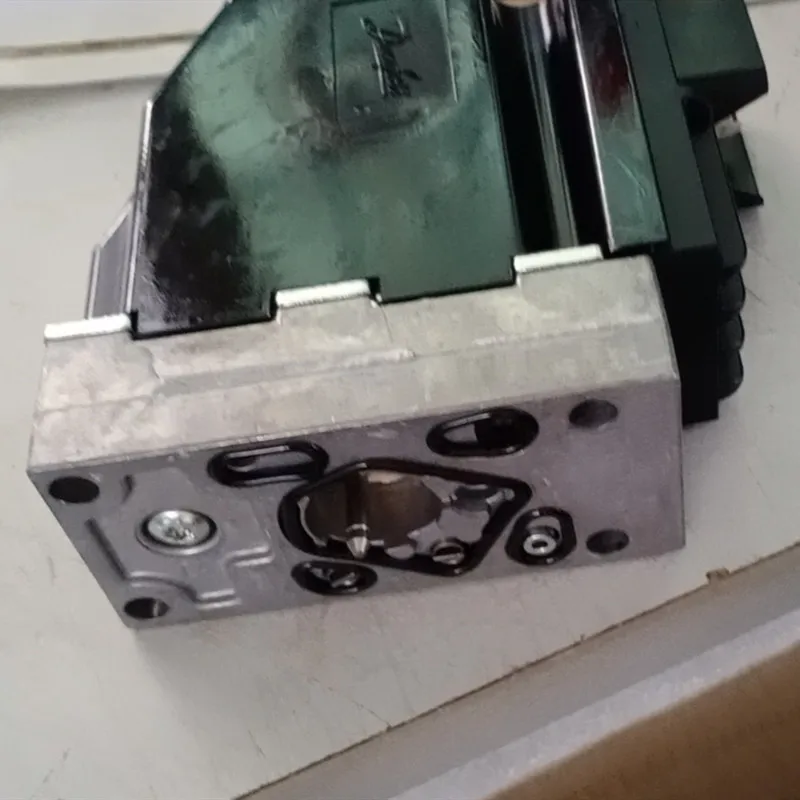

• 100% Drop-In OEM Interchangeability: Mounting bolt patterns, pilot port interfaces, and main spool engagement pins strictly match OEM geometry for quick field plug-and-play replacement.

• Closed-Loop Spool Position Control: An integrated linear LVDT position sensor constantly monitors and adjusts main spool displacement in real time, eliminating control deadband and minimizing hysteresis for smooth actuator velocity control.

• Active Fault Diagnostics & Electrical Protection: Built-in protection against overvoltage, reverse polarity, and signal loss automatically shifts the actuator into a safe neutral position during system fault conditions.

• Ruggedized Construction & IP66 Protection: Enclosed in a glass-fiber reinforced polyamide (PA66-GF30) body with durable internal elastomer seals, delivering high resistance to mechanical shock, UV exposure, and hydraulic fluids.

Application Areas

• Cranes & Material Handling: Boom extension and winch positioning in truck cranes, aerial work platforms, and knuckle-boom cranes.

• Construction Equipment: Concrete pump truck boom positioning, telehandlers, and excavator auxiliary proportional circuits.

• Agricultural & Forestry Machinery: Combine harvester header controls, timber forwarders, and forest machine valve stacks.

• Marine & Special Purpose Vehicles: Deck cranes, municipal refuse vehicles, and mobile electro-hydraulic power systems.

Expert Maintenance Tips

• Verify Supply Voltage Stability: Ensure system supply voltage does not drop below 11 V DC under heavy electrical loads. Using a filtered and regulated power line prevents operational fault tripping in the actuator.

• Ensure Sealed Electrical Connections: When mating the 4-pin AMP connector, confirm that the rubber seal ring is seated properly and fully latched to keep out moisture, dust, and high-pressure water spray.

• Prevent Mechanical Binding during Installation: Gently align the actuator output coupling with the main valve spool slot before tightening the mounting screws. Never force or hammer the housing to avoid damaging internal electronic sensors.
