11166829 Danfoss PVEM32 S7 Actuator PVG32 11-32V DIN

I. Product Overview

This product series comprises Danfoss (formerly Sauer-Danfoss) PVE Series electro-hydraulic actuator modules—the core electronic control components of PVG32/PVG100 proportional multi-way valve systems. These actuators convert electrical control signals into precise hydraulic pilot pressure, enabling proportional control of the main spool stroke.

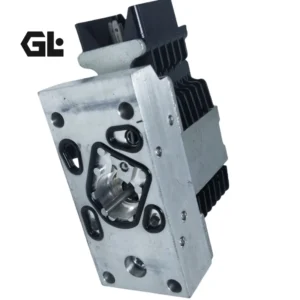

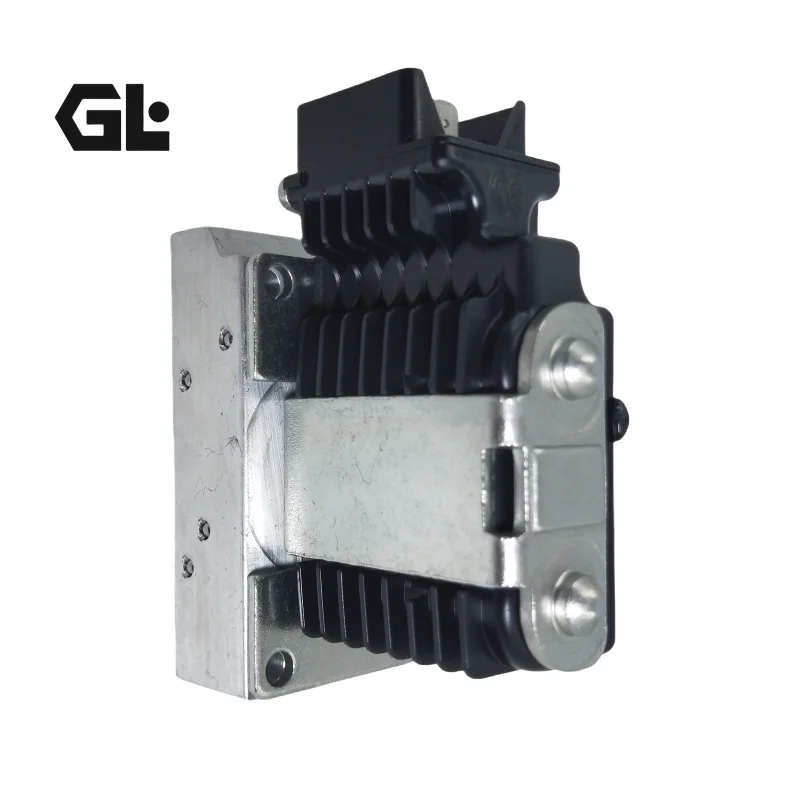

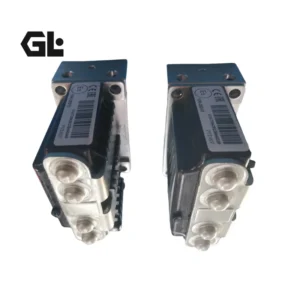

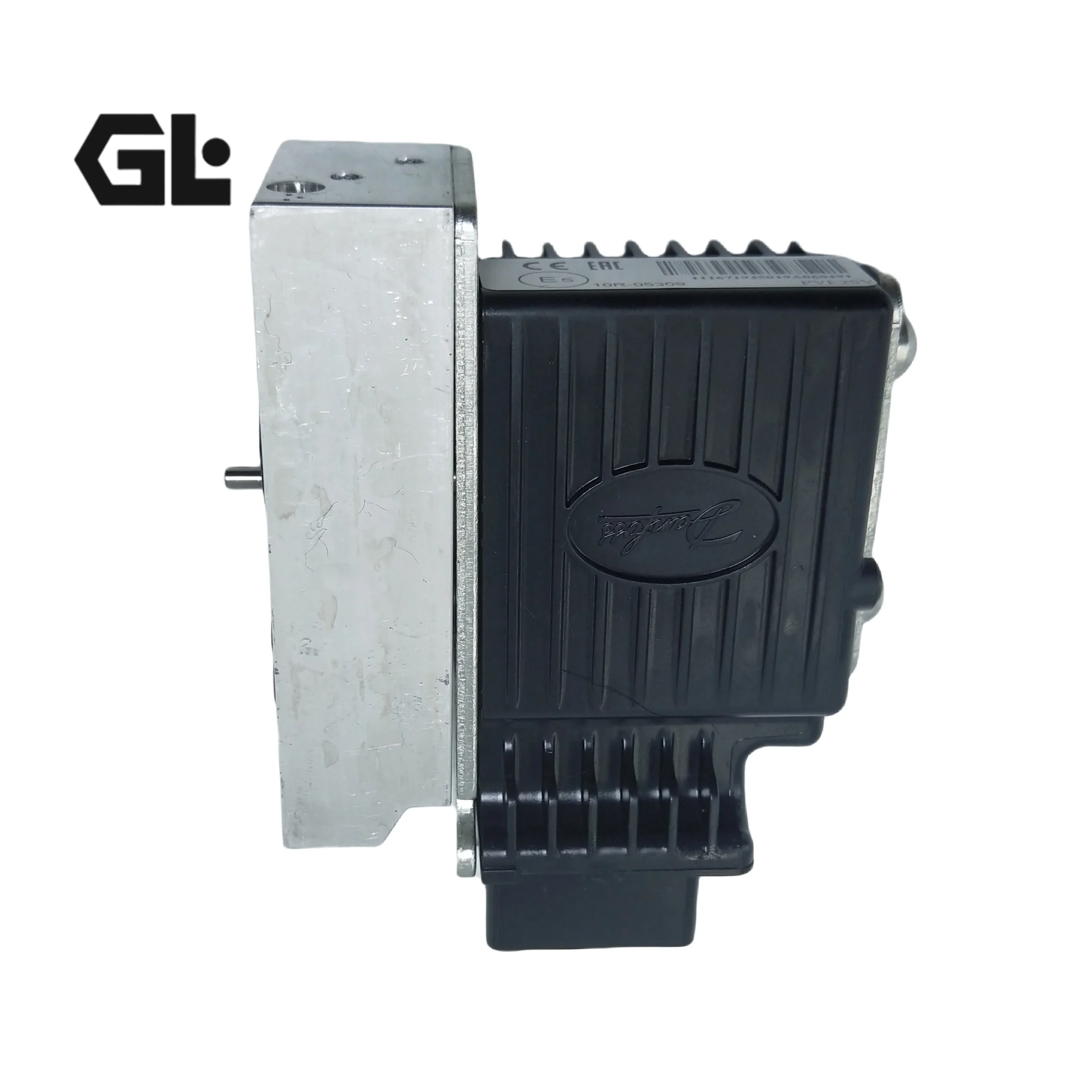

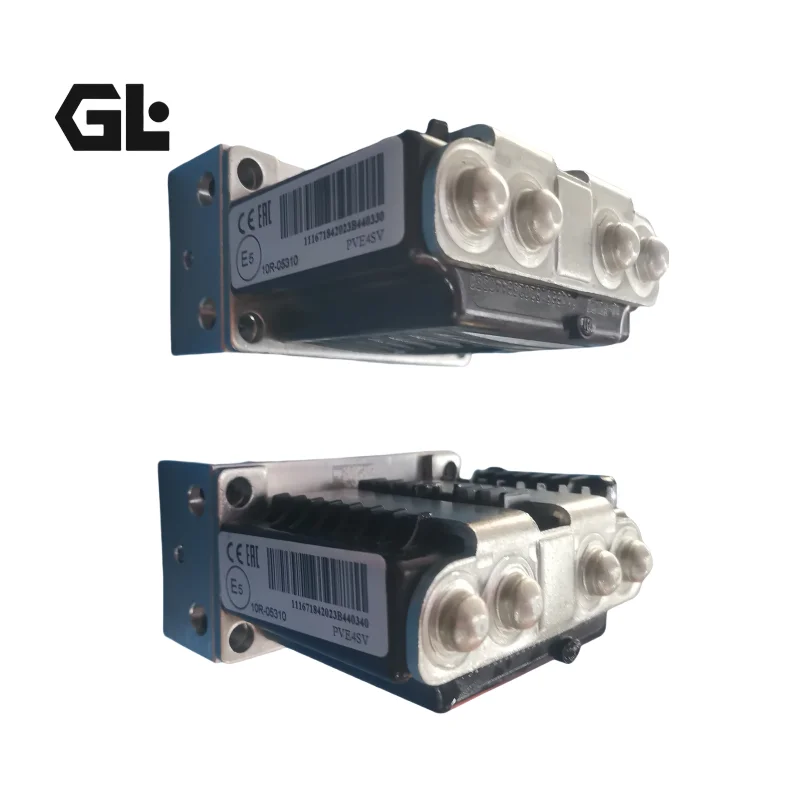

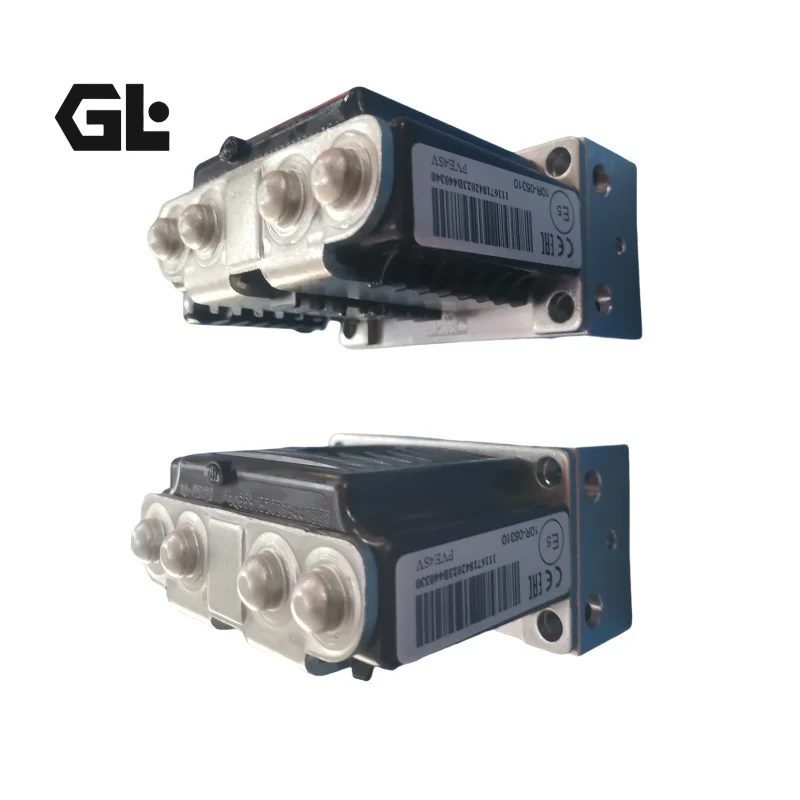

11166829 is a PVEM32 Series 7 (S7) electro-hydraulic actuator featuring a 1×4 DIN 43650-A/ISO4400 (Hirschmann) connector and 11-32V DC wide-range voltage input, with passive fault monitoring. This model is Danfoss’s official replacement for the older models 157B4128 and 157B4116.

157B4128 is a PVEM32 electro-hydraulic actuator with a 1×4 DIN/Hirschmann connector and 24V DC rated voltage.

Manufactured to strict Danfoss OEM specifications, all products offer 100% direct interchangeability with original parts—no modifications required for installation. Every unit undergoes 100% application-condition simulation testing—comprehensive verification of pressure, flow, response characteristics, and leakage on dedicated test benches against published specifications. Perfect OEM replacement for Danfoss/Sauer-Danfoss original parts, ideal for hydraulic system repairs and preventive maintenance.

II. Technical Specifications (Bulleted List)

11166829 – PVEM32 S7 Electro-Hydraulic Actuator (Passive Fault Monitoring)

• Model: 11166829 (Danfoss Series 7)

• Product Type: PVEM32 electro-hydraulic actuator (PVEM32-ACTUATOR–S7-1x4DIN-3W.M-PAS-PS)

• Supersedes: 157B4128, 157B4116

• Voltage Range: 11 – 32 V DC

• Connector Type: 1×4 DIN 43650-A / ISO4400 (Hirschmann)

• Connector Direction: 90° (Up)

• Control Signal: Ratiometric

• Pilot Pressure: 13.5 bar (PVE)

• Hysteresis: 0.15 (approx. 4-9%)

• Coil Power: 8 W

• Response Time (A-side to max stroke): 225 ms

• Response Time (B-side to max stroke): 120 ms

• De-stroke Time (A-side): 225 ms

• De-stroke Time (B-side): 120 ms

• Protection Class: IP65

• Module Length: 89 mm

• Fault Monitoring Mode: Passive

• Certifications: CE, EAC, ISO13849

• Compatibility: PVG32 / PVG100

• Weight: Approx. 0.9 kg

157B4128 – PVEM32 Electro-Hydraulic Actuator (24V)

• Model: 157B4128

• New/Replacement Model: 11166829

• Product Type: PVEM32 electro-hydraulic actuator (PVEM Actuator)

• Rated Voltage: 24 V DC

• Connector Type: 1×4 DIN / Hirschmann

• Control Method: Proportional

• Compatibility: PVG32 proportional directional control valve

• Fault Monitoring Mode: Passive

III. Key Technical Advantages

1. Series 7 Platform Upgrade – Performance Optimized (11166829)
11166829 belongs to Danfoss’s Series 7 (S7) actuator platform—the official upgrade replacement for 157B4128 and 157B4116. The S7 platform delivers enhanced response speed, control precision, and reliability, providing users with a future-proof upgrade path.

2. Fast Response for Precision Control
11166829 achieves response times as fast as 120 ms on the B-side and 225 ms on the A-side. This rapid response ensures PVG proportional valves quickly follow control commands, delivering precise, instantaneous speed and direction control of hydraulic actuators. Hysteresis as low as 0.15 (approx. 4-9%) ensures high repeatability.

3. Wide Voltage Range for Maximum Compatibility
11166829 supports 11-32V DC wide-range voltage input, accommodating voltage fluctuations across different vehicle electrical systems (compatible with both 12V and 24V systems). This makes it particularly suitable for construction and agricultural machinery operating in demanding electrical environments.

4. Passive Fault Monitoring for System Reliability
Both 11166829 and 157B4128 feature passive fault monitoring, maintaining high-reliability control while providing fault status feedback to the control system when issues occur. This design ensures system safety while avoiding unnecessary electronic complexity that could introduce additional failure points.

5. Standard DIN Connector – Globally Recognized
Both models feature the 1×4 DIN 43650-A/ISO4400 (Hirschmann) connector, offering exceptional global compatibility and interchangeability. The 90° (Up) connector orientationfacilitates cable routing in confined spaces.

6. High Protection Class for Harsh Environments
11166829 offers IP65 protection class, delivering excellent dust and water resistance. With a compact 89 mm module lengthand CE, EAC, and ISO13849 certifications, it ensures long-term reliable operation under severe conditions—high vibration, high dust, and high humidity—common in construction machinery and industrial environments.

IV. Application Areas

This product series is specifically designed as the dedicated electro-hydraulic actuator for Danfoss PVG32/PVG100 proportional valve groups, compatible with the following equipment types:

• Construction Equipment: Excavators, wheel loaders, bulldozers, motor graders—electro-hydraulic control for PVG32 proportional valves

• Lifting Equipment: Mobile cranes, truck-mounted cranes, aerial work platforms—typical applications for 157B4128/11166829 actuators

• Agricultural Machinery: Large combine harvesters, tractors, sprayers

• Material Handling: Forklifts, telescopic handlers, reach stackers

• Forestry Machinery: Feller bunchers, skidders

• Specialty Vehicles: Concrete pump trucks, municipal sanitation vehicles, fire trucks—ideal for industrial and specialty vehicle hydraulic systems

Typical circuit applications include: PVG proportional valve electro-hydraulic pilot control, proportional flow control, proportional pressure control, precise actuator speed and direction control.

V. Expert Maintenance Tips

1. Verify Model & Supersession Status (★★★★★)

• 11166829 is a Danfoss Series 7 product that directly replaces 157B4128 and 157B4116

• 157B4128 is an older model—priority should be given to 11166829 as the replacement part for procurement and maintenance

• Confirm the equipment’s original model number before installation and select the correct replacement

2. Electrical Connection Verification

• 11166829: 1×4 DIN 43650-A / ISO4400 (Hirschmann) connector

• 157B4128: 1×4 DIN / Hirschmann connector

• 11166829 voltage range: 11-32V DC; 157B4128 rated: 24V DC

• Control signal is Ratiometric—sensitive to electromagnetic interference

• Use shielded twisted-pair cables for control wiring, with shield grounded at one end

3. Pilot Pressure Verification
11166829 requires 13.5 bar pilot pressure (PVE). Verify system pilot supply meets this requirement before installation—insufficient pilot pressure will cause inadequate spool stroke and sluggish response.

4. Oil Cleanliness Management (★★★★★)
PVE series actuators contain pilot valve spools and nozzle structures that are highly sensitive to oil contamination. Maintain system oil cleanliness at ISO 4406 18/16/13 or better. Use 10μm or higher-precision return filters and inspect filter elements regularly.

5. Installation Torque Specifications
When mounting the actuator to the PVG valve group, tighten mounting bolts to Danfoss recommended torque (typically 10-12 Nm). Excessive torque may deform the actuator housing; insufficient torque may cause leakage or loosening.

6. Storage Environment
Recommended storage temperature: -40°C to +85°C. Avoid impact loads on the actuator body during installation. Handle with care to prevent drop damage.
