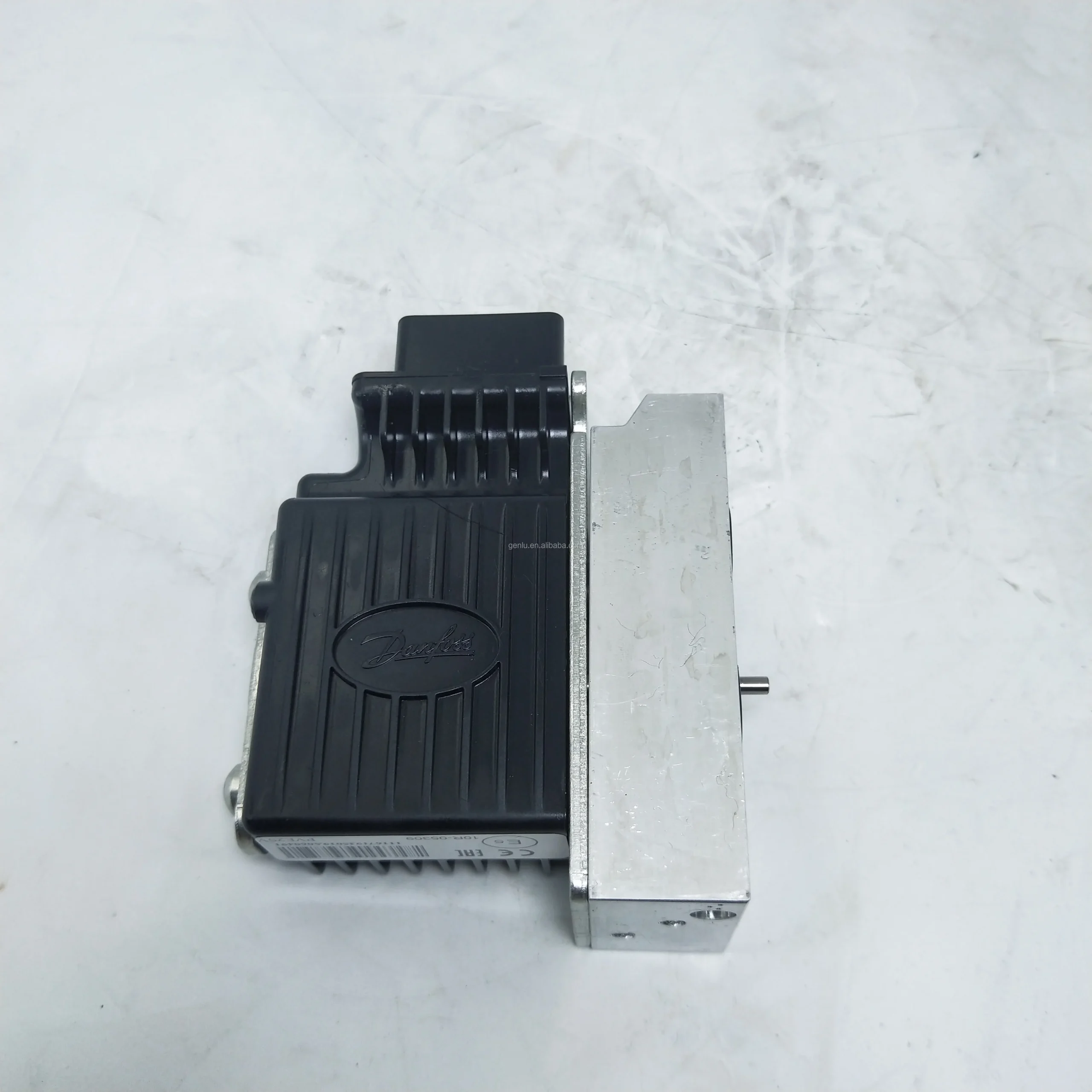

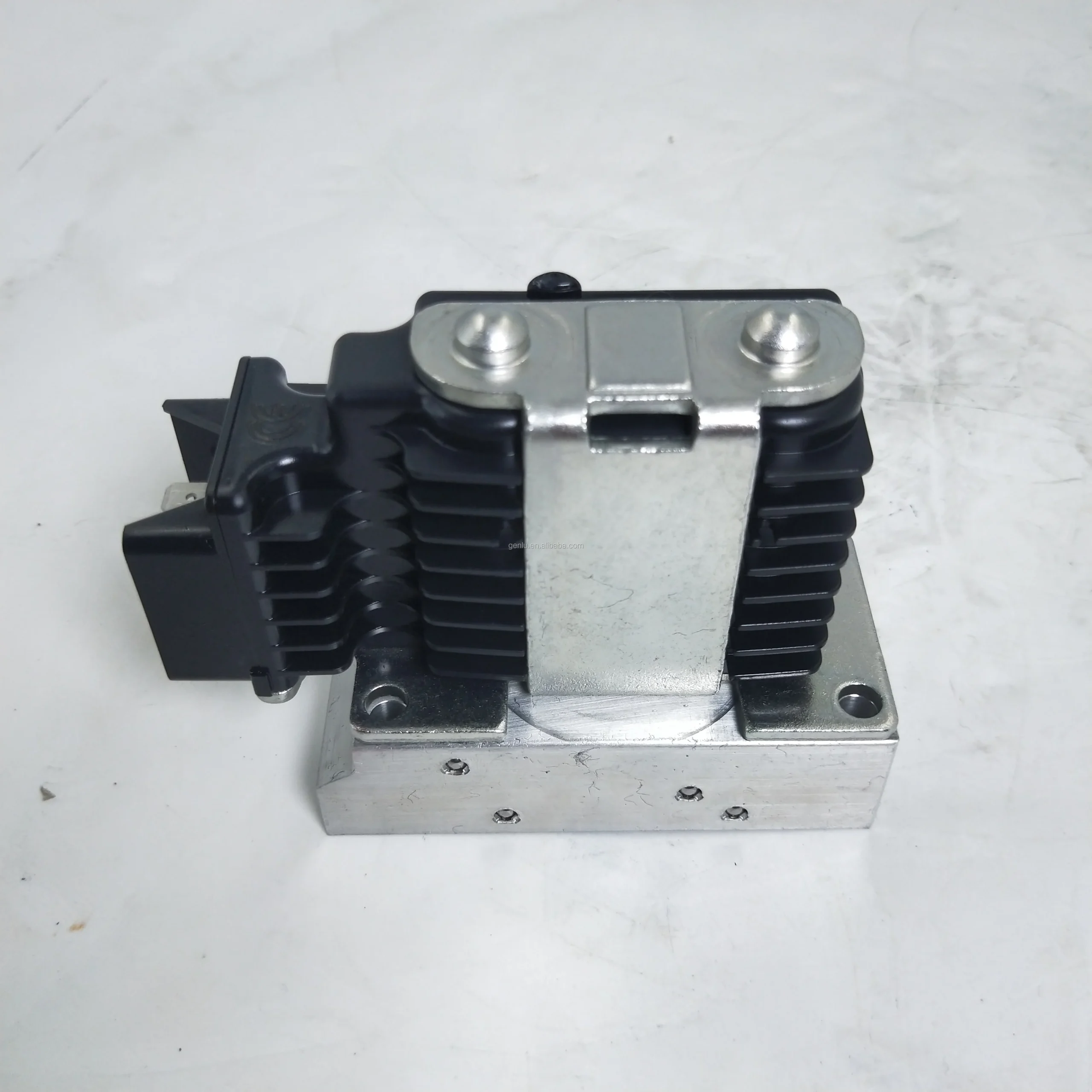

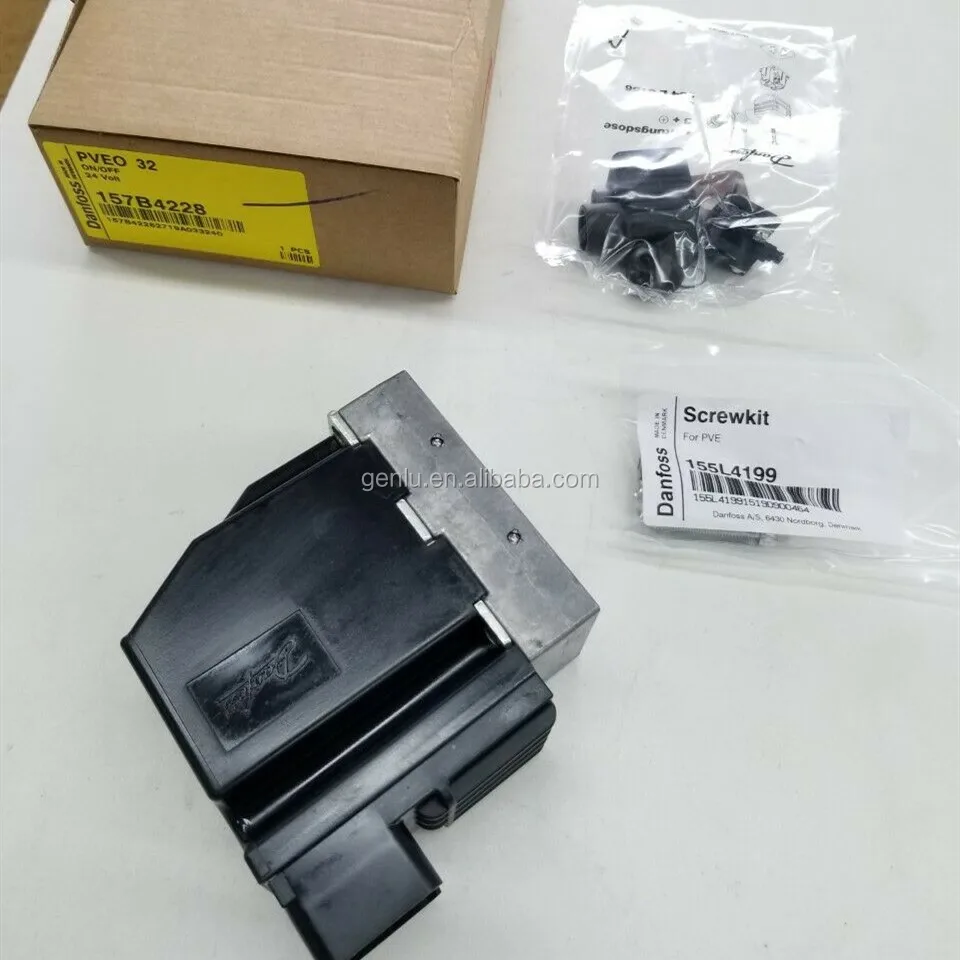

157B4028 Danfoss PVEH 32 Proportional Actuator 11-32V

Product Overview

The 157B4028 (PVEH 32 Series 4 / S4, cross-compatible with 157B4032, 157B4034, 157B4128, and related Danfoss PVEH actuators) Electro-Hydraulic Proportional Actuator is specifically designed for Danfoss PVG 32 proportional valve stacks (PVB working sections). Built in strict accordance with Danfoss OEM engineering specifications and ISO standard dimensions, it delivers 100% drop-in mechanical, hydraulic, and electrical interchangeability. The unit features an integrated active closed-loop LVDT spool position feedback circuit and high-noise-immunity electronics, translating proportional voltage control signals into precise axial spool displacement. Every actuator undergoes 100% factory bench testing under simulated full-load operating conditions to guarantee zero signal drift, low hysteresis ($< 1.0\%$), and dynamic response—providing a direct, plug-and-play replacement for original Danfoss actuators.

Technical Specifications

• Full Model Code: 157B4028 (PVEH 32 Series 4 / S4; Cross-compatible: 157B4032, 157B4034, 157B4128)

• Compatible Valve System: Danfoss PVG 32 Proportional Valves (PVB basic modules)

• Operating Voltage ($U_{DC}$): 11 – 32 V DC (Suitable for 12V and 24V DC systems)

• Control Signal Mode: Ratiometric voltage ($25\% – 75\% U_{DC}$, Neutral at $50\% U_{DC}$)

• Control System: Closed-loop spool position control via LVDT sensor

• Max Current Consumption: Approx. 0.57 A @ 12 V DC / 0.28 A @ 24 V DC

• Nominal Response Time: Approx. 120 ms

• Hysteresis: $< 1.0\%$

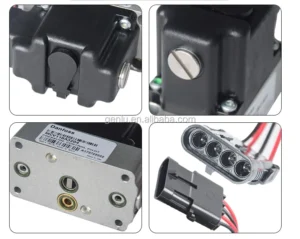

• Electrical Connector: 4-pin AMP Junior-Timer

• Ingress Protection Rating: IP65 / IP66

• Operating Temperature Range: -30°C to +90°C

• Net Weight: Approx. 1.15 kg

Key Technical Advantages

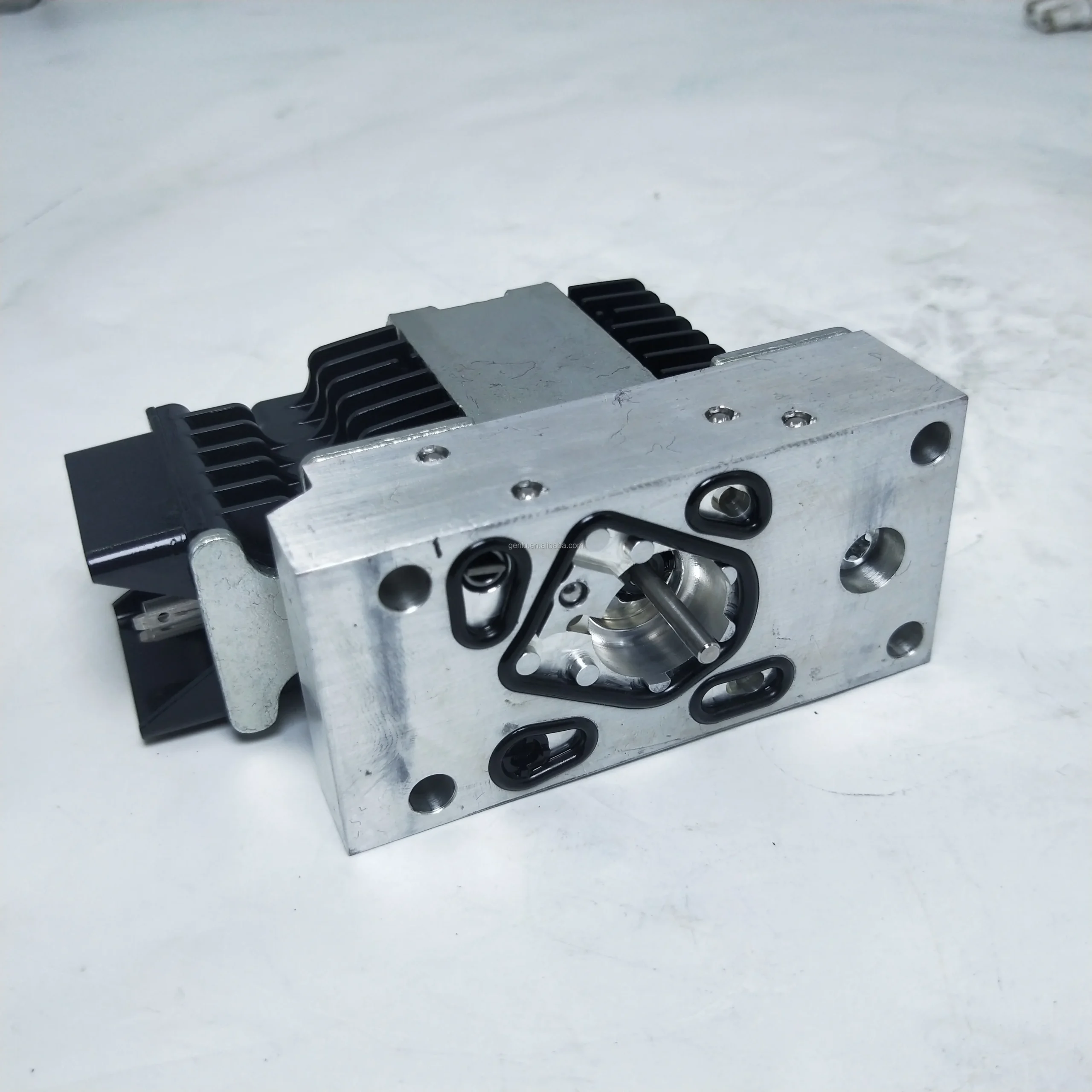

• 100% Drop-In OEM Fit: Mounting hole patterns, pilot channels, and main spool interface dimensions strictly match Danfoss OEM specifications, allowing fast field plug-and-play installation without system modification.

• Closed-Loop LVDT Control & Minimal Hysteresis: Features an internal LVDT position sensor that continuously measures and corrects spool displacement in real time, keeping hysteresis under 1.0% for smooth, high-precision flow control.

• Active Fault Monitoring & Fail-Safe Protection: Built-in electronic protection guards against overvoltage, reverse polarity, and control signal loss, automatically returning the spool to neutral upon fault detection.

• Ruggedized Housing & Encapsulated Electronics: Constructed with glass-fiber reinforced polyamide (PA66-GF30) and potted electronics to resist high vibration, UV exposure, and moisture ingress in harsh field environments.

Application Areas

• Cranes & Material Handling: Truck cranes, boom extension/slewing, aerial work platforms, and heavy forklift valve stacks.

• Construction Machinery: Concrete pump truck boom positioning, wheel excavators, and rotary drilling rigs.

• Agricultural & Forestry Equipment: Combine harvester header control, forestry forwarders, and timber grapple valve blocks.

• Special Vehicles & Marine: Municipal sweepers, refuse trucks, deck cranes, and hydraulic power units (HPUs).

Expert Maintenance Tips

• Ensure Clean, Stable Power & Signal Lines: Maintain input voltage between 11V and 32V DC. Use shielded cables for the ratiometric control signal ($U_{S}$) and ground the shield at the cabinet side to prevent EMI interference.

• Proper AMP Connector Assembly: Ensure the rubber seal inside the 4-pin AMP plug is seated correctly and fully locked to protect terminals from water spray and dust ingress.

• Axial Alignment During Mounting: Slide the actuator smoothly over the main valve spool interface during installation. Never force or strike the housing with a hammer to avoid damaging the internal LVDT position transducer.
