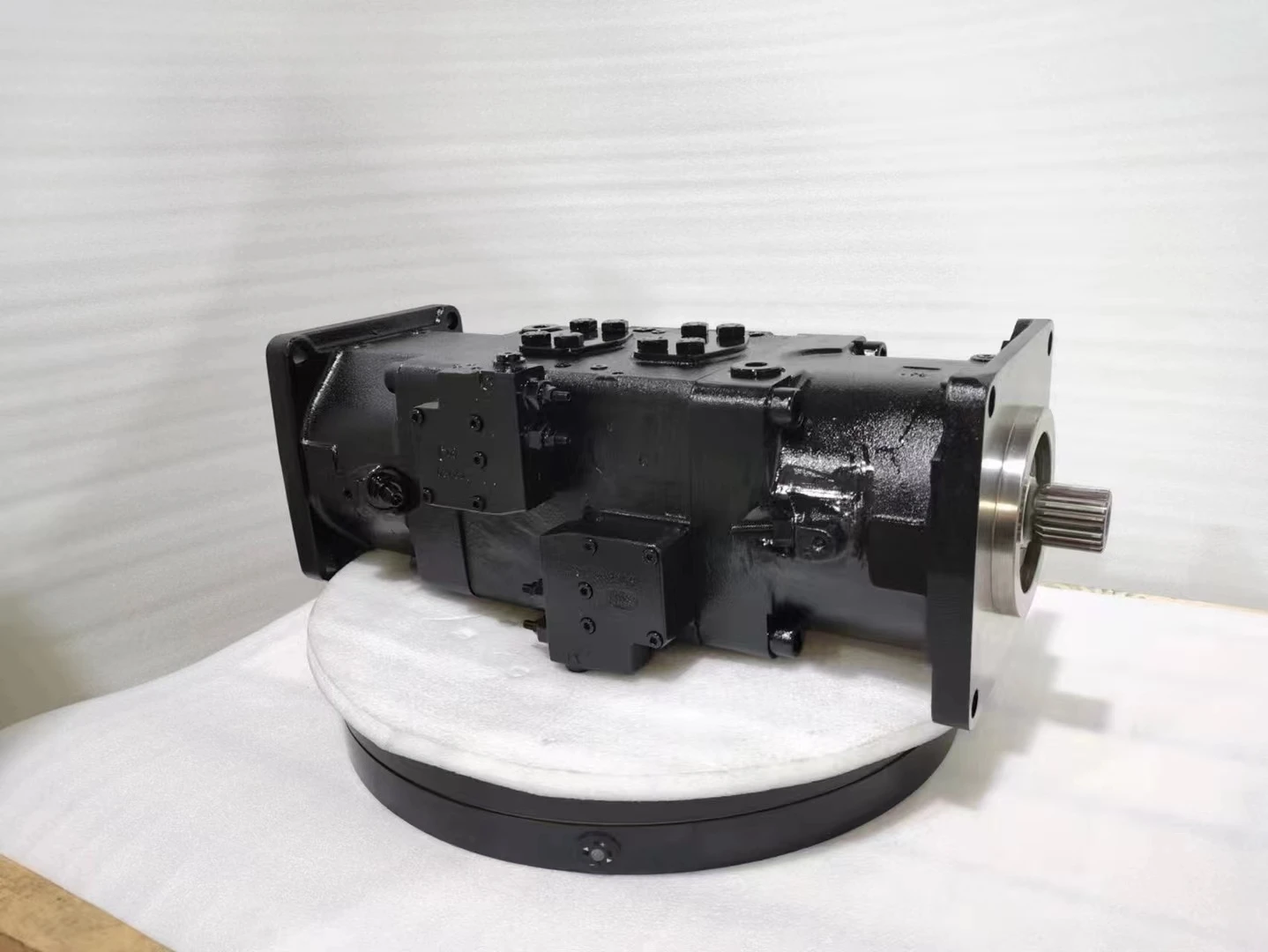

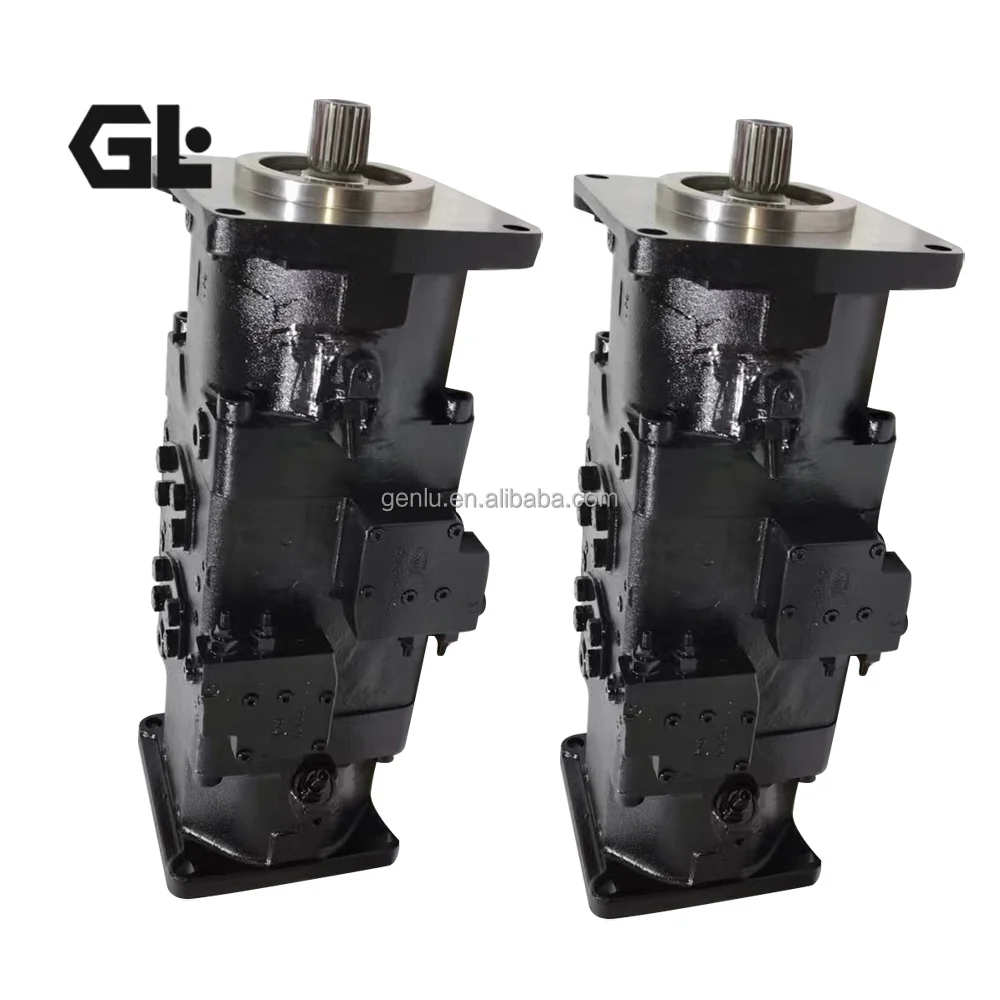

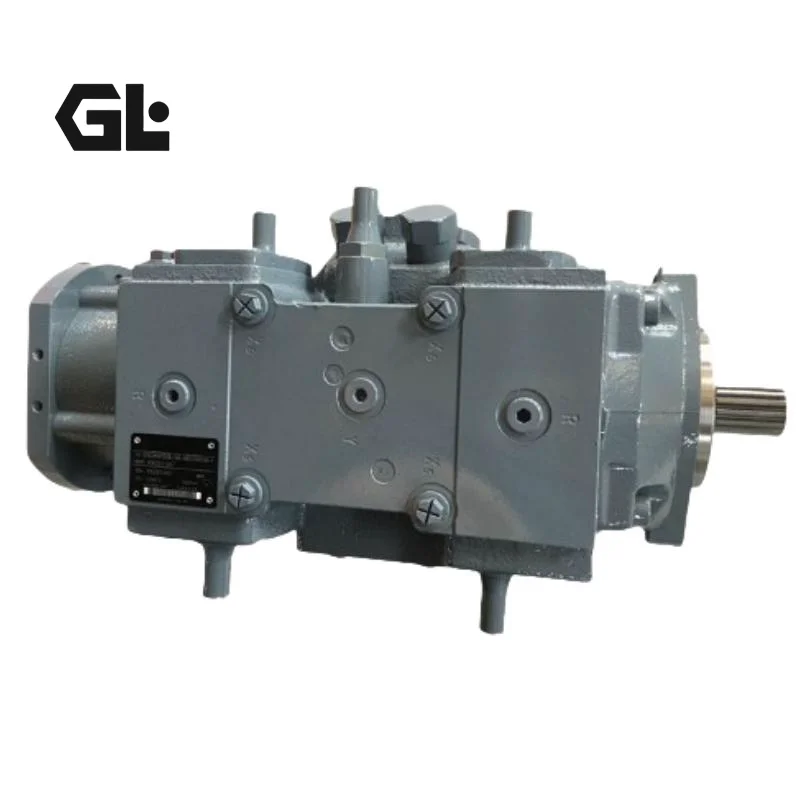

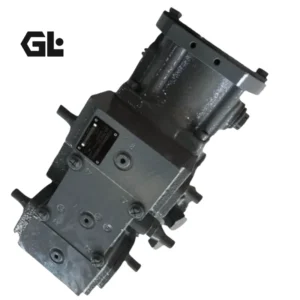

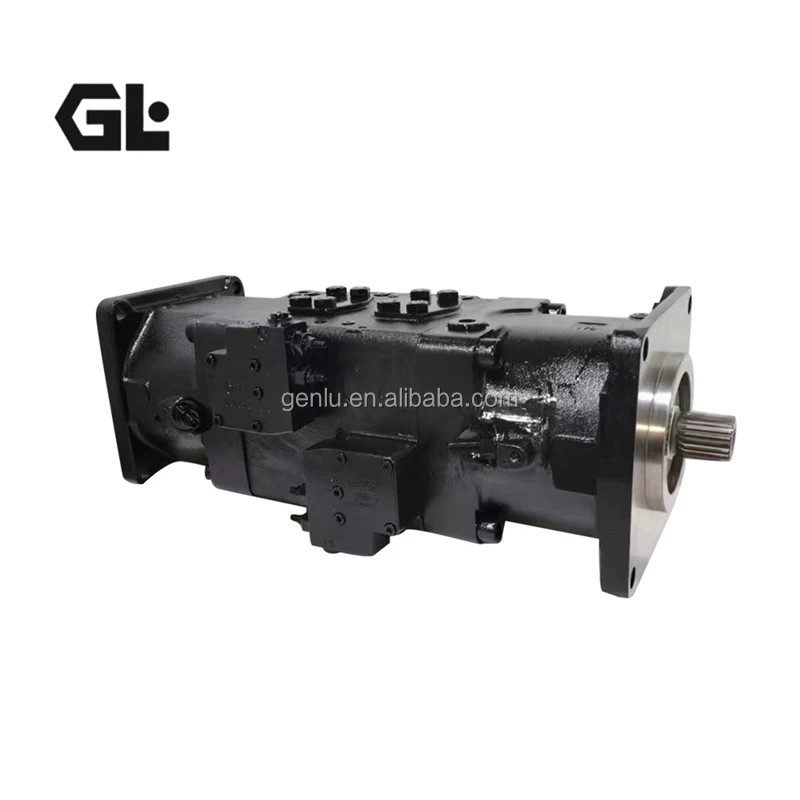

AA20VLO190DR/10L-WXD07N00T-S Rexroth Pump 190cc 350bar

Model Number	R902150737 AA20VLO190DR/10L-WXD07N00T-S

Product Description

Product Overview

The AA20VLO190DR/10L-WXD07N00T-S (Material Number: R902150737) is a member of the Bosch Rexroth A20VLO Series 10 swashplate-type axial piston variable displacement double pump family. With a maximum geometric displacement of 192.7 cm³/rev (nominal 190 cm³/rev) per rotary group, this open-circuit pump is engineered for ultra-heavy mobile and industrial hydraulic systems.

The A20VLO Series represents Rexroth’s flagship double-pump platform for extreme flow and pressure demands, widely deployed in large mining excavators,wheel loaders, heavy presses, and marine deck machinery. Its signature “back-to-back” dual rotary group configuration delivers exceptional power density within a compact housing, with two independent pump groups sharing a common housing and drive shaft to supply separate hydraulic circuits independently.

Engineered as a premium drop-in replacement for Bosch Rexroth original hydraulic pumps, this unit strictly adheres to Rexroth A20VLO Series 10 design standards and manufacturing specifications, ensuring complete interchangeability — mounting flange interfaces, port configurations, and control logic are fully compatible with the original OEM model, requiring zero field modification for direct replacement.

Every unit undergoes 100% simulated duty-cycle testing — full performance curve validation under rated pressure (350 bar), rated speed, and expected operating temperature ranges — guaranteeing volumetric efficiency, response characteristics, and noise levels that meet or exceed Rexroth factory specifications.

Technical Specifications

Model Code: AA20VLO190DR/10L-WXD07N00T-S
Material Number: R902150737
Series: Bosch Rexroth A20VLO Series 10, Swashplate Axial Piston Variable Double Pump
Maximum Geometric Displacement (Vg max): 192.7 cm³/rev (nominal 190 cm³/rev)
Rated Operating Pressure (Continuous): 350 bar (35 MPa)
Peak Pressure (Intermittent): 400 bar (40 MPa)
Maximum Speed (at Vg max): 2500 rpm
Speed Range: 1450–3200 rpm
Control Type: DR — Pressure Control
Design Series: Series 10
Rotation Direction: L — Counterclockwise (CCW)
Shaft Type: As defined by WXD07N00T-S model code segment
Mounting Flange: SAE Standard Flange Mounting
Port Connections: SAE Code 62 Pressure Flange Ports
Circuit Type: Open Circuit
Charge Pump: Integrated (standard on large-displacement models)
Recommended Fluid Cleanliness: ISO 18/16/13 or better
Weight: Approx. 85–90 kg

Key Technical Advantages

1. Back-to-Back Dual Pump Configuration & Superior Power Density

The A20VLO Series features a unique “back-to-back” dual rotary group architecture, with two independent axial piston pump groups sharing a common housing and drive shaft. This design delivers independent dual-circuit hydraulic power within a compact footprint, achieving power density far exceeding single-pump solutions. Thru-drive capability supports tandem mounting of additional gear pumps or a third working pump, significantly simplifying complex hydraulic system layouts.

2. Ultra-High Pressure Capability & Extended Service Life

Rated operating pressure reaches 350 bar (35 MPa) with peak pressure capability of 400 bar (40 MPa). High-tensile nodular cast iron housings and micro-lapped bimetal cylinder barrels, combined with hardened piston-slipper friction pairs, maintain minimal internal deflection and wear rates under continuous high-pressure operation. Large-displacement models include an integrated charge pump as standard, ensuring superior suction performance across all speed and inlet conditions.

3. DR Pressure Control & Precise Pressure Regulation

This model is equipped with DR (Pressure Control) regulation, delivering precise system pressure setting and stable maintenance through an integrated pressure control valve. DR control offers fast response and excellent disturbance rejection, making it ideal for industrial and mobile applications requiring constant working pressure. Rexroth’s mature control platform (per RC 92500 standards) ensures compatibility with a wide range of pilot control valves and predictable regulation performance.

4. Low Noise & Low Pulsation Operation

The nine-piston design, combined with optimized port plate timing, effectively reduces output flow pulsation. Continuous stepless swashplate angle adjustment enables smooth flow transition from zero to maximum, ensuring precise synchronization between actuator speed and operational commands for impact-free operation. The integrated charge pump further improves suction stability, reducing cavitation noise risk.

5. Complete Drop-In Interchangeability & Standardized Interfaces

Strictly reverse-engineered to original Bosch Rexroth A20VLO Series 10 micro-metric factory blueprints. SAE Code 62 pressure flange ports, SAE standard mounting interfaces, and common suction porting align flawlessly with original factory configurations. Field replacement requires zero piping modifications or control logic changes, dramatically minimizing equipment downtime.

Application Areas

Ultra-Large Mining Hydraulic Excavators — Caterpillar 336, Volvo EC950E
Wheel Loaders — Doosan DL550
Large Mining Dump Trucks — Komatsu HD785
Heavy Hydraulic Presses & Forging Equipment
Marine Deck Machinery & Winches
Steel Mill Continuous Casting Lines
Large Road Construction Machinery — Wirtgen Series
Large Concrete Pump Trucks — KCP Series

Expert Maintenance Tips

1. Case Fill & Air Bleeding Before Start-up

Prior to first start-up, fill the pump housing with clean hydraulic fluid through the highest case drain port to ensure complete pre-lubrication of all bearings and rotating components. For the “10L” (counterclockwise rotation) configuration. Use full-flow return filters with minimum 10μm absolute rating (β₁₀≥100) and conduct regular fluid sampling analysis (recommended every 500 operating hours).

3. DR Pressure Control Setting & Calibration

DR pressure control valve settings should be adjusted after the pump reaches operating temperature and the system is fully purged. Use a pressure gauge with accuracy class 1.6 or better for setting verification. Rotate the adjustment screw slowly to avoid pressure overshoot. For remote pressure control applications, configure external pilot supply per Rexroth standard specifications.

4. Viscosity & Temperature Monitoring

Ensure operating fluid viscosity remains within the recommended range (typically 10-100 cSt). Cold starts with transient high viscosity are permissible, but full load should only be applied after fluid temperature reaches normal operating range (recommended minimum -20°C). Install continuous oil temperature monitoring equipment.

5. Scheduled Inspection & Seal Replacement

Perform comprehensive performance testing every 2000 operating hours or annually (whichever comes first), including volumetric efficiency testing, DR control response time verification, and case drain leakage assessment. Always use genuine Rexroth service kits (material numbers beginning with R909/R910/R902) when replacing seals. Pay particular attention to the seal and shaft configurations corresponding to the WXD07N00T-S model code segment to ensure accurate service kit selection.
