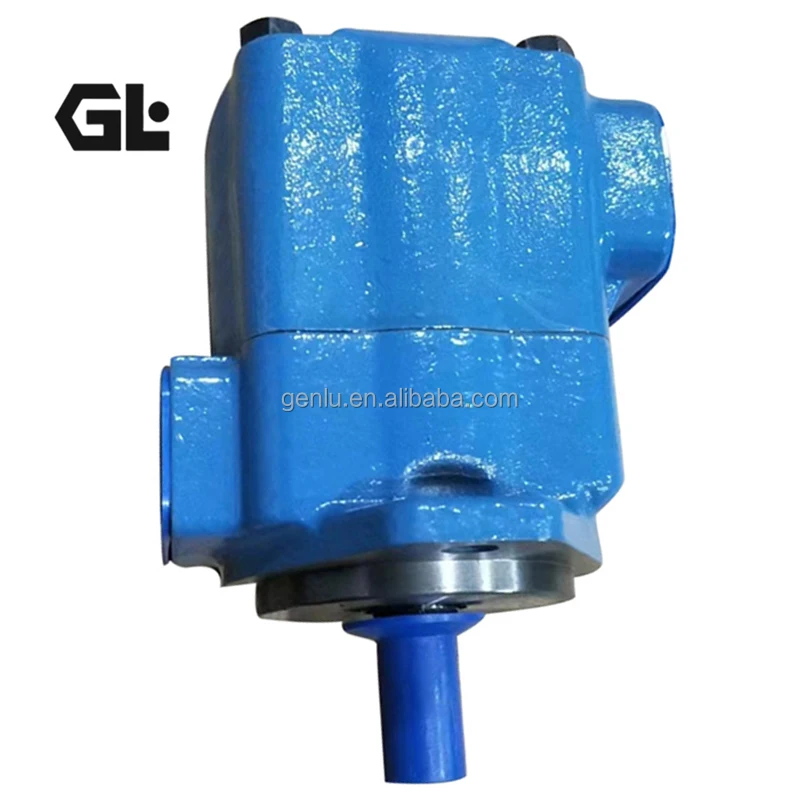

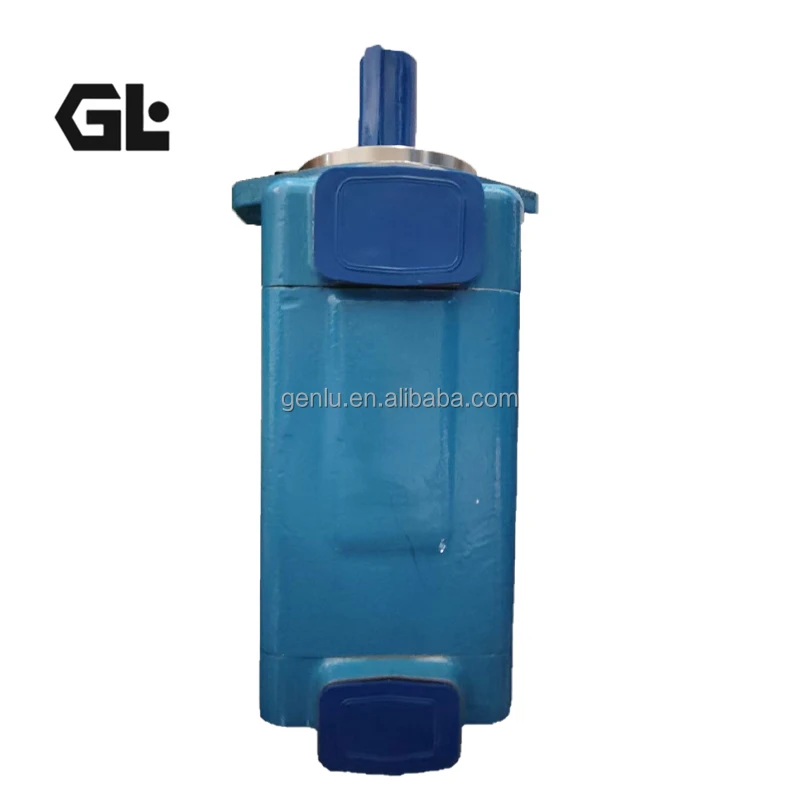

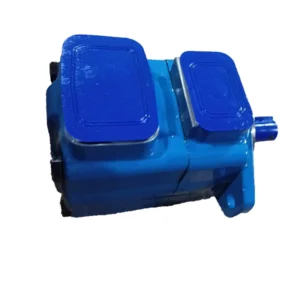

45V50A-1A-22R Vickers 45V Hydraulic Vane Pump 162cc 172bar

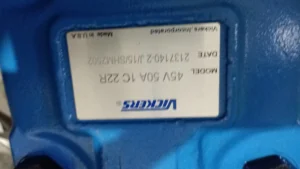

| Model Number | 45V50A 1C22R, 45V60A-1A-22R, 45V50A-1C-22R, 45V50A-1A-22R, 45V50A-1B-22R |
|---|
Product Description
Product Overview
The 45V / 35V / 25V series are Eaton Vickers (now Danfoss) V Series fixed-displacement single vane pumps designed for industrial hydraulic systems. These units are precision direct interchanges for original Vickers 45V models including 45V50A-1A-22R, 45V50A-1B-22R, 45V50A-1C-22R and 45V60A-1A-22R. Featuring a balanced vane design and precision-machined cartridge, they deliver high volumetric efficiency and low noise. Every pump undergoes 100% simulated duty-cycle testing to guarantee exact match of mounting flanges, shaft ends, port locations and performance curves.
Technical Specifications
- Models: 45V50A-1A-22R / 45V50A-1B-22R / 45V50A-1C-22R / 45V60A-1A-22R (and 25V / 35V / 45V range)
- Geometric displacement: Code 50 = 162 cm³/r (9.85 in³/r); Code 60 = 193 cm³/r (11.75 in³/r)
- Continuous rated pressure: 172 bar (2500 psi)
- Peak pressure: approximately 190–207 bar depending on conditions
- Maximum speed: 1800 r/min
- Minimum recommended speed: approx. 600 r/min
- Control type: Fixed displacement (no variable control); straight-keyed (code 1) or splined shaft options; configurable port positions (A/B/C/D relative to inlet)
- Approximate weight: 34–38 kg
- Ports: Standard SAE 4-bolt flange
- Seals: Standard or Viton (F3) optional
- Mounting flange: Standard SAE C
Key Technical Advantages
- Balanced vane and floating side-plate design: Hydraulic balancing reduces vane wear against the cam ring; floating plates automatically compensate clearance for high volumetric efficiency and low internal leakage.
- Precision machining for true interchangeability: Rotor, cam ring and side plates match original Vickers tolerances, mounting dimensions, shaft ends and port orientations exactly—direct drop-in replacement.
- Low noise and long-life bearings: Optimized flow paths and vane configuration minimize ripple and noise; quality bearings and seals support continuous industrial duty.
- High-reliability cartridge construction: Balanced vane design supports medium-to-high pressure continuous operation with easy field serviceability.
- 100% simulated operating-condition testing: Full pressure, flow, leakage and noise verification ensures consistency with OEM performance curves.
Application Areas
Injection molding machines, die-casting machines, machine-tool hydraulic systems, presses, steel and metallurgical equipment, port machinery, industrial power units and fixed medium-to-high-pressure hydraulic systems.
Expert Maintenance Tips
Ensure precise shaft alignment during installation to avoid excessive radial or axial loads. Maintain inlet pressure between 0 and 0.35 bar to prevent cavitation. Use anti-wear hydraulic oil (ISO VG 32–68 recommended); target system cleanliness of ISO 18/16/13 or better. Fully bleed air before initial start-up and monitor temperature and leakage during break-in. Cartridge kits can be replaced without removing the pump body. Periodically inspect shaft seals and bearings; never allow dry running.
