XKBF-01292 Hyundai Overload Relief Valve Excavator

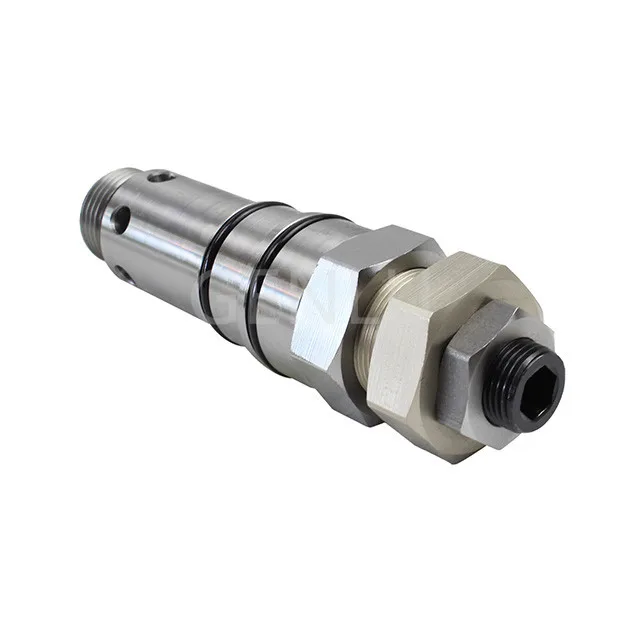

Product Overview

The XKBF-01292 is identified in Hyundai excavator parts records as a Relief Valve-Overload, also described as an Overload Valve / Port Relief Valve. Korean Hyundai parts documentation maps XKBF-01292 / 31N8-17430 to an overload-valve application.

Unlike a main system relief valve, an overload or port relief valve is intended to protect an individual working-function circuit from excessive pressure caused by shock loading, external forces or rapid load changes.

This distinction is important in excavator hydraulic systems. Hyundai’s published R210LC-9 specifications list an implement-circuit pressure of 350 kgf/cm², while the R290LC-9 hydraulic specifications identify a 350 kgf/cm² main relief pressure and port relief settings reaching 400 kgf/cm² for specific functions. These figures describe the machine hydraulic system and should not be presented as an independently certified XKBF-01292 valve rating.

For replacement applications, the recommended engineering approach is to verify:

Part Number → Machine Model → Serial Number → Hydraulic Valve Configuration

Our replacement units can be subjected to 100% simulated working-condition testing to verify pressure response, leakage, repeatability and cycling stability before shipment.

Technical Specifications

XKBF-01292

• Model / Part Number: XKBF-01292
• Alternate Number: XKBF01292
• Part Description: Relief Valve-Overload
• Valve Type: Hydraulic overload / port relief valve
• Application: Hyundai excavator hydraulic system
• Typical Installation: Main Control Valve / working-function circuit
• Associated Models: R210LC-9, R250LC-9, R290LC-9 and other documented Hyundai excavator models.
• Control Principle: Hydraulic pressure actuated
• Displacement: Not applicable
• Rated Speed: Not applicable
• Exact Valve Pressure Rating: Not independently verified from a publicly accessible Hyundai OEM datasheet for XKBF-01292
• Exact Valve Flow Rating: Not independently verified from a publicly accessible Hyundai OEM datasheet
• Exact Cracking Pressure: Not independently verified from a publicly accessible Hyundai OEM datasheet
• Exact Weight: Not independently verified from Hyundai OEM public documentation
• R210LC-9 Implement Circuit Reference: 350 kgf/cm² ≈ 34.3 MPa / 4,978 psi.
• R290LC-9 Main Relief Reference: 350 kgf/cm² ≈ 34.3 MPa / 4,980 psi.
• R290LC-9 Documented Port Relief Reference: up to 400 kgf/cm² ≈ 39.2 MPa / 5,690 psi for selected functions.

Key Technical Advantages

Overload Protection for Working Circuits

The primary engineering role of XKBF-01292 is local overload protection. It helps prevent excessive pressure in a working-function circuit when an excavator attachment experiences impact or abnormal external loading.

Different Protection Level from Main Relief Control

Hyundai’s R290LC-9 hydraulic architecture demonstrates the distinction between main relief pressure and port relief pressure. The main relief is documented at 350 kgf/cm², while selected port relief settings can reach 400 kgf/cm².

This makes the overload valve part of a layered pressure-protection strategy rather than a replacement for the main system relief valve.

Suitable for High-Pressure Excavator Hydraulics

The R210LC-9 uses an implement-circuit pressure of 350 kgf/cm², while its twin main pumps provide 2 × 222 L/min. The R290LC-9 increases rated main-pump flow to 2 × 252 L/min, illustrating the high-flow hydraulic environment in which this component operates.

Direct Part-Number Replacement

The clearly identified Hyundai part number XKBF-01292 simplifies replacement sourcing compared with selecting a generic relief valve based only on thread size or visual appearance.

High Cycling Reliability Requirements

Excavators continuously cycle through pressure build-up, relief events and pressure decay. Correct valve-seat geometry, spring characteristics, sealing performance and contamination control are therefore essential for reliable operation.

Application-Specific Compatibility

The valve is associated with multiple Hyundai excavator models, but exact compatibility should still be confirmed against machine serial number and hydraulic-valve configuration because Hyundai parts catalogs may use different components for different production ranges.

Application Areas

Typical applications include:

• Hyundai R210LC-9 excavators
• Hyundai R250LC-9 excavators
• Hyundai R290LC-9 excavators
• Boom hydraulic circuits
• Arm hydraulic circuits
• Bucket hydraulic circuits
• Working-cylinder overload protection
• Main control valve port protection
• Excavator attachment hydraulic circuits
• Shock-load pressure protection

Additional models documented in aftermarket parts records include HW140, HX140 L, HX160 L, R210W-9S, R220LC-9S, R260LC-9S, R290LC-9MH, R300LC-9A and R330LC-9S. These should be treated as fitment references requiring serial-number verification, not as universal interchangeability claims.

Expert Maintenance Tips

Confirm XKBF-01292 Versus Main Relief Valve

Hyundai parts documentation separately identifies XKBF-01291 as a main relief valve and XKBF-01292 as a relief valve-overload. These functions should not be confused during repair.

Verify the Machine Serial Number

Production changes can affect the main control valve and relief-valve part numbers. Therefore, machine model alone is not always enough for a reliable replacement decision.

Do Not Copy Machine-System Pressure into the Valve Datasheet

The 350 kgf/cm² and 400 kgf/cm² figures found in Hyundai machine documentation describe specific hydraulic circuits or port-relief settings. They should not be presented as the certified pressure rating of XKBF-01292 without an OEM valve-specific datasheet.

Inspect the Valve Seat and Spring

Pressure drift, premature relief, slow actuator movement or abnormal oil temperature can indicate contamination, seat wear, spring deterioration or spool/poppet sticking.

Maintain Hydraulic Cleanliness

Before installing a replacement valve, clean the cavity and inspect O-rings, sealing surfaces and hydraulic oil condition. Contamination can prevent correct valve seating and produce unstable pressure behavior.

Perform Functional Pressure Testing

After installation, verify static pressure holding, relief response, internal leakage, external leakage and repeated pressure cycling rather than checking only whether the excavator functions.

Use 100% Simulated Working-Condition Testing

For aftermarket replacement XKBF-01292 units, an effective validation program should reproduce representative excavator hydraulic conditions and evaluate:

• Relief opening response
• Pressure stability
• Internal leakage
• External sealing
• Repeated-cycle consistency
• Thermal behavior

This provides a stronger basis for in-place interchangeability than dimensional inspection alone.
