Product Overview
The SA-02-124515, SA-02-124654, and SA-02-124586 are core models in the Eaton Vickers (now Danfoss Power Solutions) SA series of hydraulic solenoid coils, widely compatible with Eaton Vickers DG4V series solenoid directional valves and other solenoid valves. The SA series is an integral component of Eaton Vickers hydraulic valve systems, renowned globally for its industrial-grade protection, reliable electromagnetic performance, and convenient interchangeability.

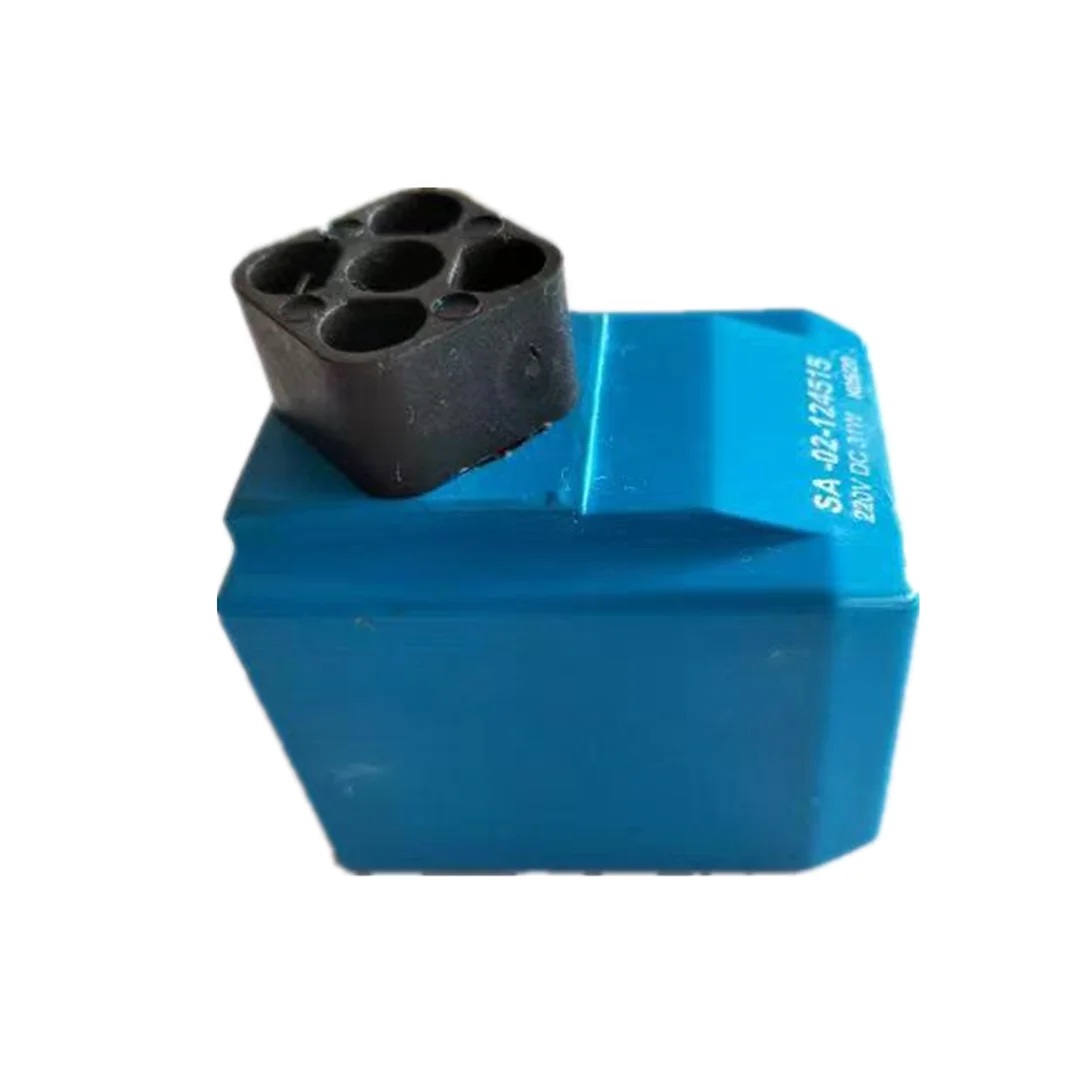

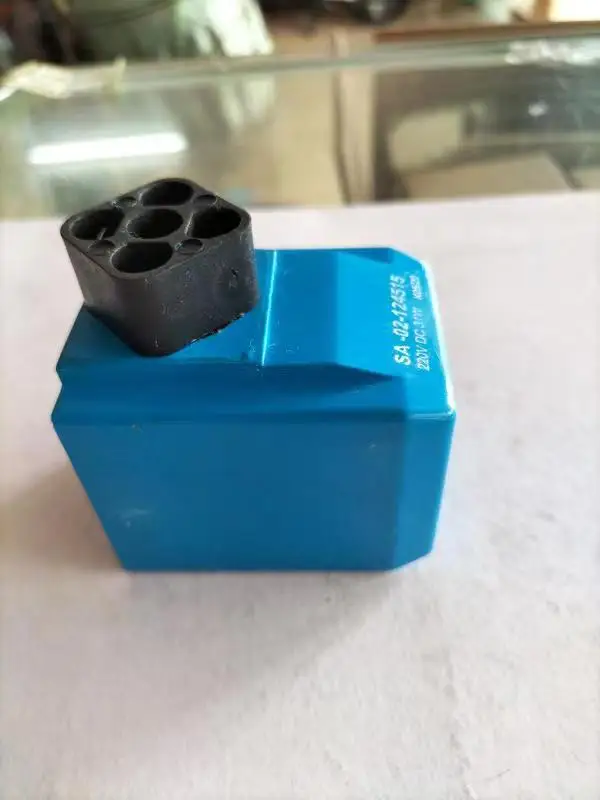

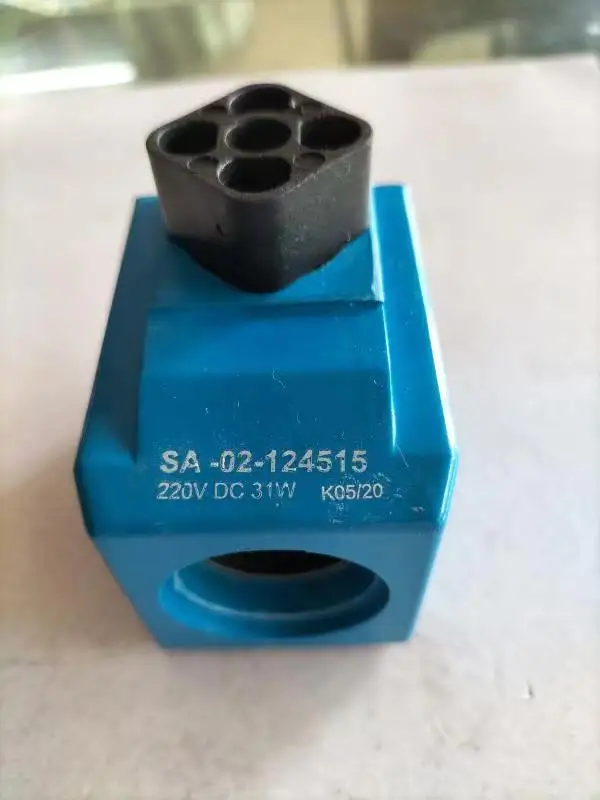

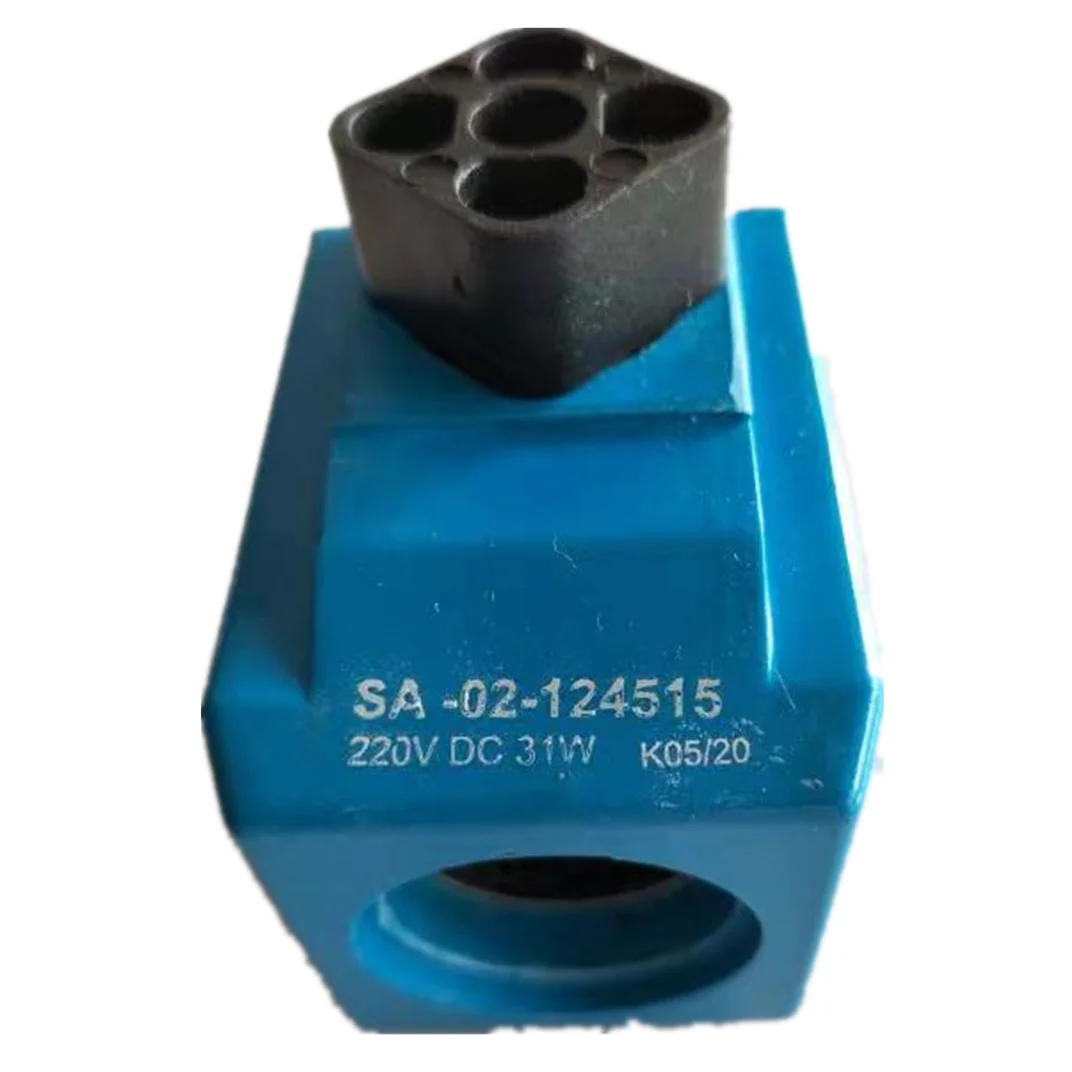

SA-02-124515:
The SA-02-124515 is an Eaton Vickers SA series standard solenoid coil, designed for DG4V-3-60 series solenoid directional valves. It features a DIN U-type electrical connector, operates on 220V DC with 31W power consumption. The coil is constructed with high-quality materials for industrial-grade protection.
SA-02-124654:
The SA-02-124654 is an Eaton Vickers SA series encapsulated solenoid coil. It features a BS-type electrical connectorand operates on 120V 60Hz. The encapsulated design provides superior moisture, dust, and corrosion resistance for demanding industrial environments.
SA-02-124586:
The SA-02-124586 is an Eaton Vickers SA series solenoid coil, compatible with Eaton Vickers DG4V series solenoid directional valves. Specific voltage and power specifications may vary by batch—verify nameplate markings before installation.
SA series coils incorporate wet-armature solenoid design principles—moving parts operate submerged in hydraulic oil, providing lubrication and cushioning for quiet, long-life, and highly reliable operation.
As original Eaton Vickers solenoid coils, these products offer complete interchangeability within the same series and size, requiring no modifications to valve mounting interfaces or electrical connections.
Technical Specifications
SA-02-124515 Specifications:
Model: SA-02-124515
Brand: EATON VICKERS / DANFOSS POWER SOLUTIONS
Series: SA Series
Product Type: Hydraulic Solenoid Coil
Voltage: 220V DC
Power: 31 W
Connector Type: DIN U-type
Compatible Valves: DG4V-3-60 Series
Material: Cast Iron
Medium: Hydraulic Oil
Temperature Range: 30–90°C
Nominal Pressure: 25 MPa
Weight: Approx. 1 kg
Manufacturer P/N: 02-124515
SA-02-124654 Specifications:
Model: SA-02-124654
Brand: EATON VICKERS
Series: SA Series
Product Type: Encapsulated Solenoid Coil
Voltage: 120V 60Hz
Connector Type: BS-type
Compatible Valves: DG4V Series
Manufacturer P/N: 02-124654
SA-02-124586 Specifications:
Model: SA-02-124586
Brand: EATON VICKERS
Series: SA Series
Product Type: Hydraulic Solenoid Coil
Compatible Valves: DG4V Series
Manufacturer P/N: 02-124586
Note: Specific voltage and power ratings—verify nameplate markings before installation.
Key Technical Advantages
1. OEM Compatibility with Eaton Vickers Valve Series
SA-02-124515 is specifically designed for DG4V-3-60 series solenoid directional valves. SA-02-124654 and SA-02-124586 are compatible with DG4V series solenoid directional valves. As original Eaton Vickers coils, they deliver optimal electromagnetic matching for reliable spool actuation and fast response.
2. Multiple Voltage and Connector Options for Flexible Adaptation
SA series coils cover multiple voltage options including DC 220V and AC 120V, with DIN U-type and BS-type connector options. The extensive configuration options flexibly accommodate different control systems and installation requirements.
3. Industrial-Grade Protection and Durability
SA-02-124515 features cast iron constructionwith an operating temperature range of 30–90°C. SA-02-124654 features encapsulated design for superior moisture, dust, and corrosion resistance. Suitable for demanding industrial and mobile equipment applications.
4. Standardized Connectors for Global Compatibility
DIN and BS standardized electrical connectors ensure compatibility with the vast majority of hydraulic valve products worldwide. The standardized interface makes coil replacement and maintenance exceptionally convenient, requiring no special tools or modifications.
5. Continuous Duty Rating for Long Service Life
SA series coils are designed for continuous duty operation, supporting 24/7 uninterrupted performance. Interchangeable coil design significantly enhances field serviceability.
6. Comprehensive Model Coverage and Interchangeability
The SA series covers multiple voltage, power, and connector configurations. As original Eaton Vickers coils, same-series, same-specification products are directly interchangeable without valve interface modifications.
Application Areas
Injection Molding Machinery — Solenoid coil replacement and maintenance for injection molding machine hydraulic systems
CNC Machine Tools — Solenoid valve actuation for machine tool hydraulic systems
Hydraulic Presses and Forging Equipment — Coil replacement for press directional control valves
Industrial Automation Production Lines — Solenoid coil spares for diverse industrial hydraulic systems
Die-Casting Machines — Solenoid valve actuation for high-pressure casting equipment
Eaton Vickers DG4V Series Valve Replacement — Direct replacement of original coils
Expert Maintenance Tips
1. Installation Guidelines
Verify coil model matches the valve body before installation: SA-02-124515 fits DG4V-3-60 series; other models fit DG4V series solenoid directional valves.
Clean the valve mounting surface and coil interface before installation to prevent foreign particles from affecting solenoid engagement.
Tighten coil nuts to manufacturer-recommended torque values—avoid over-tightening that may damage threads or under-tightening that may cause poor contact.
2. Electrical Connection Specifications
SA-02-124515 uses 220V DC supply; SA-02-124654 uses 120V 60Hz supply. Verify supply voltage matches coil rated voltage before connection.
Connector types: DIN U-type and BS-type. Ensure the connector is fully locked to achieve protection class.
Prolonged operation outside rated voltage range may shorten coil life.
3. Temperature Management
SA-02-124515 operating temperature range: 30–90°C. Ensure adequate heat dissipation around the valve body and coil in high-temperature environments.
Working medium: Hydraulic oil; nominal pressure: 25 MPa.
4. Periodic Maintenance Inspection
Inspect coil housing for cracks, discoloration, or overheating signs every 2,000 operating hours or at least annually.
Check electrical connectors for looseness, oxidation, or moisture ingress.
If valve response lag or reduced solenoid force is observed, first verify supply voltage is within rated range, then check coil resistance (open or short circuits require replacement).
Coils can be replaced without disturbing hydraulic connections—service directly on the valve body.
SA series coils follow Eaton Vickers’ unified interchangeability standards—same-series, same-specification coils are directly interchangeable.
