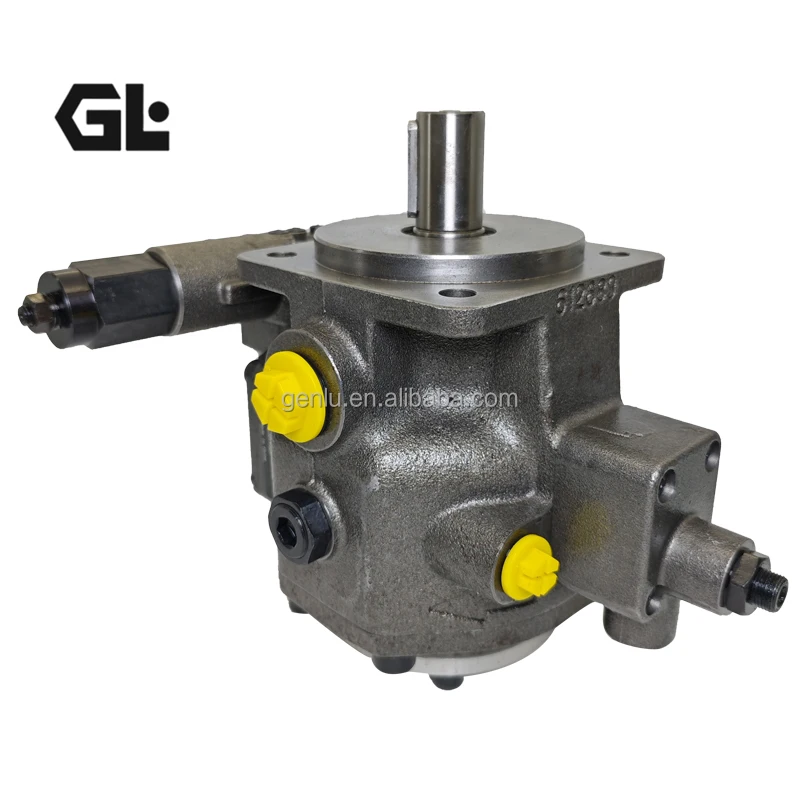

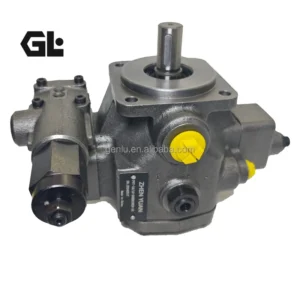

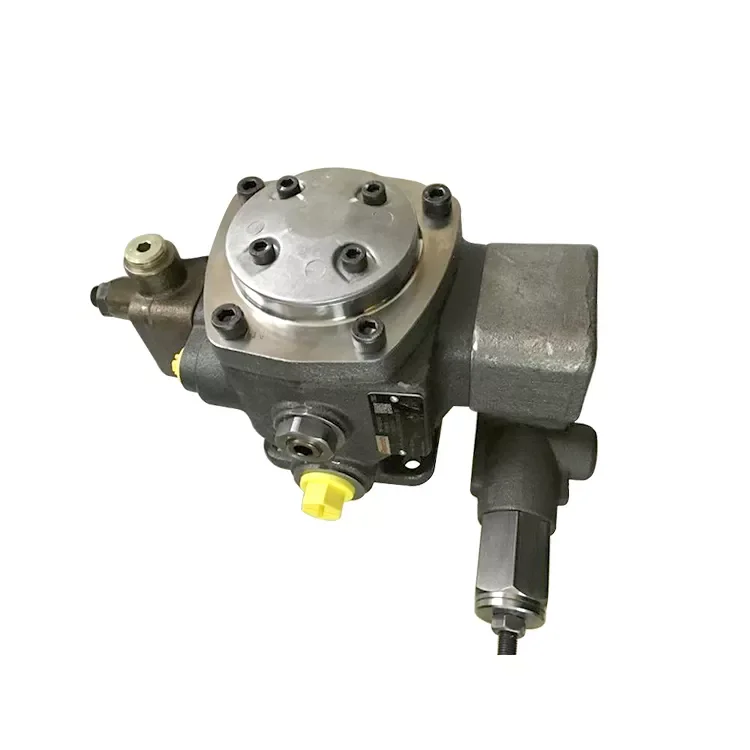

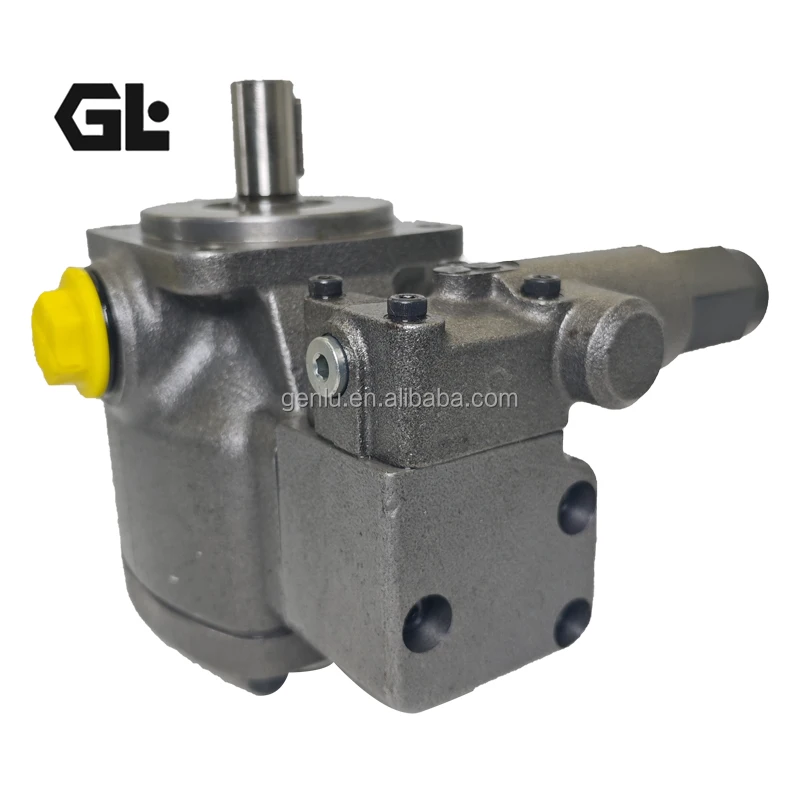

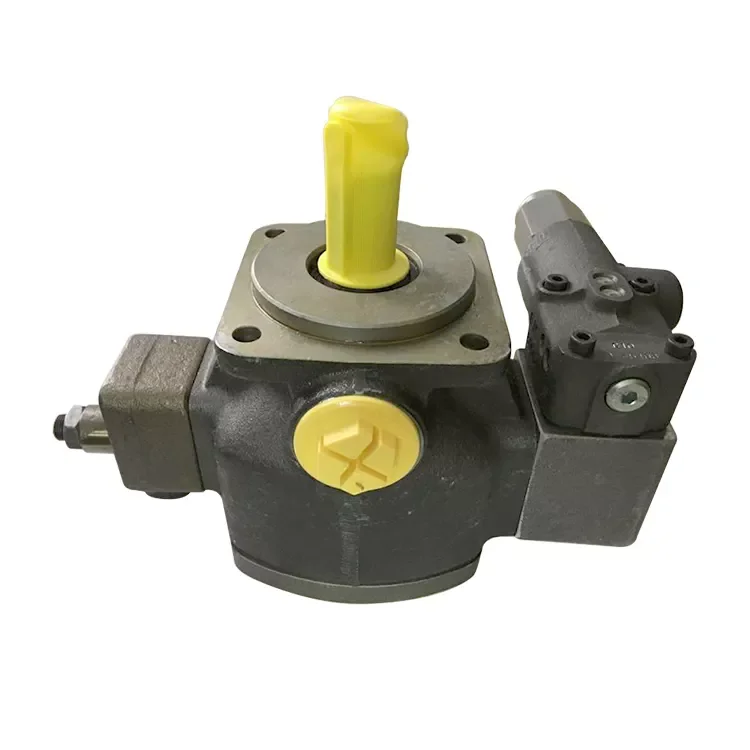

PV7-1X/10-14RE01MC0-16 Rexroth Vane Pump 160bar

Model Number	PV7-1X/63-71RE07MC0-16, PV7-1A/16-20RE-01MC016, PV7 -1X/10-14RE01MC0-16

SKU N/A Categories Hydraulic Pump, Vane Pump

Product Description

Product Overview

This page covers three representative models from the Bosch Rexroth PV7 Series of pilot-operated variable displacement vane pumps across different frame sizes: the PV7-1X/10-14RE01MC0-16 (Frame BG10, displacement 14 cm³/rev), the PV7-1A/16-20RE01MC0-16 (Frame BG16, displacement 20 cm³/rev), and the PV7-1X/63-71RE07MC0-16 (Frame BG63, displacement 71 cm³/rev). The PV7 series is Rexroth’s core variable displacement vane pump product line designed for industrial open-circuit applications, featuring a single-acting variable displacement design that achieves stepless displacement adjustment through eccentricity variation between a circular floating stator ring and the rotor. Combined with a pilot-operated pressure controller, it delivers precise pressure compensation and flow-adaptive functionality — serving as a core power element for energy-efficient industrial hydraulic systems.

Manufactured to exact Bosch Rexroth dimensional and performance specifications, the core assembly consists of a cast iron housing, driven rotor, vanes, floating stator ring, pilot-operated pressure controller, and height adjustment screw. All critical dimensions are identical to the original unit. Mounting and connection dimensions fully comply with VDMA 24560/1 and ISO 3019-2 standards, ensuring 100% drop-in interchangeability with the genuine Rexroth product — allowing direct replacement without modifying the mounting base or piping connections. Every pump undergoes comprehensive simulated duty-cycle testing prior to shipment — validating displacement accuracy, pressure control repeatability, volumetric efficiency, pressure ripple, and noise levels — ensuring performance that fully matches OEM standards.

Technical Specifications

Model 1: PV7-1X/10-14RE01MC0-16

Product Series: Bosch Rexroth PV7 Series Pilot-Operated Variable Vane Pump
Control Type: PV7…C (Standard Pressure Controller)
Component Series: 1X (Series 10–19: unchanged installation and connection dimensions)
Frame Size (BG): 10
Size: 14 cm³/rev
Maximum Operating Pressure: 160 bar
Maximum Geometric Displacement: 14 cm³/rev
Maximum Flow (@1450 rpm, 10 bar): 21 L/min
Leakage Flow at Zero Stroke (@Pmax): 2.7 L/min
Input Power (@1450 rpm, Pmax): 6.3 kW
Permissible Input Torque: 90 Nm
Drive Speed Range: 900 ~ 1,800 rpm
Volumetric Efficiency: Up to 92% (axial compensation displacer)
Direction of Rotation: Clockwise (viewed from shaft end)
Housing Material: Cast Iron
Seal Material: NBR (Nitrile Rubber)
Shaft Type: Cylindrical shaft, diameter 20 mm, with keyway
Mounting Flange: 4-bolt flange 80B4HW
Suction Port Connection: G1 pipe thread
Pressure Port Connection: G1/2 pipe thread
Drain Port Connection: G1/4 pipe thread
Through-Drive: Supported
Weight: Approx. 12.1 ~ 12.5 kg
Viscosity Range: 16 ~ 160 mm²/s
Fluid Temperature Range: -10°C ~ +70°C

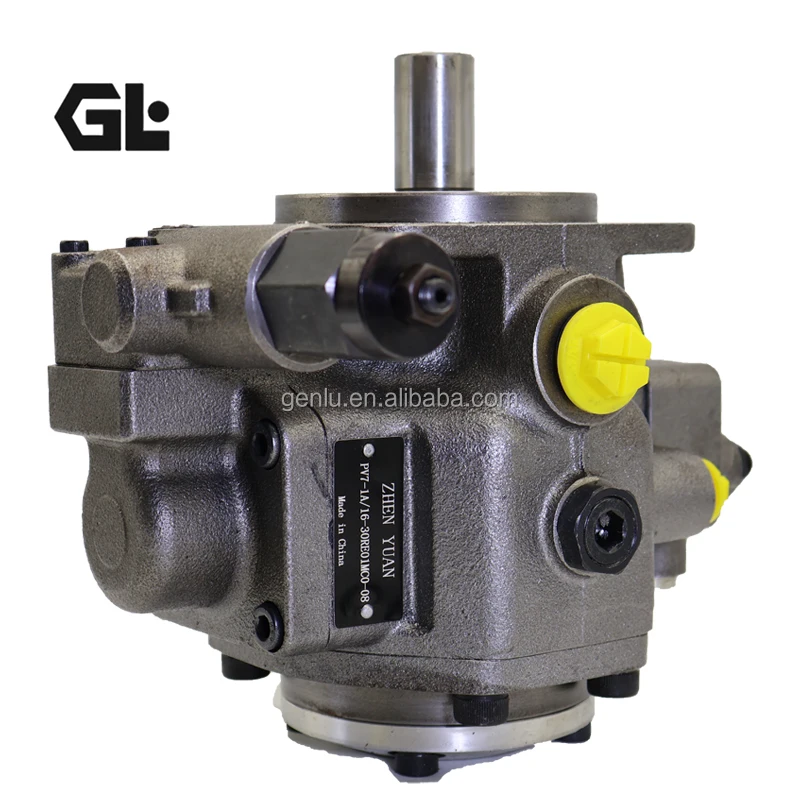

Model 2: PV7-1A/16-20RE01MC0-16

Product Series: Bosch Rexroth PV7 Series Pilot-Operated Variable Vane Pump
Control Type: PV7…C (Standard Pressure Controller)
Component Series: 1A (Series 20–29: unchanged installation and connection dimensions)
Frame Size (BG): 16
Size: 20 cm³/rev
Maximum Operating Pressure: 160 bar
Maximum Geometric Displacement: 20 cm³/rev
Maximum Flow (@1450 rpm, 10 bar): 29 L/min
Leakage Flow at Zero Stroke (@Pmax): 3.5 L/min
Input Power (@1450 rpm, Pmax): 8.5 kW
Permissible Input Torque: 100 Nm
Drive Speed Range: 900 ~ 1,800 rpm
Volumetric Efficiency: Up to 92%
Direction of Rotation: Clockwise (viewed from shaft end)
Housing Material: Cast Iron
Seal Material: NBR (Nitrile Rubber)
Shaft Type: Cylindrical shaft, diameter 25 mm, with keyway
Mounting Flange: 4-bolt flange 100B4HW
Suction Port Connection: G1¼ pipe thread
Pressure Port Connection: G3/4 pipe thread
Drain Port Connection: G1/4 pipe thread
Through-Drive: Supported
Weight: Approx. 16.5 kg
Viscosity Range: 16 ~ 160 mm²/s
Fluid Temperature Range: -10°C ~ +70°C

Model 3: PV7-1X/63-71RE07MC0-16

Product Series: Bosch Rexroth PV7 Series Pilot-Operated Variable Vane Pump
Control Type: PV7…C (Standard Pressure Controller)
Component Series: 1X
Frame Size (BG): 63
Size: 71 cm³/rev
Maximum Operating Pressure: 160 bar
Maximum Geometric Displacement: 71 cm³/rev
Maximum Flow (@1450 rpm, 10 bar): 95 L/min
Leakage Flow at Zero Stroke (@Pmax): 9.5 L/min
Input Power (@1450 rpm, Pmax): 27 kW
Permissible Input Torque: 250 Nm
Drive Speed Range: 900 ~ 1,500 rpm
Volumetric Efficiency: Up to 92%
Direction of Rotation: Clockwise (viewed from shaft end)
Housing Material: Cast Iron
Seal Material: NBR (Nitrile Rubber)
Shaft Type: Cylindrical shaft with keyway
Mounting Flange: 4-bolt flange
Suction Port Connection: G2 pipe thread (RE07 configuration)
Pressure Port Connection: SAE Flange (RE07 configuration)
Drain Port Connection: G3/8 pipe thread
Through-Drive: Supported
Weight: Approx. 55 kg
Viscosity Range: 16 ~ 160 mm²/s
Fluid Temperature Range: -10°C ~ +70°C

Model Code Decoding:

PV7-1X/10-14RE01MC0-16:

PV7 = Series Designation (Pilot-Operated Variable Vane Pump)
1X = Component Series (10 to 19: unchanged installation and connection dimensions)
10 = Frame Size (BG 10)
14 = Size Code (Maximum Geometric Displacement 14 cm³/rev)
RE01 = Controller Type (E = Pressure Controller; 01 = FS10/16/25 standard: pipe thread suction and pressure ports)
M = Seal Material (M = NBR Nitrile Rubber)
C0 = Port Connection (C = Pipe Thread; 0 = Standard Configuration)
16 = Zero Stroke Pressure Setting Range Code (up to 160 bar)

PV7-1A/16-20RE01MC0-16:

PV7 = Series Designation
1A = Component Series (20 to 29: unchanged installation and connection dimensions)
16 = Frame Size (BG 16)
20 = Size Code (Maximum Geometric Displacement 20 cm³/rev)
RE01 = Controller Type (E = Pressure Controller; 01 = Standard Configuration)
M = Seal Material (M = NBR)
C0 = Port Connection (C = Pipe Thread)
16 = Pressure Setting Range Code

PV7-1X/63-71RE07MC0-16:

PV7 = Series Designation
1X = Component Series
63 = Frame Size (BG 63)
71 = Size Code (Maximum Geometric Displacement 71 cm³/rev)
RE07 = Controller Type (E = Pressure Controller; 07 = FS63-specific: pipe thread suction, SAE flange pressure port)
M = Seal Material (M = NBR)
C0 = Port Connection (C = Pipe Thread/SAE Flange mixed; 0 = Standard Configuration)
16 = Pressure Setting Range Code

Key Technical Advantages

Pilot-Operated Pressure Control with Ultra-Low Hysteresis
The PV7 series employs a precision pilot-operated pressure controller mechanism, where a small reciprocating control piston (10) and a large reciprocating control piston (11) work in coordination. When system pressure reaches the set value, the regulator spool (14) shifts against the spring force, connecting the chamber behind the large actuating piston to the tank for unloading. The small actuating piston (10), continuously pressurized by system pressure, moves the stator ring (4) nearly to the central position, maintaining pressure while flow drops to near zero — only compensating for leakage. This pilot control mechanism produces a vertical qV-p characteristic curve that shifts in parallel at different pressure settings, delivering extremely low hysteresis, exceptional repeatability accuracy, and minimal pressure fluctuation. Very short on-stroke and off-stroke control times (millisecond-level response) make it ideal for frequent start/stop and precision control scenarios. When combined with proportional valves, closed-loop control accuracy within ±1% is achievable.

Hydrodynamically Lubricated Plain Bearings
The PV7 series features hydrodynamically lubricated plain bearing design, where a complete oil film forms between bearing surfaces during operation, preventing direct metal-to-metal contact. This design fundamentally eliminates the fatigue failure mode inherent in traditional rolling element bearings under alternating loads, extending bearing life by 2 to 3 times compared to conventional designs while significantly reducing operational noise. The bearing’s high reliability provides extremely long maintenance-free intervals in continuous duty applications such as machine tool power units and constant pressure systems.

Axial Compensation Displacer with High Volumetric Efficiency
The PV7 series displacer employs axial compensation technology that automatically maintains optimal face clearance during operation. Even under high-pressure conditions, the displacer maintains intimate contact with the rotor face, effectively minimizing face leakage and delivering volumetric efficiency up to 92%. This design ensures the pump sustains high efficiency throughout its entire service life without the dramatic efficiency degradation seen in certain pump types. At zero stroke (pressure holding) condition, power consumption drops to an absolute minimum — only maintaining system pressure and compensating for leakage — achieving 30% to 50% energy savings compared to fixed displacement pump systems.

Low Noise & Low Flow Pulsation Design
The PV7 series achieves industry-leading flow pulsation levels through specially designed vane geometry and stator inner curve profiles. The adjustable displacement design delivers low pulsation flow and achieves very high repetition accuracy with low pressure peaks during down-control. Operating noise is further optimized via the height adjustment screw (7), delivering noise levels 3 to 5 dB(A) lower than comparable gear pumps. This characteristic makes the PV7 series particularly suitable for noise-sensitive indoor industrial environments such as precision machine tool shops, injection molding facilities, and medical equipment applications.

Modular Combination & Flexible Expansion
Standard PV7 series single pumps can be flexibly combined into multiple pump configurations, supporting tandem mounting with internal gear pumps, external gear pumps, axial piston pumps, and radial piston pumps via through-drive capability. This design eliminates the need for additional motors and drive couplings, significantly reducing installation space and cost while providing valuable circuit design flexibility. Available as complete integrated units — no drive coupling or pump bracket required.

Application Areas

Machine Tool Industry: CNC machining centers, grinders, milling machines, and transfer machines requiring precision pressure/flow control — low hysteresis and high repeatability ensure machining accuracy
Hydrostatic Bearings: Precision grinders and large boring machines requiring extremely low flow pulsation and high pressure stability
Constant Pressure Systems: Multi-actuator centralized supply systems — pressure compensation automatically reduces flow to zero during standby while maintaining system pressure
Injection Molding & Die Casting: Multi-stage pressure/flow control for clamping, holding, and ejection — variable displacement dramatically reduces energy consumption during holding phase
Automation Lines: Robotic hydraulic drives, conveyor systems, and precision positioning systems requiring frequent start/stop and precise control
Packaging Machinery: High-speed packaging line hydraulic drives — fast response characteristics enable precise cycle control
Marine & Offshore: Deck machinery, steering gear, and hydraulic winches requiring reliable medium-pressure hydraulic drive
Metallurgical Equipment: Rolling mill auxiliary transmissions, continuous casting vibration tables — heavy-duty continuous operation

Expert Maintenance Tips

Commissioning & Air Bleeding: All PV7 series pumps are self-priming, but the housing must be filled with hydraulic oil before initial startup. Prefill the housing through the case drain port, then jog the motor until continuous bubble-free oil flow is achieved. If the pump fails to deliver bubble-free oil within approximately 20 seconds, inspect the suction line for air leaks.
No-Load Warm-Up: After startup or extended shutdown, the pump must be started under no-load conditions, allowing hydraulic fluid to flow at zero pressure for several seconds to ensure adequate lubrication. Observe the motor and pump rotation direction arrows. Run at no-load for 5 to 10 minutes until oil temperature reaches 30°C before gradually applying load. Never operate the pump without hydraulic fluid!
Fluid Cleanliness Control: Maintain hydraulic oil cleanliness at ISO 4406 20/18/15 or better. The pilot controller’s precision spool and piston clearances are extremely tight — particulate contamination can cause controller sticking or sluggish response. Install an appropriate precision filter on the return line and inspect or replace the filter element every 250 hours. Effective filtration prevents failures and simultaneously extends component service life.
Viscosity & Temperature Management: Recommended fluid: ISO VG 32–68 anti-wear hydraulic oil (HLP). At operating temperature, maintain fluid viscosity within 16–160 mm²/s. Continuous oil temperature must not exceed 70°C. During cold starts, fluid viscosity may exceed the upper limit (maximum allowable starting viscosity: 800 mm²/s) — the pump must be warmed up at low speed and low pressure before loading to rated conditions.
Shaft Alignment: Pump-to-driver concentricity must be controlled within φ0.1 mm. A flexible coupling is strongly recommended. The PV7 series drive shaft cannot withstand radial or axial external forces — installation must ensure the shaft end is free from constraint. Tighten flange mounting bolts in a diagonal pattern to ensure reliable face sealing.
Case Drain Line Requirements: The case drain line must be piped independently back to the reservoir. Case drain back-pressure must not exceed 2 bar. The drain line outlet must be submerged below the minimum oil level in the tank. When combining multiple pumps, individual drain lines must be used — never merge drain lines, as pressure differentials can damage seals.
Height Adjustment Screw Optimization: The height adjustment screw (7) on the PV7 series is used to optimize operating noise. During system commissioning, fine-tune this screw to find the optimal noise point. Do not over-tighten, as this may restrict the stator ring’s maximum eccentricity and reduce flow output.
Pressure Controller Setting: At factory delivery, flow and zero stroke pressure are typically set to the maximum values for the respective size. If specific settings are required, state them clearly at the time of order, or have qualified personnel adjust via the setting screw (6) in the field. Note: turning the adjustment screw clockwise increases operating pressure; turning counter-clockwise reduces it.
