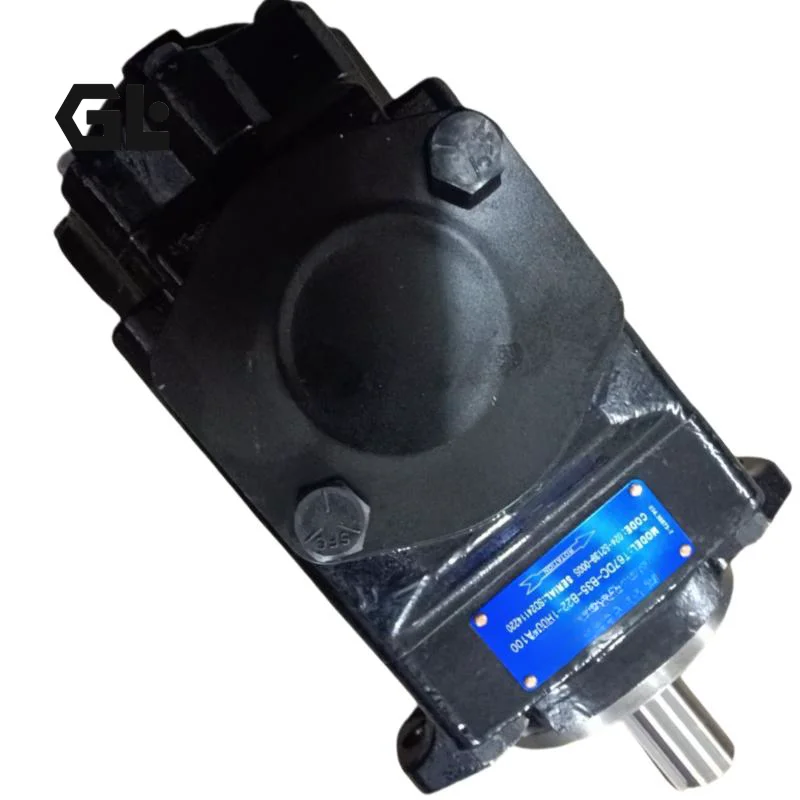

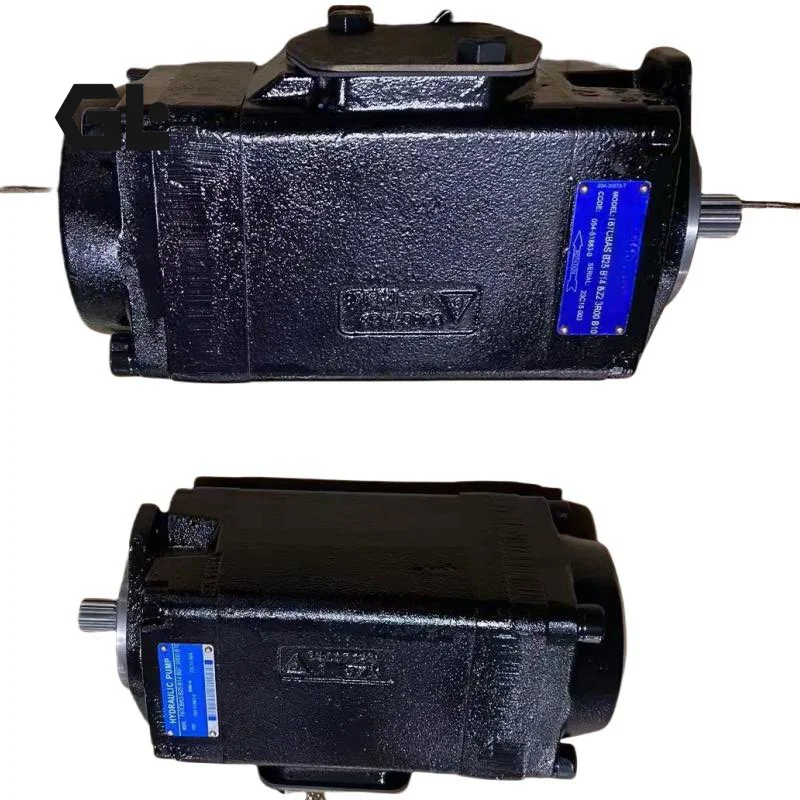

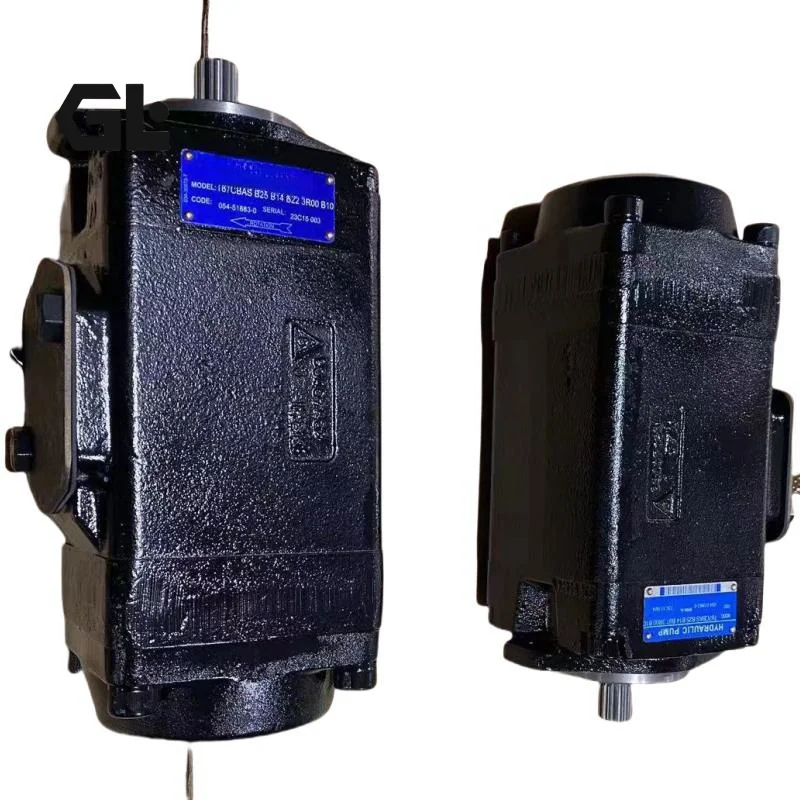

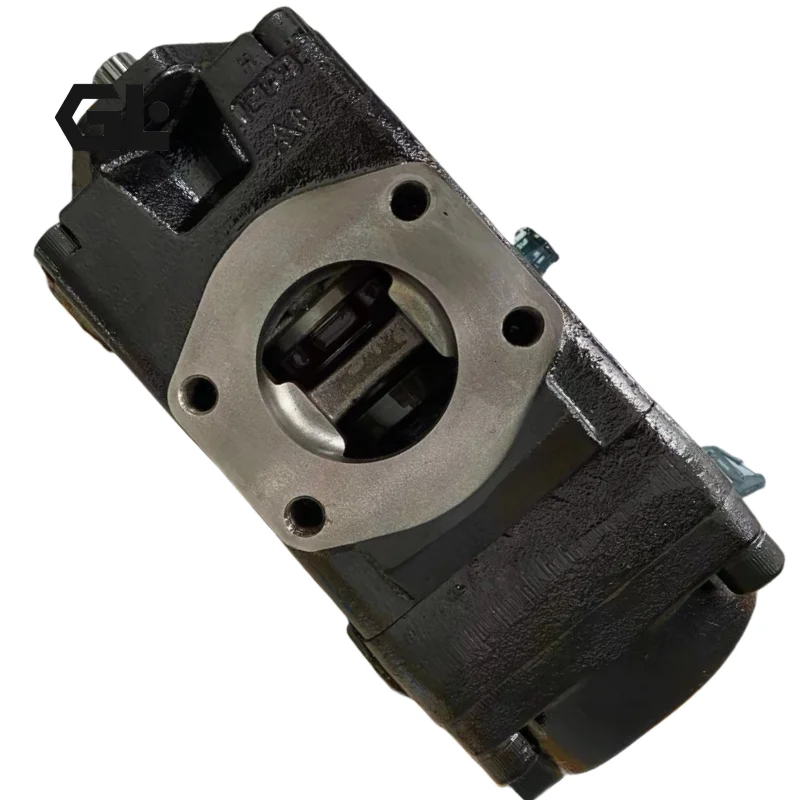

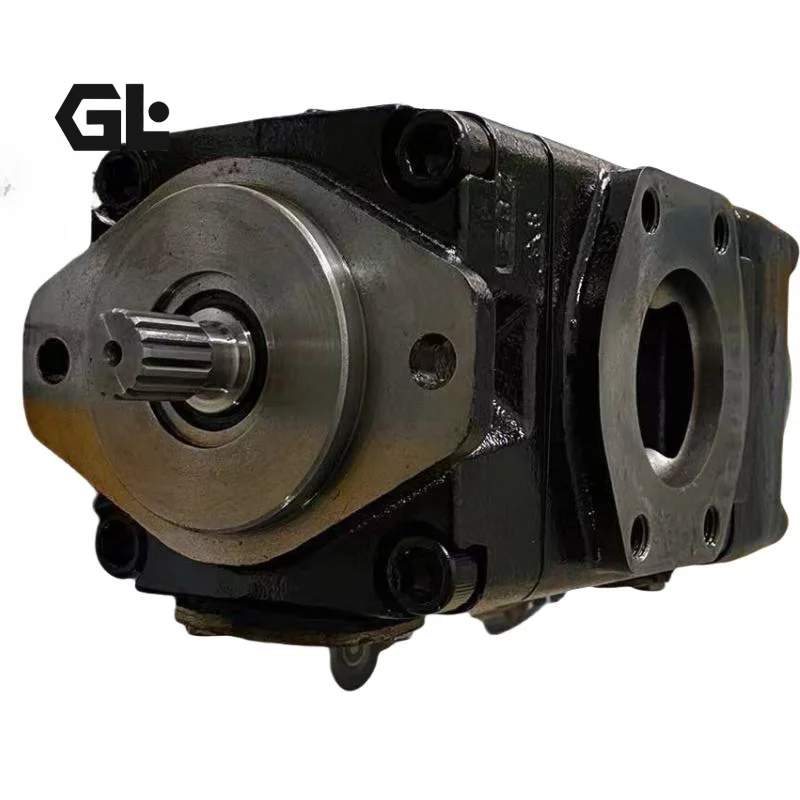

T67CCAYB25B22B203R32 Parker Denison Double Vane Pump

Model Number	T67CCAY B25 B22 B06 3R32 A1MY, T67CCAY B25 B22 B20 3R32 B1MY 024-94132-032

Product Description

Product Overview

The T67CCAY B25 B22 B20 (complete reference code: T67CCAY B25 B22 B20 3R32 B1MY 024-94132-032) is a high-performance, heavy-duty industrial double/multi-stage hydraulic vane pump engineered for demanding operating conditions, offering 100% direct drop-in interchangeability with the Parker Denison T67C series. Designed with the classic pin-vane architecture and high-pressure integration, this pump delivers multiple independent, high-flow hydraulic fluid sources driven by a single input shaft. Prior to dispatch, every T67CCAY double pump undergoes 100% full-load simulated extreme working condition testing to guarantee that its volumetric efficiency, anti-pulsation capability, and fatigue life match or exceed OEM standards. It stands as an exceptional, cost-effective replacement solution for major overhauls in industrial and mobile machinery.

Technical Specifications

Product Model: T67CCAY B25 B22 B20 (Associated Ref: 024-94132-032)
Brand Compatibility: 100% Interchangeable with Parker Denison T67C Series
Front Pump Displacement (Cam Ring B25): 81.1 ml/rev
Rear/Intermediate Displacement (Cam Rings B22 / B20): 70.3 ml/rev / 63.8 ml/rev (configurable by multi-stage stacking)
Rated Operating Pressure: 240 Bar (3500 psi)
Maximum Peak Pressure: 275 Bar (4000 psi)
Maximum Speed: 2500 – 2800 RPM (Subject to oil viscosity and operating parameters)
Minimum Speed: 600 RPM
Control Type: Fixed Displacement
Rotation (Viewed from shaft end): Clockwise (Code 3R32 standard shaft and rotation setup)
Seal & Special Configuration: B1MY / A1MY (High-performance seal kit tailored for anti-wear mineral hydraulic oils)
Approximate Weight: 32.5 kg

Key Technical Advantages

Advanced Pin-Vane Technology: The unique pin-vane architecture uses hydrostatic self-compensation to balance the contact stress between the vane tips and the cam ring internal surface. This significantly reduces mechanical wear, enabling the pump to maintain a volumetric efficiency of over 93% even at peak pressures of 275 bar.
100% True Plug-and-Play Interchangeability: From SAE standard mounting flanges and heavy-duty spline shafts to port center distances, every physical specification mirrors the original Parker Denison pump perfectly. Customers enjoy a seamless replacement without modifying structural brackets or fluid plumbing.
Superior Noise and Pulsation Reduction: The cam ring features an asymmetrical transition profile, combined with precision-machined metering notches on the side plates. This design drastically minimizes hydraulic shock during flow reversal, keeping operational noise to a minimum even under full load.
Hydrostatically Balanced Architecture: The internal cartridge kit features a fully balanced radial hydraulic pressure structure, completely eliminating hydraulic radial loads acting on the drive shaft and bearings. This engineering design maximizes bearing fatigue life and reduces unscheduled downtime.

Application Areas

The T67CCAY double and multi-stage vane pumps are widely deployed across heavy-duty industrial and mobile circuits requiring multi-flow independent oil sources:

Plastics & Die-Casting Machinery: Supplying efficient, pulsation-free hydraulic power for mold clamping, injection, and core-pulling circuits.
Heavy Metal Forming Presses: Perfect for rapid-advance and slow-press dual-speed circuits in metal shears, press brakes, and forging presses.
Mobile & Marine Equipment: Essential for marine winches, steering systems, and main lifting circuits in construction machinery.
Industrial Hydraulic Power Units (HPU): Serving as the core prime mover for large metallurgical equipment and automated factory production lines.

Expert Maintenance Tips

Proper Start-up Bleeding: Before initial startup or after a system rebuild, always bleed all trapped air from the highest point in the pump housing. Jog the electric motor 3 to 5 times (no longer than 2 seconds each) to prime the pump and ensure internal components are lubricated. Dry running is strictly prohibited.
Strict Fluid Contamination Control: The ultra-high volumetric efficiency relies on micron-level internal clearances. We recommend a return line filtration rating of at least 10μm absolute. System fluid cleanliness must be maintained at ISO 4406 Class 18/16/13 (or NAS 1638 Class 8) or better.
Cold Start Viscosity Limits: During winter or in low-temperature environments, if the fluid viscosity exceeds 800 cSt, do not apply full load at high speeds. Run the pump unloaded at low RPMs until the oil temperature reaches above 20°C before engaging the system load.
