Albert ABT1 Hydraulic Vane Servo Pump Replacement | ABT1-55

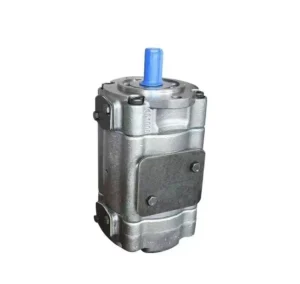

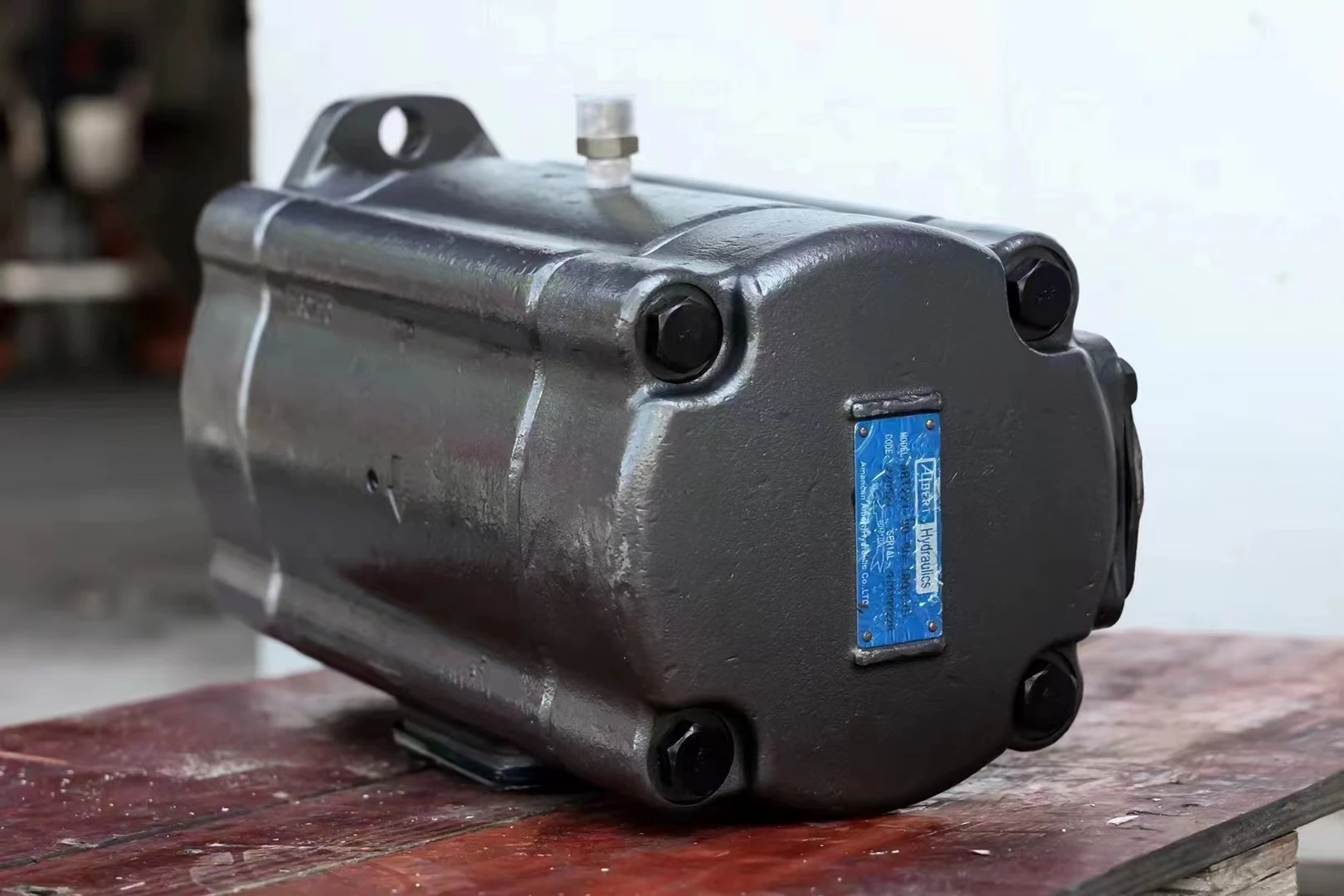

Genlu Hydraulic excels as an elite-tier global developer and precision manufacturer of high-performance electro-hydraulic servo powertrain networks, low-noise high-pressure fluid pumps, and specialized B2B global industrial component components. The ABT1 Series High-Pressure Low-Noise Internal-Engagement Hydraulic Vane Servo Pumps—focusing on critical replacement profiles such as ABT1-55-4R02-Z11, ABT1-25-1R00-B10E, and ABT1-55-2R02-C1—are engineered and manufactured as high-tier, long-life, and 100% drop-in interchangeable alternatives to the global plastic machinery and servo-drive benchmark: the Albert ABT Series fixed-displacement vane pumps. This series is universally specified across high-frequency servo-regulated energy-saving industrial machinery because of its distinct dual-axial clearances, minimal pressure pulsations, and near-silent operation. It serves as the primary hydraulic power generator inside multi-axis servo injection molding machines, automated refractory brick presses, die-casting machinery, CNC sheet metal cold-roll formers, and noise-sensitive indoor automated assembly stations.

Inside modern electro-hydraulic servo control systems, the hydraulic pump no longer operates at a constant asynchronous motor speed. Instead, it undergoes rapid start-stop sequences, dynamic acceleration up to 3000 RPM, and continuous low-speed operations under sustained high pressure during the system’s pressure-holding cycle. Standard fixed-displacement volumetric pumps operating under low-speed, high-pressure conditions frequently fail due to fluid-film collapse, causing metal-to-metal friction between the rotor and side plates, or loss of system pressure during rapid acceleration because the vanes lack sufficient centrifugal force to deploy. Genlu’s premium ABT1 series replacement pumps precisely replicate original factory metallurgical compositions, internal flow channels, and advanced axial/radial pressure-loading compensation pathways outlined in the official Albert manuals. Whether referencing standard mounting flanges, input shaft profiles (such as the keyed Z11 variant), or split-flange hydraulic orientations (codes 4R02 / 1R00 / 2R02), our assemblies provide 100% mechanical and functional drop-in interchangeability. Prior to delivery, every single pump undergoes 100% Full-Simulation Condition Testing spanning the entire 0-3000 RPM spectrum under full rated loads to verify dynamic response times, volumetric reliability, and strict acoustic compliance.

Technical Specifications

• Product Pump Classification: ABT1 Series High-Pressure Ultra-Low-Noise Hydraulic Vane Servo Pump (100% Albert cross-compatible)

• Specific Model Cross-Reference Configuration Breakdown:

  • ABT1-55-4R02-Z11 (ABT1: Series designation; 55: Nominal displacement frame of 55.2 $cc/rev$; 4: Specific rotor stage index; R: Clockwise right-hand rotation; 02: SAE split-flange port sizing and location configuration; Z11: Cylindrical keyed drive shaft option)

  • ABT1-25-1R00-B10E (ABT1: Series designation; 25: Nominal displacement frame of 25.0 $cc/rev$; 1: Basic structural generation code; R: Clockwise right-hand rotation; 00: Standard inlet/outlet indexing; B10E: Specialized mounting flange and rear auxiliary drive shaft combination)

  • ABT1-55-2R02-C1 (ABT1: Series designation; 55: Nominal displacement frame of 55.2 $cc/rev$; 2: Advanced internal rotor group indexing; R: Clockwise right-hand rotation; 02: Standard SAE hydraulic porting; C1: Standard straight keyed or specified splined input shaft)

• Geometric Displacement Sizing Boundaries:

  • ABT1-25 Frame: 25.0 $cc/rev$

  • ABT1-55 Frame: 55.2 $cc/rev$

• Maximum Continuous Rated Pressure Boundary: 140 bar (14 MPa / 2030 PSI)

• Maximum Intermittent Peak Pressure Threshold: Up to 175 bar (17.5 MPa) during fast cycle transitions

• Permissible Servo Speed Operational Spectrum: From 0 RPM (continuous pressure-holding phase) up to 3000 RPM maximum dynamic tracking speed

• Acoustic Emissions Profile (Noise Level): $\le$ 60 dB(A) measured at continuous 1500 RPM under a full 140 bar operational load

• Volumetric Efficiency Performance Index: Maintained at $\ge$ 95% under dynamic variable servo duty cycles

• Recommended Fluid Medium: Mineral-based anti-wear hydraulic oils (HM or HV classifications) with an optimal viscosity range of 20 to 50 $mm^2/s$

• Total Pump Assembly Net Dry Mass: Approx. 12.5 kg for the ABT1-25; 19.8 kg for the ABT1-55 frame sizing

Key Technical Advantages:

• Adaptive Axial & Radial Hydrostatic Pressure Compensation for Zero-RPM Holding Phases: To handle the extreme demands of servo systems during the pressure-holding phase—where the servo motor drops toward 0 RPM while holding a continuous 140 bar load—the ABT1 features floating side plates. Guided by high-pressure micro-channels on their backside, these plates automatically adjust against the rotor faces. This hydrostatic balancing mechanism drops internal bypass slip by more than 70% at low speeds, preventing pressure loss and system heat spikes.

• Ultra-Low Flow Pulsation with Hydrodynamically Optimized Silencing Galleries: Built with a high vane-count rotor setup (12 to 14 staggered vanes) paired with precision-metered timing notches. As the vanes follow the internal stator ring profile, fluid delivery volume transitions smoothly. This design holds internal flow ripples below 1.5%, which eliminates acoustic resonance and prevents low-amplitude micro-shuddering in connected high-precision actuators.

• Dual Hydraulic Floating Bushings and Hardened Stator Profiles: The internal stator profile is ground on multi-axis CNC machinery to maintain precise geometric curves, backed by high-frequency induction hardening or plasma-sprayed wear-resistant coatings. The shaft is supported by high-capacity heavy-duty composite bushings. These self-lubricating bearings maintain an oil film during sudden start-stops or rapid direction changes, increasing radial load capacity by 40% for prolonged service life.

• Low-Inertia Lightweight Rotor Geometry Tailored for High-Frequency Acceleration: The primary internal rotor is machined from aircraft-grade high-tensile alloy steel and optimized with a weight-reducing hollow core. While maintaining full structural rigidity up to 175 bar peak torque loads, this geometry lowers rotational inertia by 25%. This reduction allows the servo motor to accelerate the pump from 0 to 3000 RPM in under 35 milliseconds, shortening machine cycle times.

Application Areas:

• High-Performance Energy-Saving Closed-Loop Servo Injection Molding Machinery: Main hydraulic power configuration for 50-to-300 ton precision plastic injection molders, rubber vulcanization presses, and blow molding machinery.

• CNC Sheet Metal Cold-Forming, Roll-Forming, and High-Density Press Brakes: Main power source for proportional multi-axis bend controllers, industrial press brakes, and automated refractory brick presses.

• Acoustically Sensitive Automation Lines & Modern Indoor Automated Manufacturing: Precision automotive automated sub-assembly lines, quiet laboratory hydraulic lift power packs, and indoor cleanroom lifting systems.

Expert Maintenance Tips:

• Mandatory Initial Housing Priming and Air Bleeding Protocol: At initial system startup, the servo motor may operate at low speeds (300 to 500 RPM), which may not generate enough centrifugal force to fully extend the vanes against the stator ring. Never run the pump dry at commissioning. Fill the pump housing with clean hydraulic oil through the top bleed plug or discharge port before starting. First run the motor in manual jog mode at 300-500 RPM until all trapped air is purged and the pump settles into a smooth, quiet hum before applying high pressure.

• Suction Line Sizing Rules to Prevent Transient Vacuum Cavitation: During rapid decelerations (such as a drop from 2500 RPM down to 0 RPM in milliseconds), fluid momentum can create a transient vacuum spike at the inlet port. To counteract this, the suction line must be kept short, straight, and equal to or larger than the pump’s inlet diameter, keeping intake velocity below 0.8 m/s. Ensure all intake joints are airtight; air ingestion will cause severe aeration noise and immediate micro-cavitation pitting along the vane tips, which can destroy the pump.

• Strict Oil Viscosity Management and Cleanliness Targets (NAS Grade 7): The operating clearances between the sliding vanes, rotor slots, and stator surfaces are tightly toleranced, typically between 3 and 5 microns. The system must utilize 10-micron or finer high-pressure or return filtration to maintain oil cleanliness at or above NAS Grade 7 (ISO 4406 18/15/12). Keep continuous operating temperatures between 15 °C and 55 °C; temperatures above 60 °C thin the fluid film, increasing internal slip and leading to component scoring.
