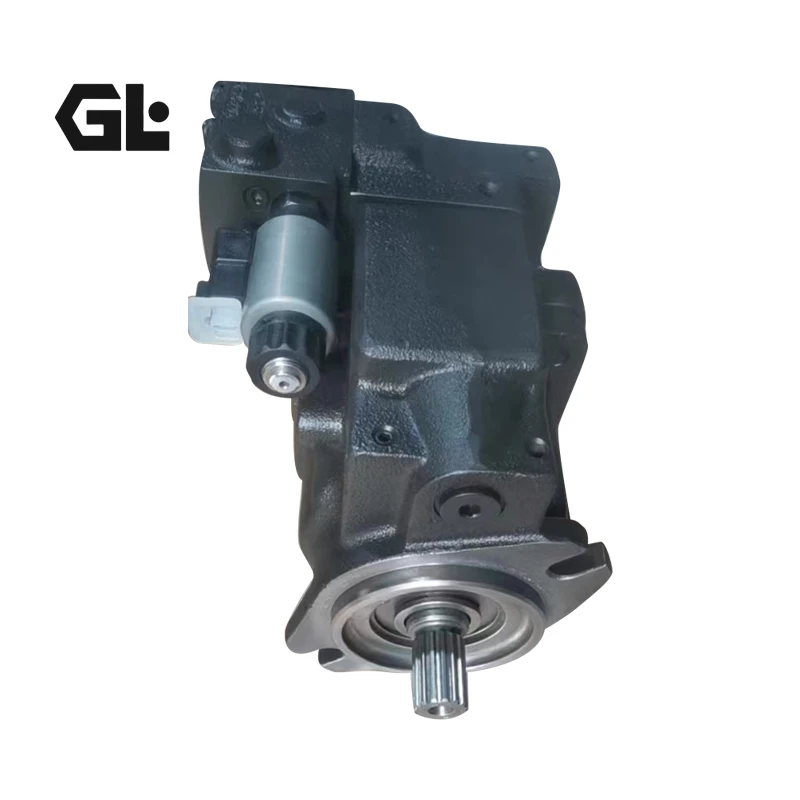

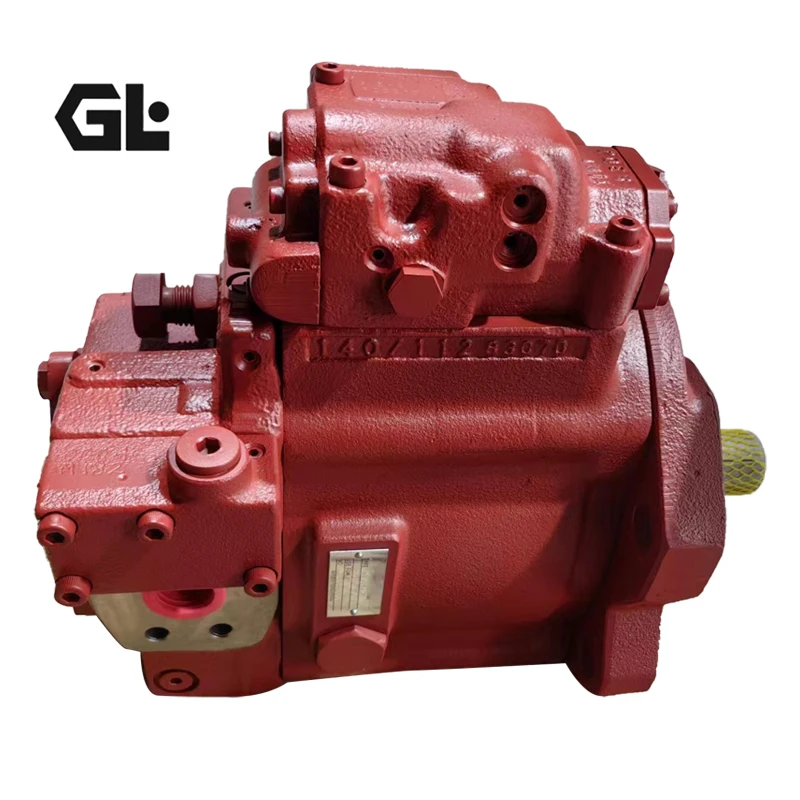

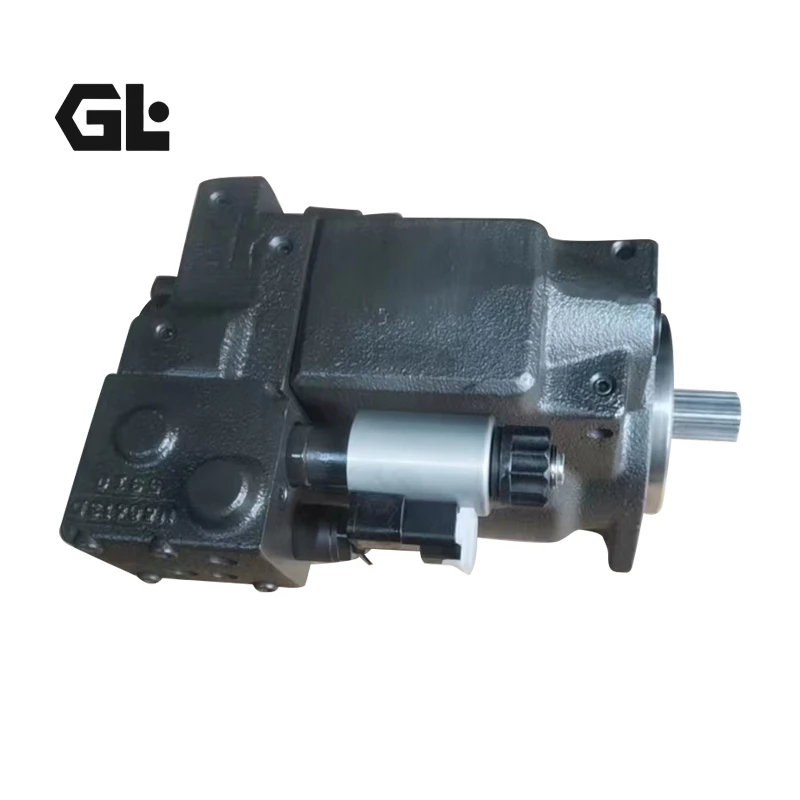

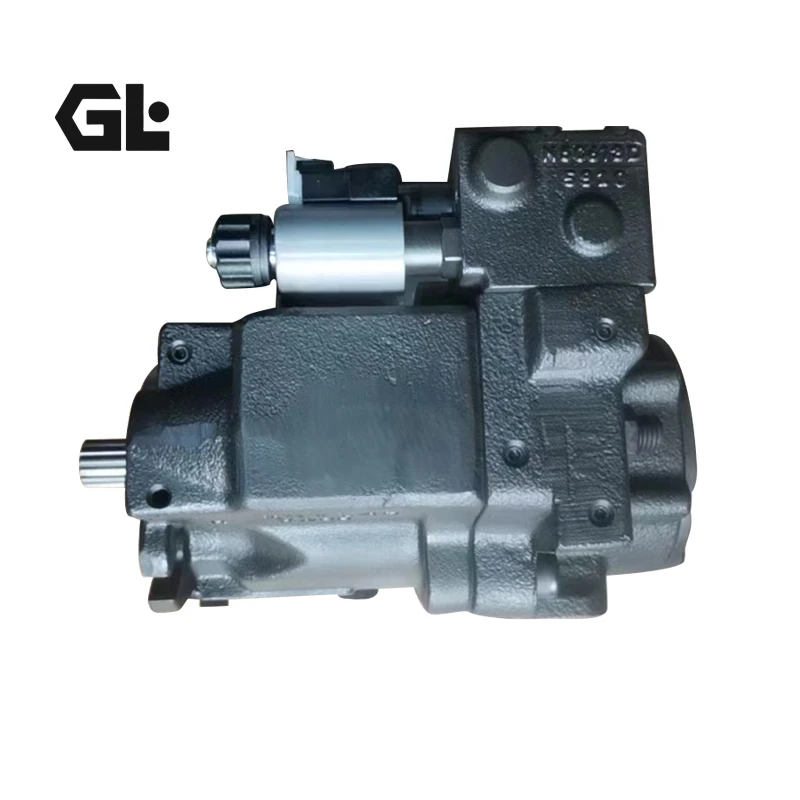

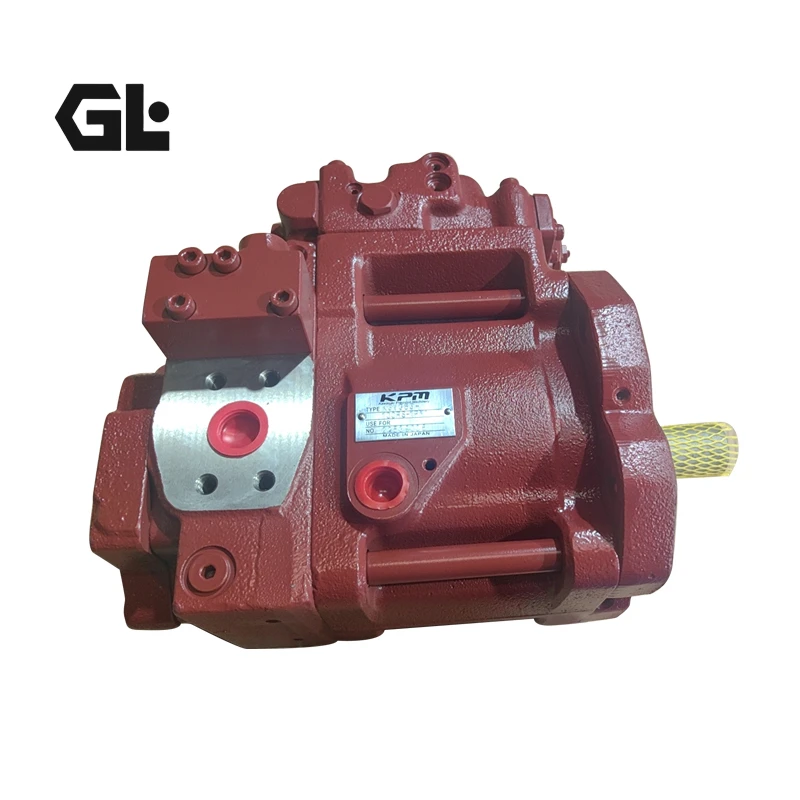

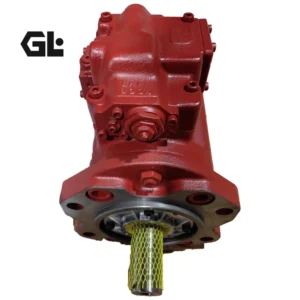

K3VG112-110RS-0E00 Kawasaki Axial Piston Pump 112 cm³ 350 ba

Product Overview

The K3VG112-110RS-0E00, K3VG112-13FRS-1EH3 and K3VG63-100RS-1PM1 belong to the Kawasaki K3VG series of swash-plate variable displacement axial piston pumps. Designed for industrial open-loop applications, these pumps support a wide variety of control methods including flow control, pressure control, horsepower control and their combinations, with optional high-precision electro-hydraulic servo regulators. Fully interchangeable with genuine Kawasaki units, they enable direct drop-in replacement without modification to mounting interfaces or piping. Every unit undergoes 100% simulated operating-condition testing to ensure high efficiency, low noise and long service life.

Technical Specifications

• Model: K3VG112-110RS-0E00 / K3VG112-13FRS-1EH3 / K3VG63-100RS-1PM1
• Displacement: K3VG63 63 cm³/rev; K3VG112 112 cm³/rev
• Rated Pressure: 34.3 MPa (approx. 343 bar)
• Peak Pressure: 39.2 MPa (approx. 392 bar)
• Maximum Self-Priming Speed: K3VG63 2600 rpm; K3VG112 2200 rpm
• Maximum Boosted Speed: K3VG63 3250 rpm; K3VG112 2700 rpm
• Control Type: Variable (flow, pressure, power control and combinations, code dependent)
• Design: Swash-plate axial piston, open circuit
• Weight: K3VG63 approx. 48 kg; K3VG112 approx. 68 kg
• Brand / Series: Kawasaki K3VG industrial swash-plate variable piston pump

Key Technical Advantages

1. High Pump Efficiency & Low Noise Design: Optimized swash plate and valve plate geometry deliver high volumetric and mechanical efficiency while significantly reducing operating noise, ideal for continuous industrial use.
2. Extensive Control Options & High-Precision Response: Supports flow, pressure and power controls plus combinations. Optional electro-hydraulic servo regulators enable precise flow delivery according to electrical commands with rapid response.
3. High Pressure Capability & Long-Life Bearings: Continuous rating of 34.3 MPa and peak of 39.2 MPa, combined with high-load-capacity bearings and hydrostatically balanced swash-plate support, ensure long service life under high continuous power.
4. Fluid Compatibility & Robust Construction: Compatible with mineral oil and selected fire-resistant fluids. High-strength materials and precision manufacturing enhance reliability in demanding conditions.
5. True Interchangeability & Modular Design: Fully compatible with OEM mounting dimensions and interfaces, enabling rapid replacement and repair while minimizing downtime.

Application Areas

• Industrial hydraulic systems (presses, injection molding machines, test stands)
• Shield tunneling and boring machines
• Metallurgical and rolling mill equipment
• Port and material-handling equipment
• Any industrial open-circuit application requiring high pressure and variable control

Expert Maintenance Tips

1. Ensure proper drive-shaft alignment during installation; use a flexible coupling and avoid excessive radial/axial loads. Verify correct rotation and suction/pressure port connections.
2. Use anti-wear mineral oil meeting NAS Class 9 or better cleanliness; viscosity range 10–1000 mm²/s. System filtration should be at least 10 μm. Thoroughly bleed air before initial start-up.
3. Regularly monitor suction pressure (≥ -0.01 MPa for self-priming) and case pressure to prevent cavitation or over-pressure. Verify control signals and setpoints.
4. During service, inspect pistons, cylinder block and valve plate for wear; replace complete rotating groups when necessary. Store long-term units in a dry environment and rotate the shaft periodically.
