Product Overview

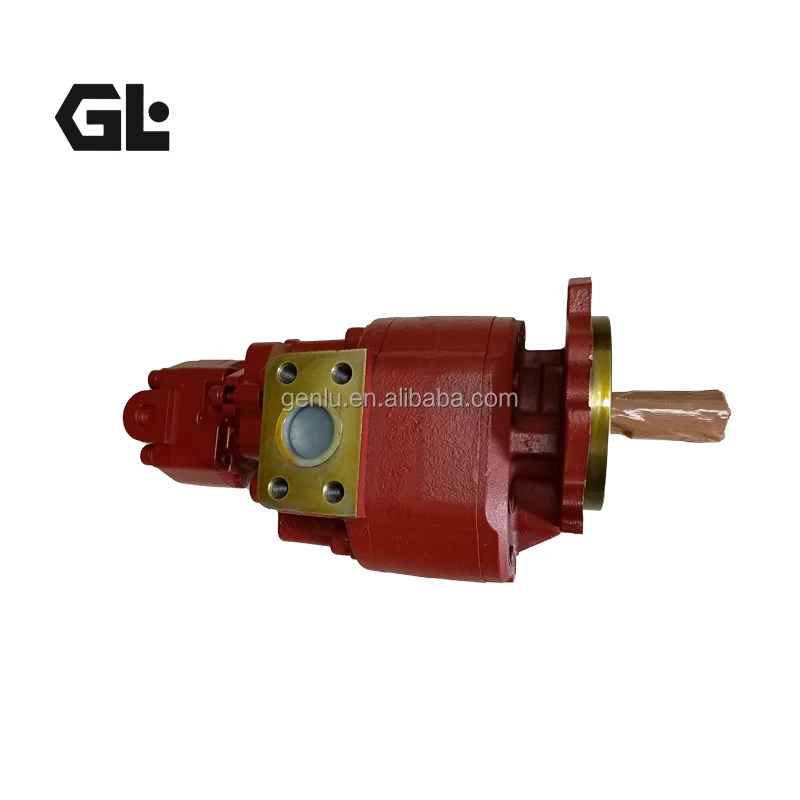

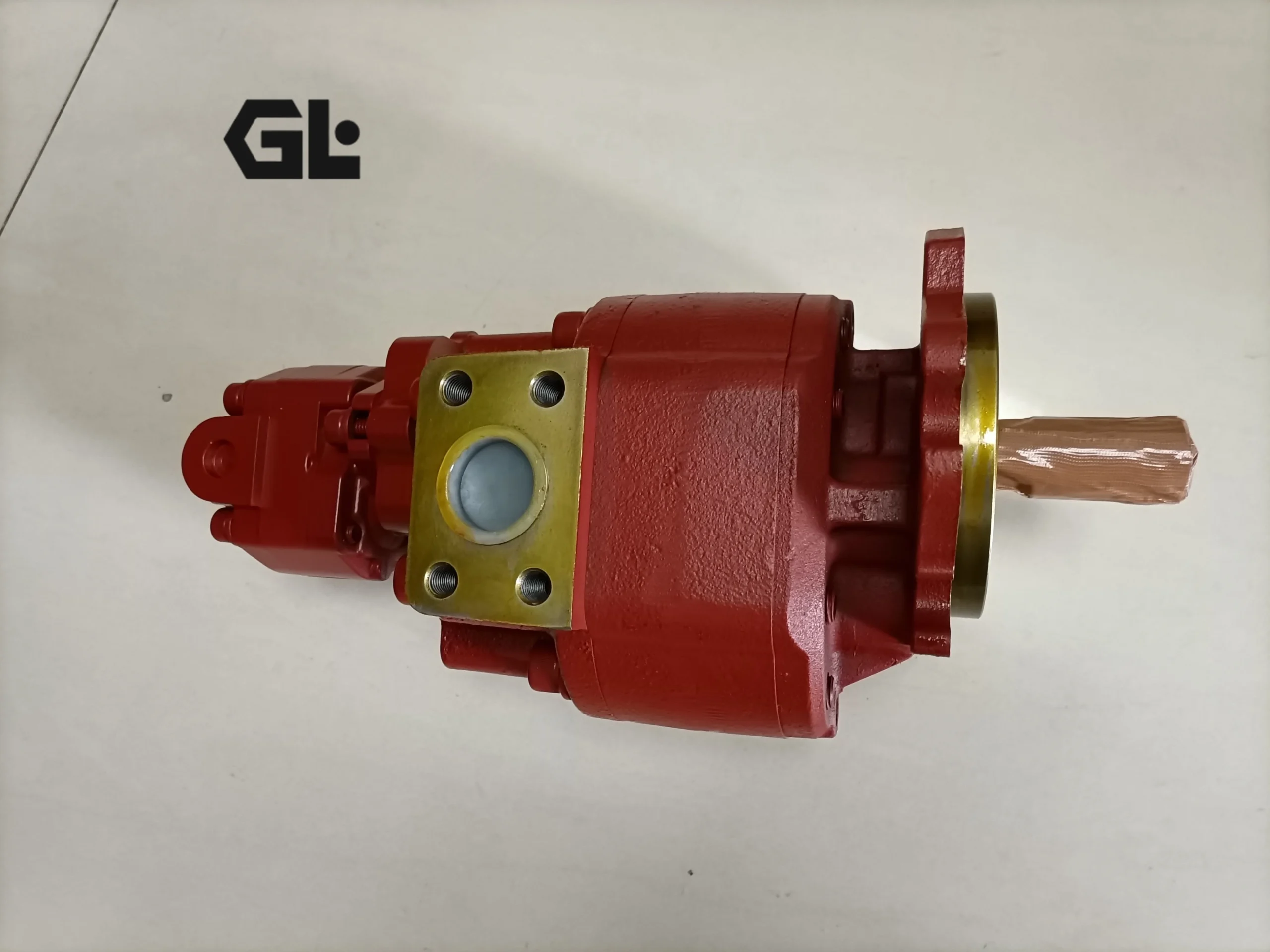

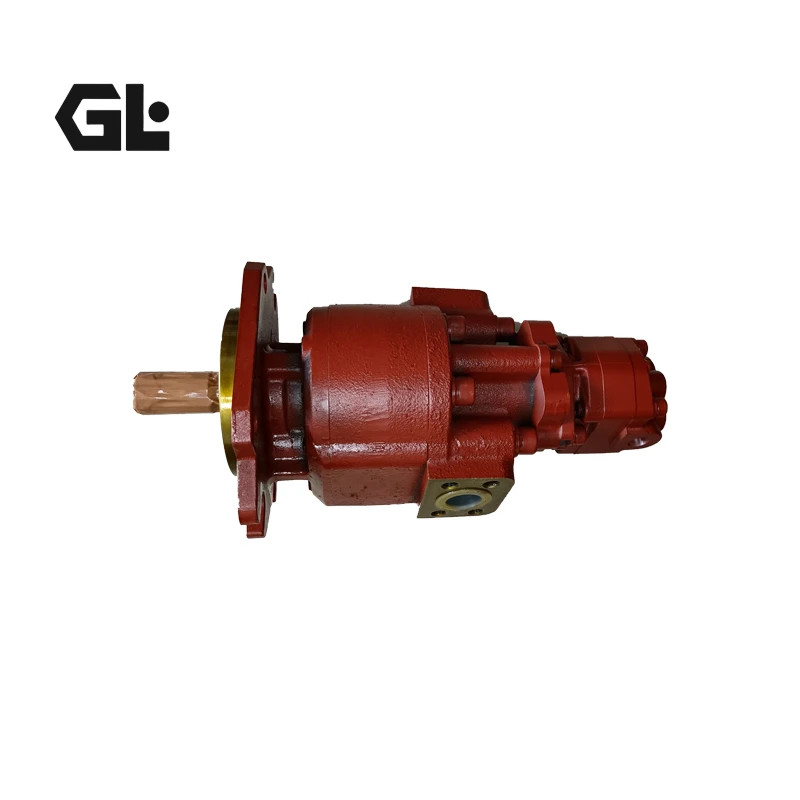

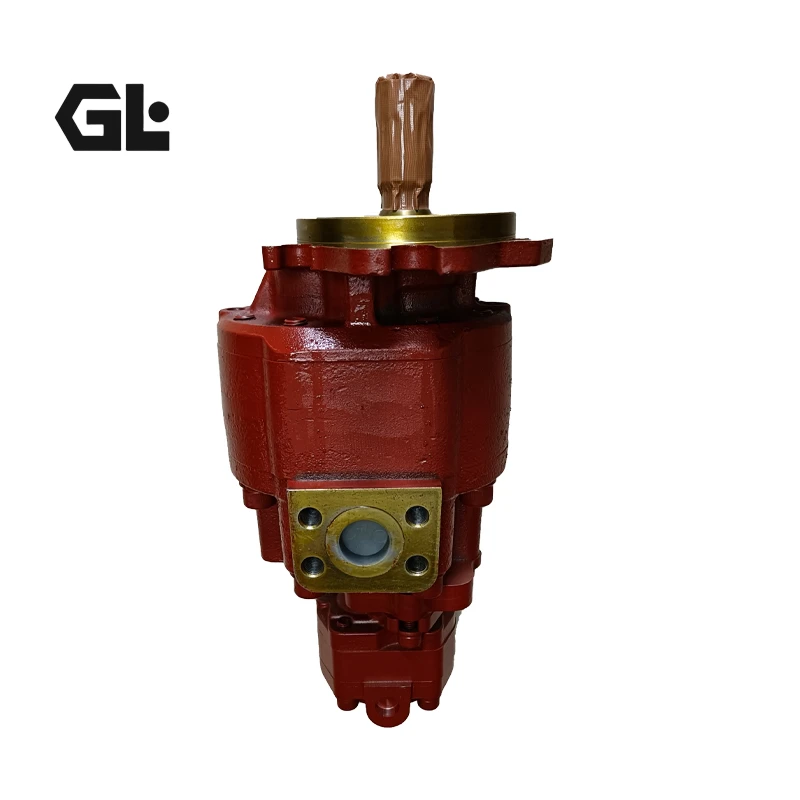

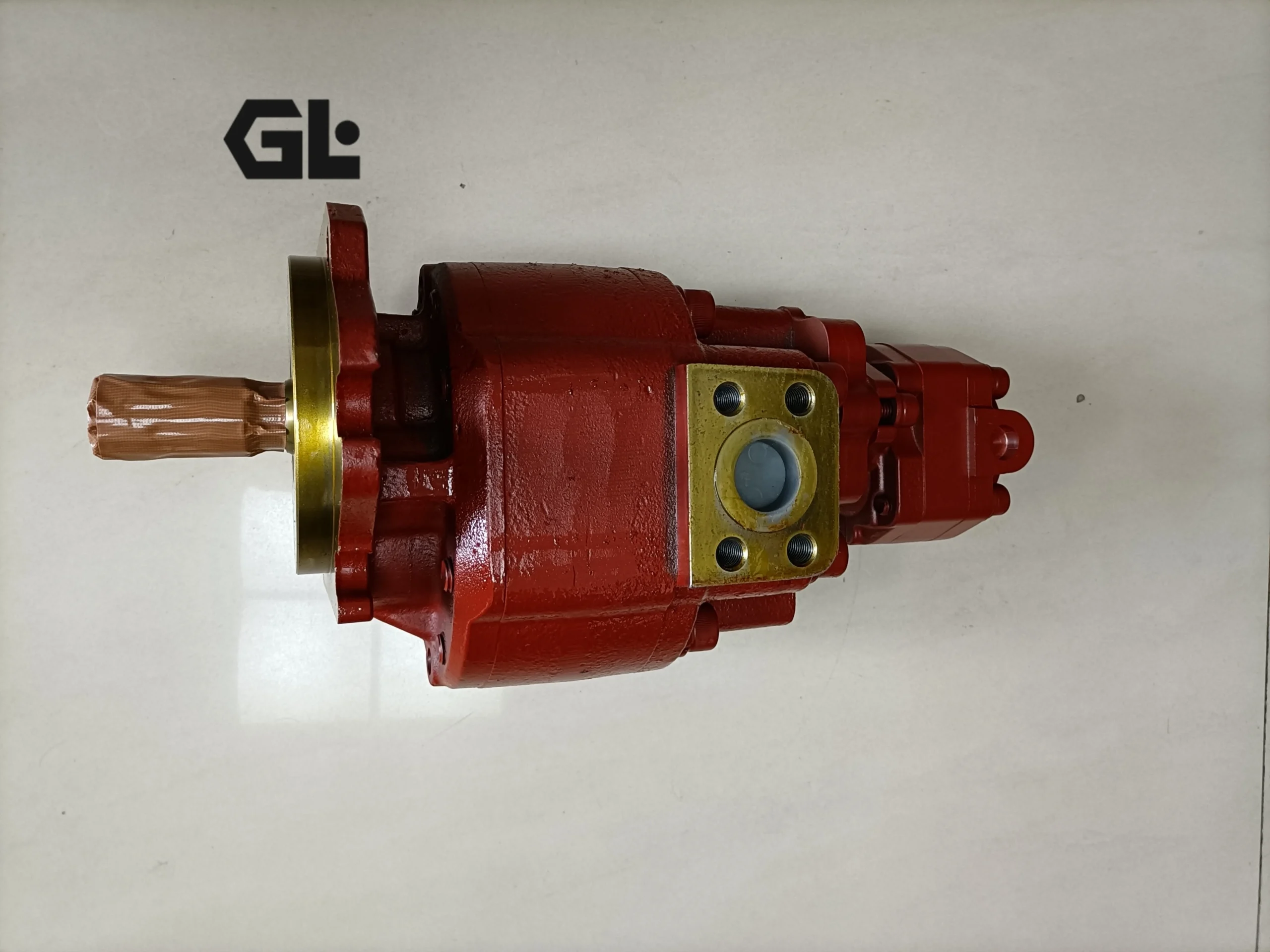

The KFP5180-KP1013, KFP5190-KP1013, and KFP51100-KP1013 are cast iron external gear pumps from the Japanese KYB (Kayaba) KFP51 series. The three models feature displacements of 80 cm³/rev, 90 cm³/rev, and 100 cm³/rev respectively, accommodating varying hydraulic system flow requirements.
The KFP51 series represents KYB’s high-performance gear pump line, featuring a high-strength cast iron housing that delivers high performance, lightweight and compact design, and exceptional durability. The KFP51 series covers displacements from 63 to 125 cm³/rev, with maximum operating pressures of 17.2 – 23.0 MPa and speeds up to 2,500 rpm. The series is widely used in TCM, Hitachi, and other wheel loader hydraulic systems.
Every unit is manufactured to original equipment specifications, ensuring 100% drop-in interchangeability with genuine KYB KFP51 series pumps without any system modifications. Each pump undergoes rigorous 100% simulated duty-cycle testing to validate pressure-flow-efficiency performance curves.
Brand Disclaimer: This product is a high-quality compatible replacement engineered for full interchangeability with KYB original equipment. All KYB brand names and model codes are referenced solely to indicate compatibility and interchangeability. This product is manufactured by an independent producer and is not an original KYB product.
Technical Specifications
KFP51 Series General Specifications
Brand Series: KYB KFP51 Series Cast Iron Gear Pump
Product Type: Fixed Displacement External Gear Pump
Housing Material: High-strength cast iron
Maximum Speed: 2,500 rpm
Minimum Speed: 600 rpm
Hydraulic Fluid: Mineral oil
Operating Temperature Range: -20°C to +120°C
KFP5180-KP1013
KFP5190-KP1013
KFP51100-KP1013
Displacement: 100 cm³/rev
Maximum Operating Pressure: 23.0 MPa
Maximum Speed: 2,500 rpm
Minimum Speed: 600 rpm
Weight: 23.0 – 26.0 kg
Compatible Equipment: TCM, Hitachi wheel loaders, etc.
Key Technical Advantages
1. High-Strength Cast Iron Construction – Extreme Durability
The high-strength cast iron housing delivers superior structural rigidity and service life compared to aluminum alternatives under the high-pressure shocks, vibration, high temperatures, and high-contamination conditions typical of wheel loader operations. Operating temperature range spans -20°C to +120°C.
2. High-Pressure Rating – Built for Heavy-Duty Demands
The KFP51 series offers maximum operating pressures of 17.2 – 23.0 MPa, with the three models rated at 21.6 MPa (KFP5180) , 22.3 MPa (KFP5190) , and 23.0 MPa (KFP51100) respectively. Meets the pressure requirements of heavy equipment hydraulic systems under heavy-load operating conditions.
3. Broad Speed Range
Supports a wide speed range of 600 to 2,500 rpm. Maintains stable flow characteristics from low-speed precision control to high-speed continuous duty—adapting to diverse loader operating conditions.
4. Compact & Lightweight Design – High Power Density
The KFP51 series is renowned for its lightweight and compact design. The KFP5180 weighs approximately 20.5 kg, the KFP5190 approximately 22.3 kg, and the KFP51100 approximately 23.0 kg, achieving an excellent power-to-weight ratio while maintaining high pressure and flow output.
5. Flange Mounting & Multi-Port Design – Installation Flexibility
Features a flange mounting system with multi-port configuration for seamless integration into hydraulic systems. Compatible with TCM, Hitachi, and other wheel loader mounting interface requirements.
6. 100% Simulated Duty-Cycle Testing
Every pump is 100% tested on dedicated hydraulic test benches under simulated real-world operating conditions—validating pressure-flow characteristics and efficiency curves at rated pressure and full speed range—ensuring zero-defect, plug-and-play performance upon installation.
Application Areas
TCM Wheel Loaders: Hydraulic implement systems
Hitachi Wheel Loaders: Hydraulic steering systems
Construction Equipment: Loaders, excavators hydraulic systems
Material Handling Equipment: Forklifts, stacker hydraulic systems
Agricultural Machinery: Tractors, combine harvesters
Expert Maintenance Tips
1. Fluid Cleanliness Control
Maintain system fluid cleanliness to ISO 4406 19/17/14 or better. While cast iron gear pumps offer superior contamination resistance compared to aluminum alternatives, install a 10–25 μm absolute filtration filter upstream of the inlet port to prevent particle contamination from damaging precision gear pairs.
2. Inlet Line Requirements
Keep suction lines short and straight with adequate diameter—not less than the port size. Recommended suction line flow velocity: ≤1.5 m/s to prevent cavitation from excessive inlet resistance. Inlet pressure must be maintained between 0.8–2.0 bar (absolute) .
3. Coupling Alignment Precision
Ensure pump shaft-to-drive shaft coaxiality deviation ≤0.05 mm and angular deviation ≤0.5° during installation. Flexible couplings are strongly recommended. For PTO-driven applications, ensure driveline alignment meets specifications.
4. First-Start Priming Procedure
Before initial startup, prime the pump by bleeding air through the drain port or a loosened outlet fitting. Perform 2–3 jog starts with the outlet open (no load) until oil fills the pump cavity without air bubbles, then connect the load circuit for full operation.
5. Temperature & Viscosity Monitoring
Operating temperature range: -20°C to +120°C. Recommended operating viscosity: 12–100 cSt. During cold starts when temperature is low or viscosity is high, ensure adequate suction conditions or preheat the fluid.
