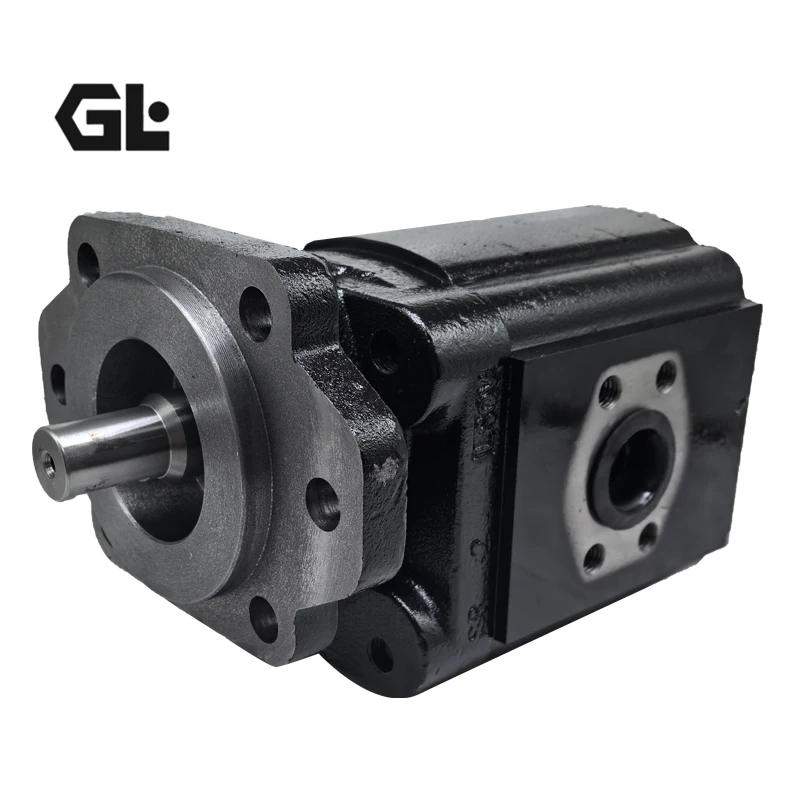

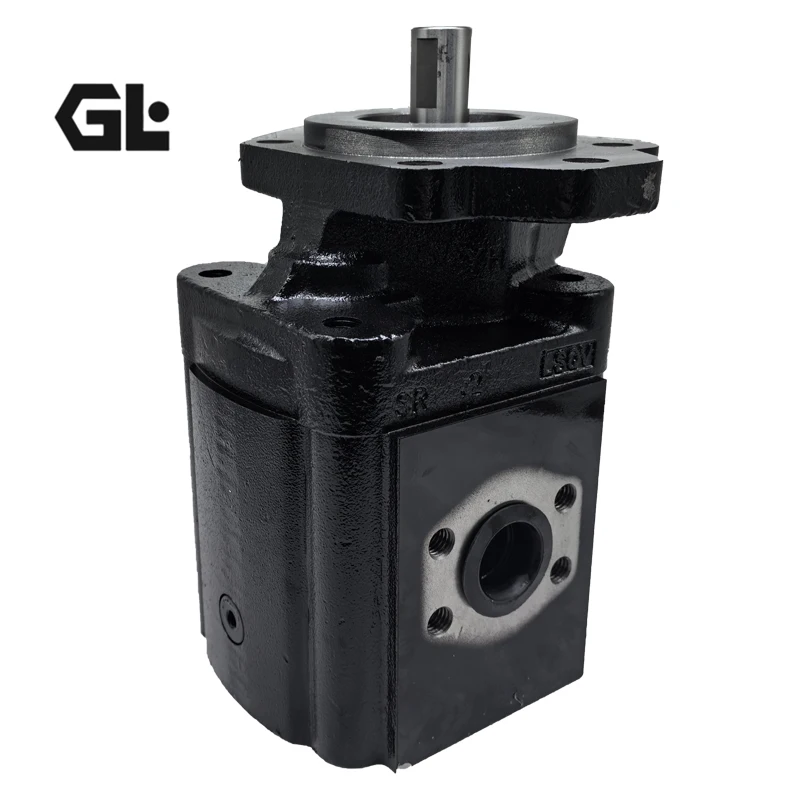

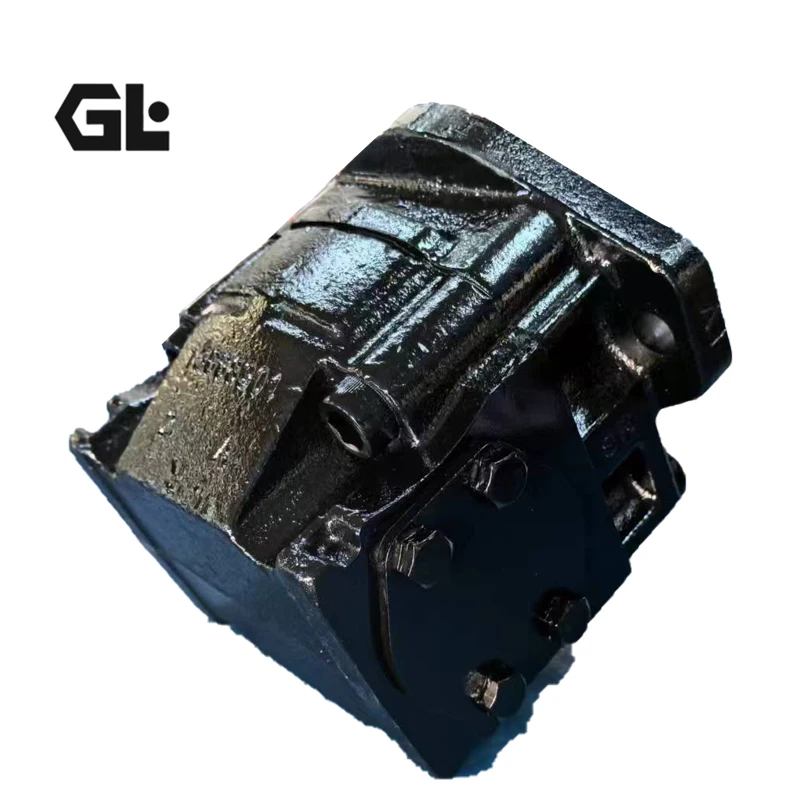

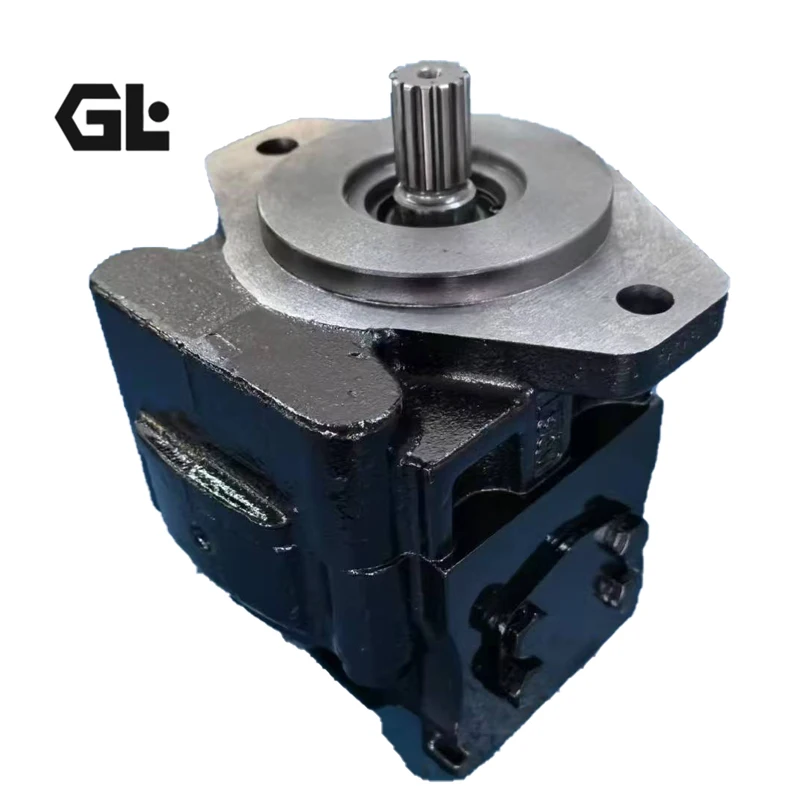

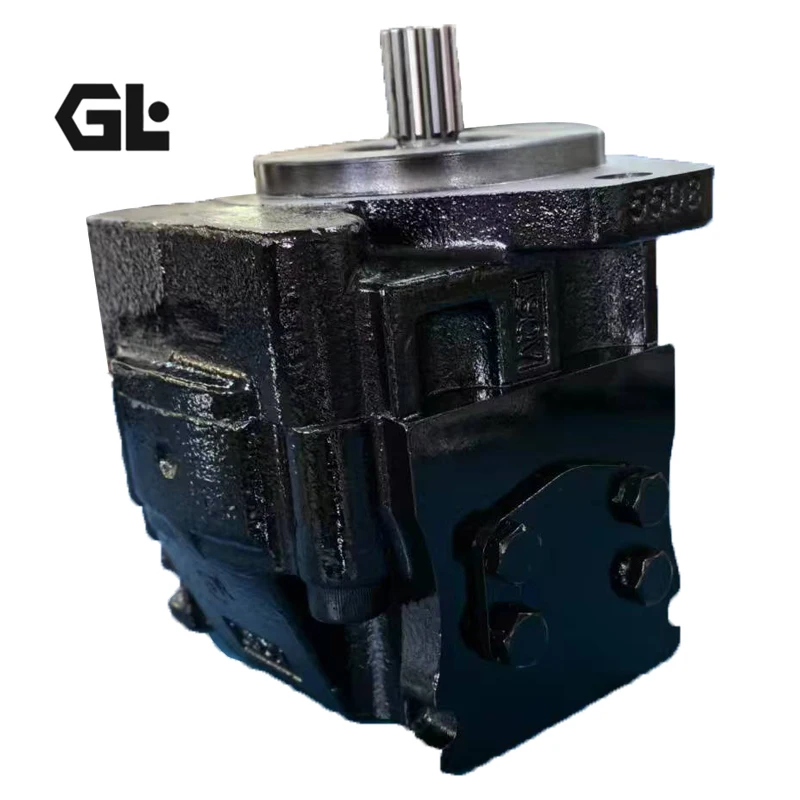

KP30.27 Casappa Kappa 30 Gear Pump 26.7cm³ 280bar

Product Overview

The KP30.24, KP30.27, KP30.29 and KP30.30 models belong to the Casappa Kappa 30 series of external gear pumps. Designed for medium-to-high pressure hydraulic systems, these pumps feature high-strength cast iron housings and precision-machined gears. They offer excellent interchangeability for direct OEM replacement of original Casappa units and equivalent brands. Every unit undergoes 100% simulated duty-cycle testing to guarantee volumetric efficiency, pressure stability and service life matching factory standards. Ideal for truck PTO applications, mobile machinery and industrial hydraulic circuits.

Technical Specifications

• Model: KP30.27 (series includes KP30.24 / KP30.27 / KP30.29 / KP30.30)
• Typical ordering codes: KP30.27S0-A8K9-LGF/GE-N-HSC, KP30.27-05S6-LMEMB-KSLGS30
• Displacement: KP30.24 ≈ 24.03 cm³/rev; KP30.27 = 26.7 cm³/rev; KP30.29 ≈ 29.06 cm³/rev; nearby models ≈ 30 cm³/rev class
• Continuous/rated pressure (p1): up to approx. 280 bar (varies slightly by housing version HSC/KSL etc.)
• Intermittent pressure (p2): up to approx. 300 bar
• Peak pressure (p3): up to approx. 310–320 bar
• Maximum speed: 3000 min⁻¹
• Minimum speed: 350 min⁻¹
• Rotation/control: unidirectional (S = left/CCW or D = right/CW); reversible options available
• Drive shaft: common SAE B spline (A8/04 etc.), European tapered 1:8 (83) and others
• Mounting flange: SAE B (K9/S3 etc.), European standard
• Ports: side or rear, GF/GE, OF/OD threaded/flanged configurations
• Seals: standard NBR (N); Viton and other options available
• Body type: HSC (compact short body), KSL high-performance versions
• Approximate weight: 8–13 kg depending on configuration
• Fluid: mineral-based hydraulic oil (HL/HLP), recommended viscosity 20–100 cSt

Data extracted from official Casappa Kappa 30 technical catalogues. Exact pressure ratings depend on specific housing and version; always refer to the ordering code and corresponding manual.

Key Technical Advantages

1. Precision machining and high-strength cast iron construction: Surface-hardened and ground gears with optimized tooth profile and controlled clearances deliver high volumetric efficiency and low pressure losses under continuous medium-to-high pressure duty.
2. High volumetric efficiency with low-noise design: Optimized internal flow paths and bearing support reduce operating noise and vibration, improving overall system comfort and efficiency.
3. Long-life bearings and thrust plate options: Quality plain bearings and optional bronze thrust plates provide strong contamination resistance and extended service life, reducing maintenance intervals.
4. Excellent interchangeability and modular design: Flanges, shaft ends and ports fully match original Casappa Kappa 30 units. Supports single, tandem and multiple pump configurations for easy drop-in replacement and system upgrades.
5. 100% simulated duty-cycle testing: Every pump is pressure-, flow- and speed-tested under real operating conditions to ensure consistent performance and high reliability.

Application Areas

• Truck and commercial vehicle PTO-driven hydraulic systems
• Construction machinery (loaders, excavator auxiliary circuits, cranes)
• Agricultural and forestry equipment
• Industrial hydraulic power units, presses and injection moulding auxiliaries
• Material handling and port machinery

Expert Maintenance Tips

1. Verify rotation direction before installation (S = counterclockwise when viewed from shaft end). Fully prime the suction line and purge air to avoid dry running.
2. Use hydraulic fluid meeting ISO 4406 19/17/14 cleanliness or better. Change filters regularly to prevent premature gear and bearing wear.
3. Tighten shaft-end nut to approximately 70 Nm (confirm for specific shaft type) to avoid seal failure from over- or under-tightening.
4. After start-up, check for leakage and abnormal noise. Keep continuous operating temperature between -25 °C and 80 °C (peak ≤ 100 °C). Select special shaft seals for high back-pressure applications.
5. For long-term storage, run briefly under light load and replace with fresh fluid to prevent internal corrosion.
