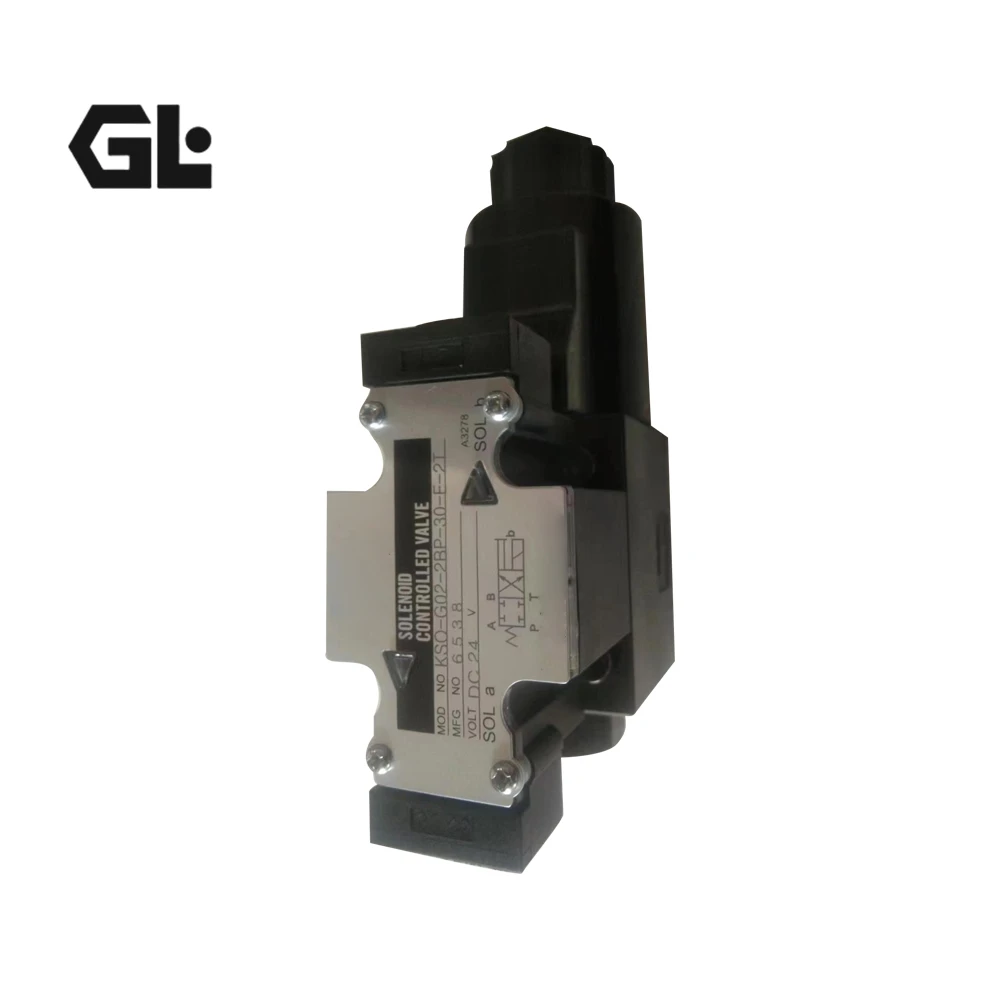

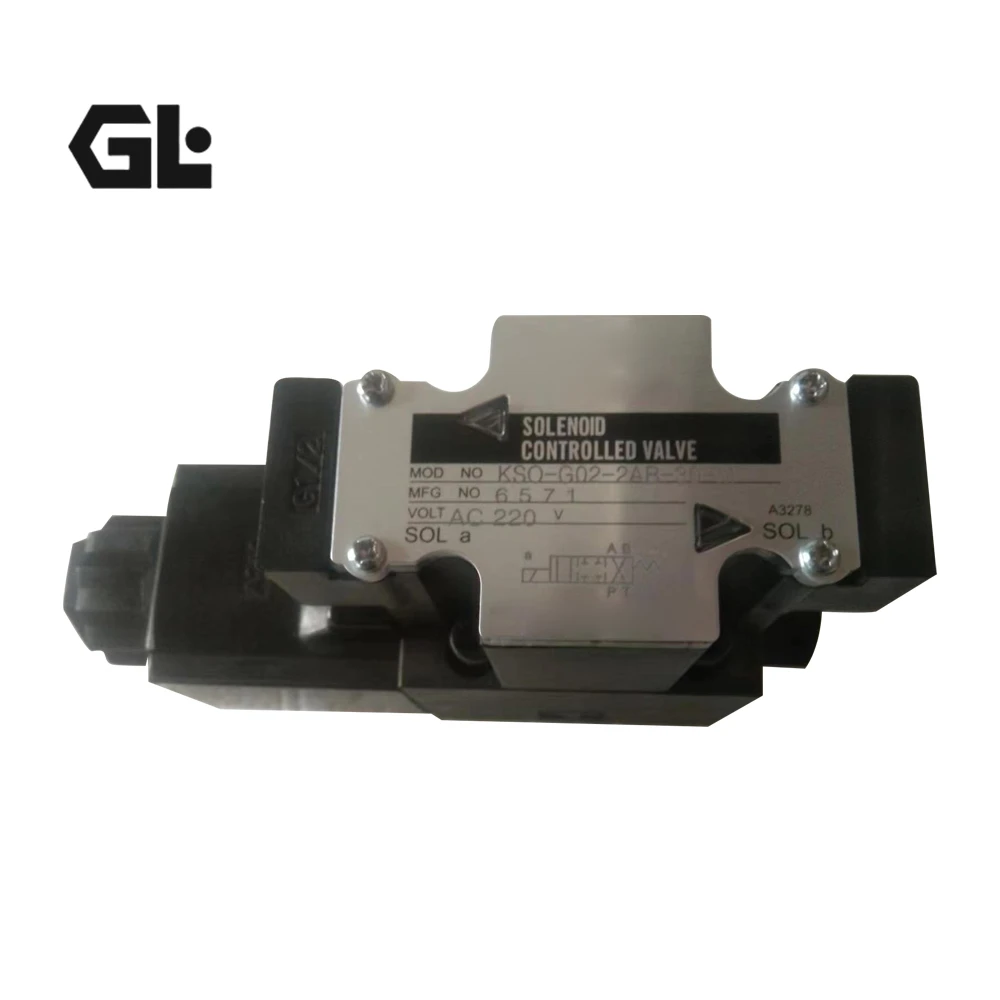

KSO-G02-2BP-30-E-2T
Product Overview
The KSO-G02-2BP-30-E-2T is a classic model in the DAIKIN KSO series of solenoid pilot-operated directional control valves, G02 size (1/4 inch), with mounting pattern conforming to ISO 4401-03 / CETOP 3 / NG6 standards. This 4-way, 2-position solenoid directional valve features spring offset configuration (with SOL.b solenoid) and operates on DC24V supply. Constructed from high-strength cast iron, the valve body delivers superior rigidity and fatigue resistance. The product is designed to IEC Pub529 IP65 dust and water-proof standards and complies with European CE safety regulations. The KSO-G02-2BP-30-E-2T is compatible with modular stack valves in 02 and 03 series.
Model Code Breakdown (KSO-G02-2BP-30-E-2T):
KSO: Solenoid Pilot-Operated Directional Control Valve Series
G02: Nominal Size G02 (1/4 inch, NG6 / CETOP 3)
2BP: 4-way, 2-position, Spring Offset (with SOL.b solenoid)
30: Design Series Number
E: Voltage Code — DC24V
2T: Option Code — Terminal Box Type with Indicator Light
Technical Specifications
Model: KSO-G02-2BP-30-E-2T
Brand: DAIKIN
Series: KSO Series
Nominal Size: G02 (1/4 inch)
Mounting Standard: ISO 4401-03 / CETOP 3 / NG6
Mounting Type: Gasket Mount
Maximum Operating Pressure: 35 MPa (350 kgf/cm²)
Maximum Flow Rate: 100 L/min
Allowable Back Pressure: 17.5 MPa (175 kgf/cm²)
Maximum Shifting Frequency: 240 cycles/min
Protection Class: IEC Pub529 IP65
Insulation Class: Class B (Coil: Class F)
Dielectric Strength: AC1500V for 1 minute
Insulation Resistance: 50 MΩ minimum
Coil Voltage: DC24V
Holding Current: 1.22 A
Holding Power: 29.2 W
Permissible Voltage Fluctuation: 90–110%
Wiring: Terminal Box Type
Indicator Lamp: Equipped
Surge Killer: Not equipped
Compatible Fluids: Petroleum-based hydraulic oil
Duty Rating: Continuous
Mounting Bolts: G02: M5
Weight: 1.7 kg

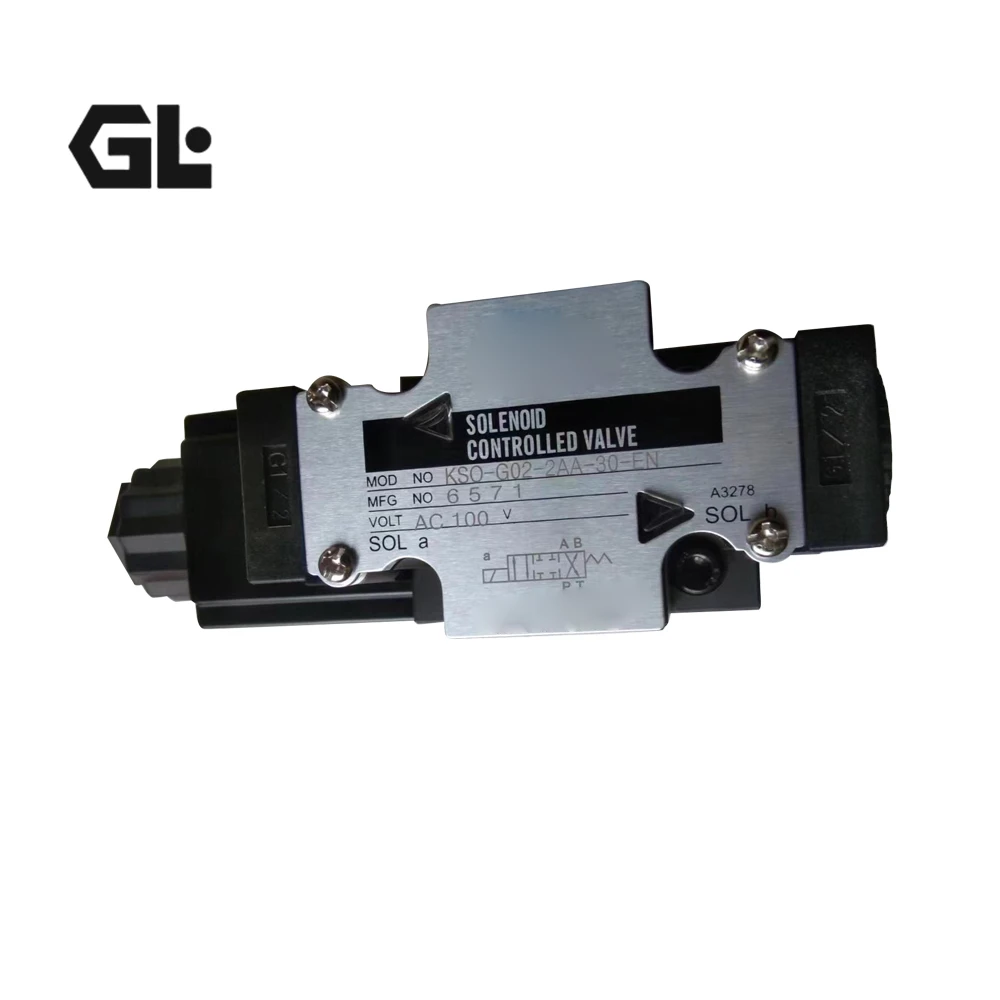

KSO-G02-4CP-30-N
Product Overview
The KSO-G02-4CP-30-N is a classic model in the DAIKIN KSO series of solenoid pilot-operated directional control valves, G02 size (1/4 inch), with mounting pattern conforming to ISO 4401-03 / CETOP 3 / NG6 standards. This 4-way, 3-position solenoid directional valve features spring centered configuration. The N suffix indicates AC100V supply. Constructed from high-strength cast iron, the valve body delivers superior rigidity and fatigue resistance. The product is designed to IEC Pub529 IP65 dust and water-proof standards and complies with European CE safety regulations.
Model Code Breakdown (KSO-G02-4CP-30-N):
KSO: Solenoid Pilot-Operated Directional Control Valve Series
G02: Nominal Size G02 (1/4 inch, NG6 / CETOP 3)
4CP: 4-way, 3-position, Spring Centered
30: Design Series Number
N: Voltage Code — AC100V (50/60Hz)
Technical Specifications (Bulleted List)
Model: KSO-G02-4CP-30-N
Brand: DAIKIN
Series: KSO Series
Nominal Size: G02 (1/4 inch)
Mounting Standard: ISO 4401-03 / CETOP 3 / NG6
Mounting Type: Gasket Mount
Maximum Operating Pressure: 35 MPa (350 kgf/cm²)
Note: Certain spool types (5C/66C/51C) have maximum operating pressure of 25 MPa (250 kgf/cm²)
Maximum Flow Rate: 100 L/min
Allowable Back Pressure: 17.5 MPa (175 kgf/cm²)
Maximum Shifting Frequency: 240 cycles/min
Protection Class: IEC Pub529 IP65
Insulation Class: Class B (Coil: Class F)
Dielectric Strength: AC1500V for 1 minute
Insulation Resistance: 50 MΩ minimum
Coil Voltage: AC100V (50/60Hz)
Wiring: Terminal Box Type
Indicator Lamp: Equipped
Compatible Fluids: Petroleum-based hydraulic oil
Duty Rating: Continuous
Mounting Bolts: G02: M5
Weight: Approx. 1.7 kg

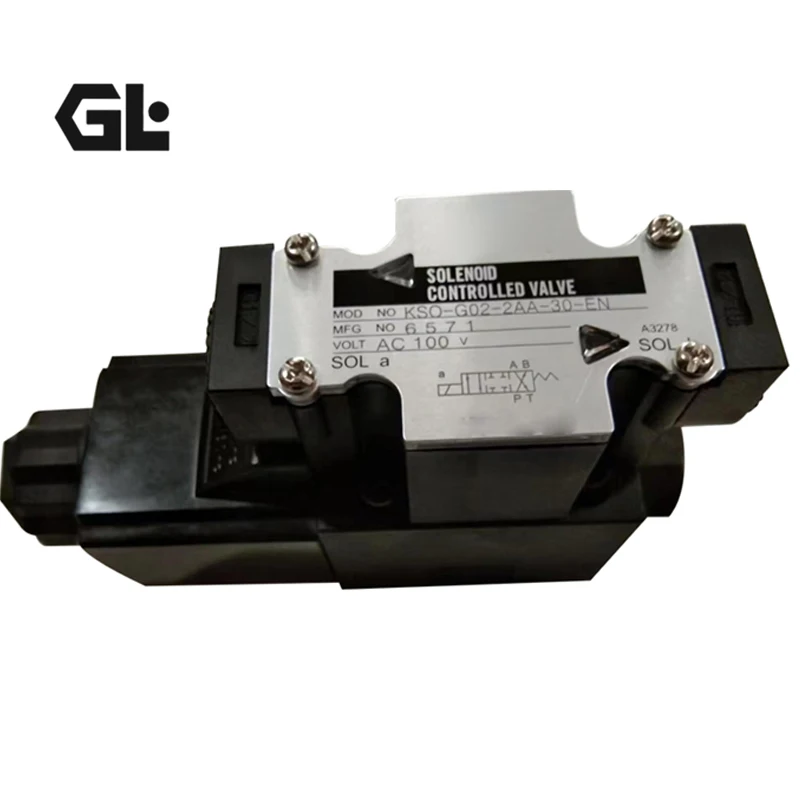

KSO-G02-2B8-30
Product Overview
The KSO-G02-2B8-30 is a classic model in the DAIKIN KSO series of solenoid pilot-operated directional control valves, G02 size (1/4 inch), with mounting pattern conforming to ISO 4401-03 / CETOP 3 / NG6 standards. This 2-way, 2-position solenoid directional valve features spring offset configuration and operates on AC200V supply. Constructed from high-strength cast iron, the valve body delivers superior rigidity and fatigue resistance. The product is designed to IEC Pub529 IP65 dust and water-proof standards and complies with European CE safety regulations.
Model Code Breakdown (KSO-G02-2B8-30):
KSO: Solenoid Pilot-Operated Directional Control Valve Series
G02: Nominal Size G02 (1/4 inch, NG6 / CETOP 3)
2B8: 2-way, 2-position, Spring Offset
30: Design Series Number
Technical Specifications
Model: KSO-G02-2B8-30
Brand: DAIKIN
Series: KSO Series
Nominal Size: G02 (1/4 inch)
Mounting Standard: ISO 4401-03 / CETOP 3 / NG6
Mounting Type: Gasket Mount
Maximum Operating Pressure: 35 MPa (350 kgf/cm²)
Maximum Flow Rate: 100 L/min
Allowable Back Pressure: 17.5 MPa (175 kgf/cm²)
Maximum Shifting Frequency: 240 cycles/min
Protection Class: IEC Pub529 IP65
Insulation Class: Class B (Coil: Class F)
Dielectric Strength: AC1500V for 1 minute
Insulation Resistance: 50 MΩ minimum
Coil Voltage: AC200V (50/60Hz)
Wiring: Terminal Box Type
Compatible Fluids: Petroleum-based hydraulic oil
Duty Rating: Continuous
Mounting Bolts: G02: M5
Weight: Approx. 1.7 kg
Key Technical Advantages (KSO-G02 Series Common)
1. High-Pressure High-Flow Performance
The KSO-G02 series delivers an exceptional combination of 35 MPa (350 kgf/cm²) operating pressure and 100 L/min flow capacity. This performance places it at the forefront of NG6 size solenoid directional valves, making it suitable for demanding high-pressure, high-flow hydraulic systems.
2. Rugged Environmental Protection
Designed to IEC Pub529 IP65 dust and water-proof standards, the valve features effective protection against dust ingress and water jets from any direction. CE compliance makes it suitable for export to European markets and equipment requiring CE certification.
3. High-Reliability Solenoid System
The solenoid coil utilizes Class F insulation material for excellent heat resistance. Under DC24V supply, holding current is 1.22 A with holding power of 29.2 W. The valve accommodates 90–110% voltage fluctuation. Insulation resistance exceeds 50 MΩ with dielectric strength of AC1500V for 1 minute. The solenoid supports continuous duty rating.
4. Precision Machining and Long Service Life
The valve body is manufactured from high-strength cast iron, with spool and bore surfaces precision-ground to ensure minimal internal leakage and long-term shifting accuracy. With a maximum shifting frequency of 240 cycles/min, the valve is ideal for high-cycle applications. The highly reliable KSO-G02 pilot valve ensures long service life and stable operation.
5. Modular Stack Valve Compatibility
The KSO-G02 series supports modular stack valve configurations. Allows flexible integration of throttle valves, check valves, pressure reducing valves, and other hydraulic components—significantly simplifying hydraulic system layout and reducing leakage risk. G02 size uses M5 mounting bolts.
6. Flexible Spool Functions and Electrical Options
The KSO-G02 series offers a wide range of spool configurations—2-way 2-position (2B8), 4-way 2-position spring offset (2BP), 4-way 3-position spring centered (4CP), and more. Supports multiple voltage options including AC100V, AC200V, and DC24V. Terminal box type with indicator lamp enables quick field status checks.
Application Areas
KSO-G02-2BP-30-E-2T (4-way, 2-position, spring offset, DC24V):
Unloading Circuits — System unloading and pressure release control
Hydraulic Cylinder Rapid Traverse — Oil circuit switching for differential circuits
Cooling and Filtration Circuits — On/off control for auxiliary oil circuits
Safety Interlock Devices — Emergency shutdown and safety valve control
KSO-G02-4CP-30-N (4-way, 3-position, spring centered, AC100V):
CNC Machine Tools — Directional control for machine tool hydraulic systems
Injection Molding Machinery — Directional control for auxiliary functions
General Industrial Hydraulic Systems — Standard 4-way, 3-position directional control
KSO-G02-2B8-30 (2-way, 2-position, spring offset, AC200V):
Unloading Circuits — System unloading and pressure release control
Cooling and Filtration Circuits — On/off control for auxiliary oil circuits
Safety Interlock Devices — Emergency shutdown and safety valve control
Expert Maintenance Tips
1. Installation Guidelines
G02 size mounting surface must conform to ISO 4401-03 / CETOP 3 / NG6 standards.
Use M5 mounting bolts.
Thoroughly clean the mounting surface and all ports (P, A, B, T) before installation to prevent foreign particles from entering and causing spool sticking or seal damage.
KSO-G02 series supports modular stack valve configurations—pay attention to sealing and bolt length between stacked valve layers.
2. Hydraulic Fluid Cleanliness
Recommended fluid: Petroleum-based hydraulic oil.
Note: Certain spool types (5C/66C/51C) have maximum operating pressure of 25 MPa (250 kgf/cm²) , not 35 MPa.
Install a return line filter with minimum 25 μm filtration rating upstream of the valve.
3. Electrical Connection Specifications
KSO-G02-2BP-30-E-2T uses DC24V supply, with permissible voltage fluctuation of 90–110%.
KSO-G02-4CP-30-N uses AC100V (50/60Hz) supply.
KSO-G02-2B8-30 uses AC200V (50/60Hz) supply.
KSO-G02-2BP-30-E-2T features terminal box wiring with indicator lamp. Pay attention to indicator light connections during wiring.
Ensure the terminal box cover is properly sealed to maintain IP65 protection.
4. Back Pressure Control
G02 size system return line back pressure must not exceed 17.5 MPa (175 kgf/cm²) .
If back pressure is excessive, consider using a dedicated return line or routing the valve return port directly to the tank.
5. Periodic Maintenance Inspection
Inspect the valve body for external oil leakage every 2,000 operating hours or at least annually.
Check terminal boxes for looseness, oxidation, or moisture ingress.
If response lag or unstable shifting is observed, first check system fluid cleanliness and verify the spool is not sticking.
Indicator lamps help quickly verify solenoid energization status.
