Danfoss MCV115 MCV104 KVEBB Series Control Valve Replacement

Genlu Hydraulic stands as a world-class engineered fluid power component manufacturer, electrostatic closed-loop transmission control specialist, and global B2B supplier of high-precision electrohydraulic servo valve groups. This product profile features replacement control assemblies for the Danfoss / Sauer-Danfoss Series 90 heavy-duty axial piston variable displacement pumps, encompassing the KVEBB (KVEBB1002, KVEBB1804) Electrical Displacement Control (EDC) assemblies, the KVME11201 servo spool valves, and the MCV Pressure Control Pilot (PCP) / Hydraulic Displacement Control (HDC) valves (MCV104A5922, MCV105C3022, MCV115A0509, MCV115EH0709, MCV115EH1009).

Operating as the command center for hydrostatic transmissions (HST), these valves control the pump’s swashplate angle, determining travel speed, directional response, and systemic stability for heavy off-road machinery. Genlu’s premium replacements match the exact torque-motor electrical impedance, double-nozzle flapper clearances, and mechanical feedback characteristics detailed in the original factory technical manuals. We guarantee 100% Drop-in Interchangeability without adjusting existing linkages or electronics. Prior to shipping, every control valve undergoes 100% Full-Simulation Condition Testing on digitized hydraulic benches to verify precise control pressure response, neutral linearity, and resistance to environmental vibration.

Technical Specifications

• Compatible Base Systems: Danfoss / Sauer-Danfoss Series 90 Hydrostatic Pumps (Fits frames 30cc, 42cc, 55cc, 75cc, 100cc, 130cc, 180cc, and 250cc)

• Cross-Reference Configuration Mapping:

  • KVEBB1002 / KVEBB1804: Two-stage Electrohydraulic Displacement Control (EDC) with mechanical feedback linkage

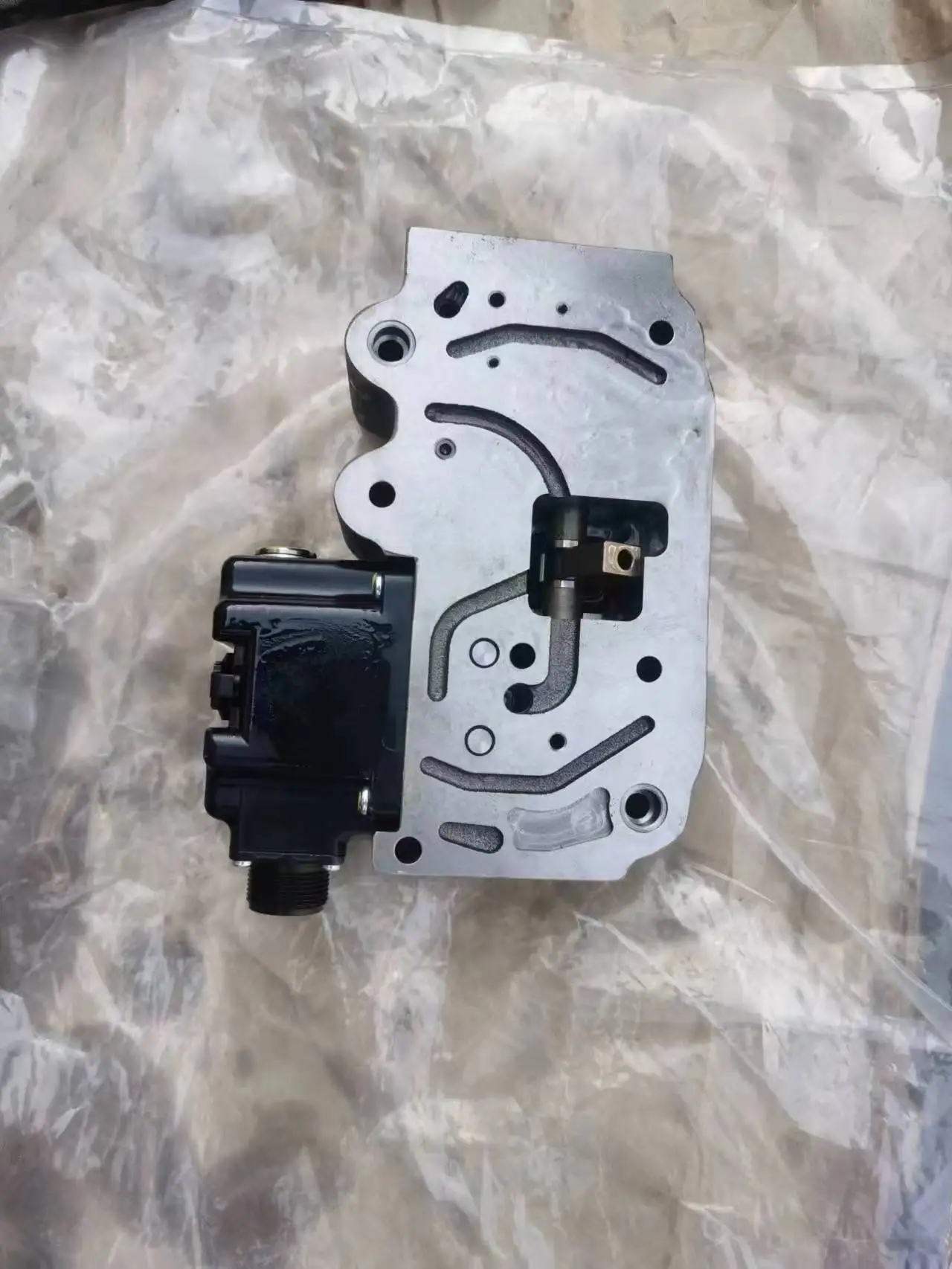

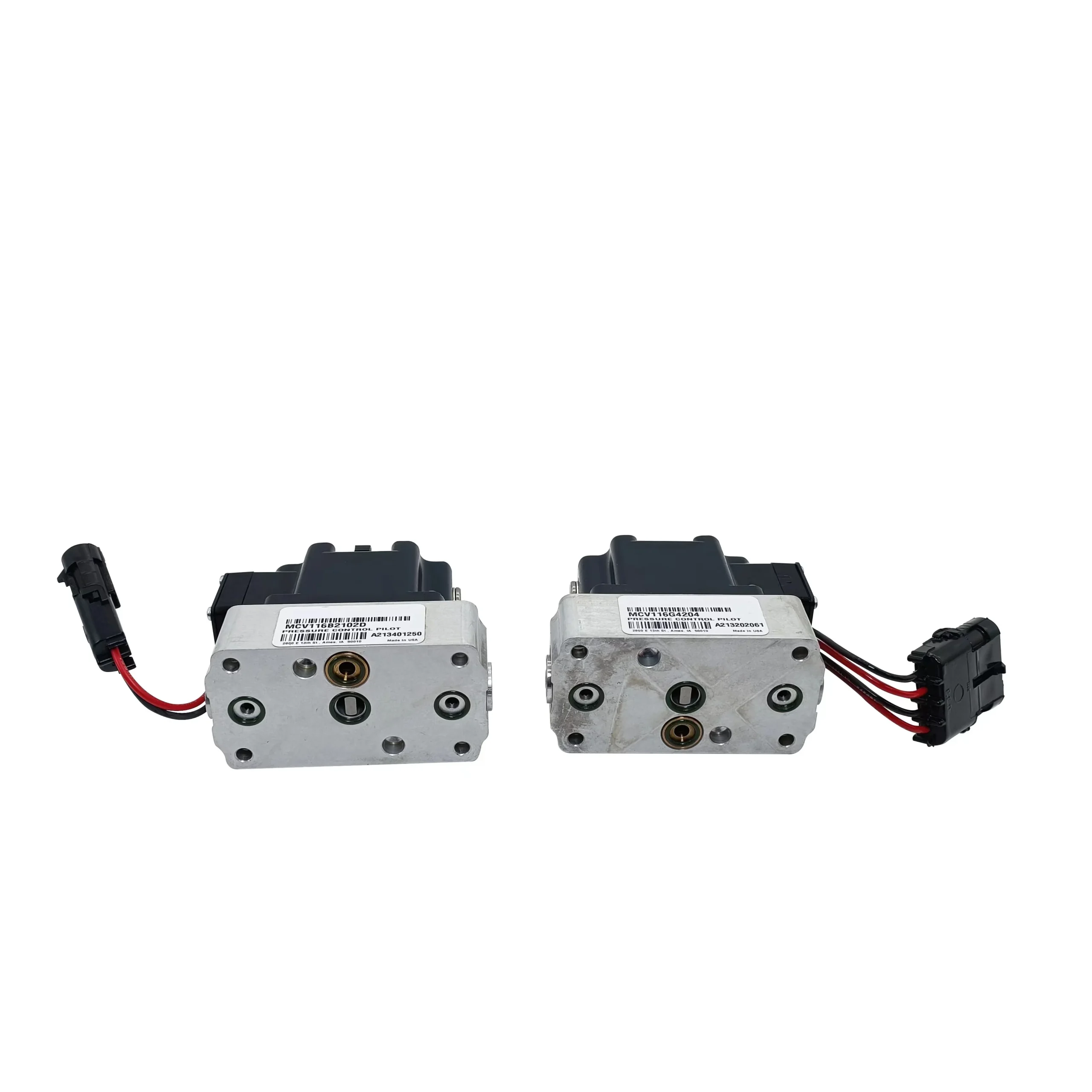

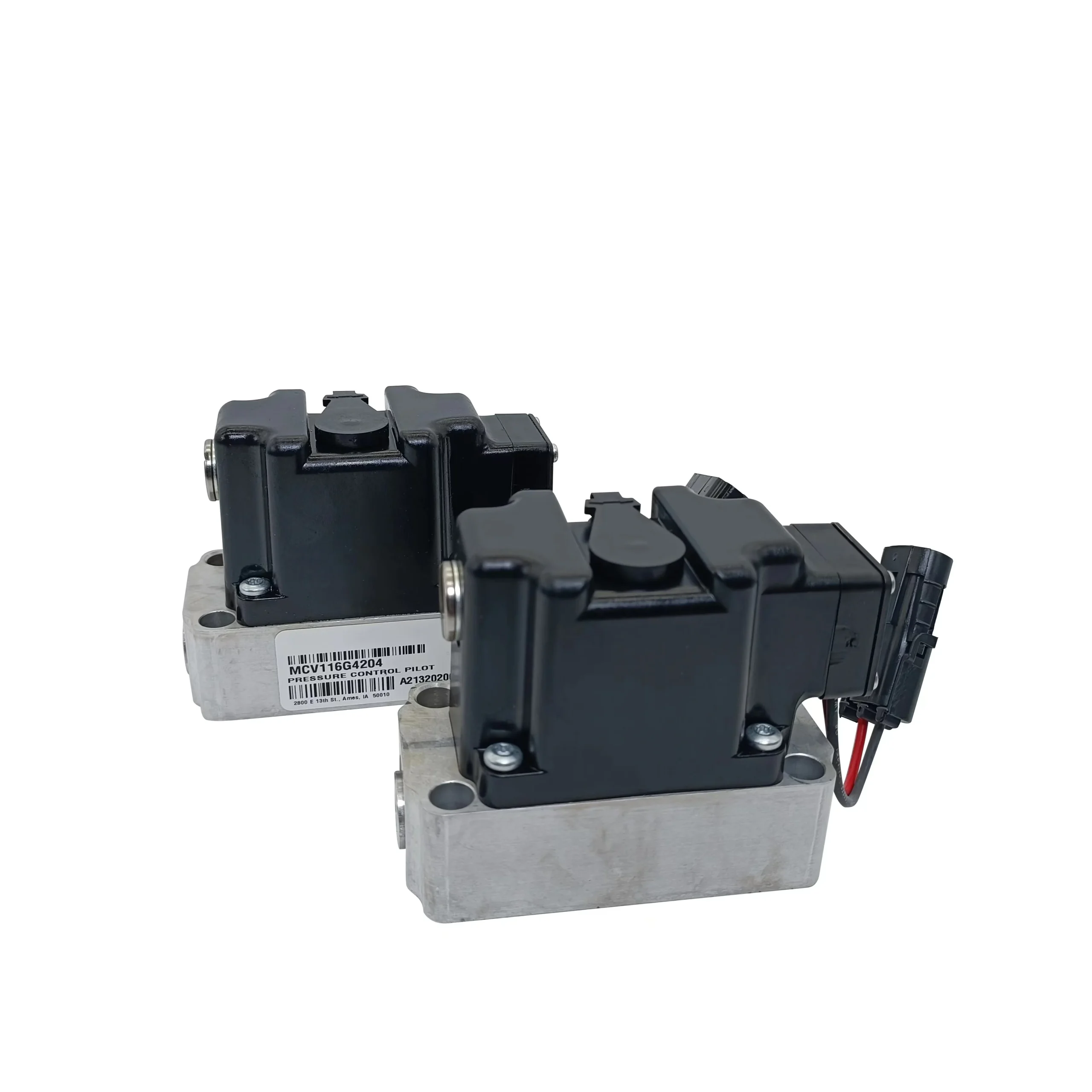

  • MCV104A5922 / MCV105C3022: Single-stage torque-motor actuated double-nozzle flapper Pressure Control Pilot (PCP) valve

  • MCV115A0509: Hydromechanical Displacement Control (HDC) for 55cc pumps, configured with a 6-18 bar spring rating

  • MCV115EH0709 / MCV115EH1009: Integrated electro-hydraulic control kit dedicated to Series 90 75cc and 100cc pumps

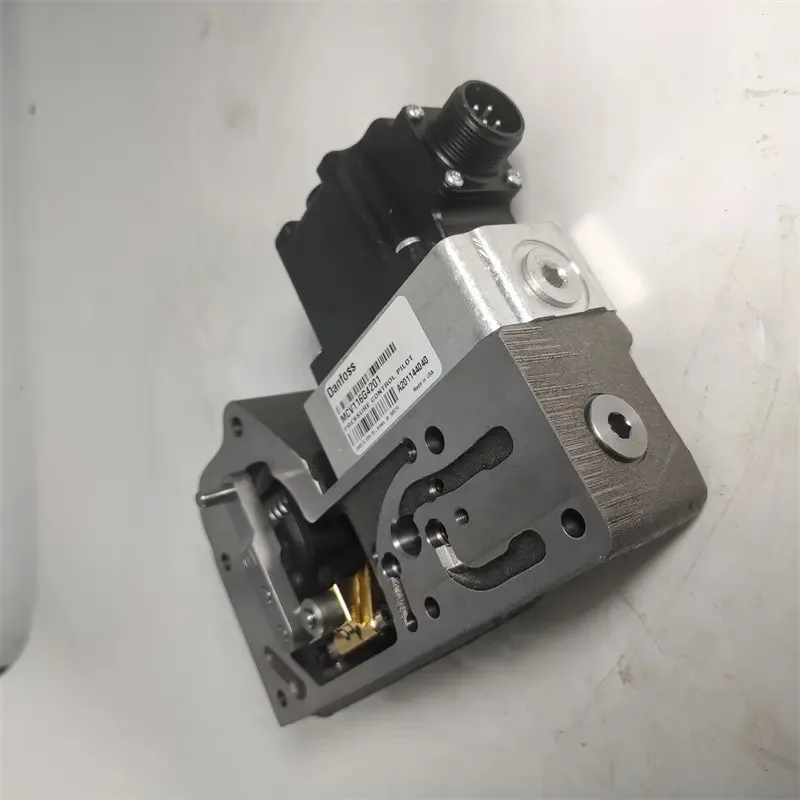

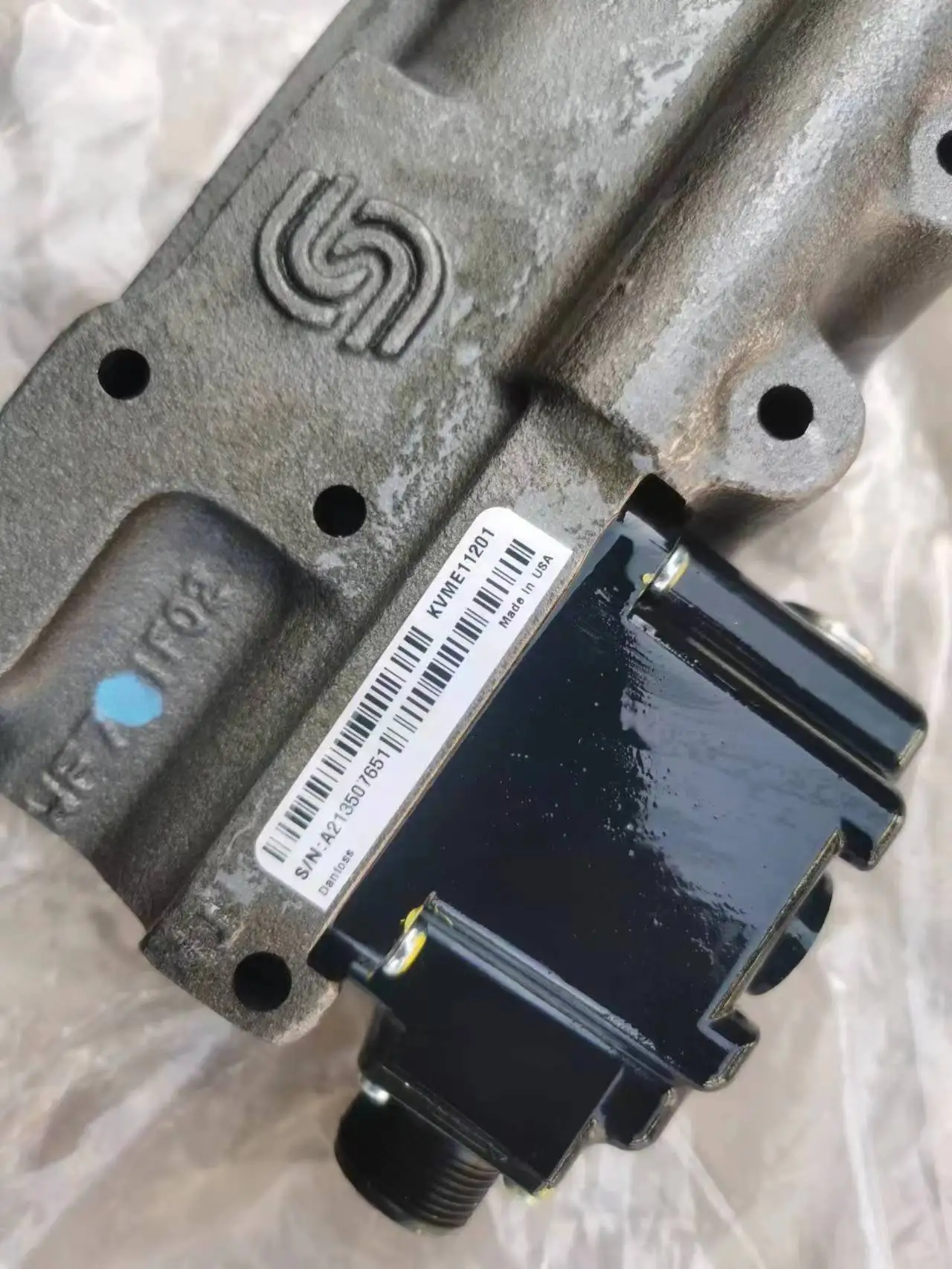

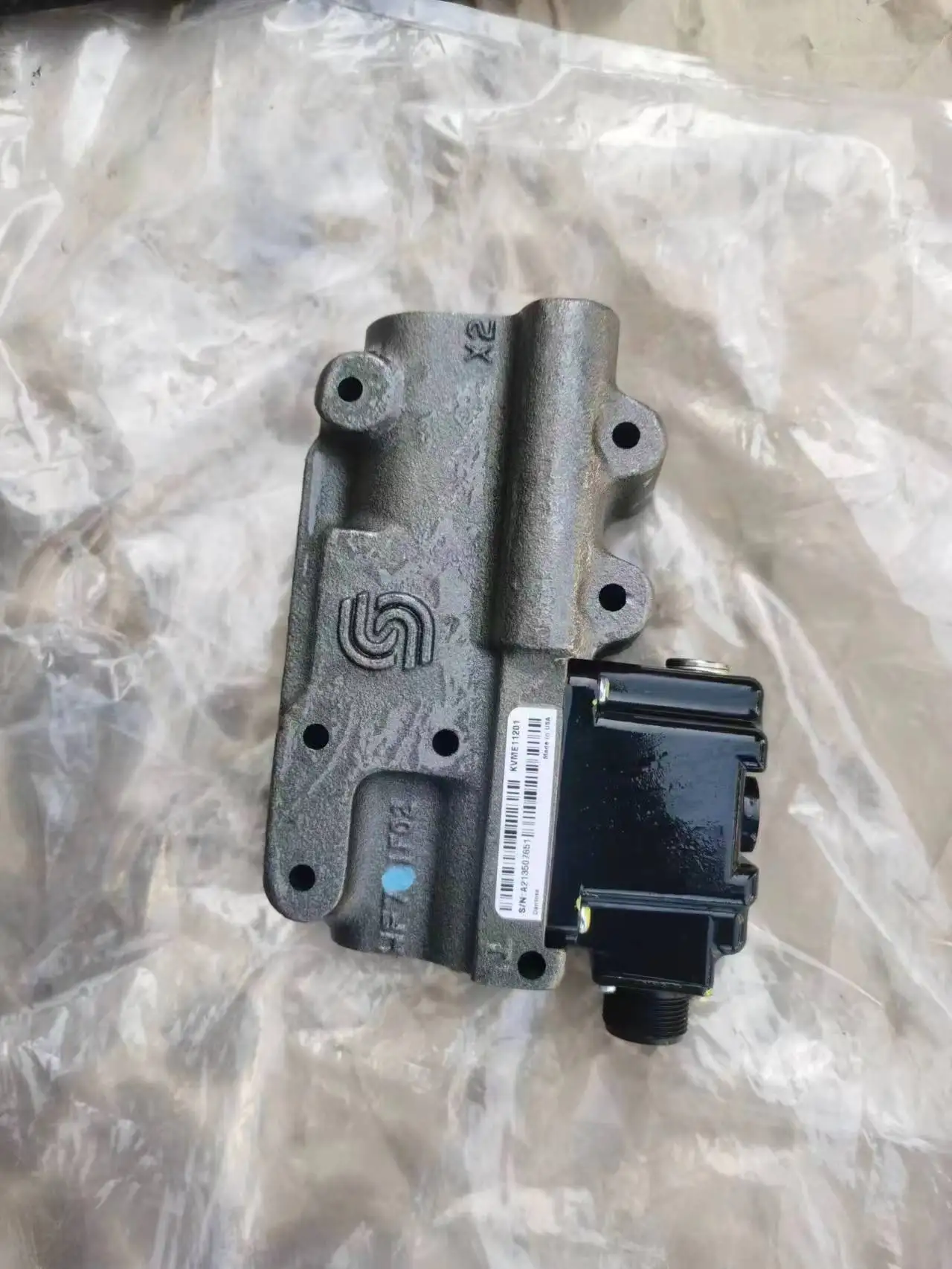

  • KVME11201: Internal replacement main servo feedback spool valve block assembly

• Input Electrical Control Signal Limits: Current-controlled modulation ranging from 14 mA to 85 mA (Typical scale factors from 1.15 to 6.2 psid/mA based on coil configuration)

• Operating Charge Supply Pressure Requirements: Nominally 20 to 30 bar (300 to 400 psi) above pump internal case pressure

• Maximum Permissible Continuous Case Pressure: Rated at 5 bar (0.5 MPa / 72.5 psi)

• Dynamic Command Response Time: Less than or equal to 0.30 seconds from zero to full pump stroke (Non-pressure-limited configurations)

• Required System Filtration Cleanliness: Conforming to ISO 4406 Code 18/15 or cleaner, utilizing 10-micron nominal fluid filtration

• Operating Fluid Temperature Envelope: Rated functional from -40 °C to 104 °C (-40 °F to 220 °F), with intermittent peaks up to 121 °C

• Recommended Oil Viscosity Operating Matrix: 40 to 6000 SUS (4.2 to 1287 cSt)

• Total Valve Assembly Net Weight Range: 2.5 kg to 5.3 kg depending on specific staging and integrated features

Key Technical Advantages:

• Isolated Null Deadband Geometry to Prevent Drift: The internal spool-and-barrel mechanism isolates the mechanical safety null deadband from the servo feedback linkage. This configuration prevents command drift caused by heavy structural vibrations, ensuring that the pump stays at zero displacement when no electrical command signal is applied.

• Silicone Oil-Filled Torque Motor to Manage Vibration: The torque motor in the MCV104 and MCV115 pilot valves features a sealed silicone fluid cavity. This fluid dampens the flapper and armature assembly, absorbing structural vibrations from 5 Hz to 2000 Hz at acceleration levels up to 46g. This damping eliminates pilot pressure fluctuations and provides stable pump control.

• Ultra-Precision Ground 440C Stainless Steel Spool Interfaces: The feedback slider valves (such as the KVME11201) are machined from high-hardenability aerospace-grade 440C stainless steel and vacuum heat-treated to a surface hardness above HRC60. With a clearance tolerance of 2 to 3 microns, these spools resist hydraulic lock and fluid erosion through millions of high-pressure control cycles.

• Integrated Multi-Layer Stainless Steel Protective Screens: To protect components from micro-particles in heavy equipment applications, high-mesh stainless steel screen filters are integrated into the primary inlet and pilot passages. These screens catch contaminants larger than 10 microns, keeping debris out of the dual-nozzle flapper orfice to prevent valve sticking.

Application Areas:

• High-Tier Municipal Road and Paving Equipment: Closed-loop hydrostatic ground drives for asphalt paving machines and dual-drum vibratory compactors.

• Heavy Agricultural Propulsion and Harvesting Machinery: Main Hydrostatic Transmission (HST) pump controls for multi-crop combine harvesters and tracked sugarcane harvesting equipment.

• Directional Utility Drilling and Industrial Winch Systems: Electrohydraulic servo controls for horizontal directional drilling (HDD) rotation pumps and heavy-duty marine towing winches.

Expert Maintenance Tips:

• Mandatory Inspection and Cleaning of the Charge Interface Screen Filters: Before mounting a replacement MCV115 or KVEBB valve group, clean the internal screen filters located near the pump charge port interface and change the main system loop filter. Fine pipe scale or metal burrs generated during initial startup can plug the pilot nozzle; check the valve’s side screens after the first 10 hours of operation.

• Strict Adherence to PWM Carrier Frequency Boundaries: While the KVEBB series supports Pulse Width Modulation (PWM) signals, the carrier frequency must be set at or above 200 Hz (recommended range 200 Hz to 400 Hz). Driving the torque motor with a PWM frequency below 200 Hz causes excessive armature chatter, which leads to premature wear on the flapper-nozzle subassembly.

• Standardized Fluid Purging and Mechanical Neutral Realignment: After replacing a control valve, elevate the machine’s drive wheels or tracks off the ground for safety. Start the engine and run at low idle without load. Bleed trapped air from the servo cavities through the gauge plugs, then adjust the external Neutral Adjust screw until the differential pressure between test ports MA​ and MB​ reads zero ($\Delta p=0$) before locking the nut.
