KVME11204 Danfoss KVEB Pilot Valve Series 90

Product Overview

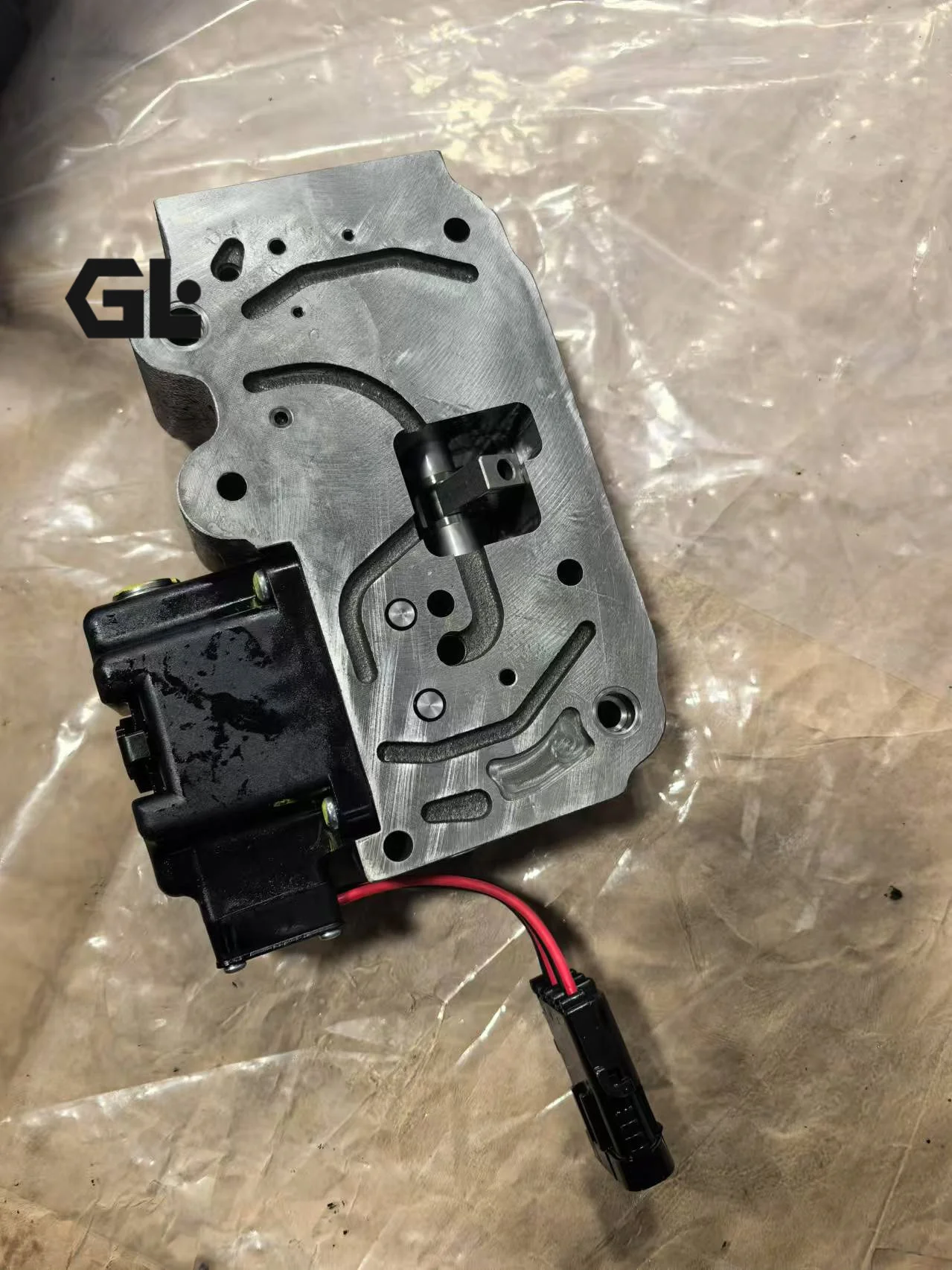

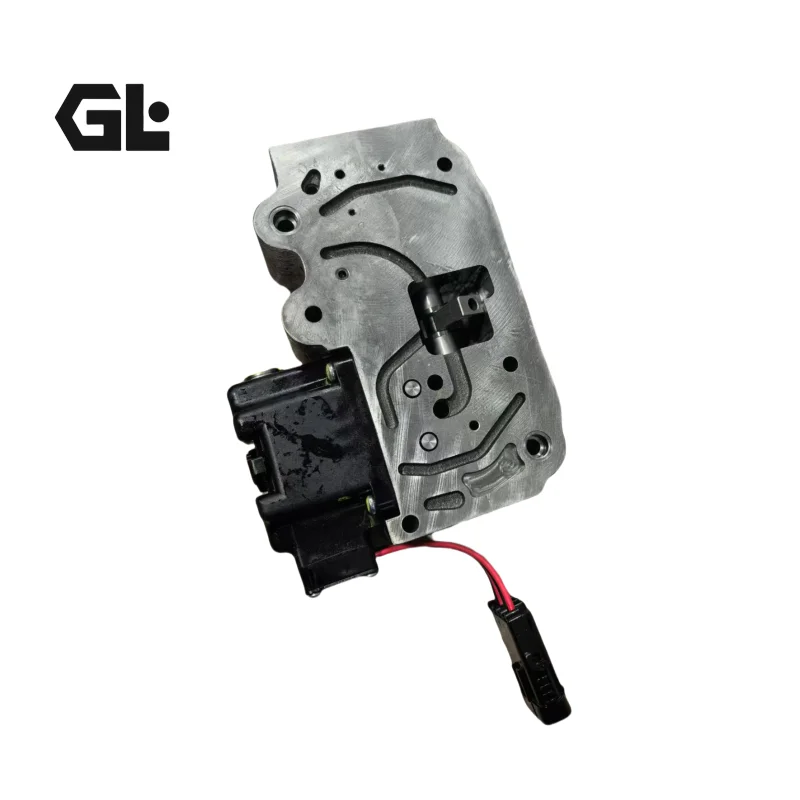

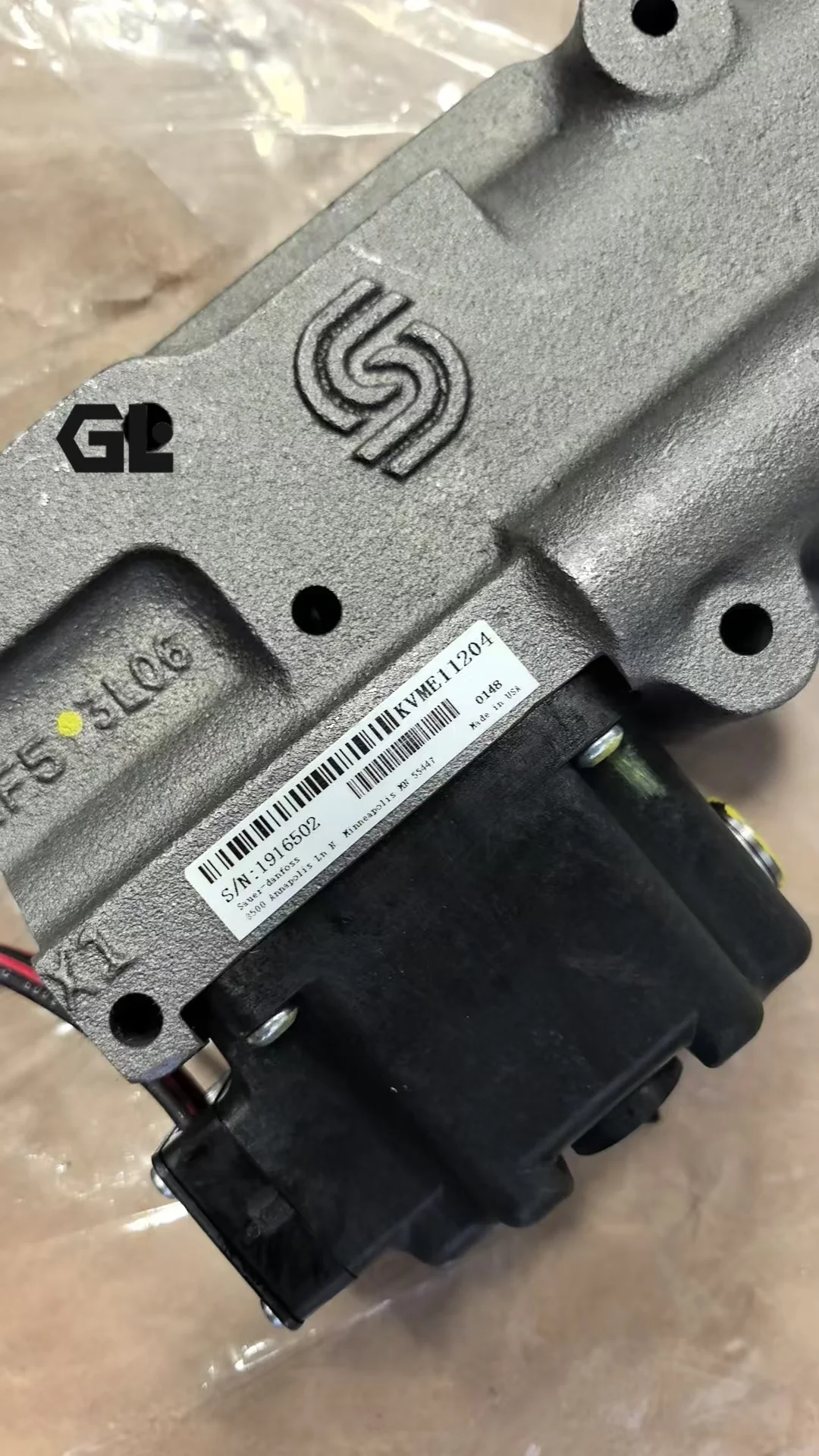

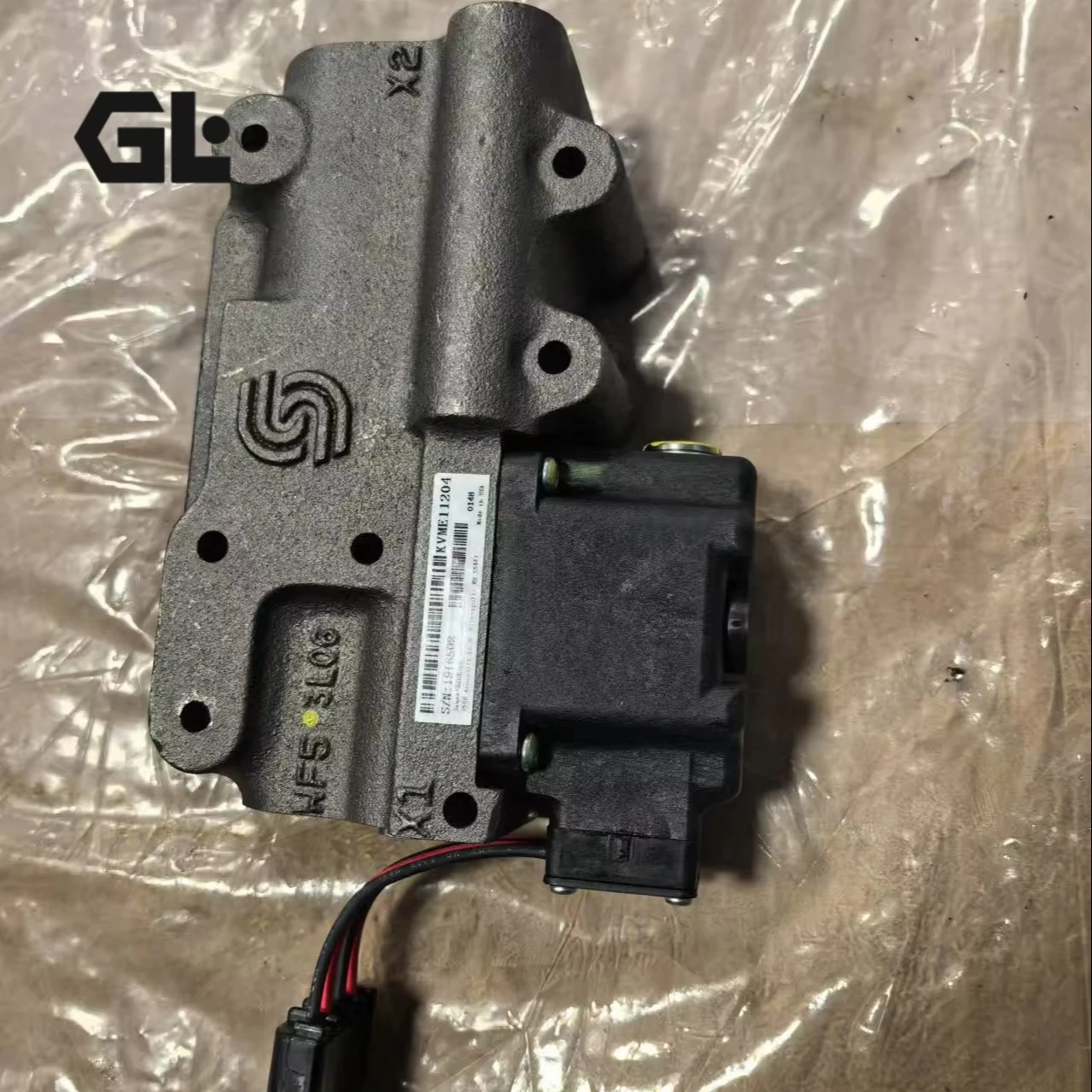

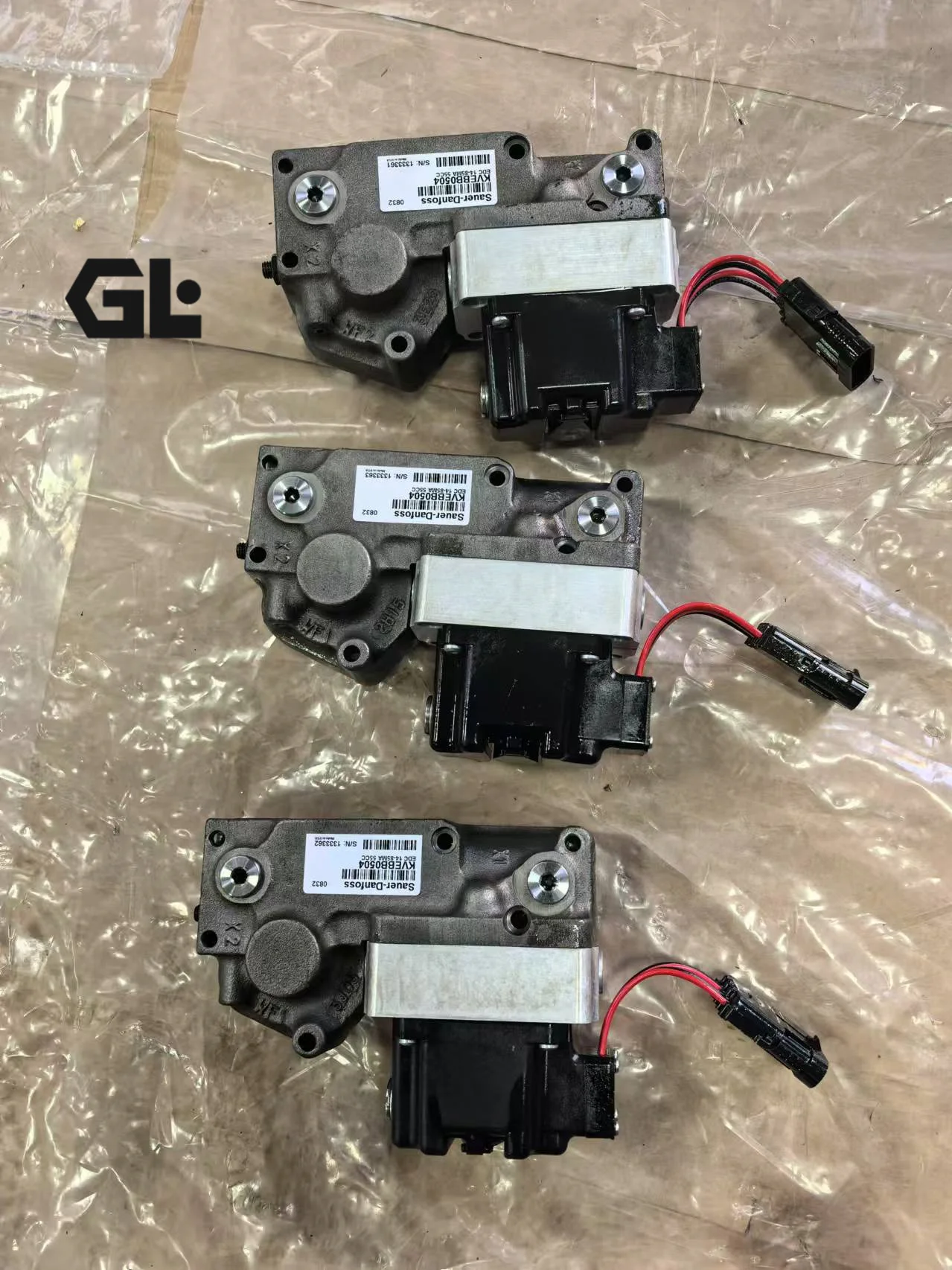

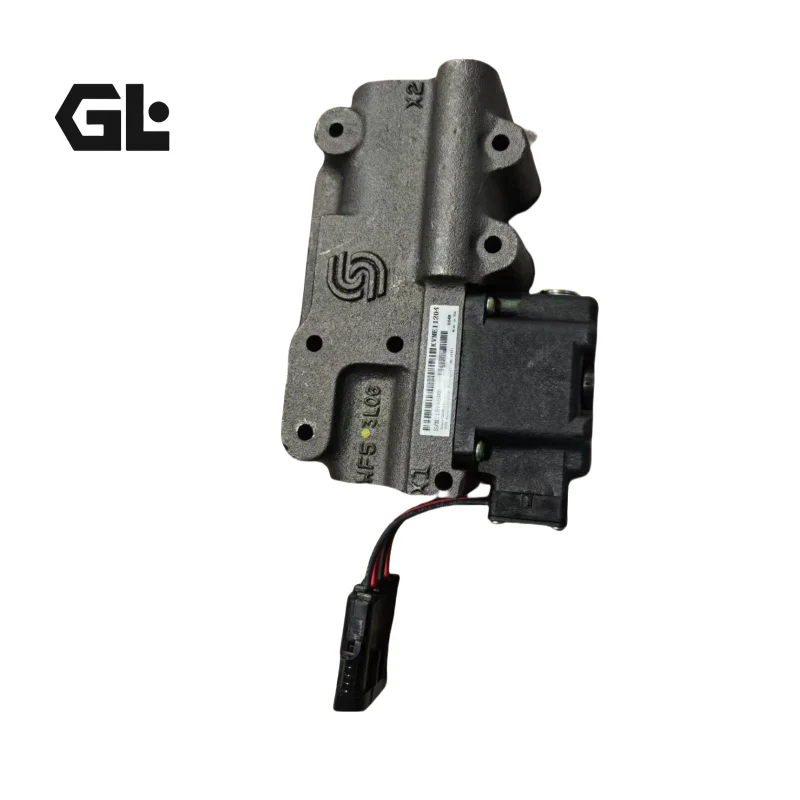

The KVME11204 (and related models KVME11201, KVEBB1404, KVEBB1802) is a pressure control pilot valve compatible with the Danfoss/Sauer-Danfoss KVEB series Electrical Displacement Control (EDC), designed for Series 90 variable displacement piston pumps. This two-stage electro-hydraulic valve features a torque-motor-actuated double-nozzle flapper Pressure Control Pilot (PCP, corresponding to the MCV116 series) in the first stage that generates differential output pressure proportional to the electrical signal. The second stage uses this differential pressure to drive the spool and precisely control pump swashplate angle via closed-loop mechanical feedback. Fully interchangeable with original KVEB/KVME series units, it is ideal for paving machines and mobile equipment. Every unit undergoes rigorous simulated duty-cycle testing for reliable high-pressure performance.

Technical Specifications

• Model: KVME11204 (primary); compatible variants: KVME11201, KVEBB1404, KVEBB1802
• Type: Pressure control pilot valve (two-stage electro-hydraulic servo for pump displacement electrical control)
• Compatible Pump: Danfoss Series 90 variable displacement piston pumps
• Control Method: Electrical signal driven (torque motor + mechanical feedback closed loop)
• Pilot Supply Pressure: Typically 300-400 psi above case pressure
• Operating Temperature: -40°C to 104°C (matched to Series 90 systems)
• Coil Configuration: Supports single/dual coil (current ranges per configuration, e.g. 14-85 mA dual coil)
• Weight: Approx. 5 kg

Key Technical Advantages

1. Closed-loop mechanical feedback precision control: Integrated spool position mechanical feedback combined with differential pressure output delivers precise, stable pump swashplate angle regulation with fast response and strong disturbance rejection.
2. 100% drop-in interchangeability: Fully compatible interface, function and mounting dimensions with original Danfoss KVEB/KVME series pilot valves — direct replacement without modifying the pump body or control system.
3. High-reliability two-stage design: Torque-motor-driven double-nozzle flapper pilot stage paired with a precision spool ensures low hysteresis and long-term null stability under continuous heavy-duty operation.
4. Harsh-environment capability: Wide temperature range and robust construction, validated by 100% simulated duty-cycle testing, meet the vibration, dust and high-pressure demands of paving machines and construction equipment.

Application Areas

• Asphalt pavers and road construction equipment Series 90 pump displacement electrical control
• Construction machinery (loaders, excavators, cranes) variable pump electro-hydraulic systems
• Agricultural and forestry machinery requiring precise displacement regulation
• Closed-circuit hydraulic systems with electrical displacement control

Expert Maintenance Tips

Verify pilot oil cleanliness at ISO 4406 18/16/13 or better before installation; inspect O-rings and sealing surfaces. Follow original pin assignment and coil configuration strictly; ensure proper signal shielding. Periodically check torque-motor coil resistance and pilot differential pressure; avoid prolonged unloaded operation. Prefer models with matching current range and deadband settings when replacing. Protect precision valve surfaces during service to prevent contamination of the nozzle-flapper mechanism; perform null calibration and system functional testing after installation.
